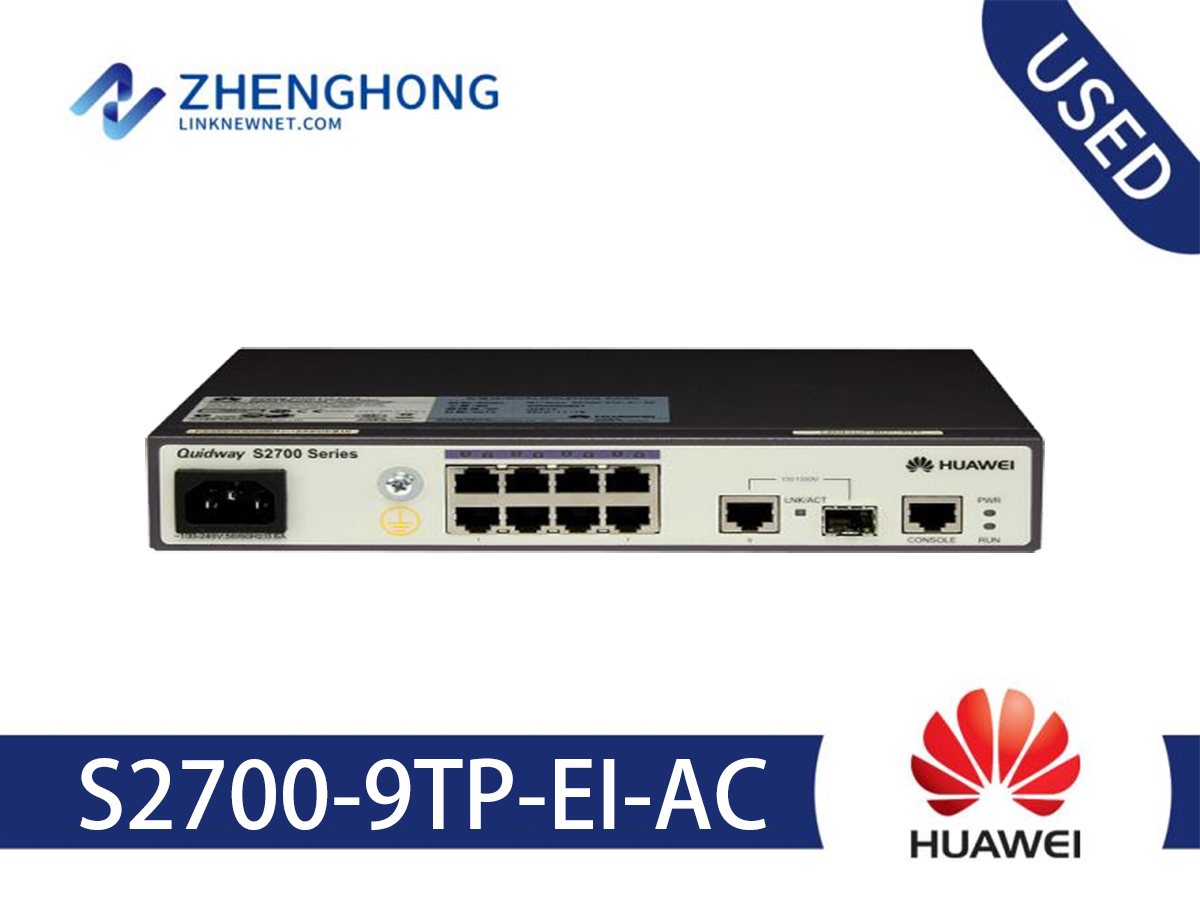

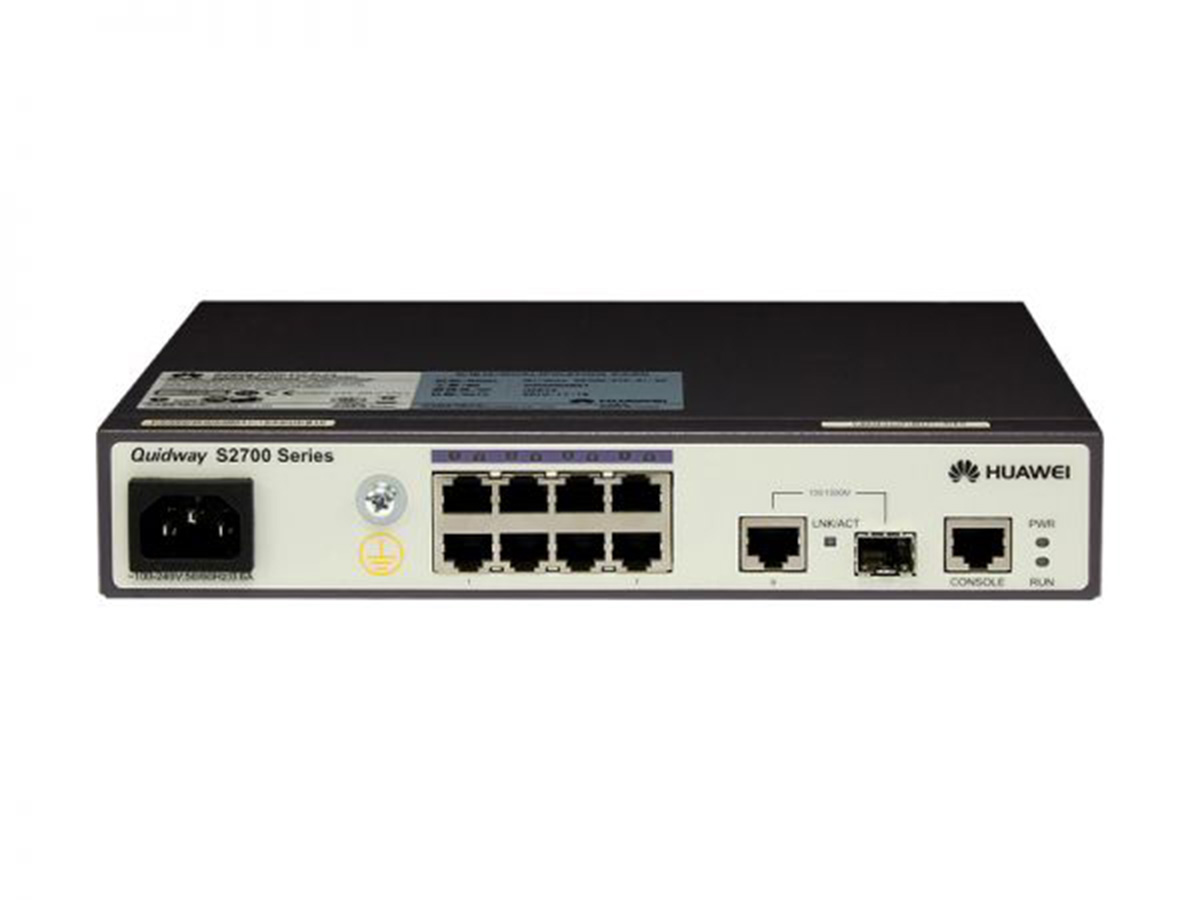

S2700-9TP-EI-AC Specification | |
Port | Eight 10/100Base-TX ports and one gigabit(GE) combo port |
Forwarding performance | 2.68 Mpps |
MAC address table | 8 K MAC address entries |
VLAN features | 4 K VLANs, complying with IEEE 802.1Q |
QoS | Port-based rate limiting and flow-based rate limiting |
IPv6 features | IPv6 host |
Multicast | IGMP v1/v2/v3 snooping |
Port mirroring | 1:1 and N:1 port mirroring |
Security | Port isolation |
Surge protection | 6KV surge protection capability on service ports |
Device management | Auto-Con?g |
Operating environment | Operating temperature: 0°C–50°C (long term); -5°C–55°C (short term) |
Power supply | AC: |
Dimensions: width x depth x height | 250 mm x 180 mm x 43.6 mm |
Weight | 1.4kg |
Power consumption | < 12.8 W |
