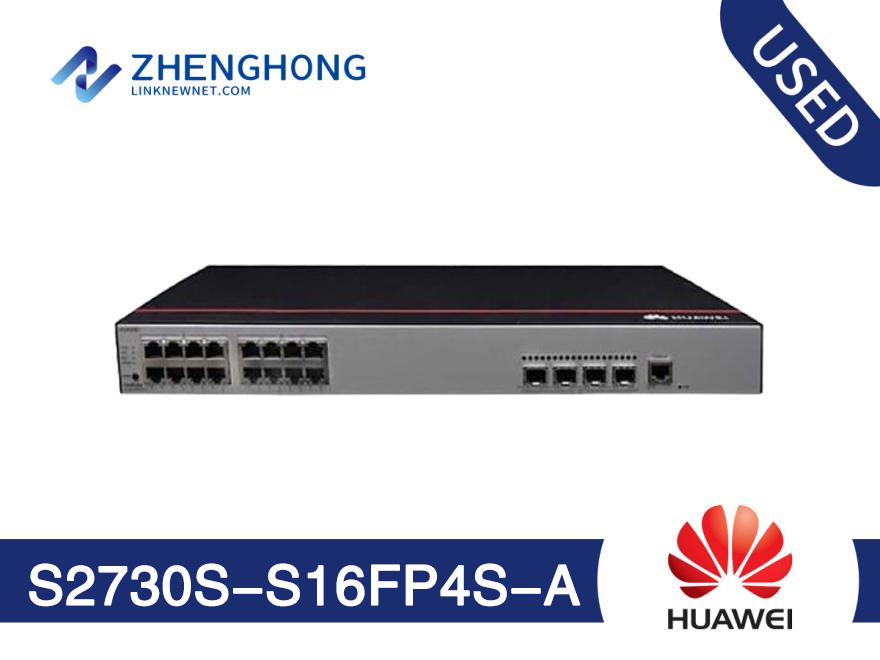

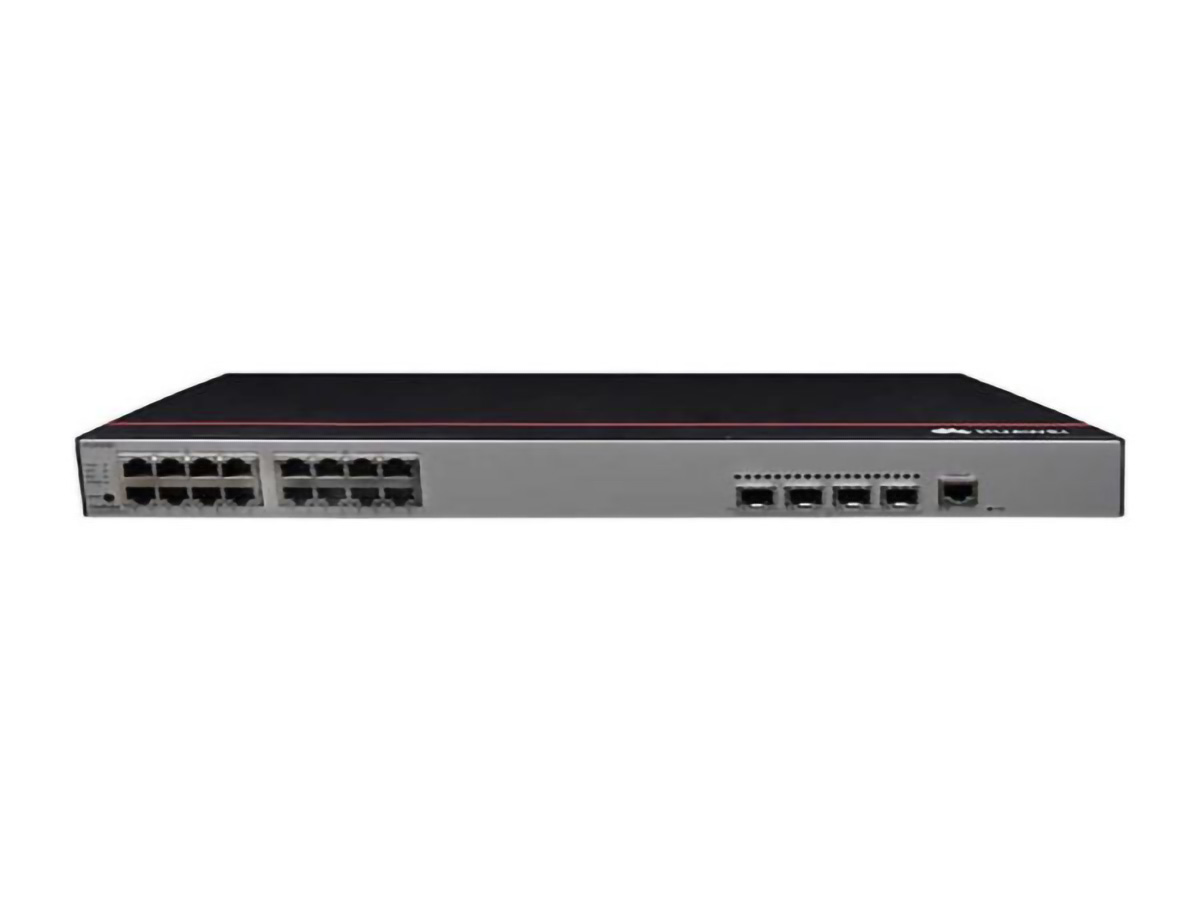

Huawei S2720 Series Switches S2730S-S16FP4S-A Overview
Huawei S2720 Series Switches S2730S-S16FP4S-A is a genuine campus and data-center switching product from Huawei, a worldwide ICT vendor with a strong portfolio of enterprise switches, routers and data-center hardware. Belonging to the Huawei S2720 Series family, the S2730S-S16FP4S-A unit is built to the original factory specification, so it integrates with existing Huawei deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
From a specification standpoint, Power over Ethernet support. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Huawei hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “S2730S-S16FP4S-A, Huawei S2700 Series Switches,8 10 /100BASE-TX Ethernet ports, 8 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the S2730S-S16FP4S-A. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned S2730S-S16FP4S-A
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
S2730S-S16FP4S-A Specification | |
Item | Specification |
PoE | Supported |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm |
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm |
Chassis height [U] | 1 U |
Typical power consumption [W] | 35.6 W |
Typical heat dissipation [BTU/hour] | 121.47 BTU/hour |
MTBF [year] | 58.68 year |
MTTR [hour] | 2 hour |
Number of fans modules | 2 |
Memory | 512 MB |
Flash memory | 512 MB |
Console port | RJ45 |
Service port surge protection [kV] | Common mode: ±7 kV |
Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Airflow direction | Air intake from left and front, air exhaustion from right |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Maximum power consumption [W] |
|
Maximum heat dissipation [BTU/hour] |
|
Maximum power consumption [W] |
|
Maximum heat dissipation [BTU/hour] |
|
