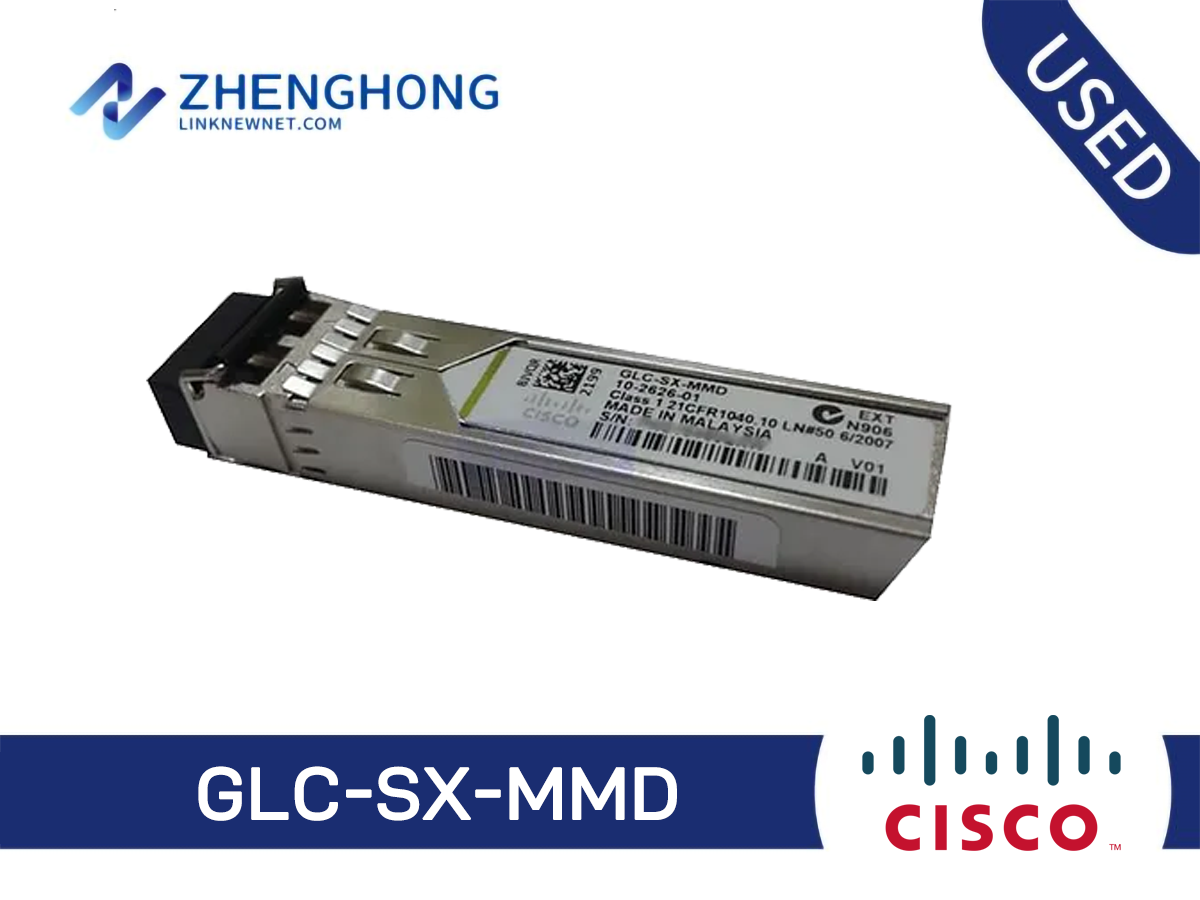

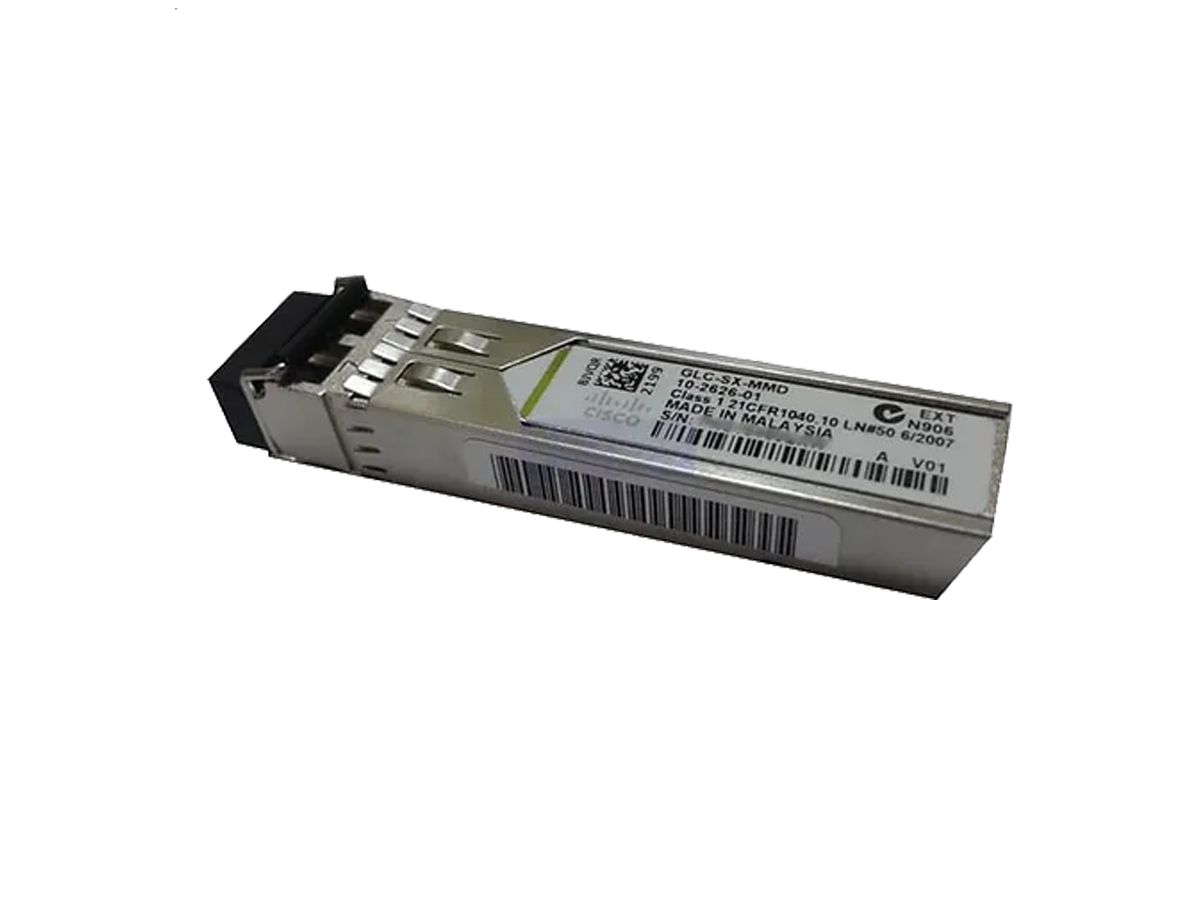

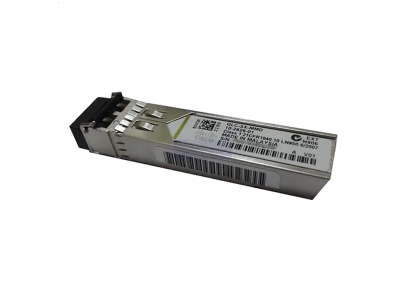

GLC-SX-MMD - Cisco SFP Module

Model: GLC-SX-MMD

Detail: Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

GLC-SX-MMD Specifications
Product Brand	Cisco
Product Name	GLC-SX-MMD
Data Rate	1 Gbps
Interface	SFP
Form Factor	Small Form-Factor Pluggable (SFP)
Cable Type	Multi-Mode Fiber (MMF)
Optical Wavelength	850 nm
DOM Support	Yes
Max Transfer Distance	550 meters (on 50/125 µm MMF)
Tx Power	-9.5 dBm to -3 dBm
Rx Sensitivity	-17 dBm
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Power Consumption	Less than 1W
Protocols Supported	Gigabit Ethernet
Compliance	IEEE 802.3z
EMI Compatibility	FCC Part 15 Class B
Warranty	Limited lifetime
Hot Swappable	Yes
Safety/Environmental Standards	RoHS
MTBF	5 million hours (approx.)

Q&A

What are some common troubleshooting steps for the GLC-SX-MMD?

Check the connection of the module, verify the cleanliness of the fiber, and ensure compatibility with your network equipment.

What accessories are available for the GLC-SX-MMD SFP module?

Accessories include compatible multimode fiber cables, cleaning tools, and protective dust caps.

How does the GLC-SX-MMD compare with similar Cisco SFP modules?

Compared to other Cisco SFP modules, the GLC-SX-MMD is specifically designed for short-reach MMF applications, making it ideal for certain environments.

How is the GLC-SX-MMD module maintained?

Regularly inspect the GLC-SX-MMD for dust and dirt, ensure secure connections, and replace fiber cables as needed to maintain optimal performance.

What's the difference between GLC-SX-MMD and GLC-LH-SMD? What platforms does it support?

Almost all Cisco platforms which have SFP ports can use this GLC-LH-SMD.

Will the price be lower?

Now it has the best price. If you want a lower price, you can join our promotion online to win coupon. The coupon can help you save cost.

Can I return it if it can't fit my demand?

Of course you can. Please contact our sales team when you want to return the product.

Can I use GLC-SX-MMD with GLC-SX-MM?

Yes, of course, they can interact with each other. GLC-SX-MMD is the same 1000BASE-SX SFP transceiver module (MMF, 850nm) as the GLC-SX-MM. The only difference is the presence of future DOM (Digiatal Optical Monitoring) in GLC-SX-MMD.

What is cisco glc sx mmd?

cisco glc sx mmd is a Cisco compatible 1000BASE-SX SFP transceiver module. It is used for short-range multi-mode fiber optic connections with a maximum distance of 550 meters.

What is the data transfer rate of cisco glc sx mmd?

cisco glc sx mmd has a data transfer rate of 1 Gbps (Gigabit per second).

What is the wavelength of cisco glc sx mmd?

cisco glc sx mmd has a wavelength of 850 nm.

What type of connector does cisco glc sx mmd have?

cisco glc sx mmd has an LC duplex connector for fiber optic cables.

What are some of the features of cisco glc sx mmd?

cisco glc sx mmd has several features, including hot-swappable capability, Digital Optical Monitoring (DOM) support, and low power consumption. These features make it easy to install, monitor, and maintain in a network environment.

What is Router-switch?

Router-switch is a company that sells networking equipment such as routers, switches, firewalls, and other related products.

What brands does Router-switch carry?

Router-switch carries a variety of networking equipment brands such as Cisco, Huawei, Juniper, HP, Dell, and more.

Does Router-switch ship internationally?

Yes, Router-switch ships their products internationally. However, customers may need to pay additional customs and taxes depending on their country's regulations.

Does Router-switch offer discounts or promotions?

Yes, Router-switch often offers discounts and promotions on their products. Customers can check their website or subscribe to their newsletter to stay updated on current offers.

Does Router-switch offer customized solutions for specific networking needs?

Yes, Router-switch offers customized solutions for specific networking needs. Customers can contact their sales team and provide their requirements to receive a personalized quote and solution.

What is GLC-SX-MMD?

GLC-SX-MMD is a 1000BASE-SX SFP transceiver module designed for multi-mode fiber (MMF) with a wavelength of 850nm and Digital Optical Monitoring (DOM) capability.

What is the application scenario of GLC-SX-MMD?

GLC-SX-MMD is commonly used in short-range communications and is suitable for building connections within data centers or for interconnecting switches.

How cost-effective is GLC-SX-MMD?

GLC-SX-MMD provides a cost-effective solution for 1 Gigabit Ethernet connectivity, offering high-performance transmission over multi-mode fiber at a competitive price.

How is GLC-SX-MMD installed?

GLC-SX-MMD can be easily installed into compatible Cisco devices with an SFP slot. Simply insert the module into the slot until it clicks into place.

Does GLC-SX-MMD require any upgrades?

GLC-SX-MMD does not require any upgrades as it is a standalone SFP transceiver module. However, it is important to ensure compatibility with the device it will be used in.

Are there any alternative products to GLC-SX-MMD?

Yes, there are alternative SFP transceiver modules available for different transmission distances or wavelength requirements. Please consult our experts for assistance in choosing the right module for your specific needs.

What are the key features of GLC-SX-MMD?

GLC-SX-MMD features a 1000BASE-SX interface, allowing for data transmission at a rate of 1 Gigabit per second. It operates on multi-mode fiber and supports Digital Optical Monitoring (DOM) to monitor optical parameters.

What are the compatible accessories for GLC-SX-MMD?

GLC-SX-MMD is compatible with various Cisco networking devices and can be used with different fiber optic cables and connectors. Please check the compatibility list or consult our experts for more information.

How can GLC-SX-MMD be used?

GLC-SX-MMD can be used to establish high-speed network connections within short-range distances, enabling fast and reliable data transmission between network devices. It is suitable for a wide range of applications, including data centers, enterprise networks, and service provider networks.

How to troubleshoot common issues with GLC-SX-MMD?

If you experience any issues with GLC-SX-MMD, first ensure proper installation and compatibility. Check the fiber optic cables for any damage or loose connections. If problems persist, consult the product documentation or contact our technical support for further assistance.

How cost-effective is the Cisco GLC-SX-MMD transceiver module?

The Cisco GLC-SX-MMD offers a high-performance 1000BASE-SX solution at a competitive price, making it cost-effective for small to large network deployments.

What are the key characteristics of the Cisco GLC-SX-MMD?

The GLC-SX-MMD features 850nm wavelength, supports multimode fiber (MMF), and includes Digital Optical Monitoring (DOM) for real-time performance metrics.

What application scenarios are suitable for the Cisco GLC-SX-MMD?

The Cisco GLC-SX-MMD is ideal for short-range Gigabit Ethernet applications, such as intra-building connections, data centers, and campus networks.

How do I install the Cisco GLC-SX-MMD transceiver module?

Installation is straightforward: insert the GLC-SX-MMD into the SFP slot of a compatible Cisco switch or router, ensuring the module clicks into place securely.

Does the Cisco GLC-SX-MMD require an upgrade after installation?

No immediate upgrade is needed. However, keeping the network equipment's firmware up to date ensures optimal compatibility and performance.

Are there alternative products to the Cisco GLC-SX-MMD?

Alternatives include the GLC-SX-MM-RGD for rugged environments and GLC-SX-MM for similar performance without DOM.

What common troubleshooting steps can I follow for the Cisco GLC-SX-MMD?

Check the physical connections, ensure the transceiver is fully seated, and verify compatibility with the Cisco switch or router model. Use DOM for diagnostics.

What accessories are available for the Cisco GLC-SX-MMD?

Accessories include compatible fiber optic cables, patch panels, and protective dust caps for the transceiver module.

How does the GLC-SX-MMD compare with similar Cisco transceivers?

The GLC-SX-MMD offers DOM, providing additional performance monitoring compared to the basic GLC-SX-MM.

Is the Cisco GLC-SX-MMD compatible with non-Cisco equipment?

While designed for Cisco switches and routers, the GLC-SX-MMD may work with other vendor equipment supporting 1000BASE-SX, but compatibility is not guaranteed.
