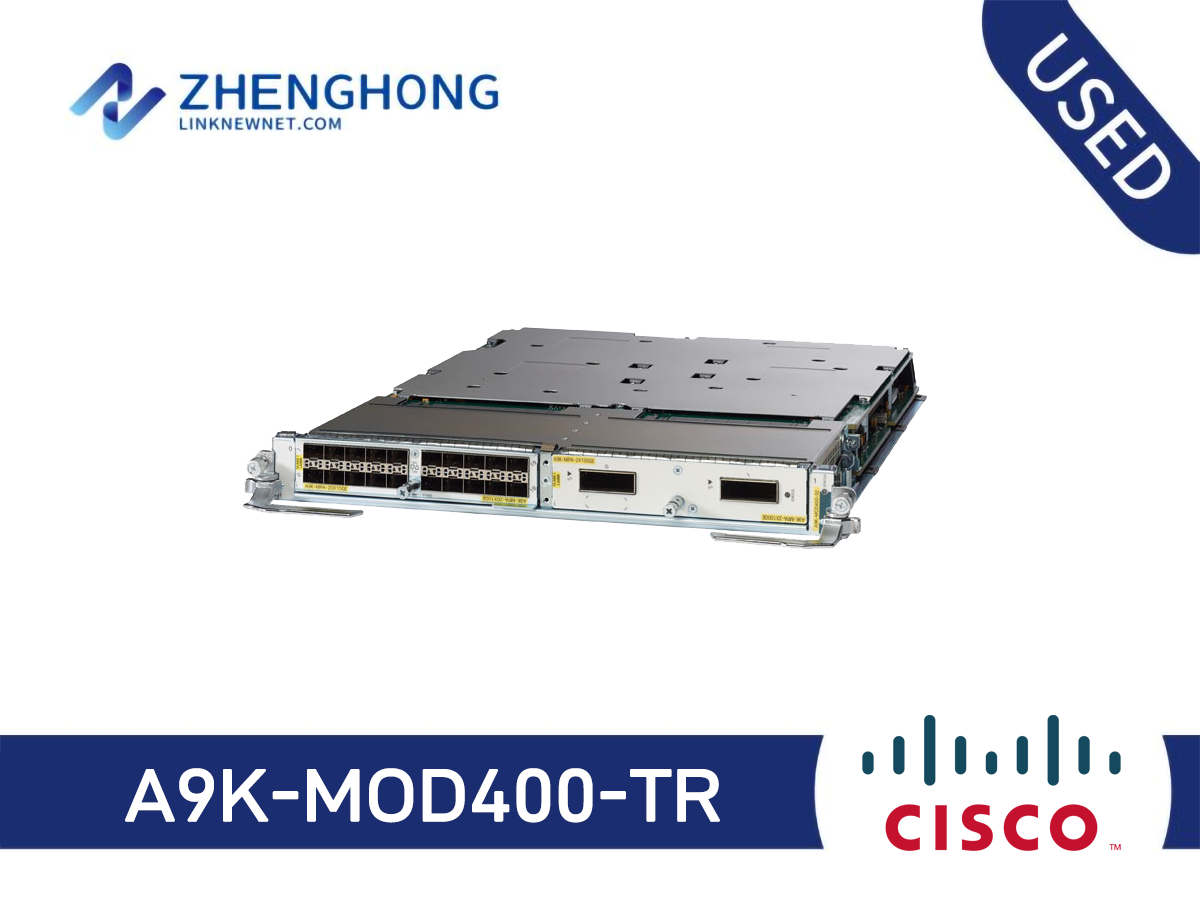

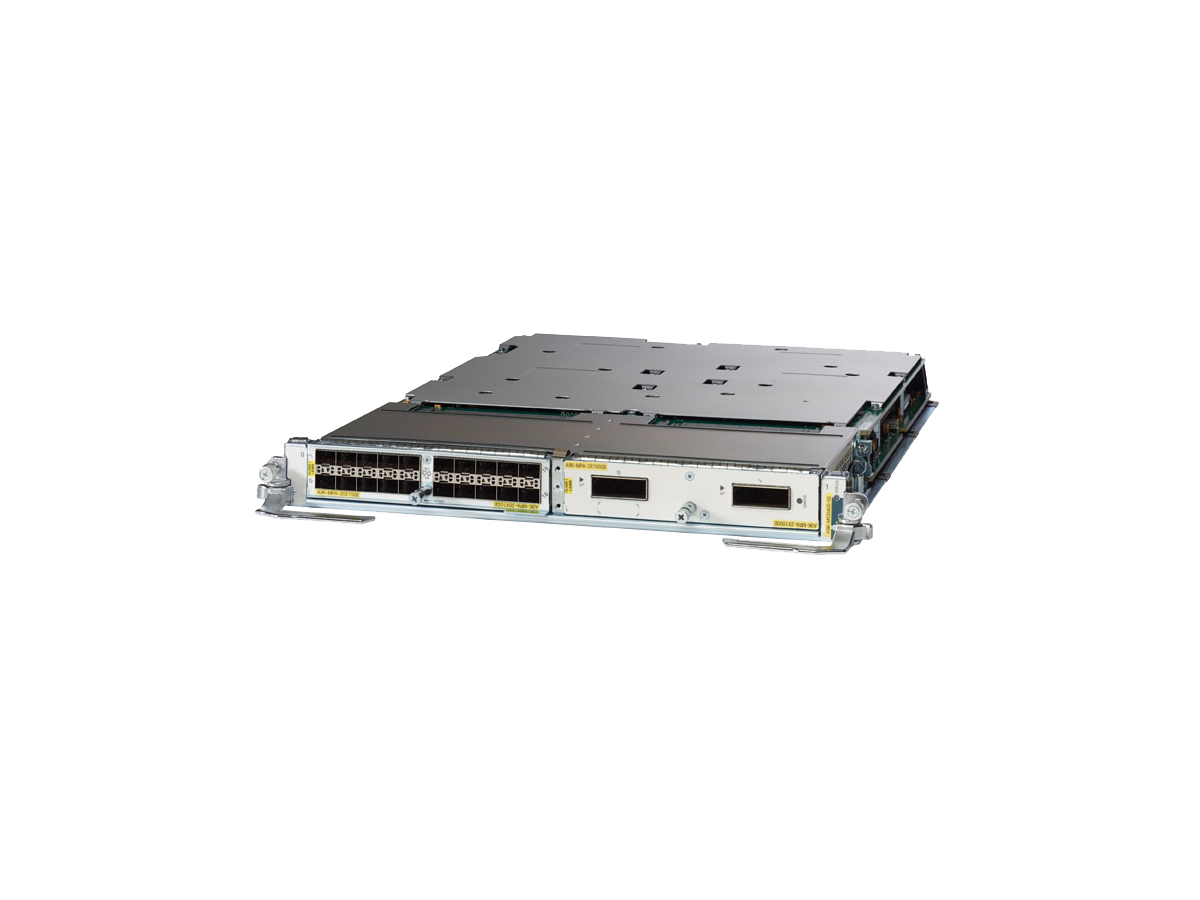

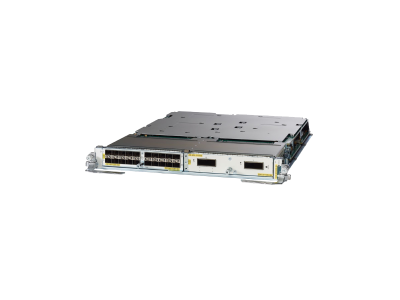

Cisco A9K-MOD400-TR Specifications | |
| Model | Cisco A9K-MOD400-TR |
| Type | 400G Modular Linecard |
| Optimization | Packet Transport Optimized |
| Port Density | Supports up to 400 Gbps per slot |
| Interface Types | QSFP-DD |
| Number of Ports | 4 |
| Throughput | 400 Gbps per port |
| Forwarding Rate | 800 Mpps |
| Buffer Size | 12 GB |
| Compatibility | Compatible with ASR 9000 Series Routers |
| Redundancy | Supports N+1 Redundancy |
| Power Consumption | 360W |
| Cooling | Front-to-Back Airflow |
| Form Factor | Linecard Module |
| MPLS | Supports MPLS |
| Security | Supports MACsec |
| Network Management | Supported with Cisco IOS XR |
| Support for IPv4/IPv6 | Yes |
| Layer Support | Layer 2 and Layer 3 |
A9K-MOD400-TR Specifications | |
Chassis compatibility | Compatible with the Cisco ASR 9922, 9912, 9910, 9906, 9904, 9010, and 9006 routers |
Port density | In the 400G modular line card, up to 2 modular port adapters are supported per line card for up to: ● 40-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 4-port 100G interfaces In the 200G modular line card, two modular port adapters are supported per line card, except for the 2-port 100 Gigabit modular port adapter and the 20-port 10 Gigabit modular port adapter. The 2-port 100 Gigabit and 20-port 10 Gigabit modular adapters are supported only in bay 0 of the 200G modular line card. The achievable port density on this line card is as follows: ● 20-port 10G or 64-port 1G interfaces ● 4-port 40G interfaces ● 2-port 100G interfaces |
Ethernet | ● IEEE 802.3 compliant ● 10 Gigabit Ethernet PHY monitoring ● IEEE 802.x flow control ● Full-duplex operation ● Per-port byte and packet counters for policy drops, oversubscription drops, Cyclic Redundancy Check (CRC) error drops, packet sizes, and unicast, multicast, and broadcast packets |
Card density | Maximum number of line cards per system: ● Cisco ASR 9922: 20 ● Cisco ASR 9912: 10 ● Cisco ASR 9910: 8 ● Cisco ASR 9906: 4 ● Cisco ASR 9904: 2 ● Cisco ASR 9010: 8 ● Cisco ASR 9006: 4 |
Options | Each line card is available as either a service edge - optimized line card (enhanced QoS) or a packet transport - optimized line card (basic QoS) |
Reliability and availability | Line card Online Insertion and Removal (OIR) support without system impact |
Network Equipment Building Standards (NEBS) | Cisco ASR 9000 Series Routers are designed to meet: ● SR-3580: NEBS Criteria Levels (Level 3) ● GR-1089-CORE: NEBS EMC and Safety ● GR-63-CORE: NEBS Physical Protection |
Operating temperature (nominal) | 41 to 104°F (5 to 40°C) |
Operating temperature | 23 to 131°F (-5 to 55°C) |
Operating humidity (nominal) relative humidity | 10 to 85% |
Storage temperature | -40 to 158°F (-40 to 70°C) |
Storage relative humidity | 5 to 95% Note: Not to exceed 0.024 kg of water per kg of dry air |
Operating altitude | -60 to 4000m (up to 2000m conforms to IEC, EN, UL, and CSA 60950 requirements) |
ETSI standards | Cisco ASR 9000 Series Routers are designed to meet: ● EN300 386: Telecommunications Network Equipment (EMC) ● ETSI 300 019 Storage Class 1.1 ● ETSI 300 019 Transportation Class 2.3 ● ETSI 300 019 Stationary Use Class 3.1 ● EN55022: Information Technology Equipment (Emissions) ● EN55024: Information Technology Equipment (Immunity) ● EN50082-1/EN-61000-6-1: Generic Immunity Standard |
EMC standards | Cisco ASR 9000 Series Routers are designed to meet: ● FCC Class A ● ICES 003 Class A ● AS/NZS 3548 Class A ● CISPR 22 (EN55022) Class A ● VCCI Class A ● BSMI Class A ● IEC/EN 61000-3-2: Power Line Harmonics ● IEC/EN 61000-3-3: Voltage Fluctuations and Flicker |
Immunity | Cisco ASR 9000 Series Routers are designed to meet: ● IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ● IEC/EN-61000-4-3: Radiated Immunity (10V/m) ● IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ● IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ● IEC/EN-61000-4-5: Signal Ports (1kV) ● IEC/EN-61000-4-5: Surge DC Port (1kV) ● IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ● IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ● IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations |
Safety | Cisco ASR 9000 Series Routers are designed to meet: ● UL/CSA/IEC/EN 60950-1 ● IEC/EN 60825 Laser Safety ● ACA TS001 ● AS/NZS 60950 ● FDA: Code of Federal Regulations Laser Safety |
