Huawei S2700 Series Switches S2730S-S8FP4S-A|LinkNewNet

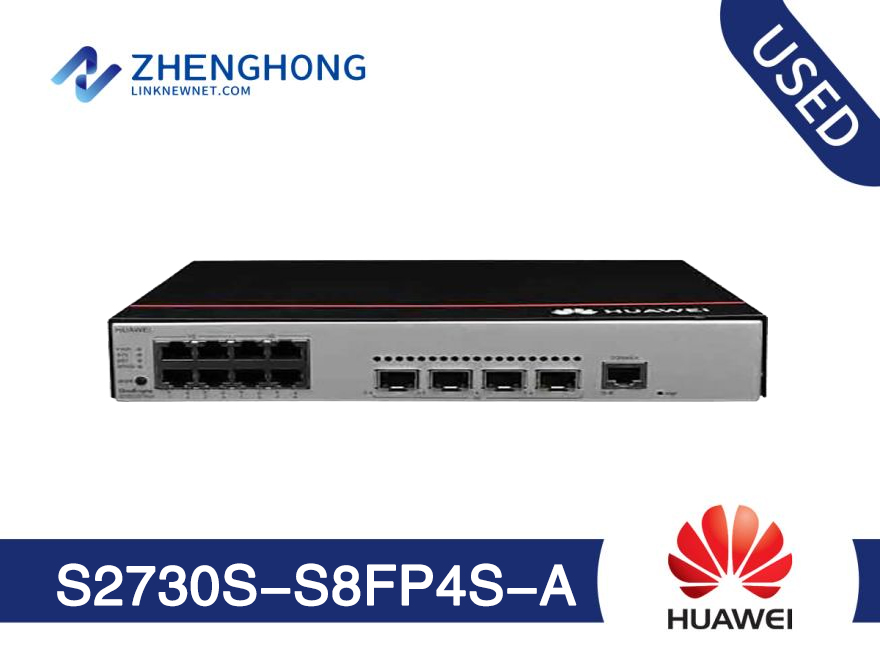

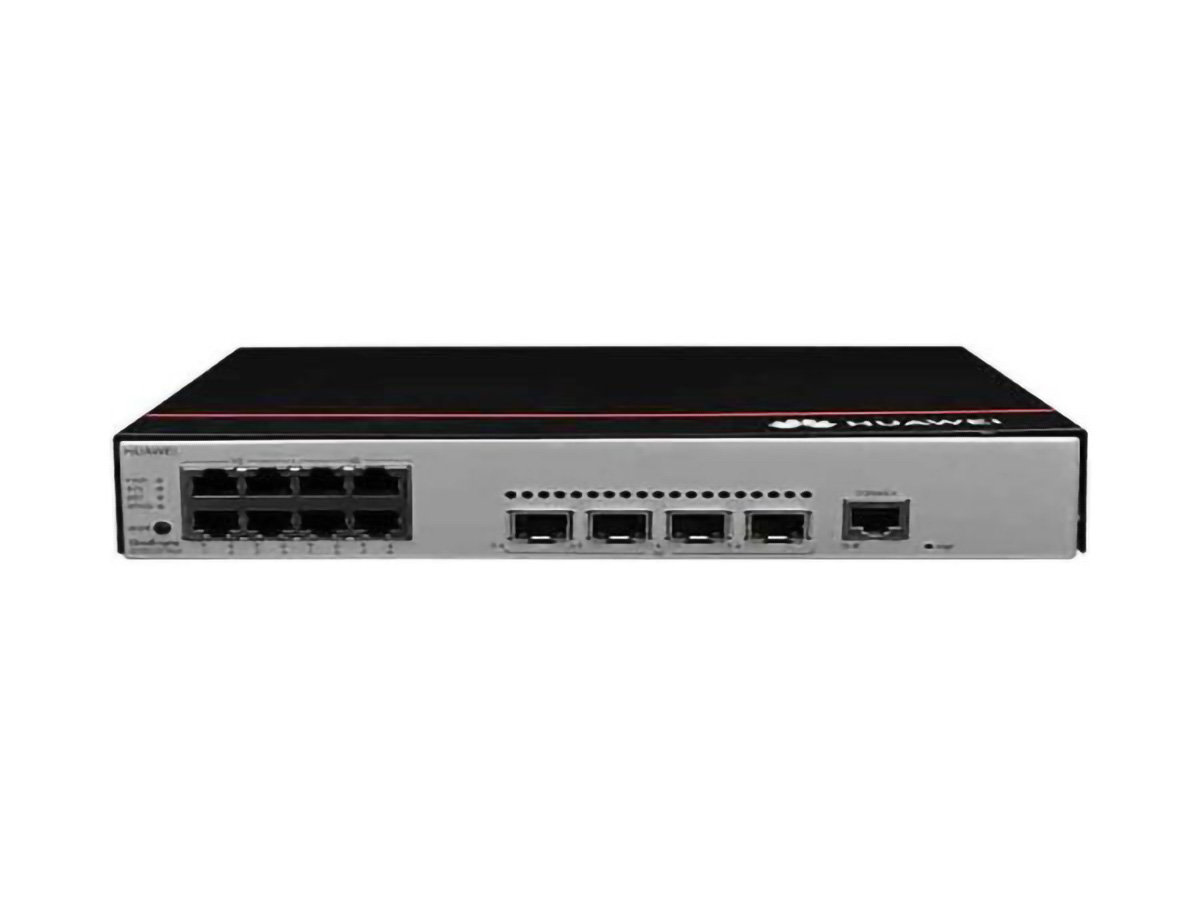

Huawei S2700 Series Switches S2730S-S8FP4S-A

Model: S2730S-S8FP4S-A

Detail: S2730S-S8FP4S-A, Huawei S2700 Series Switches,4 10 /100BASE-TX Ethernet ports, 4 10 /100/1000BASE-T Ethernet ports, 4 Gigabit SFP

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S2730S-S8FP4S-A Specification
Item	Specification
PoE	Supported
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm
Dimensions with packaging (H x W x D) [mm(in.)]	110.0 mm x 435.0 mm x 360.0 mm
Chassis height [U]	1 U
MTBF [year]	66.56 year
Availability	>0.99999
Noise at normal temperature (acoustic power) [dB(A)]	42.2 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)]	30.5 dB(A)
Number of fans modules	1
Memory	512 MB
Flash memory	512 MB
Console port	RJ45
Maximum power consumption [W]	Not providing the PoE function: 38.6 W 100% PoE loads: 162.6 W (PoE: 124 W)
Maximum heat dissipation [BTU/hour]	Not providing the PoE function: 131.71 100% PoE loads: 554.81
Power supply surge protection [kV]	±6 kV in differential mode, ±6 kV in common mode
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction	Air intake from left and front, air exhaustion from right

Q&A

Q How to hard reset Huawei Switch?

A If you need to make a factory reset of the Huawei device you have several options whether you still have access to the CLI or not. Here we will see two of the most used ways to make a factory reset. 1. By pressing the PNP button for more than 6 seconds you can restore the device to the factory configuration.

Q What is Huawei Cloud Engine switches?

A Huawei CloudEngine series switches are high-performance cloud switches designed for next-generation data centers and high-end campus networks.

Q In which mode do Huawei switches work?

A The default switch port mode on Huawei switches is typically "access mode" or "common mode." In this mode, the switch port is configured to operate as an access port, which means it belongs to a single VLAN and carries traffic only for that VLAN.

Q What is a switch for?

A Switches provide the wired connections to desktop computers, wireless access points (APs), printers, industrial machinery and some internet of things (IoT) devices, such as card entry systems.
