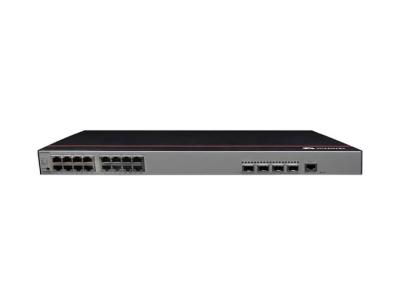

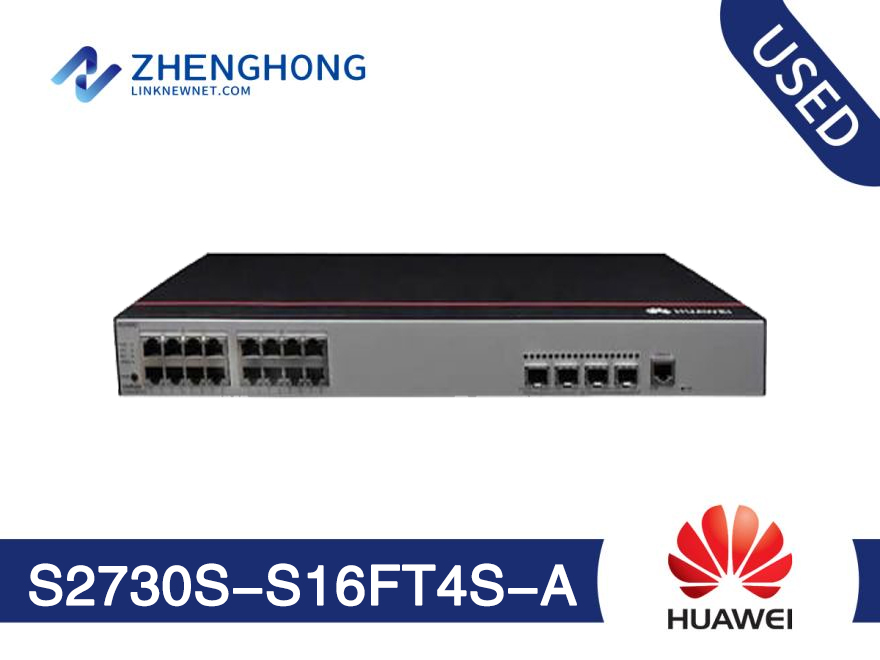

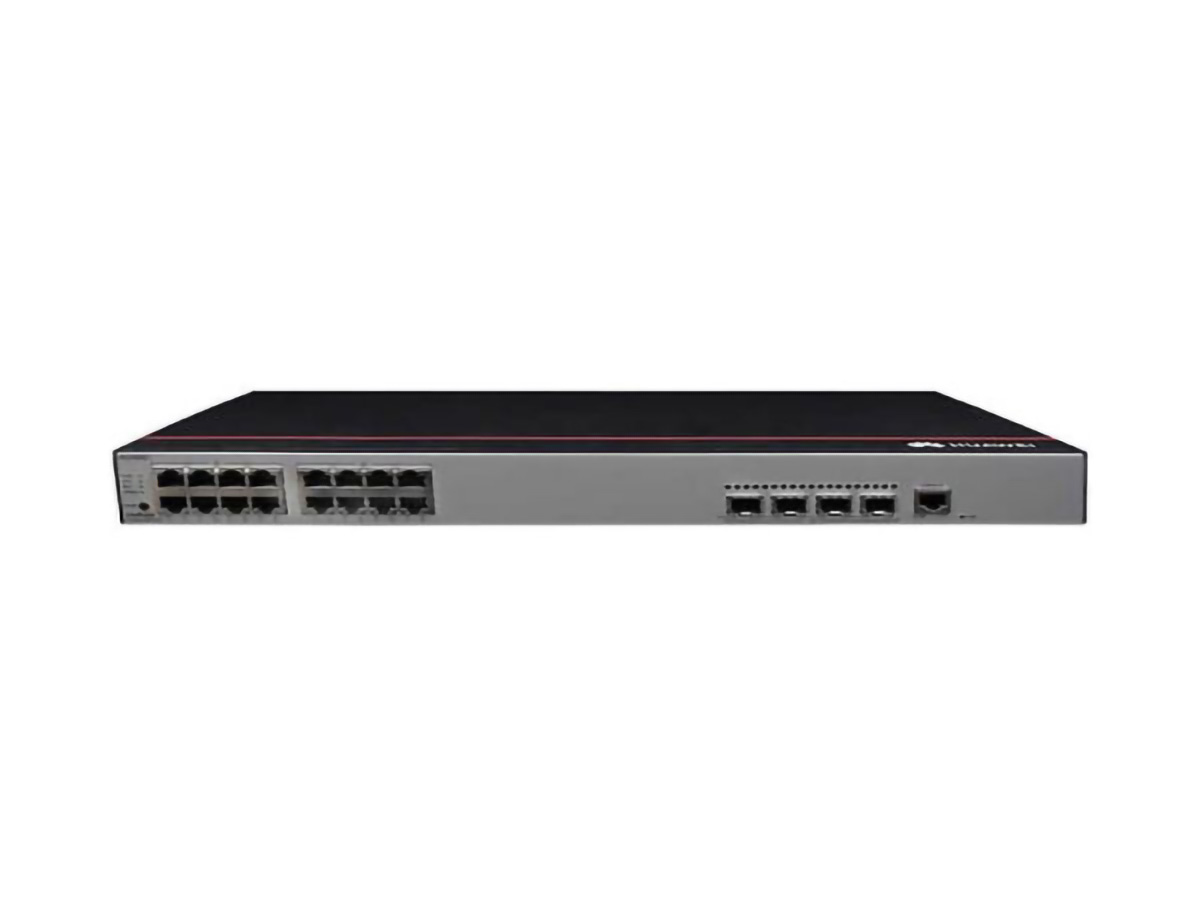

S2730S-S16FT4S-A Specification | |
Item | Specification |
PoE | Not supported |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm |
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm |
Chassis height [U] | 1 U |
Typical power consumption [W] | 22.7 W |
Maximum power consumption [W] | 28.1 W |
Number of fans modules | 1 |
Memory | 512 MB |
Flash memory | 512 MB |
Console port | RJ45 |
Maximum heat dissipation [BTU/hour] | 95.88 BTU/hour |
Typical heat dissipation [BTU/hour] | 77.46 BTU/hour |
Service port surge protection [kV] | Common mode: ±7 kV |
Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
