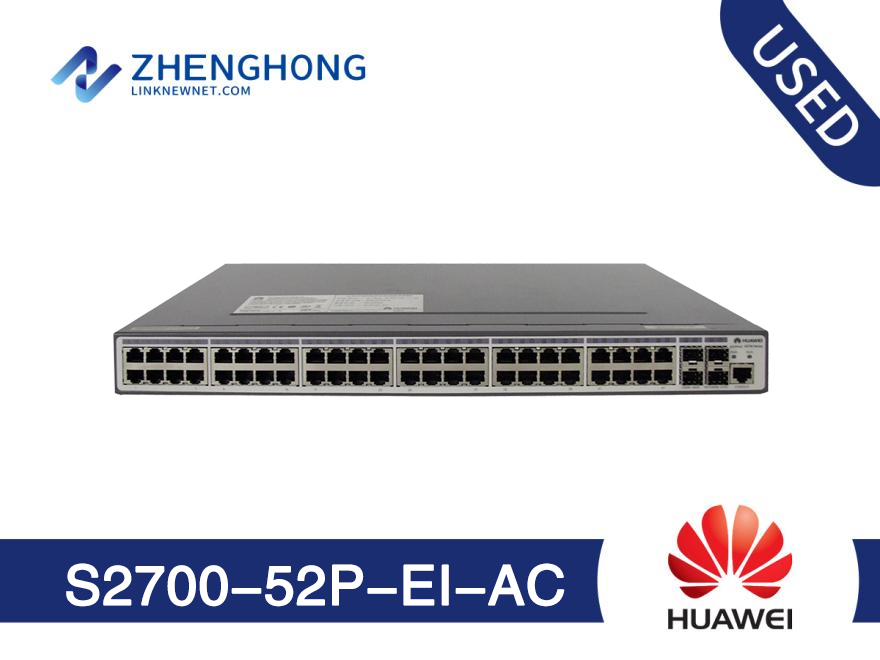

S2700-52P-EI-AC Specification | |

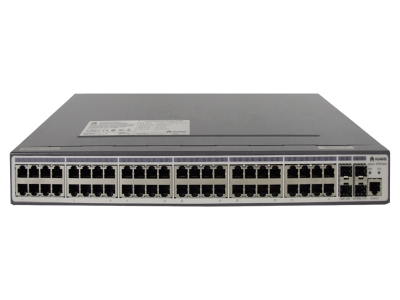

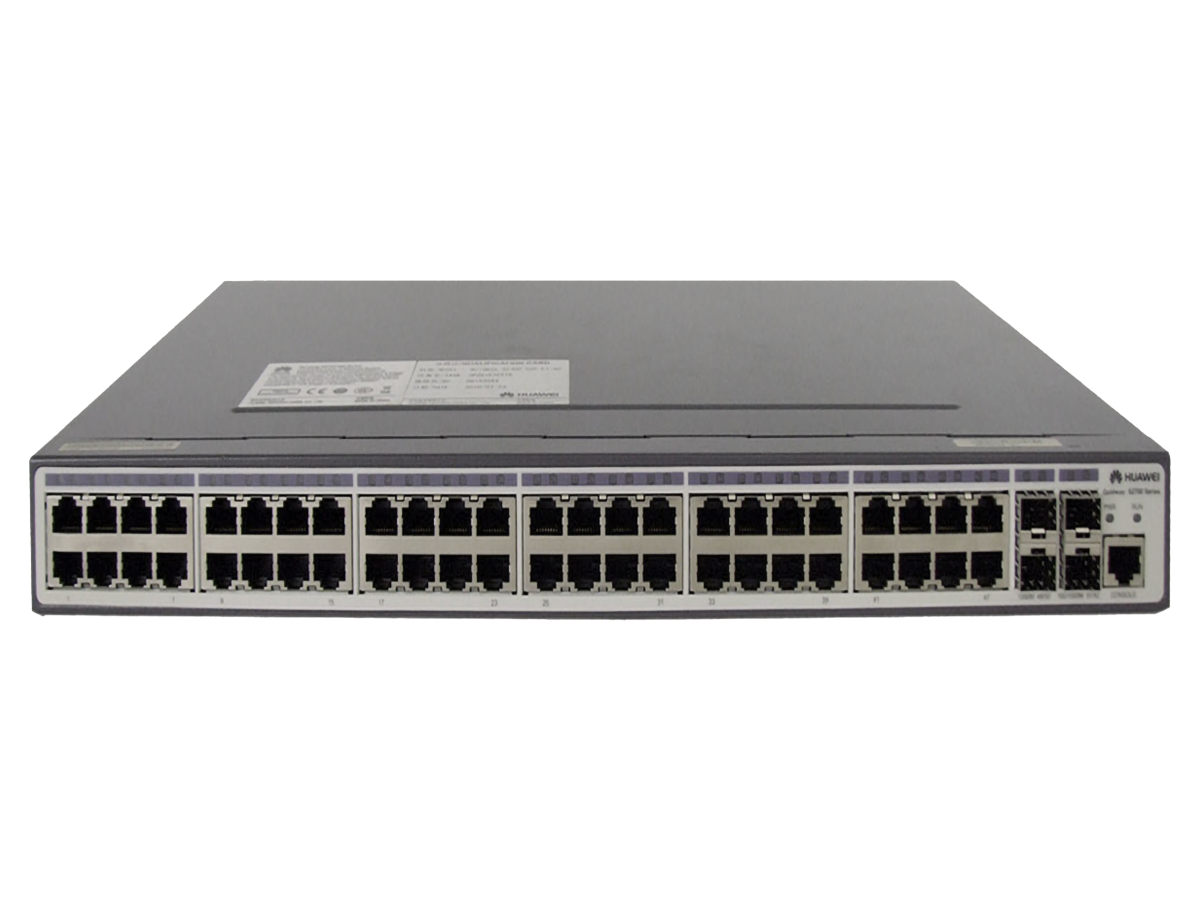

Product Description | Huawei Quidway S2700-52P-EI-AC - switch - 48 ports - Managed - desktop |
Device Type | Switch - 48 ports - Managed - stackable |
Enclosure Type | Desktop |
Interfaces | Gigabit Ethernet |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100 + 2 x Gigabit SFP + 2 x SFP |
Performance | Forwarding performance : 13.2 Mpps |
Capacity | Virtual interfaces (VLANs) : 4000 |
MAC Address Table Size | 8K entries |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLD |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
Features | VLAN support, IGMP snooping, packet filtering, port mirroring, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, MLD snooping, IP-MAC binding |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Power | AC 120/230 V ( 50/60 Hz ) |
Dimensions (WxDxH) | 44.2 cm x 22 cm x 4.4 cm |
Weight | 3 kg |
Extended Specification | |
General | |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Capacity | Virtual interfaces (VLANs) : 4000 |
Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
Device Type | Switch - 48 ports - Managed - stackable |
Enclosure Type | Desktop |
Features | VLAN support, IGMP snooping, packet filtering, port mirroring, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Multicast Suppression, MLD snooping, IP-MAC binding |
Interfaces | Gigabit Ethernet |
MAC Address Table Size | 8K entries |
Performance | Forwarding performance : 13.2 Mpps |
Ports | 48 x 10/100 + 2 x Gigabit SFP + 2 x SFP |
Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLD |
Subtype | Gigabit Ethernet |
Dimensions (D × H × W) | 22 cm × 4.4 cm × 44.2 cm |
Weight | 3 Kg |
Environmental Parameters | |
Humidity Range Operating | 10 - 90% (non-condensing) |
Humidity Range Storage | 10 - 90% (non-condensing) |
Max Operating Temperature | 50 °C |
Max Storage Temperature | 55 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -5 °C |
Expansion / Connectivity | |
Interfaces | 2 x SFP (mini-GBIC) ¦ 48 x 100Base-TX - RJ-45 ¦ 1 x console - RJ-45 - management ¦ 2 x SFP (mini-GBIC) |
Power | |
Power Consumption Operational | 38 Watt |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
