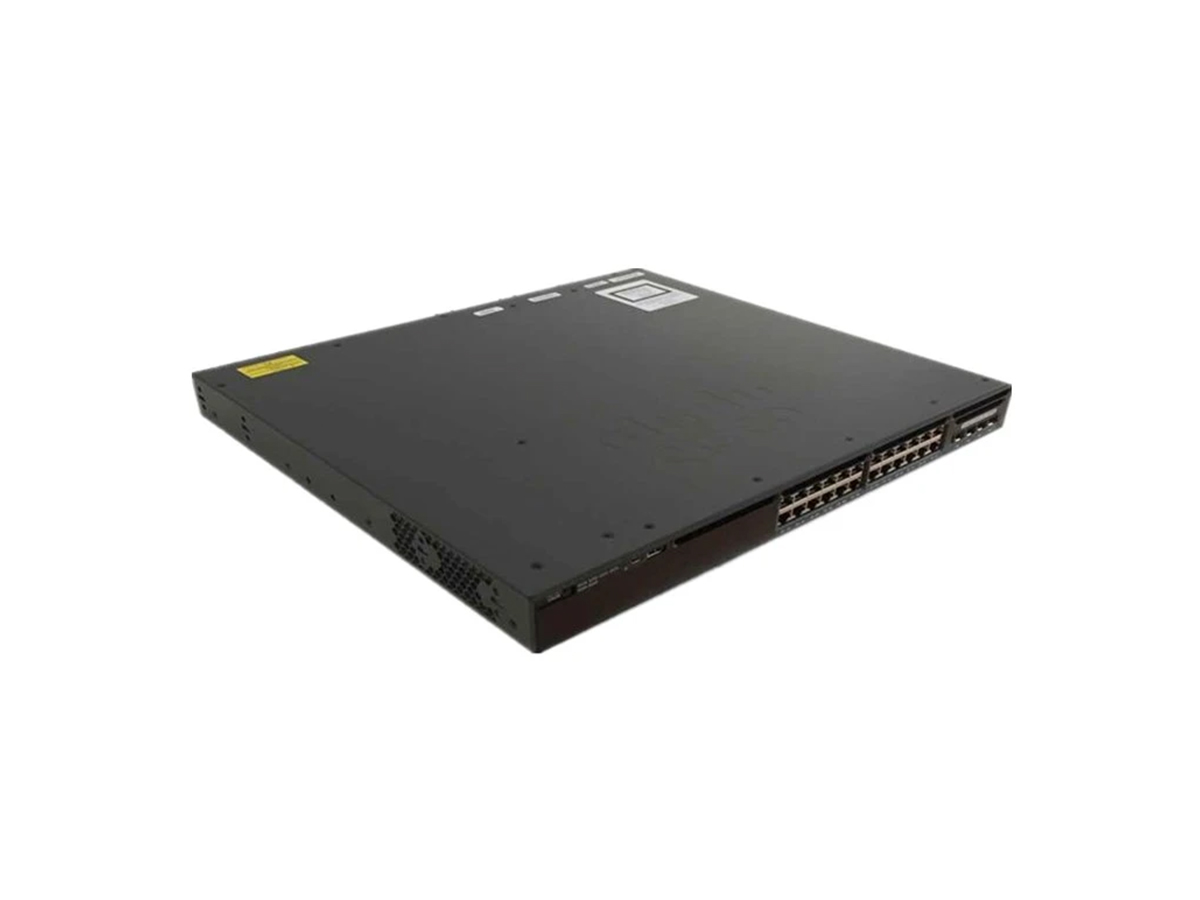

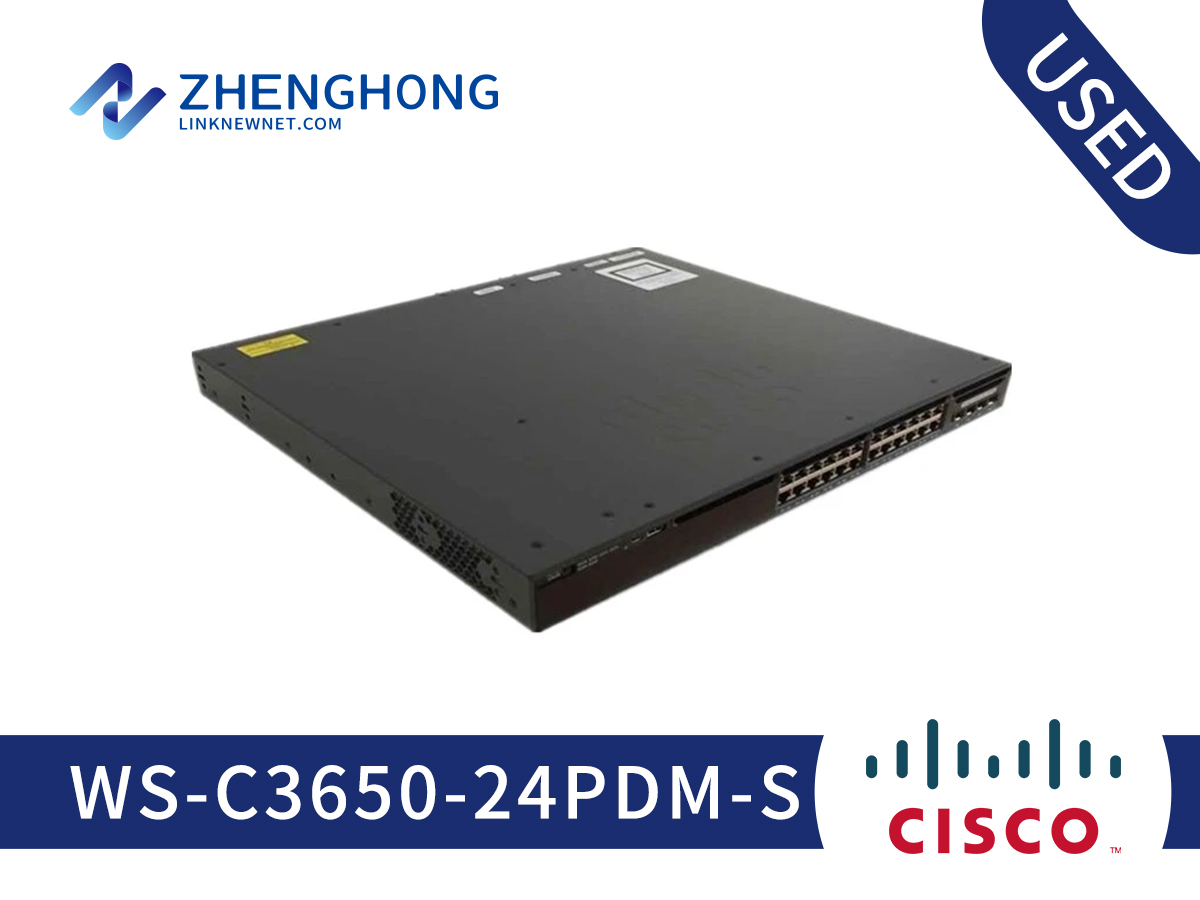

Cisco Catalyst 3650 Series Switch WS-C3650-24PDM-S

Model: WS-C3650-24PDM-S

Detail: Stackable 24 10/100/1000 PoE+ downlink ports, two 1-Gigabit SFP uplink ports, two 10-Gigabit SFP+ uplink ports.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3650-24PDM-S Specification
Capacity
Type	Virtual interfaces (VLANs)
Value	4094
Dimensions & Weight
Width	17.5 in
Depth	17.6 in
Height	1.7 in
Weight	16.01 lbs
Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 96% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Flash Memory
Installed Size	2 GB
Header
Compatibility	PC
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Catalyst
Model	3650-24PDM-S
Brand	Cisco
Interface Provided
Qty	24
Type	Management (mini-USB)
Connector Type	Type B
Comments	Management
PoE Power	30 W
Miscellaneous
Rack Mounting Kit	Included
Compliant Standards	BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, KN22 Class A, KN24, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A
Authentication Method	Kerberos, RADIUS, Secure Shell (SSH), TACACS+
MTBF	528,280 hours
Height (Rack Units)	1
Color Category	Black
Networking
Type	Switch
Ports Qty	24
Features	Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Flexible NetFlow (FNF), Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), LLDP support, MAC Address Notification, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), Virtual Route Forwarding-Lite (VRF-Lite), VLAN support
Stackable	Stackable
Subcategory	Network hubs and switches
Power Over Ethernet (PoE)	PoE+
Advanced Switching	Layer 3
Manageable	Yes
Form Factor	Desktop, Rack-mountable
Jumbo Frame Support	9198 bytes
Subtype	Gigabit Ethernet
PoE Budget	390 W
Performance
Type	Switching capacity
Value	88 Gbps
Ports
Qty	24
Type	10/100/1000 (PoE+)
Ports (2nd)
Qty	2
Type	10 Gigabit SFP+
Ports (3rd)
Qty	2
Type	SFP (mini-GBIC)
Power Device
Frequency Required	50/60 Hz
Power Provided	640 Watt
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Type	Internal power supply
RAM
Installed Size	4 GB

Q&A

Q What is Catalyst 3650?

A The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE Software-based platform.

Q How fast is the Catalyst 3650 port?

A Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the 24-port model).

Q What is the difference between Catalyst 3560 and 3650?

A The 3650 is a stackable switch, so you can join several switches together over a redundant 160 Gbps link, and manage them as one. The 3560-X isn't stackable.
