Cisco Catalyst 3650 Series Switch WS-C3650-48FQM-L|LinkNewNet

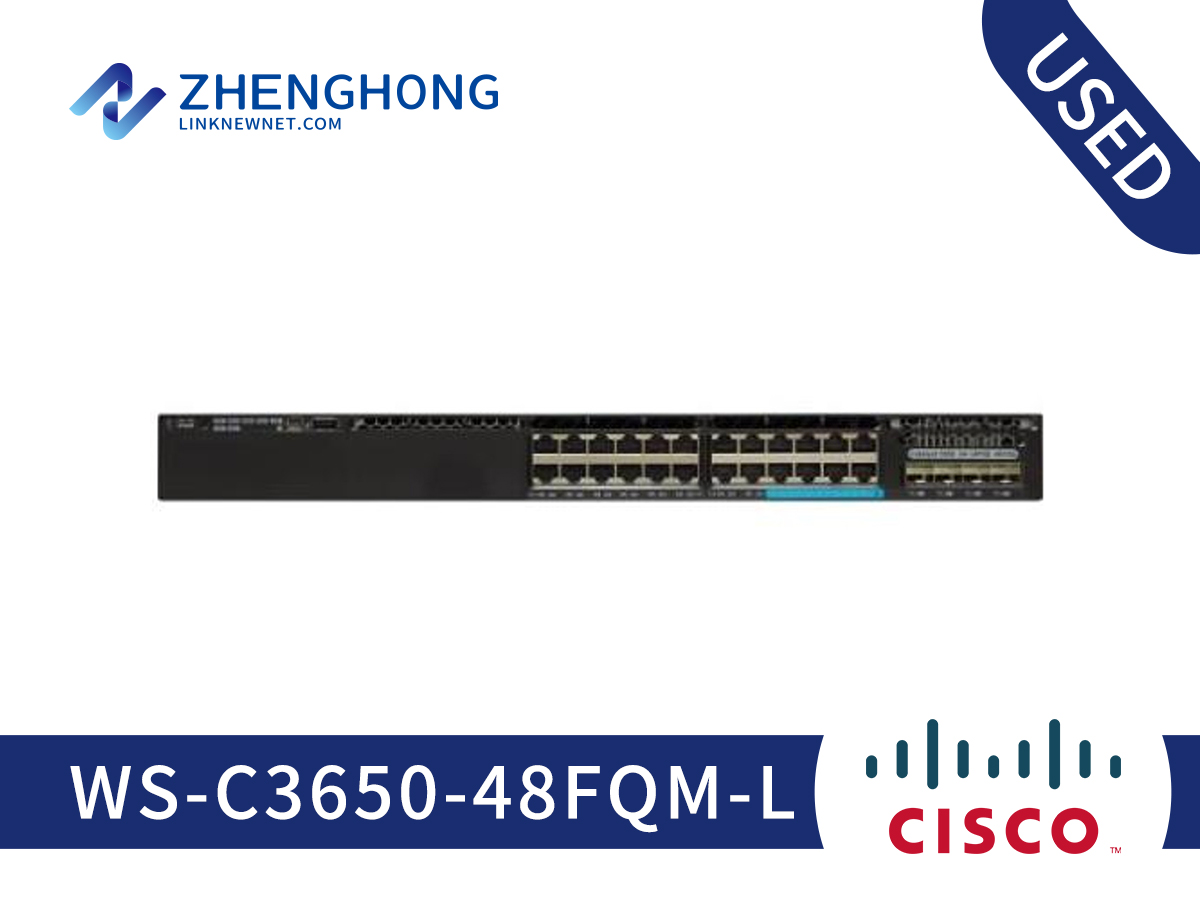

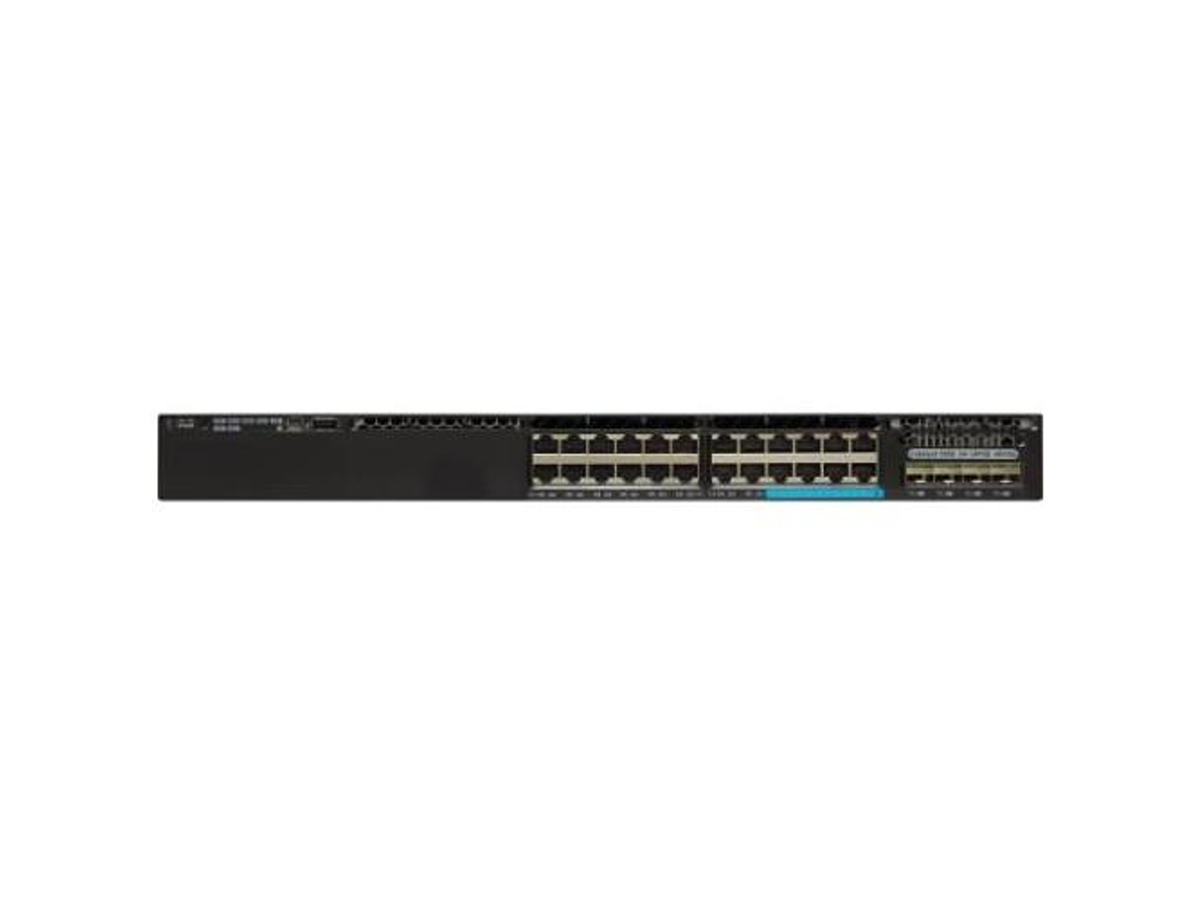

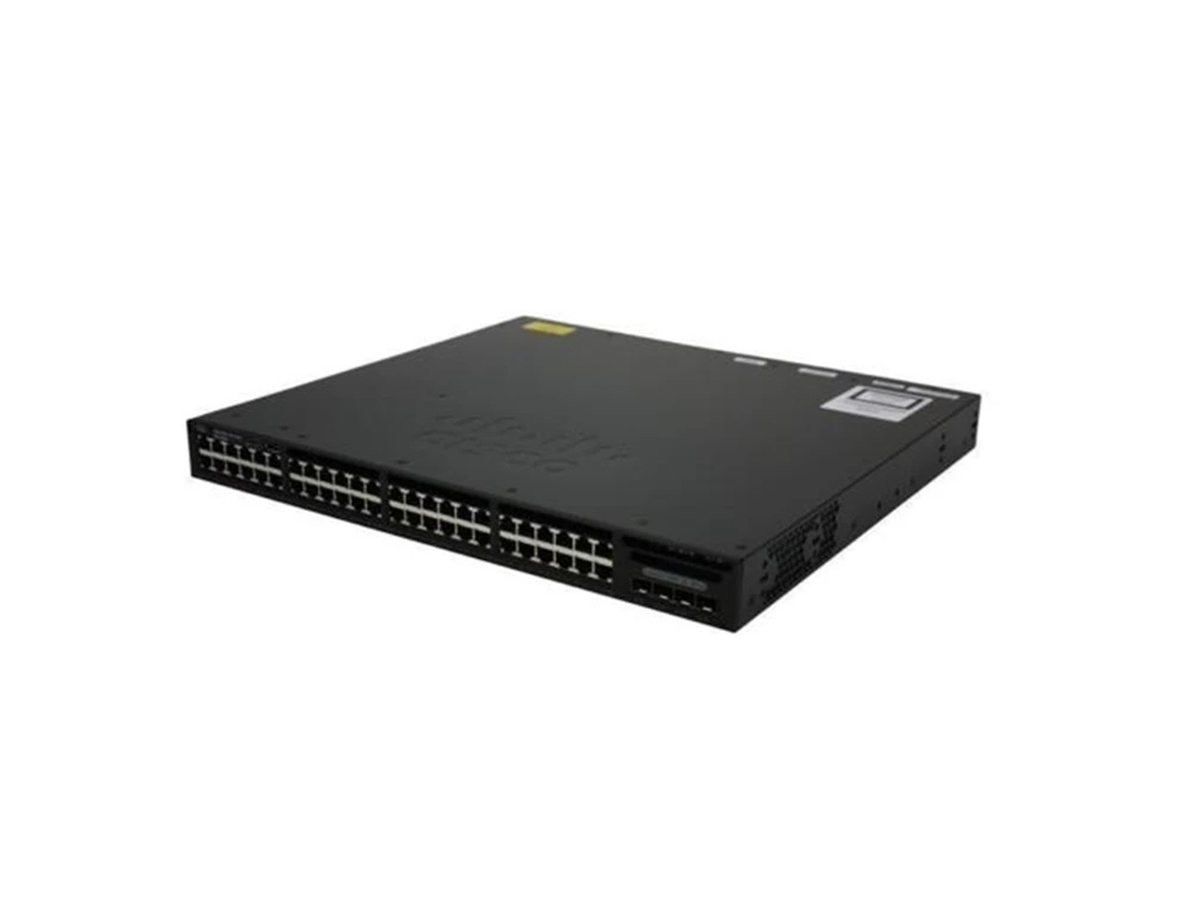

Cisco Catalyst 3650 Series Switch WS-C3650-48FQM-L

Model: WS-C3650-48FQM-L

Detail: Stackable 48 10/100/1000 Full PoE downlink ports, four 10-Gigabit SFP+ uplink ports.

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3650-48FQM-L Specification
Capacity
Type	Virtual interfaces (VLANs)
Value	1000
Dimensions & Weight
Width	17.5 in
Depth	19.1 in
Height	1.7 in
Weight	17.2 lbs
Flash Memory
Installed Size	2 GB
Header
Compatibility	PC
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Catalyst
Model	3650-48FQM-L
Brand	Cisco
Interface Provided
Qty	48
Type	Management (mini-USB)
Connector Type	Type B
Comments	Management
PoE Power	30 W
Networking
Type	Switch
Connectivity Technology	Wired/Wireless
Remote Management Protocol	CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Compliant Standards	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Status Indicators	Active, PoE, Port duplex mode, Port transmission speed, Status, System
Ports Qty	48
Features	Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), LLDP support, MAC Address Notification, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), VLAN support
Routing Protocol	EIGRP, OSPF, RIP-1, RIPng, Static IP routing
MAC Address Table Size	32000 entries
Stackable	Stackable
Subcategory	Network hubs and switches
Power Over Ethernet (PoE)	PoE+
Advanced Switching	Layer 3
Manageable	Yes
Form Factor	Desktop, Rack-mountable
Jumbo Frame Support	9198 bytes
Subtype	Gigabit Ethernet
PoE Budget	775 W
Performance
Type	Switching capacity
Value	176 Gbps
Ports
Qty	48
Type	10/100/1000 (PoE+)
Ports (2nd)
Qty	4
Type	10 Gigabit SFP+
Power Device
Frequency Required	50/60 Hz
Power Provided	975 Watt
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Type	Internal power supply
Hot-Plug	Hot-plug
RAM
Installed Size	4 GB

Q&A

Q What is Catalyst 3650?

A The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE Software-based platform.

Q How fast is the Catalyst 3650 port?

A Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the 24-port model).

Q What is the difference between Catalyst 3560 and 3650?

A The 3650 is a stackable switch, so you can join several switches together over a redundant 160 Gbps link, and manage them as one. The 3560-X isn't stackable.
