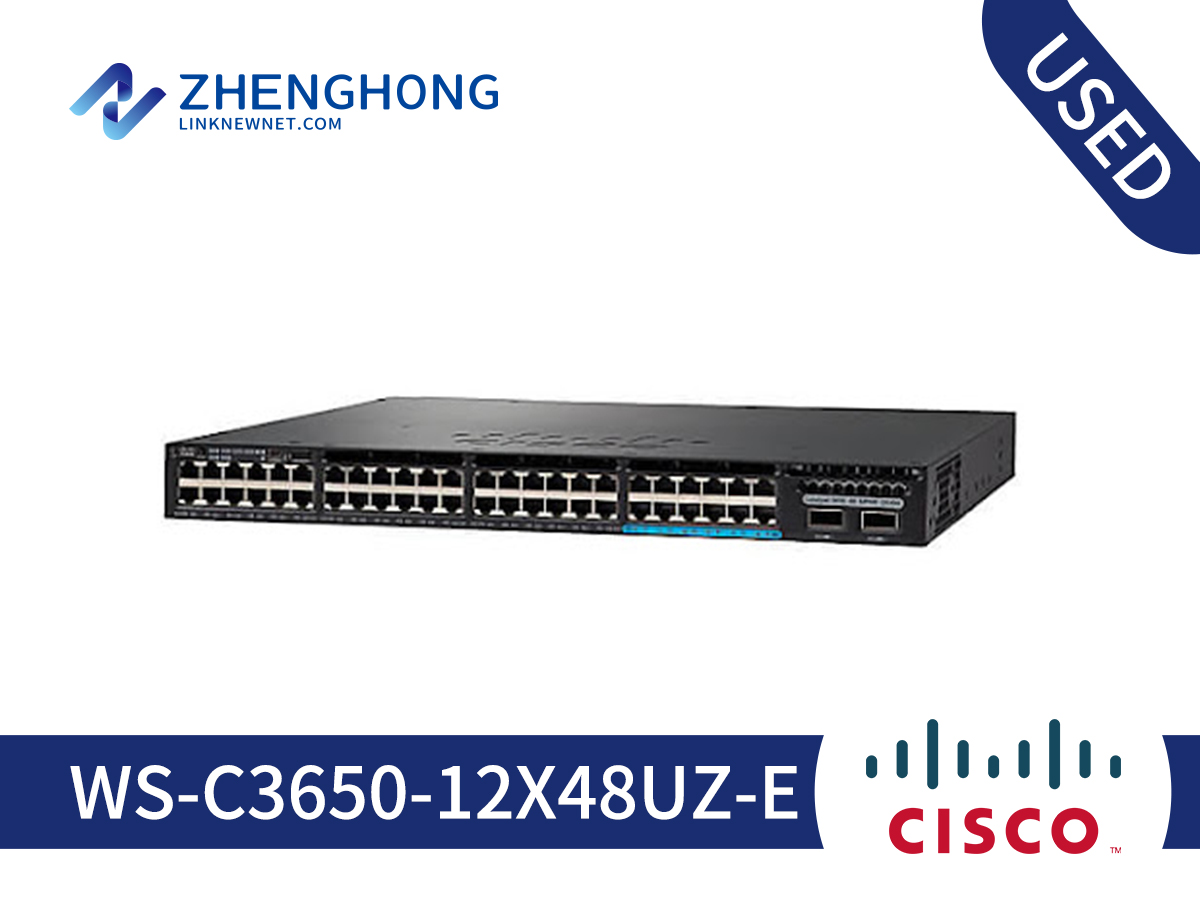

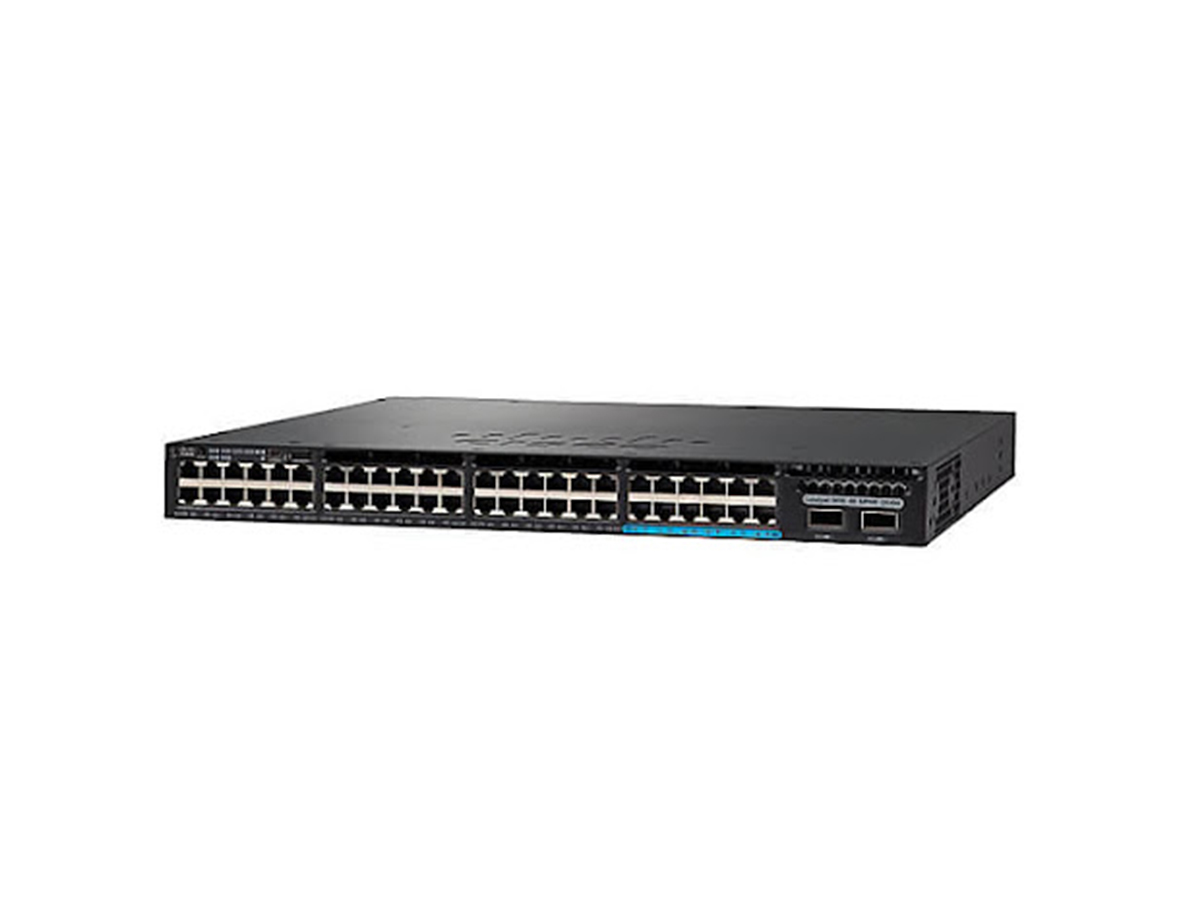

Cisco Catalyst 3650 Series Switch WS-C3650-12X48UZ-E

Model: WS-C3650-12X48UZ-E

Detail: Stackable 12 100M/1G/2.5G/5G/10G Cisco UPOE™ downlink ports, 36 10/100/1000 Cisco UPOE™ downlink ports, two 40-Gigabit uplink QSFP+ ports, 1100-W power supply

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3650-12X48UZ-E Specification
General
Device Type	Switch - 48 ports - L3 - managed - stackable
Enclosure Type	Desktop, rack-mountable 1U
Subtype	Gigabit Ethernet
Ports	36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 2 x 40 Gigabit QSFP+ (uplink)
Power Over Ethernet (PoE)	UPOE
PoE Budget	660 W
Performance	Switching capacity: 472 Gbps ¦ Forwarding performance: 351.19 Mpps ¦ Stacking bandwidth: 160 Gbps
Capacity	IPv4 routes: 24000 ¦ Flexible NetFlow entries: 48000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IPv4 routes: 24000
MAC Address Table Size	32000 entries
Jumbo Frame Support	9198 bytes
Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features	Full duplex capability, layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM	4 GB
Flash Memory	4 GB
Status Indicators	Port transmission speed, port duplex mode, system, active, status, PoE
Expansion / Connectivity
Interfaces	36 x 1000Base-T RJ-45 UPOE - 60 W ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE - 60 W ¦ 4 x 40Gbit WAN QSFP+ uplink
Expansion Slots	1 (total) / 1 (free) x Stacking Module slot
Power
Power Device	Internal power supply - hot-plug
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	1100 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included	Cisco IOS IP Services
Dimensions & Weight
Width	17.5 in
Depth	19.1 in
Height	1.7 in
Weight	17.81 lbs
Manufacturer Warranty
Service & Support	Limited warranty - advance hardware replacement - lifetime - response time: 10 days
Environmental Parameters
Min Operating Temperature	23 °F
Max Operating Temperature	113 °F
Humidity Range Operating	5 - 96% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F

Q&A

Q What is Catalyst 3650?

A The Cisco Catalyst 3650 is a standalone and stackable access switching platform that enables wired plus wireless services on a single Cisco IOS XE Software-based platform.

Q How fast is the Catalyst 3650 port?

A Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the 24-port model).

Q What is the difference between Catalyst 3560 and 3650?

A The 3650 is a stackable switch, so you can join several switches together over a redundant 160 Gbps link, and manage them as one. The 3560-X isn't stackable.
