Cisco Catalyst 3650 Series Switch WS-C3650-24PDM-L|LinkNewNet

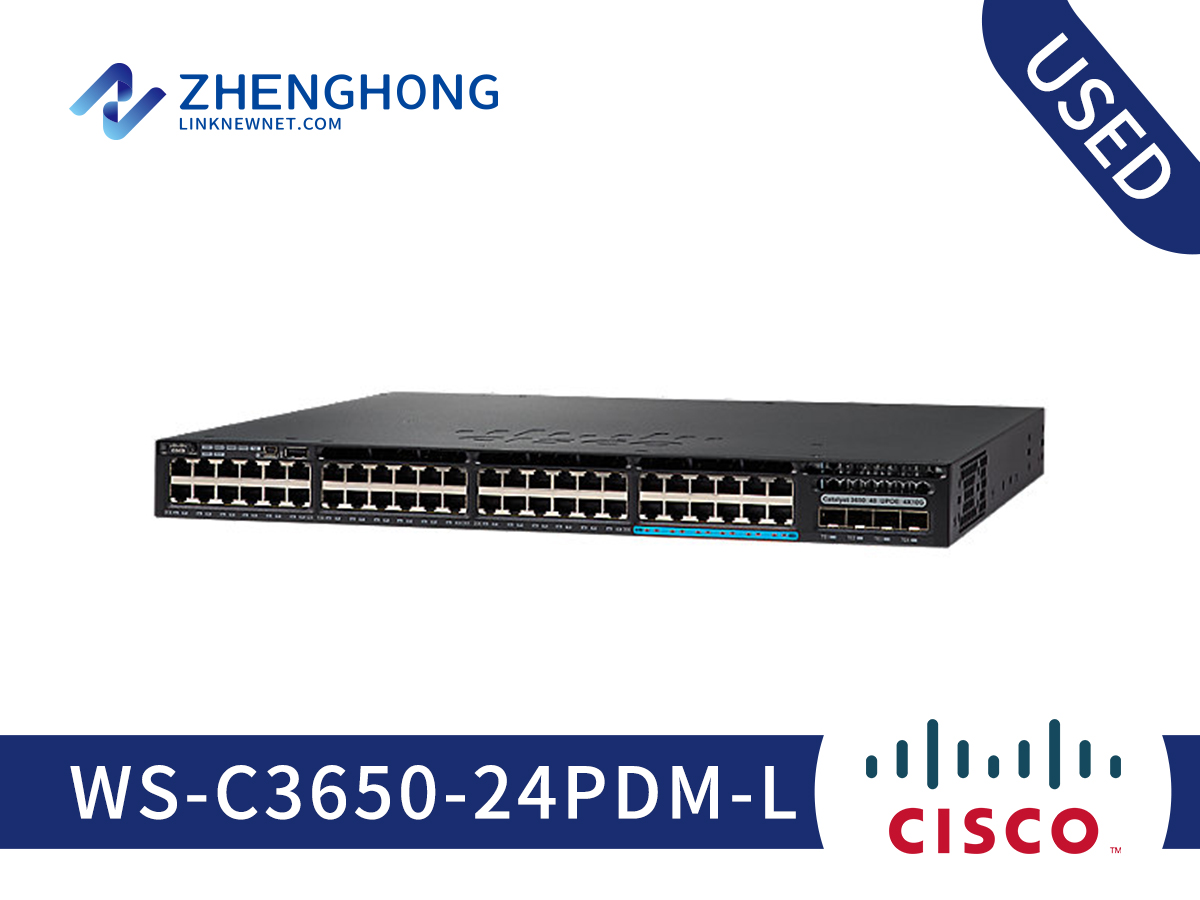

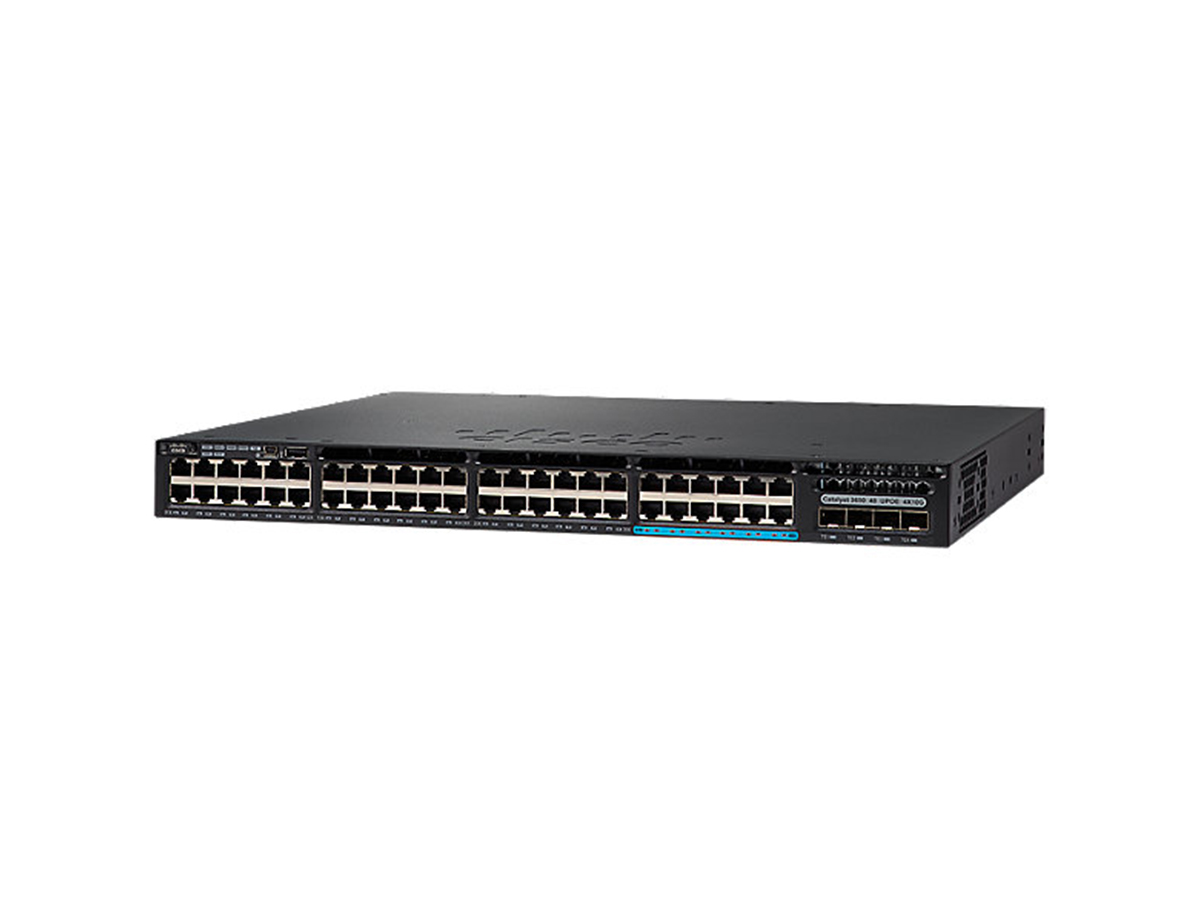

Cisco Catalyst 3650 Series Switch WS-C3650-24PDM-L

Model: WS-C3650-24PDM-L

Detail: Stackable 24 10/100/1000 PoE+ downlink ports, two 1-Gigabit SFP uplink ports and two 10-Gigabit SFP+ uplink ports, Fixed 640-W power supply

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3650-24PDM-L Specification
Capacity
Type	Virtual interfaces (VLANs)
Value	255
Dimensions & Weight
Width	17.5 in
Depth	11.7 in
Height	1.7 in
Weight	12.26 lbs
Installed Size	2 GB
Header
Compatibility	PC
Manufacturer	Cisco Systems
Packaged Quantity	1
Product Line	Cisco Catalyst
Model	3650-24PDM-L
Brand	Cisco
Interface Provided
Qty	24
Type	Management (mini-USB)
Connector Type	Type B
Comments	Management
PoE Power	30 W
Networking
Type	Switch
Connectivity Technology	Wired/Wireless
Remote Management Protocol	CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet
Compliant Standards	IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Status Indicators	Active, PoE, Port duplex mode, Port transmission speed, Status, System
Ports Qty	24
Features	Access Control List (ACL) support, ARP support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Class of Service (CoS), DHCP snooping, DHCP support, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, Energy Efficient Ethernet, Full duplex capability, Hot Standby Router Protocol (HSRP) support, IGMP snooping, IPv6 support, Layer 2 switching, Link Aggregation Control Protocol (LACP), LLDP support, MAC Address Notification, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Spanning Tree Protocol (STP) support, Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), VLAN support
Routing Protocol	Static IP routing
MAC Address Table Size	32000 entries
Stackable	Stackable
Subcategory	Network hubs and switches
Power Over Ethernet (PoE)	PoE+
Manageable	Yes
Form Factor	Desktop, Rack-mountable
Jumbo Frame Support	9198 bytes
Subtype	Gigabit Ethernet
PoE Budget	390 W
Performance
Type	Switching capacity
Value	88 Gbps
Ports
Qty	24
Type	10/100/1000 (PoE+)
Ports (2nd)
Qty	2
Type	10 Gigabit SFP+
Power Device
Frequency Required	50/60 Hz
Power Provided	640 Watt
Installed Qty	1
Max Supported Qty	2
Nominal Voltage	AC 120/230 V
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Type	Internal power supply
Hot-Plug	Hot-plug
Slot Provided
Type	Stacking Module slot
Total Qty	1
Free Qty	1

Q&A

Q What is Catalyst 3650?

A The Cisco® Catalyst® 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform.

Q How fast is the Catalyst 3650 port?

A Each 48-port Cisco Catalyst 3650 provides 40 Gbps of wireless throughput (20 Gbps on the 24-port model).

Q Is the Cisco 3650 layer 3 switch?

A The three feature sets available with all Cisco Catalyst 3650 Series Switches are: LAN Base: enterprise access Layer 2 switching features. IP Base: baseline enterprise access Layer 3 switching features. IP Services: advanced Layer 3 switching (IPv4 and IPv6)
