Catalyst 3650 Switch WS-C3650-24TS-S|LinkNewNet

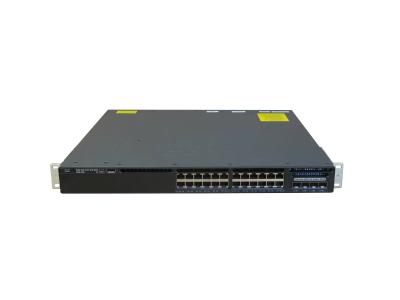

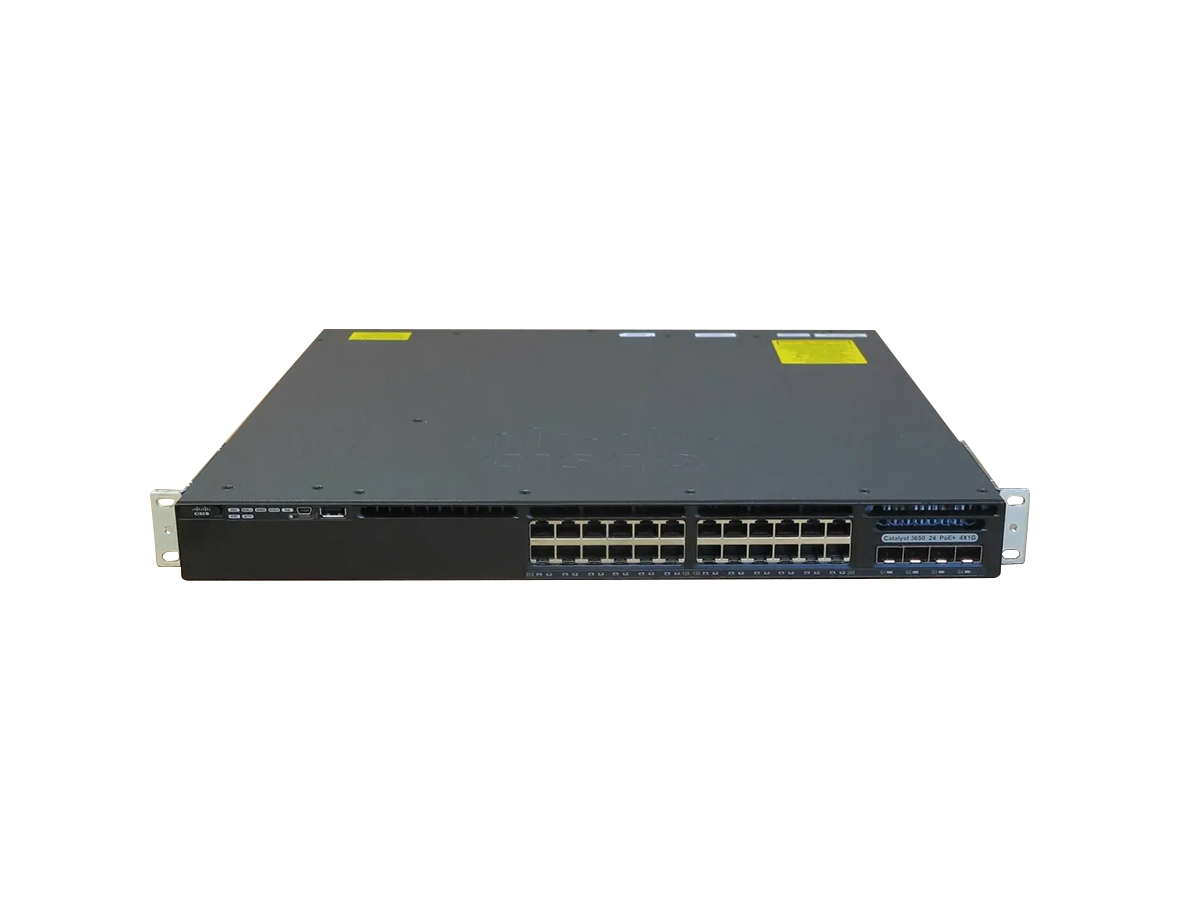

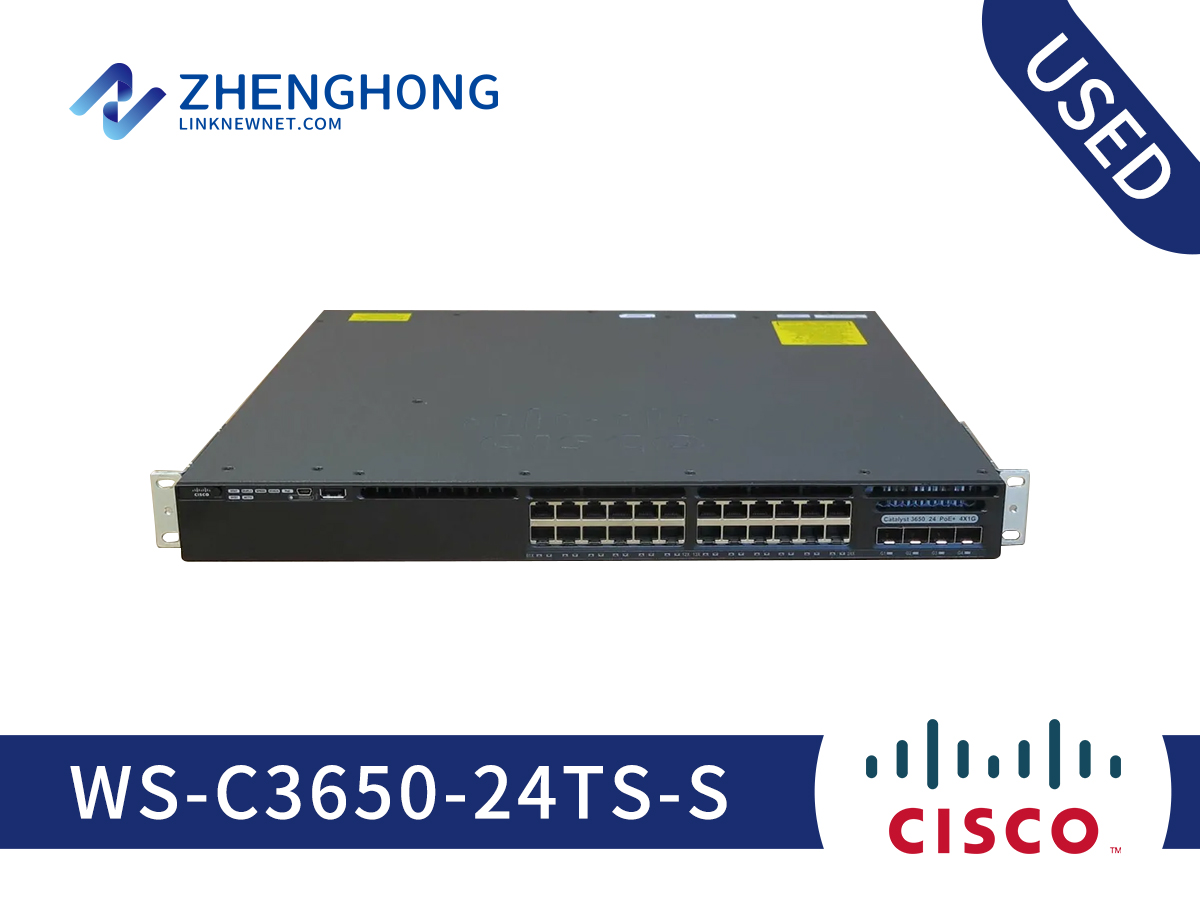

Catalyst 3650 Switch WS-C3650-24TS-S

Model: WS-C3650-24TS-S

Detail: Cisco Catalyst 3650 - Layer 3- 24 10/100/1000 Ethernet port, 4x1G Uplinks, IP Base IOS-Managed

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3650-24TS-S Specification
Maximum stacking number	9
Enclosure type	Rack-mountable - 1U
Ports	24 x 10/100/1000 + 4 x 1G SFP
Network management Interface	● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections
Switching Capacity	88Gbps
Forwarding Performance	41.66Mpps
FNF entries	24000
Maximum VLANs IDs	4,094
Maximum VLANs IDs	32K
Stack Bandwidth	160Gbps
RAM	4 G
Flash Memory	2 G
Wireless
Total number of WLANs per switch	64
Number of AP per switch/stack	50
Number of wireless clients per switch/stack	1000
Wireless bandwidth per switch	up to 20Gbps
Supported Aironet AP series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Voltage range (Auto)	100V-240V
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	power redundant slot
Accessory & Rack Moubt Kits	●ACC-KIT-T1: Accessory kit ●RACK-KIT-T1: Rack mount kit ●4PT-KIT-T1:Extension rails and brackets for four-point mounting
Stacking module & cable	●C3650-STACK-KIT: Stack Module ●STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length ●STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length ●STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply	PWR-C2-640WAC
Miscellaneous
MTBF in hours	661,800
Width	17.5 Inches (44.5 cm)
Depth	17.5 Inches (44.5 cm)
Height	1.73 Inches (4.4 cm)
System software / license
System software	IOS IP Base (Upgradable)
EnergyWise license	ENERGY-MGMT, ENERGY-MGT-100-K9
Technical Support and Services	● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services

Q&A

Q How do I manage the Cisco Catalyst 3650?

A The Cisco Catalyst 3650 can be managed using the Cisco IOS Software CLI, web GUI, Cisco Prime Infrastructure 2.0.1, or the Cisco Network Assistant Software.

Q Can this switch support Access Points?

A Yes, it supports 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 AP series.

Q How to upgrade to IP Services?

A You can use C3650-24 IP Base to IP Services Electronic RTU License - L-C3650-24-S-E= to upgrade.

Q Does WS-C3650-24TS-S support PoE?

A No
