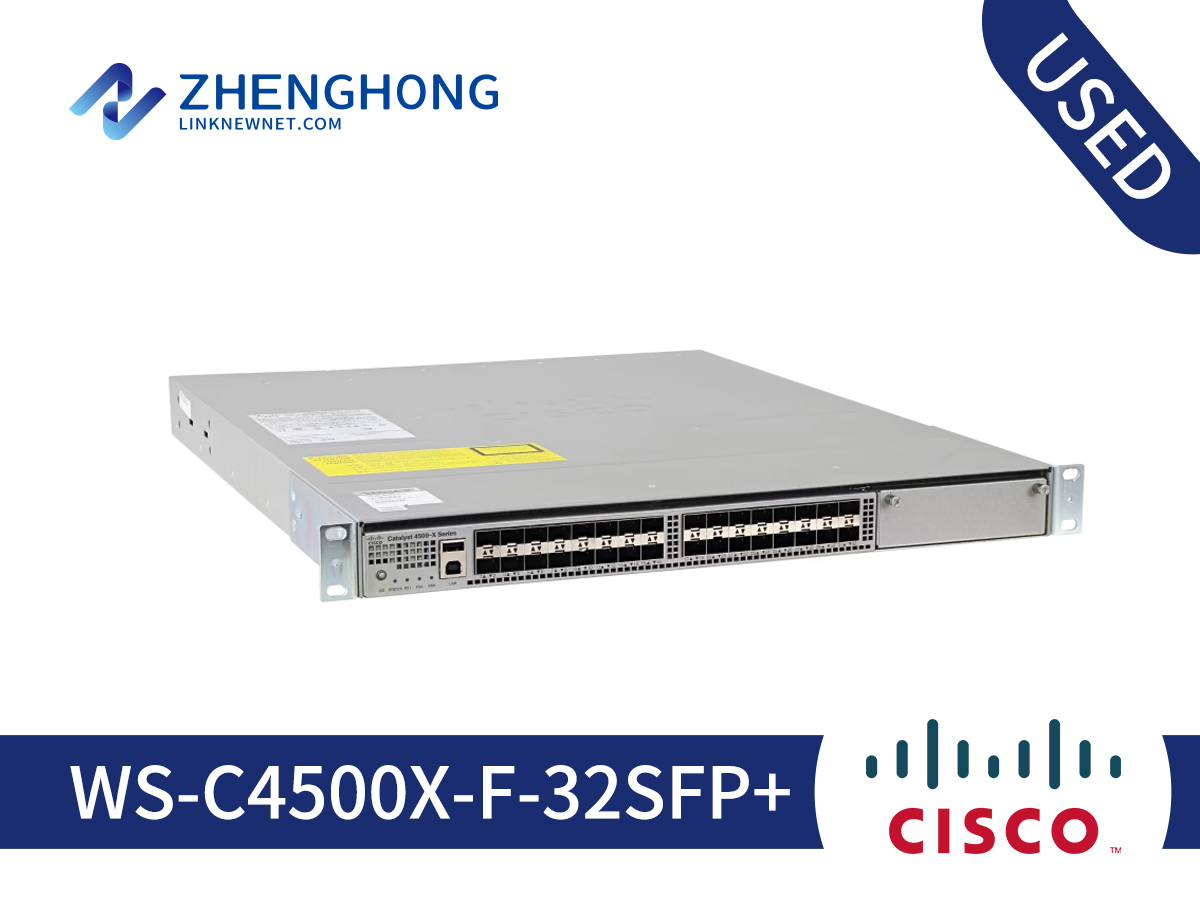

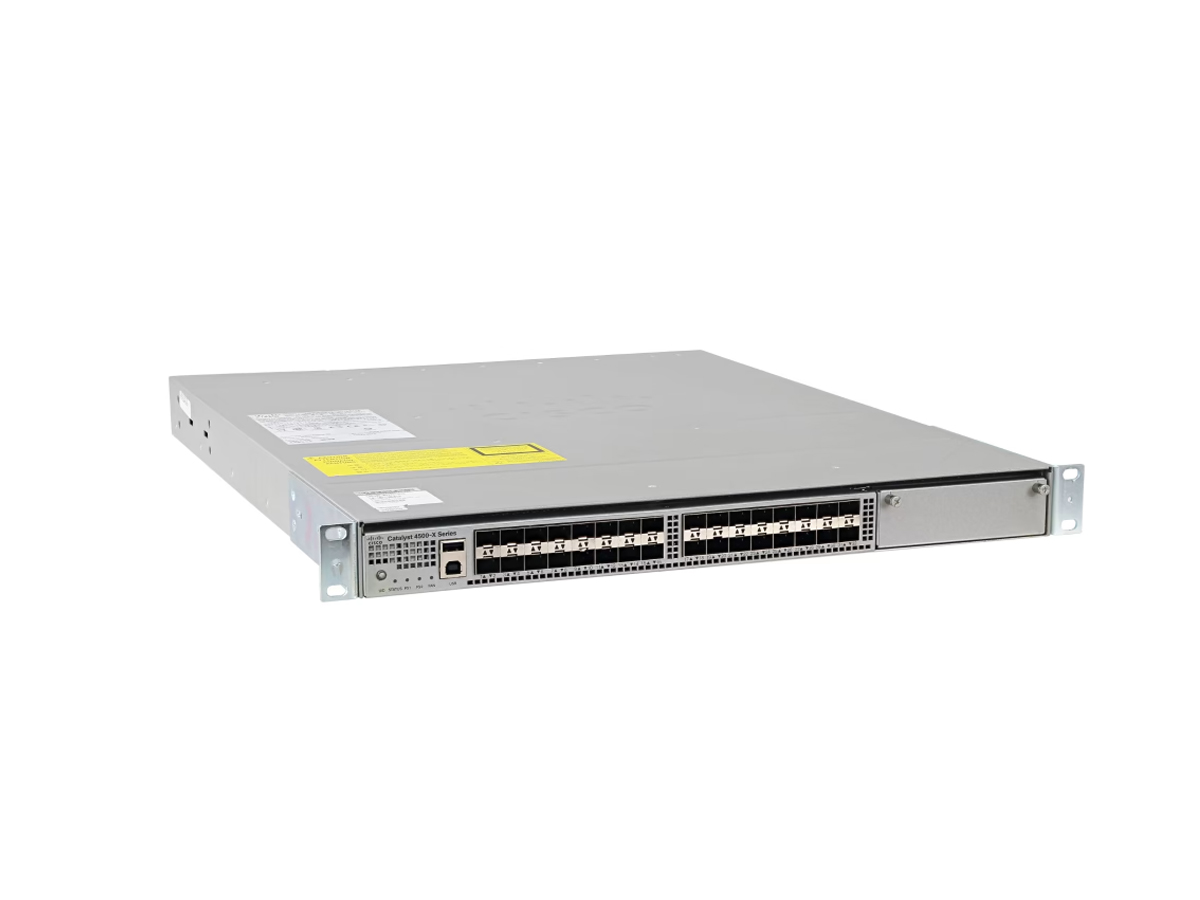

Cisco Catalyst 4500-X Series Switch WS-C4500X-F-32SFP+ Overview
Cisco Catalyst 4500-X Series Switch WS-C4500X-F-32SFP+ is a genuine modular capacity expansion product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Catalyst 4500-X Series family, the WS-C4500X-F-32SFP+ unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is installed into a compatible chassis slot, where it works alongside the supervisor and line cards to extend the platform’s capabilities.
This unit follows the original factory specification for the Cisco Catalyst 4500-X Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include short-reach data-center interconnects, campus backbone fiber links, and carrier access and metro networks. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Catalyst 4500-X 32 Port 10GE IP Base, Back-to-Front Cooling, No P/S”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the WS-C4500X-F-32SFP+. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Capacity Expansion
Add ports and performance to existing chassis.
Upgrade Path
Modernize aging platforms with compatible modules.
Flexible I/O
Mix copper, fiber and high-speed uplinks.
Buying a Pre-Owned WS-C4500X-F-32SFP+
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
WS-C4500X-F-32SFP+ Specification | |
System | |
Dual Power Supply | Yes |
Field Replaceable Fans | Yes (5 fans) |
Management Port | 10/100/1000 Base-T |
Base System | Back to Front Airflow: ● 32x10 GE SFP+/SFP - WS-C4500X-F-32SFP+ |
USB Port | Type A (storage and boot) up-to 4 GB |
Fan Redundancy | No performance impact with single fan failure |
Scalability | |
Media Access Control (MAC) Entries | 55K |
Flexible Netflow Entries | 128K |
Dynamic Host Configuration Protocol (DHCP) Snooping Entries | 12K (DHCP snooping bindings) |
Switched Port Analyzer (SPAN), Remote Switched Port Analyzer (RSPAN) | 8 line rate bidirectional sessions (ingress and egress) |
High Availability and Resiliency | |
Max number of Virtual Switch Links | 8 |
Number of stackable switches in VSS | Up to 2 |
VSS Throughput | Up to 1.6 Tbps |
Virtual Switch Link | 1GE or 10GE |
High Availability Solution | Virtual Switching System (VSS) |
CPU and Memory | |
NVRAM | 2 GB |
Onboard Memory (SRAM DDR-II) | 4 GB |
QoS Features | |
Aggregate Traffic Rate-Limiting Policers (1K=1024) | 16K |
CPU Queues | 64 |
Qos Policy Enforcement | Per Port or Per Vlan or Per Port, Per VLAN Granularity |
Rate-Limiting Level Types | Committed Information Rate (CIR), Peak Information Rate (PIR) |
Flow-Based Rate-Limiting Method; Number of Rates | Supported using flow-records in the classification criteria and policing action |
Virtualization Features | |
VRF-Lite Scalability | 64 |
Easy Virtual Network (EVN) Scalability | 32 |
Environmental Conditions | |
Operating Temperature | 0°C to 40°C (RH to 90%) |
Storage Temperature | -40°C to 70°C (RH 93%) |
Power Supply | |
AC Power Max Rating | 750W |
System Power Consumption | 330W nominal/400W max |
Input-Voltage Range and Frequency | AC 100 to 240 VAC 50-60 Hz/DC -72 VDC to -40 VDC |
Power-Supply Input Receptacles | AC IEC 60320 C15/DC Custom detachable screw terminal (supplied) |
MTBF Information | |
WS-C4500X-F-32SFP+ | 199,720 |
Regulatory Standards Compliance | |
Regulatory Compliance | CE marking |
Industry EMC, Safety, and Environmental Standards | GR-63-Core Network Equipment Building Systems (NEBS) Level 3 GR-1089-Core Level 3 |
WS-C4500X-F-32SFP+ - Compatibility Notes
This WS-C4500X-F-32SFP+ transceiver/module variant is specified for the reach, wavelength, and form factor indicated in the specifications above. Confirm compatibility with your switch or router platform, including the required coding (Cisco, Juniper, Huawei, H3C) and supported data rate, before ordering.
When building out or refreshing links, match the transceiver variant to the optics budget and distance of each run. Our team can confirm compatibility with specific platforms and provide bulk pricing.
Each WS-C4500X-F-32SFP+ unit is tested for correct operation and performance before dispatch, ensuring reliable link establishment on arrival.
