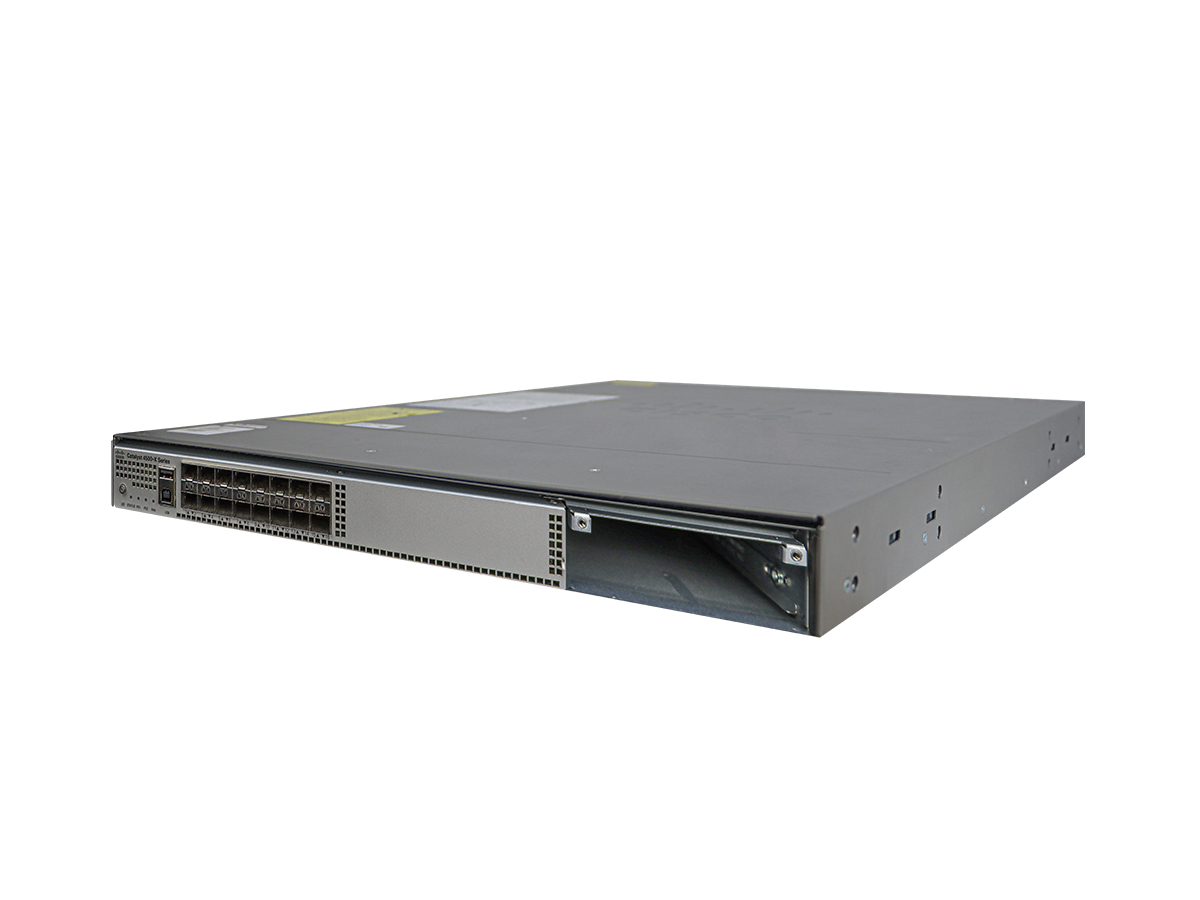

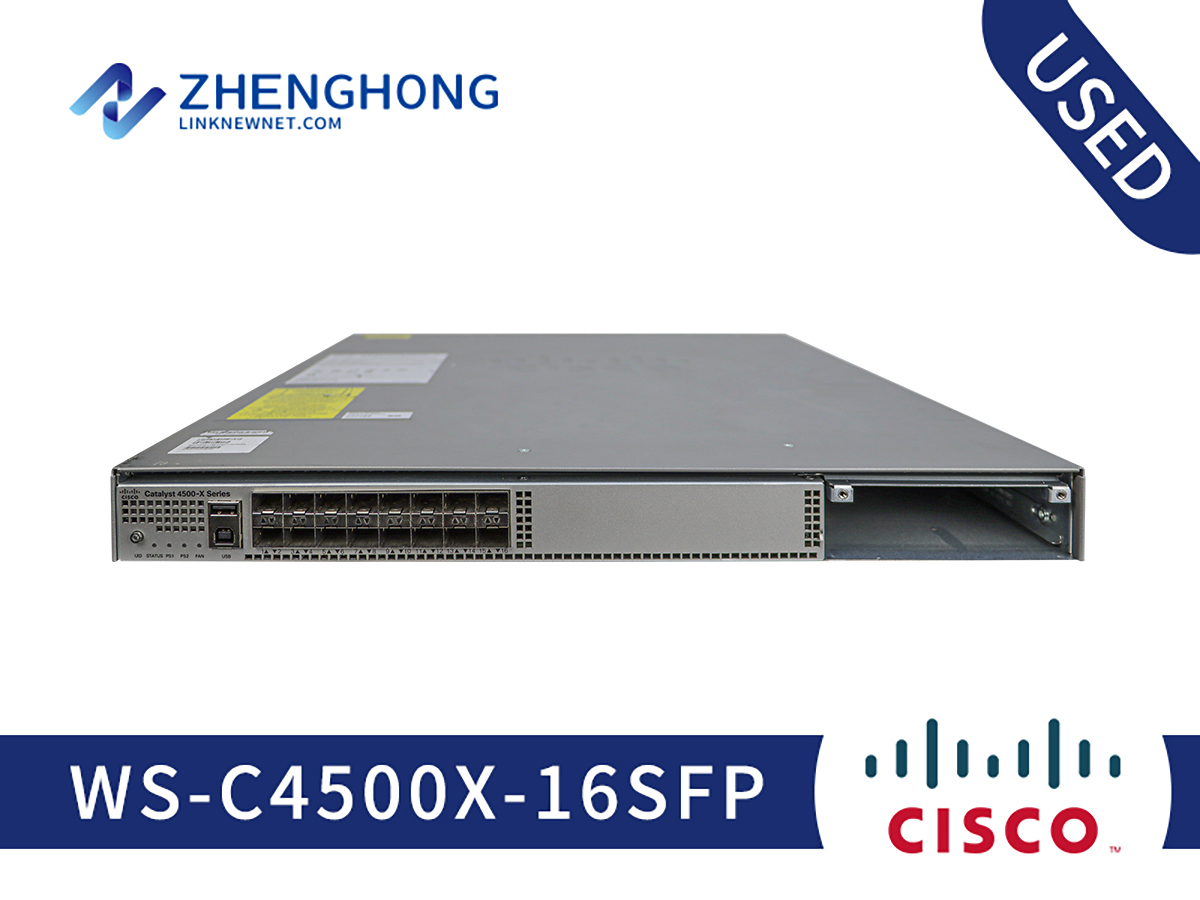

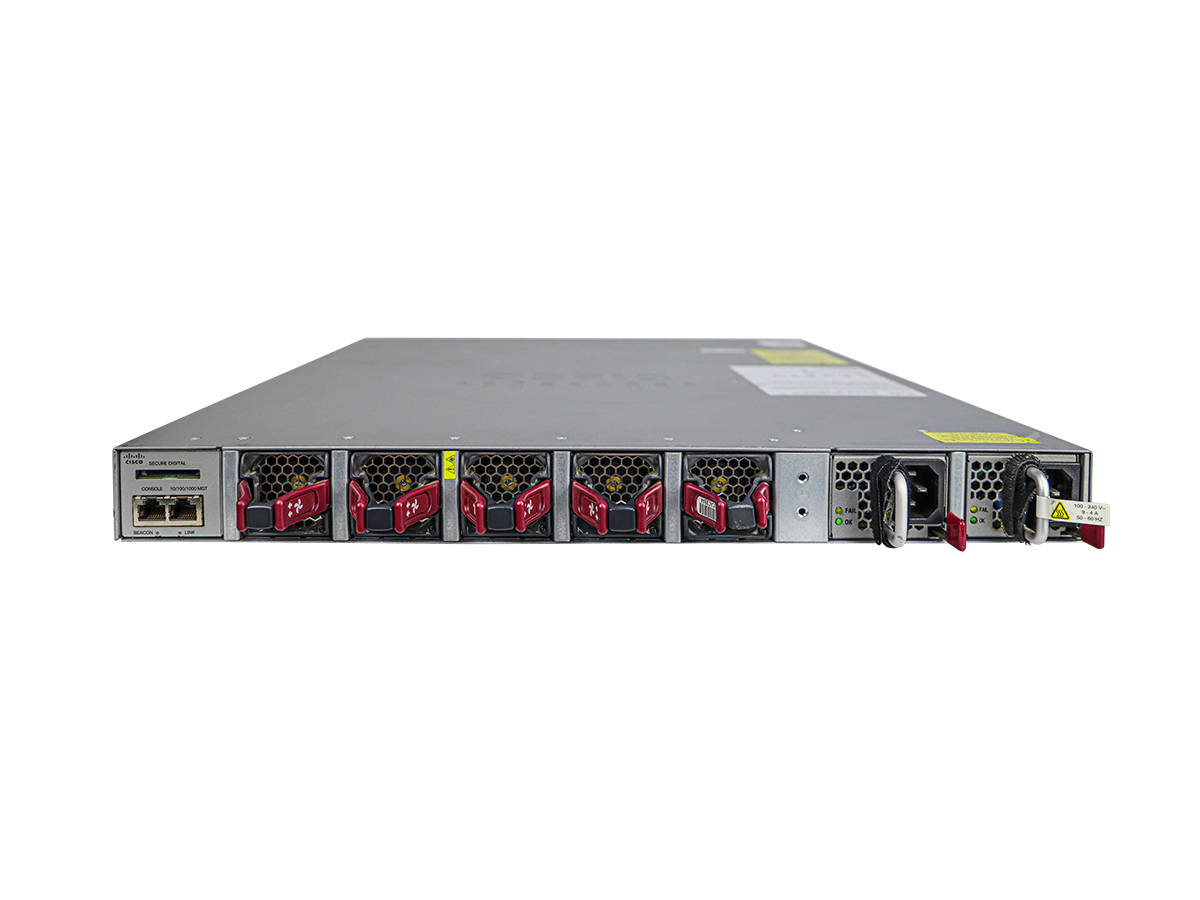

WS-C4500X-16SFP+ | |
Product list | |
Product code | WS-C4500X-16SFP+ |
Power cable | No |
Button | No |
Product parameters | |
Port | 16 |
Port Type | SFP+ |
Ethernet Technology | 10 Gigabit Ethernet |
Network Technology | 10GBase-T |
Layer Supported | 2 |
Standard Memory | 4 GB |
Flash Memory | 2 GB |
Management | RMON I, II VLAN QoS DHCP |
Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3ae |
Introduction | Cisco Catalyst 4500-X Series provides scalable, fixed-campus aggregation solutions in space-constrained environments. The solution provides flexibility to build desired port density through two versions of base switches along with optional uplink module. |
Power Device | |
Power Source | Power Supply |
Max Supported Qty | 2 |
Input Voltage | 110 V AC 220 V AC |
Physical specifications | |
Width | 17.9 in |
Height | 1.86 in |
Depth | 22.3 in |
Weight | 7.72 lbs |
Environmental Parameters | |
Min Temperature | 32 °F |
Max Temperature | 104 °F |
Humidity Operating | 10 - 90% (non-condensing) |
