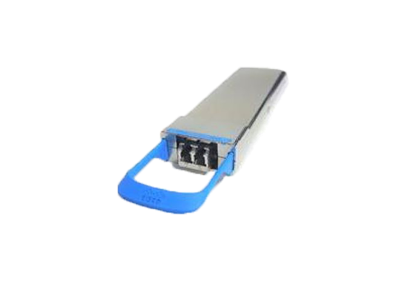

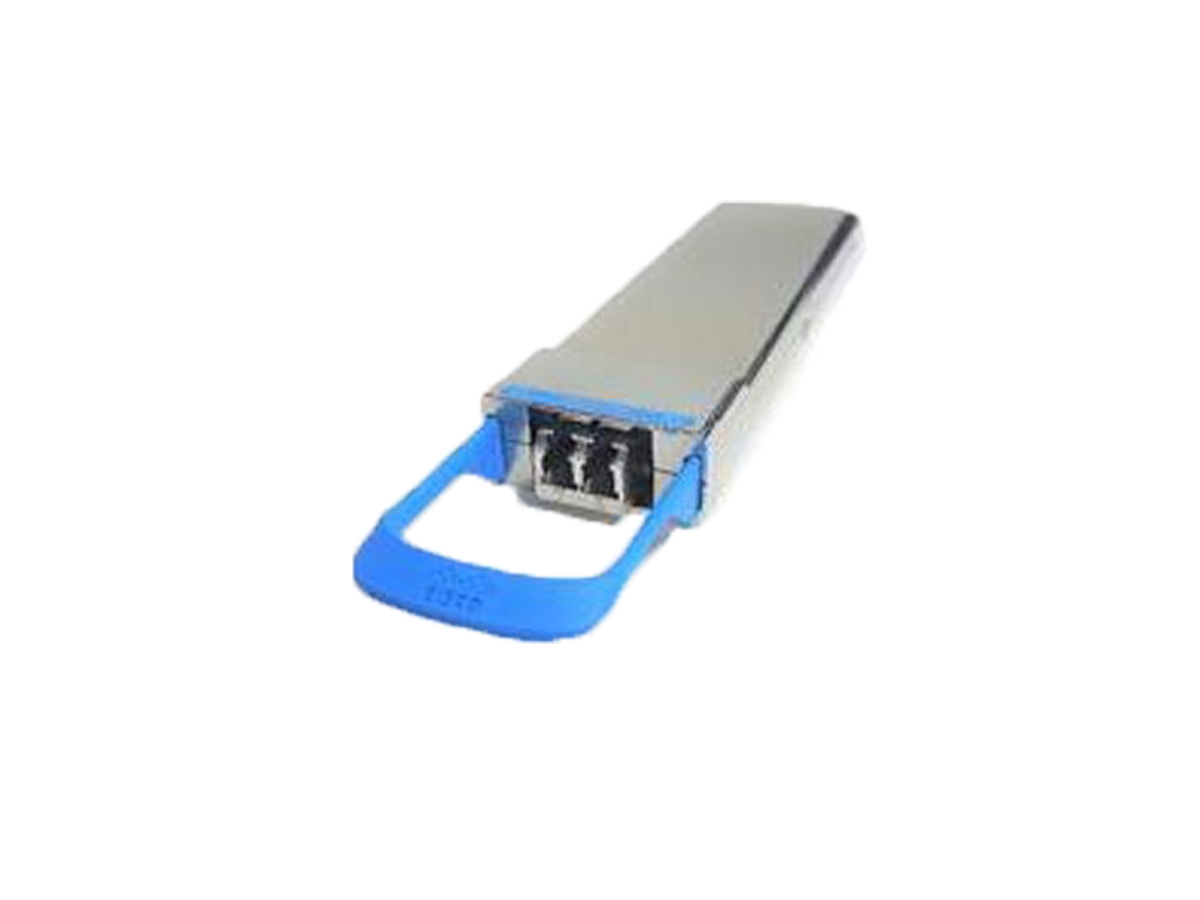

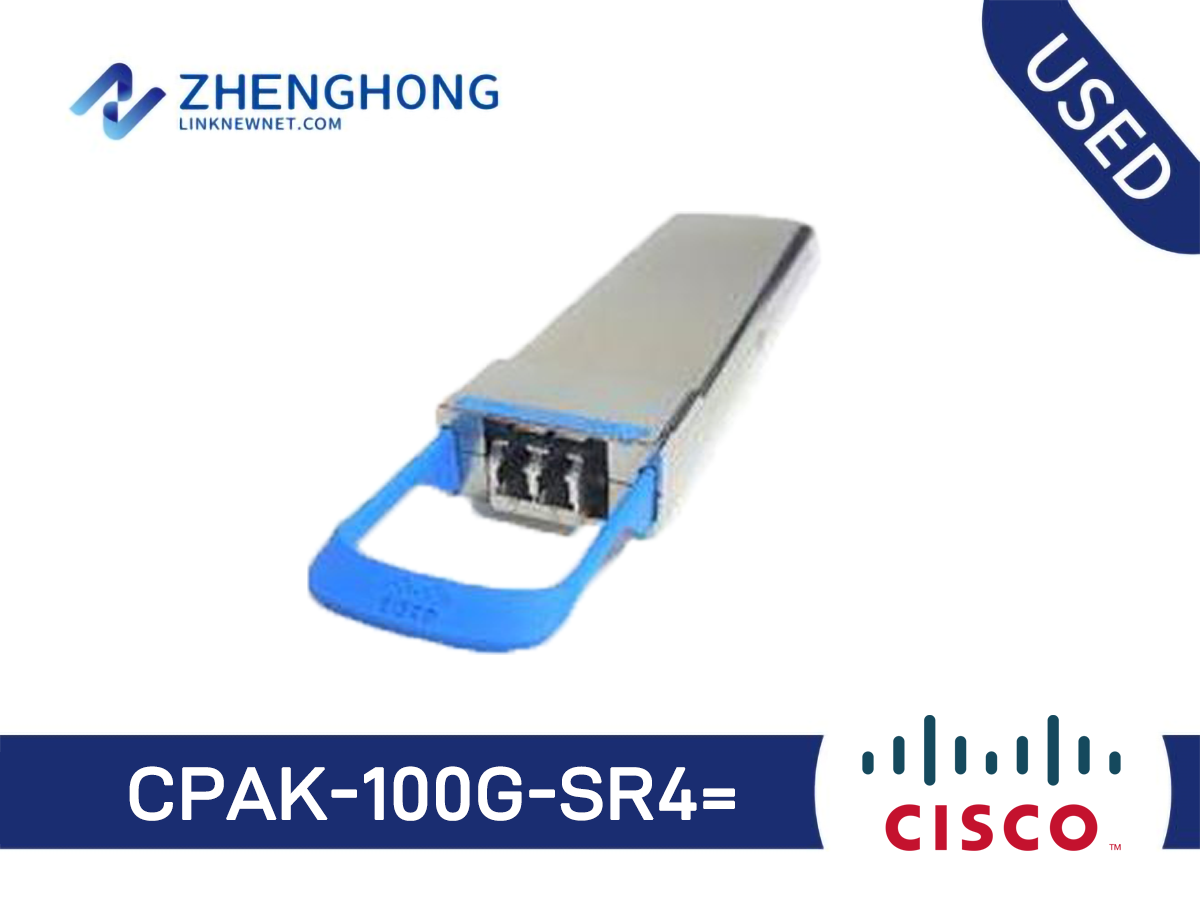

CPAK-100G-SR4= - Cisco QSFP28 Module|LinkNewNet

CPAK-100G-SR4= - Cisco QSFP28 Module

Model: CPAK-100G-SR4=

Detail: CPAK optical transceiver module, 100GBASE-SR4, 100m OM4

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CPAK-100G-SR4= Specification
Description	100GBASE-SR4 Cisco CPAK Module for MMF
Dimensions	11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
Cisco CPAK port cabling specifications
Wavelength (nm)	850
Cable Type	MMF (12 fibers)
Core Size (Microns)	50.0 50.0
*Modal Bandwidth (MHzkm)**	2000 (OM3) 4700 (OM4)
Cable Distance	70 m 100 m
Optical transmit and receive specifications
Type	100GBASE-SR4 850 nm MMF
Transmit Power	Max:+2.4 per lane Min:-8.4 per lane
Receive Power (dBm)	Max:+2.4 per lane Min:-5.2 per lane
Transmit and Receive Center Wavelength Range (nm)	Four lanes: 840 to 860 nm
Supported Mode	1x100G
Supported Protocol	IEEE 802.3ba
Environmental conditions and power requirements
Storage temperature	-40 to 85° C (-40 to 185° F)
Operating temperature	0 to 70° C (32 to 158° F)
Power consumption	At 70° C: <9.0W maximum

Q&A

Are there any alternative products to the CPAK-100G-SR4=?

Yes, alternatives include the QSFP-100G-SR4= or the CFP-100G-SR10=, depending on your network requirements.

What common troubleshooting steps are there for the CPAK-100G-SR4=?

Ensure the CPAK-100G-SR4= is properly seated, check the fiber connections, and verify compatibility with your Cisco devices.

What accessories are available for the CPAK-100G-SR4=?

Accessories include OM4 fiber optic cables, dust caps, and module carriers for safe transport.

How does the CPAK-100G-SR4= compare to other similar products?

The CPAK-100G-SR4= provides a reliable, cost-effective 100G solution with easy compatibility with Cisco devices, compared to other high-speed transceivers.

How cost-effective is the CPAK-100G-SR4=?

The CPAK-100G-SR4= offers a high bandwidth solution at a competitive price, suitable for high-speed networking environments.

What are the key features of the CPAK-100G-SR4=?

The CPAK-100G-SR4= is a 100GBASE-SR4 optical transceiver module that supports distances up to 100 meters over OM4 multimode fiber.

What are the application scenarios for the CPAK-100G-SR4=?

The CPAK-100G-SR4= is ideal for data centers, high-performance computing networks, and high bandwidth applications.

How do you use the CPAK-100G-SR4=?

The CPAK-100G-SR4= can be easily inserted into compatible Cisco networking devices, providing high-speed data transmission.

What is the installation process for the CPAK-100G-SR4=?

Insert the CPAK-100G-SR4= into the appropriate port on your Cisco device until it clicks securely into place.

Does the CPAK-100G-SR4= need to be upgraded?

No, the CPAK-100G-SR4= does not require upgrades; it provides stable performance as per its design specifications.
