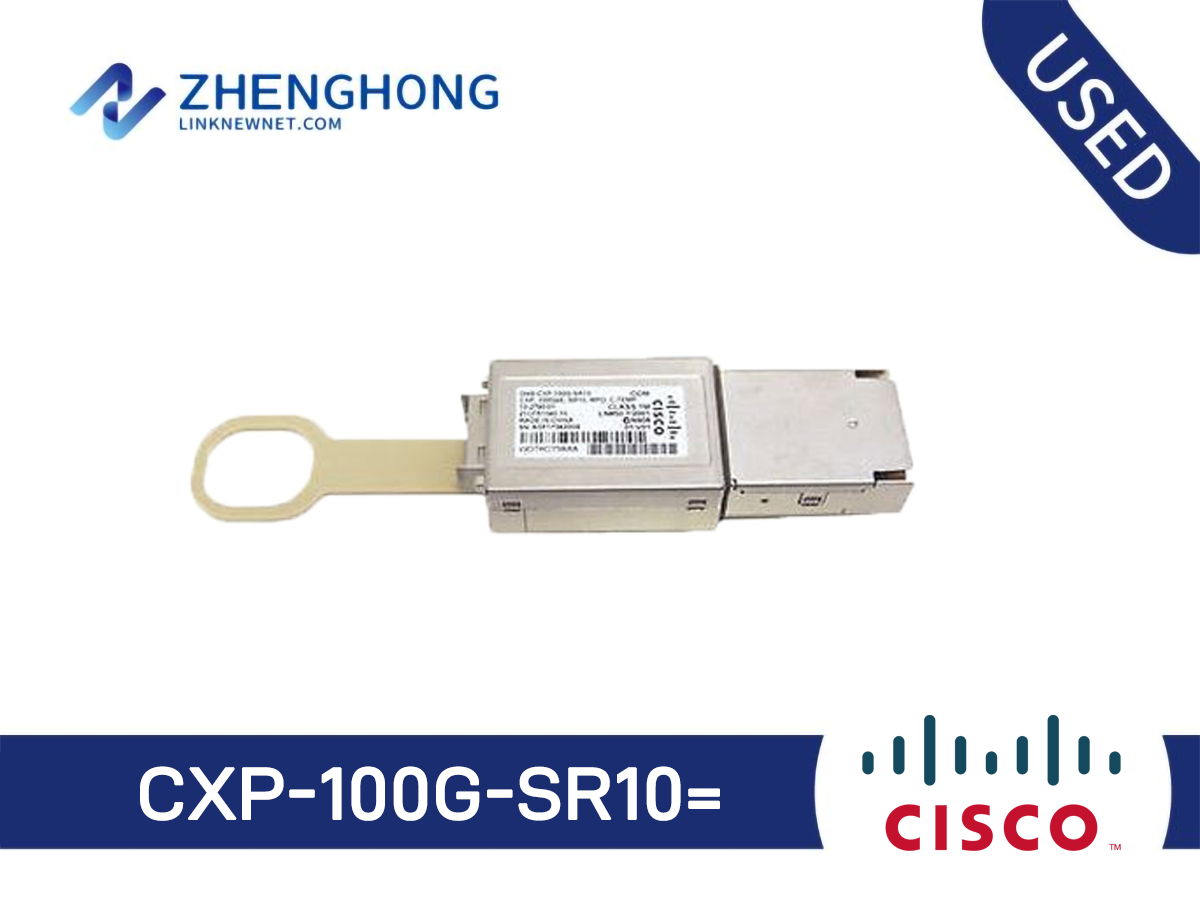

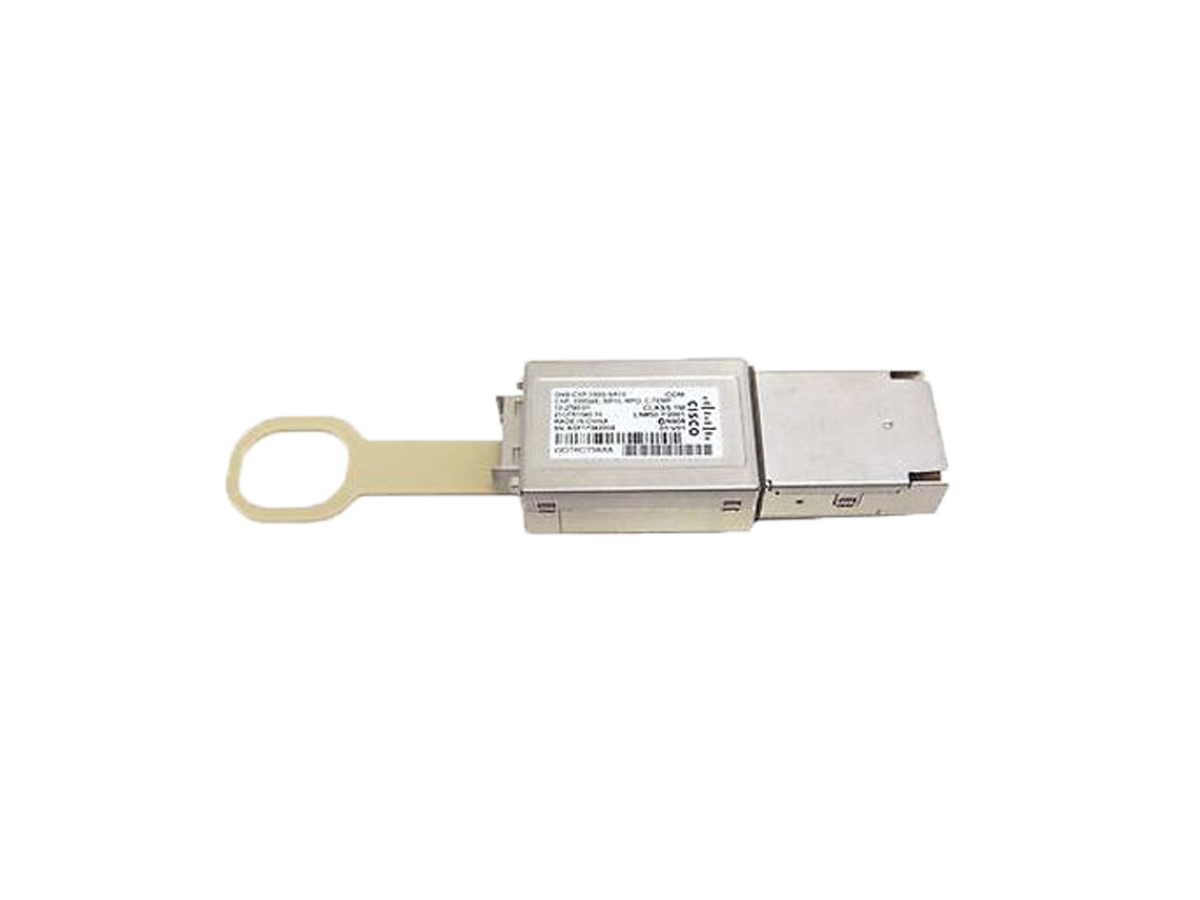

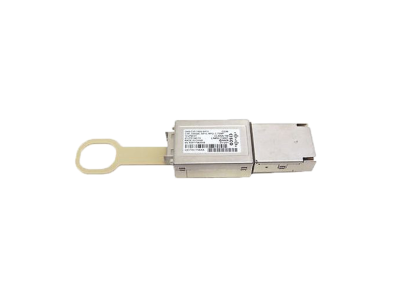

CXP-100G-SR10= - Cisco QSFP28 Module

Model: CXP-100G-SR10=

Detail: CXP-100G-SR10 Transceiver module Spare

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CXP-100G-SR10= Specification
Description	100GBASE-SR10 CXP Module for MMF compliant to 10GBASE-SR
Dimensions	13.3 x 24 x 62 mm (0.52 x 0.94 x 2.44 in)
CXP Port Cabling Specifications
Wavelength (nm)	850
Cable Type	MMF
Core Size (Microns)	50.0 50.0
Modal Bandwidth (MHzkm)**	2000 (OM3) 4700 (OM4)
Cable Distance*	100m 150m**
* Minimum cabling distance for -LR4 modules is 2m, according to the IEEE 802.3ba. Considered an engineered link with maximum 1dB allocated to connectors and splice loss. * Specified at transmission wavelength.
Optical Transmit and Receive Specifications
Type	100GBASE-SR10 10GBASE-SR
Transmit Power (dBm)*	Max:-1.0 per lane Min:-7.6 per lane
Receive Power (dBm)*	Max:2.4 per lane Min:-9.5 per lane
Transmit and Receive Center Wavelength Range (nm)	12 lanes: 840 to 860 nm
* Transmitter and receiver power are in averages, unless specified.
Environmental Conditions and Power Requirements
Storage temperature	-40 to 185°F (-40 to 85° C)
CXP operating temperature	0 to 70°C (32 to 158°F)
CXP power consumption	At 70°C: <3.5W maximum

Q&A

What common troubleshooting steps should I take with the CXP-100G-SR10 module?

Ensure proper seating of the module, check for compatible cables, and verify device configurations if issues arise with the CXP-100G-SR10.

What accessories are available for the CXP-100G-SR10 transceiver module?

Accessories may include compatible multimode fiber cables, dust caps, and MPO connectors specifically for the CXP-100G-SR10 module.

How does the CXP-100G-SR10 transceiver module compare to similar products?

The CXP-100G-SR10 offers comparable performance to other 100G modules but stands out due to its multimode fiber support and cost-effectiveness.

Is the CXP-100G-SR10 transceiver module compatible with my existing network equipment?

The CXP-100G-SR10 is compatible with Cisco networking equipment that supports CXP slots and multimode fiber interfaces. Always verify compatibility.

How cost-effective is the CXP-100G-SR10 transceiver?

The CXP-100G-SR10 transceiver offers a high-performance 100G solution at a competitive price point, making it cost-effective for large-scale deployments.

What are the key features of the CXP-100G-SR10 transceiver module?

The CXP-100G-SR10 module features 100G data rate, multimode fiber support, and a reach of up to 100 meters, ensuring high-speed data transfer.

What are the typical application scenarios for the CXP-100G-SR10 transceiver module?

The CXP-100G-SR10 is ideal for data center and high-performance computing environments where high-speed interconnectivity is crucial.

How do I install the CXP-100G-SR10 transceiver module?

The CXP-100G-SR10 module can be installed by inserting it into a compatible CXP slot on your network equipment in alignment with the product guide.

Does the CXP-100G-SR10 transceiver require firmware upgrades?

Typically, the CXP-100G-SR10 module does not require firmware upgrades. Always check the manufacturer's guidelines for updates.

Are there any alternative products to the CXP-100G-SR10 transceiver module?

Yes, alternatives include other Cisco 100G optical modules such as the CFP-100G-SR10, each with specific use cases and compatibilities.
