CPAK-100G-SR10= - Cisco QSFP28 Module|LinkNewNet

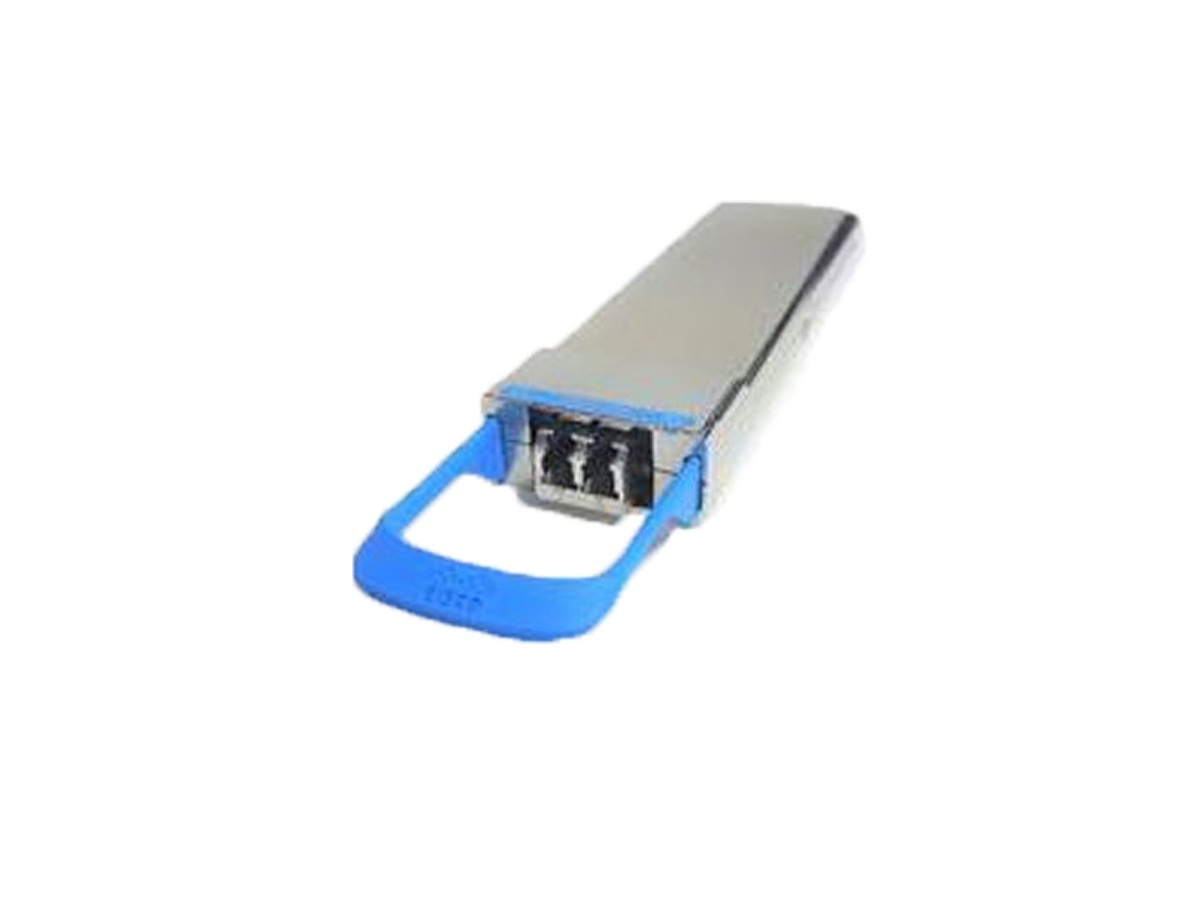

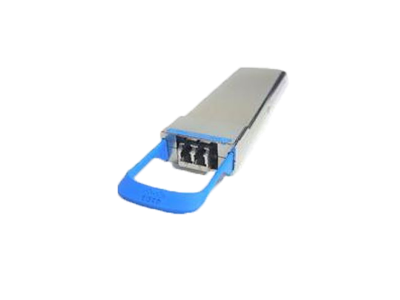

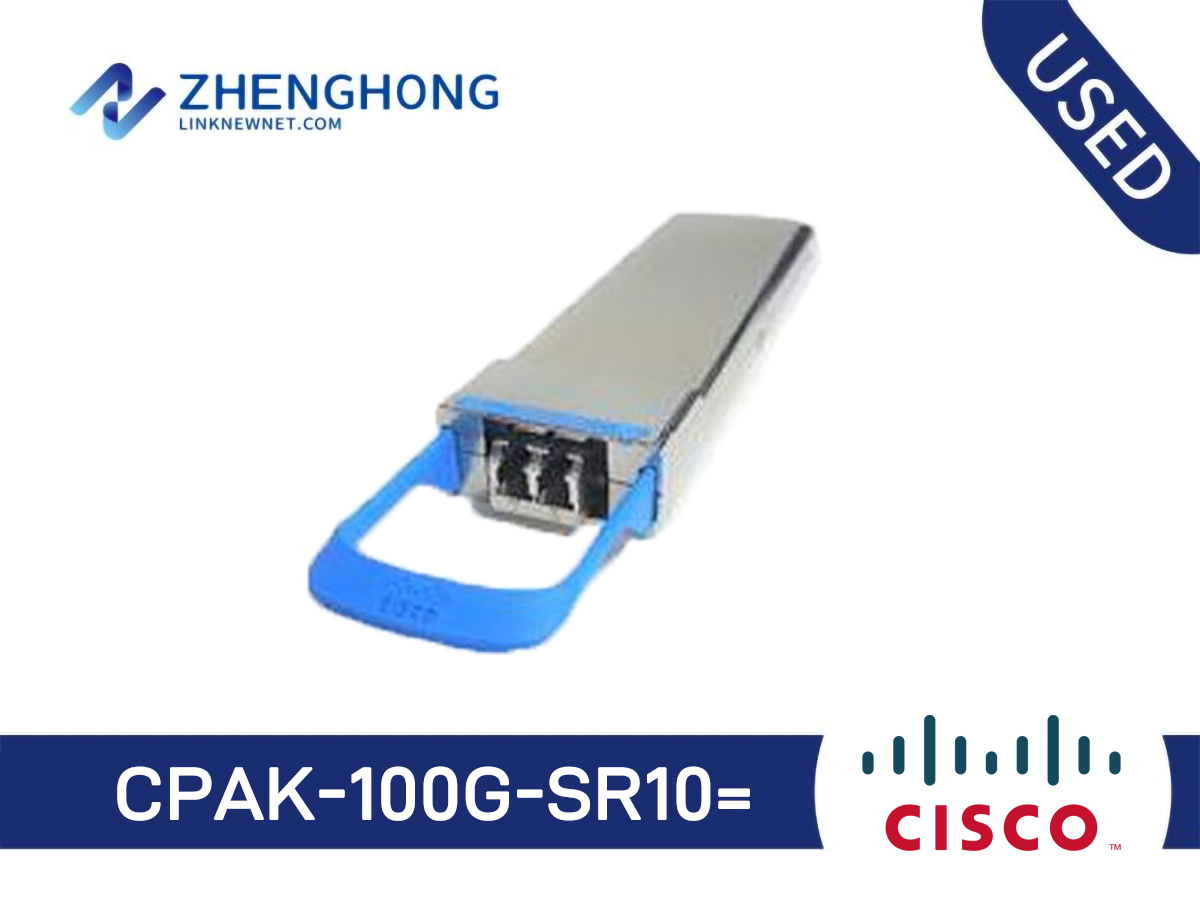

CPAK-100G-SR10= - Cisco QSFP28 Module

Model: CPAK-100G-SR10=

Detail: CPAK-100G-SR10 Transceiver module, 100m OM3 MMF

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CPAK-100G-SR10= Specification
Description	100GBASE-SR10 Cisco CPAK Module for MMF
Dimensions	11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
Cisco CPAK port cabling specifications
Wavelength (nm)	850
Cable Type	MMF (12 fibers)
Core Size (Microns)	50.0 50.0
*Modal Bandwidth (MHzkm)**	2000 (OM3) 4700 (OM4)
Cable Distance	100 m 150 m
Optical transmit and receive specifications
Type	100GBASE-SR10 850 nm MMF
Transmit Power	Max:+1.0 per lane Min:-7.6 per lane
Receive Power (dBm)	Max:+2.4 per lane Min:-9.5 per lane
Transmit and Receive Center Wavelength Range (nm)	Four lanes: 840 to 860 nm
Supported Mode	Supported Protocol
1x100G	IEEE 802.3ba ITU OTU4
2x40G	IEEE 802.3ba ITU OTU3
10x10G	IEEE 802.3ae FC ITU OTU2 ITU OTU1e ITU OTU2e
Environmental conditions and power requirements
Storage temperature	-40 to 85° C (-40 to 185° F)
Operating temperature	0 to 70° C (32 to 158° F)
Power consumption	At 70° C: <4.5 W maximum

Q&A

What are some common troubleshooting steps for the CPAK-100G-SR10?

Verify connections, check for supported distances, and ensure the module is properly seated in the port.

What accessories are available for the CPAK-100G-SR10?

Accessories include compatible multimode fiber cables and Cisco dust covers for when the module is not in use.

How does the CPAK-100G-SR10 compare to other similar Cisco modules?

The CPAK-100G-SR10 is designed for shorter distances up to 100m on OM3 MMF, while others like the CPAK-100G-LR4 support longer distances.

Does the CPAK-100G-SR10 module work with all Cisco switches and routers?

The CPAK-100G-SR10 is compatible with a range of Cisco devices, but always check your device's module compatibility list.

How cost-effective is the CPAK-100G-SR10?

The CPAK-100G-SR10 transceiver module offers a high-performance yet cost-effective solution for 100G network connections over short distances.

What are the main features of the CPAK-100G-SR10?

The CPAK-100G-SR10 features 100Gbps data rates, MMF up to 100m, and compatibility with Cisco networking equipment.

Where can I use the CPAK-100G-SR10 transceiver?

The CPAK-100G-SR10 is suitable for data centers, high-performance computing networks, and enterprise core networks.

How do you install the CPAK-100G-SR10 module?

Simply insert the CPAK-100G-SR10 into the appropriate CPAK port on your Cisco switch or router until it clicks into place.

Does the CPAK-100G-SR10 require any firmware upgrades?

No firmware upgrades are needed for the CPAK-100G-SR10 module; just ensure your Cisco device is compatible with 100G modules.

Are there alternatives to the CPAK-100G-SR10?

Alternatives include other Cisco 100G optical modules such as the CPAK-100G-LR4 and CPAK-100G-ER4.

What are some common troubleshooting steps for the CPAK-100G-SR10?

Verify connections, check for supported distances, and ensure the module is properly seated in the port.

What accessories are available for the CPAK-100G-SR10?

Accessories include compatible multimode fiber cables and Cisco dust covers for when the module is not in use.

How does the CPAK-100G-SR10 compare to other similar Cisco modules?

The CPAK-100G-SR10 is designed for shorter distances up to 100m on OM3 MMF, while others like the CPAK-100G-LR4 support longer distances.

Does the CPAK-100G-SR10 module work with all Cisco switches and routers?

The CPAK-100G-SR10 is compatible with a range of Cisco devices, but always check your device's module compatibility list.
