CPAK-100G-PSM4= - Cisco QSFP28 Module|LinkNewNet

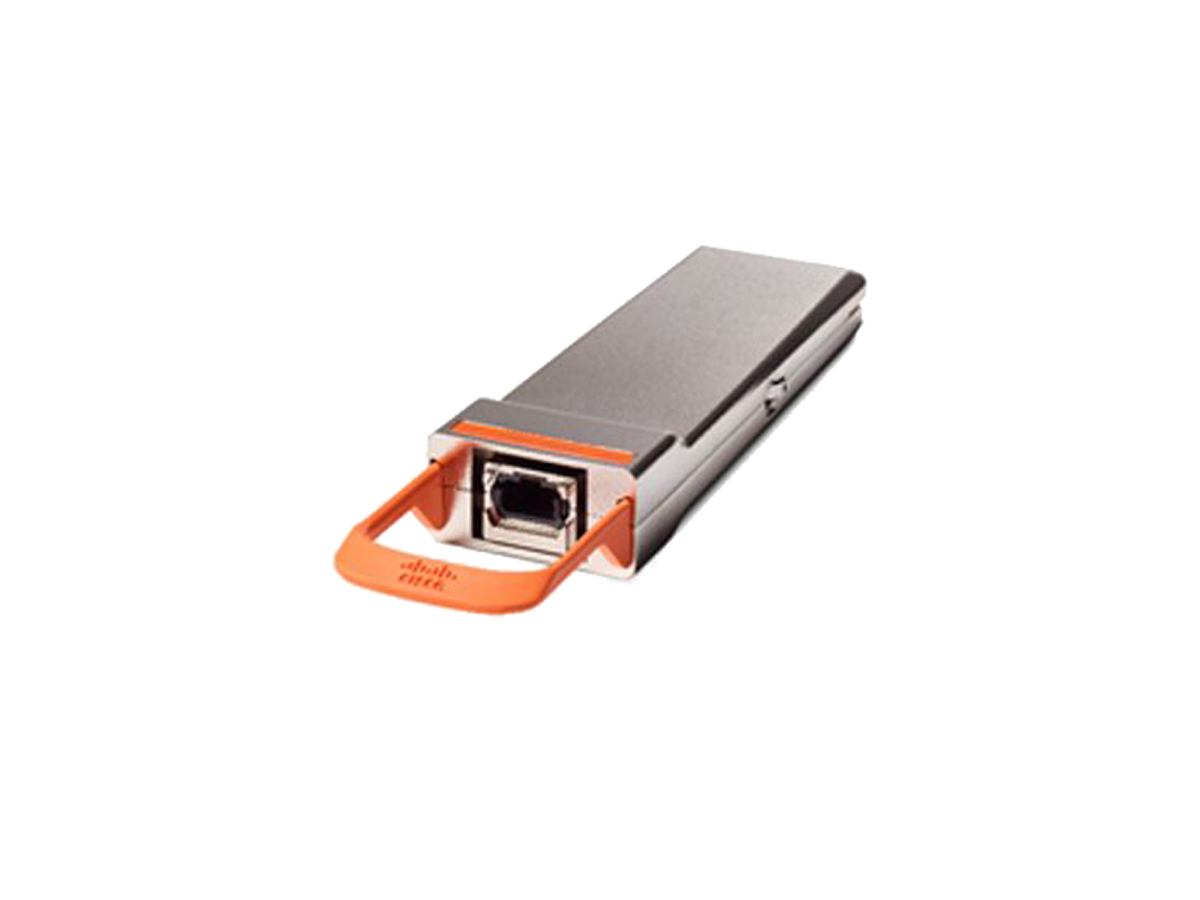

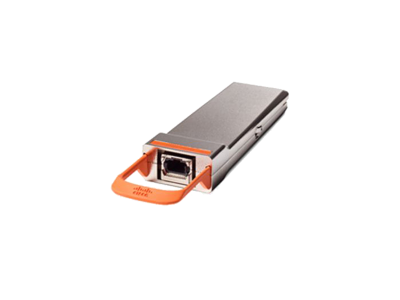

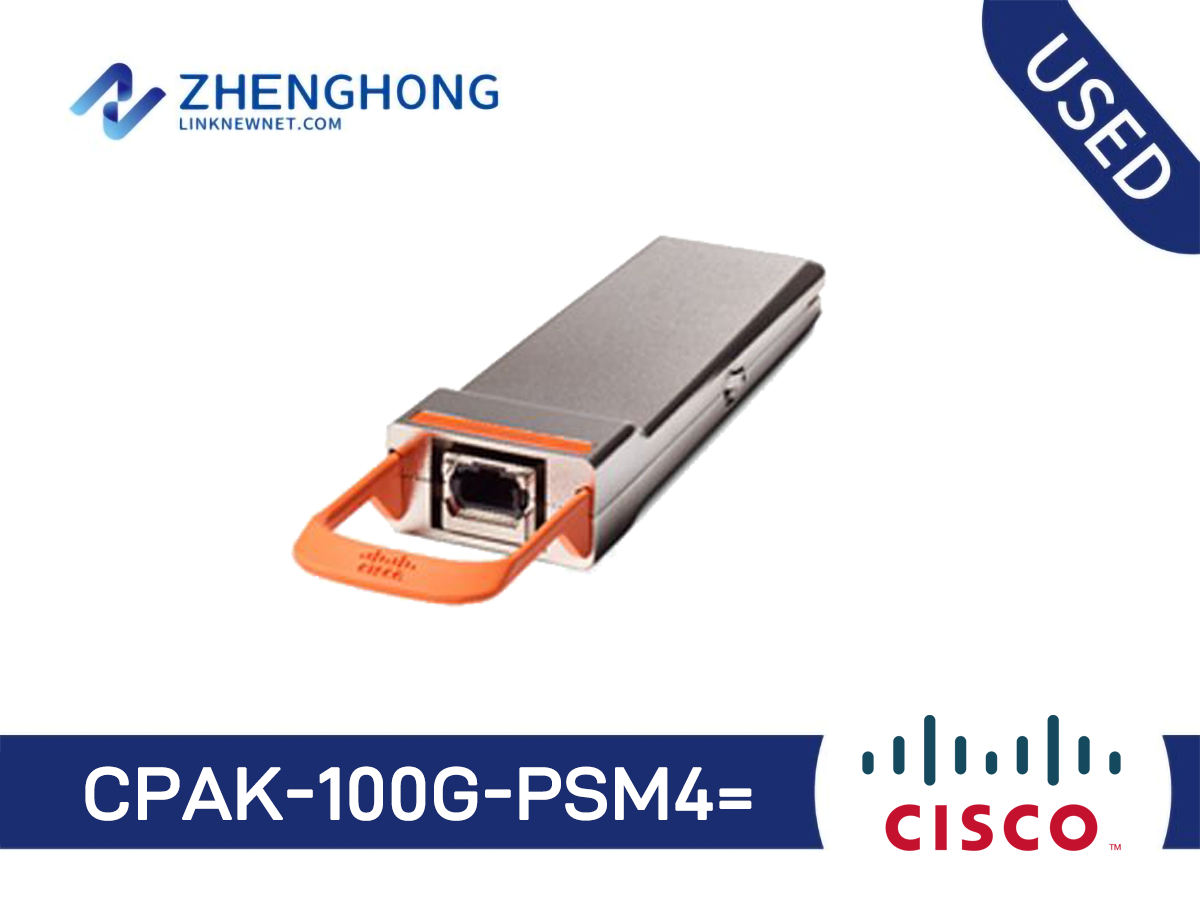

CPAK-100G-PSM4= - Cisco QSFP28 Module

Model: CPAK-100G-PSM4=

Detail: CPAK optical transceiver module, PSM4 500m SMF, parallel

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CPAK-100G-PSM4= Specification
Description	100GBASE PSM4 Cisco CPAK Module for SMF
Dimensions	11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
Cisco CPAK port cabling specifications
Wavelength (nm)	1295 to 1325
Cable Type	SMF (12 fibers)
Core Size (Microns)	9-micron core SMF per G.652
*Modal Bandwidth (MHzkm)**	\
Cable Distance	500 m
Optical transmit and receive specifications
Type	100GBASE PSM4 SMF
Transmit Power	Max:+2.0 per lane Min:-9.4 per lane
Receive Power (dBm)	Max:+9.4 per lane Min:-2.0 per lane
Transmit and Receive Center Wavelength Range (nm)	Four lanes: 1295 to 1325
Supported Mode	1x100G
Supported Protocol	IEEE 802.3ba
Environmental conditions and power requirements
Storage temperature	-40 to 85° C (-40 to 185° F)
Operating temperature	0 to 70° C (32 to 158° F)
Power consumption	At 70° C: <9.0W maximum

Q&A

What common troubleshooting steps are there for the CPAK-100G-PSM4=?

Check physical connections, ensure software compatibility, reboot the transceiver, and verify that the module is seated correctly in the slot.

What accessories are available for CPAK-100G-PSM4=?

Accessories include compatible fiber optic cables (SMF), cleaning kits, and Cisco transceiver installation guides.

How does the CPAK-100G-PSM4= compare to other 100G modules?

The CPAK-100G-PSM4= offers a balance of cost-efficiency and performance with its 500m reach, making it suitable for shorter-range high-capacity needs.

Can the CPAK-100G-PSM4= be used in mixed vendor environments?

While the CPAK-100G-PSM4= is designed for Cisco networks, it can often be used in mixed vendor environments if the equipment supports standard 100G PSM4 interfaces.

How cost-effective is the CPAK-100G-PSM4= optical transceiver module?

The CPAK-100G-PSM4= offers a high-performance 100G solution at a competitive price, providing cost savings through its PSM4 500m reach on single-mode fiber.

What are the key features of CPAK-100G-PSM4=?

The CPAK-100G-PSM4= features parallel single-mode fiber (SMF) support, a maximum reach of 500 meters, and compatibility with a variety of Cisco networks.

In which application scenarios is CPAK-100G-PSM4= typically used?

CPAK-100G-PSM4= is ideal for data center interconnect, high-capacity Metro Ethernet, and advanced network applications requiring up to 500m reach.

How do I install the CPAK-100G-PSM4= optical transceiver module?

To install the CPAK-100G-PSM4=, simply insert it into the compatible Cisco switch or router port until it clicks firmly into place. Ensure fiber cables are securely connected.

Does the CPAK-100G-PSM4= require firmware upgrades?

The CPAK-100G-PSM4= typically does not require firmware upgrades, but it's important to check for any updates from Cisco to ensure optimal performance.

Are there any alternative products to CPAK-100G-PSM4=?

Alternatives include other Cisco 100G optics modules like the CPAK-100G-LR4 or third-party vendors, though compatibility and performance may vary.
