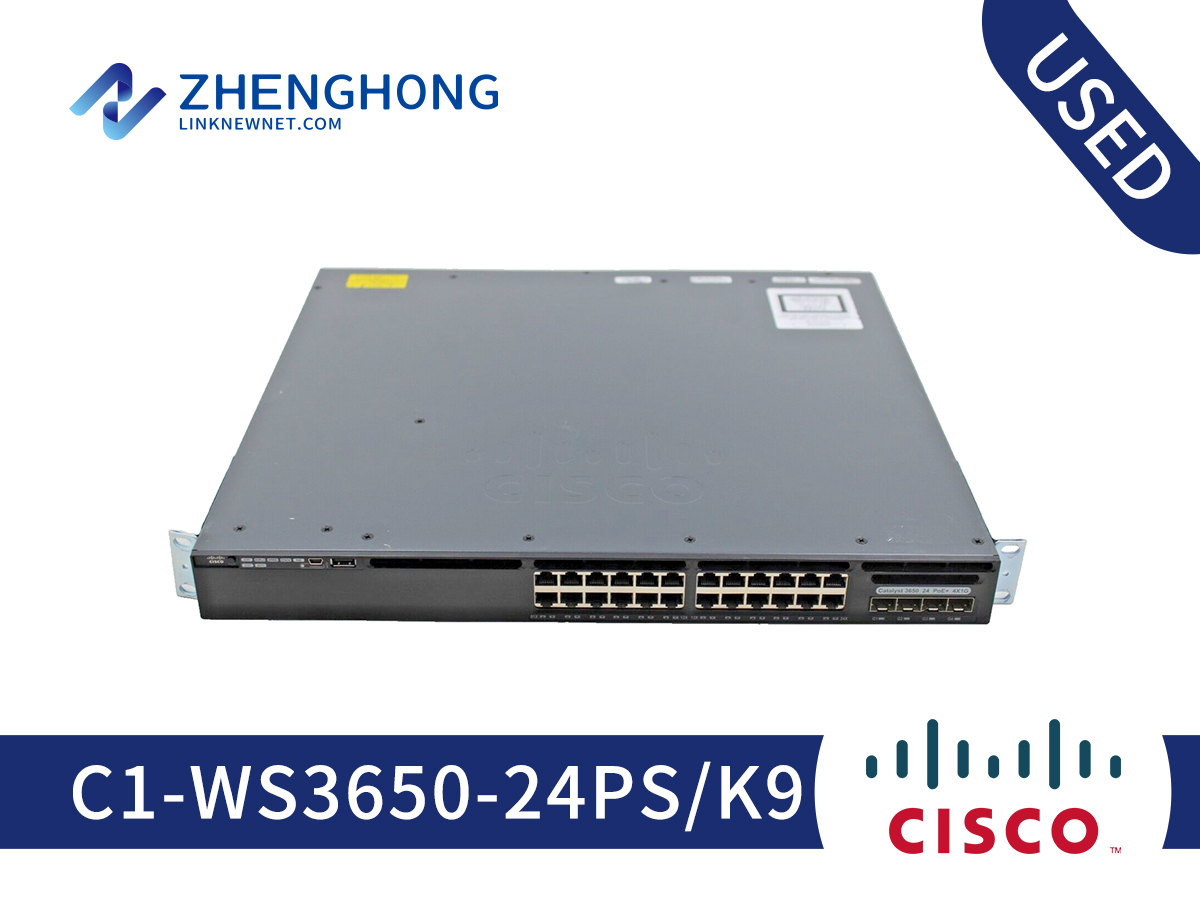

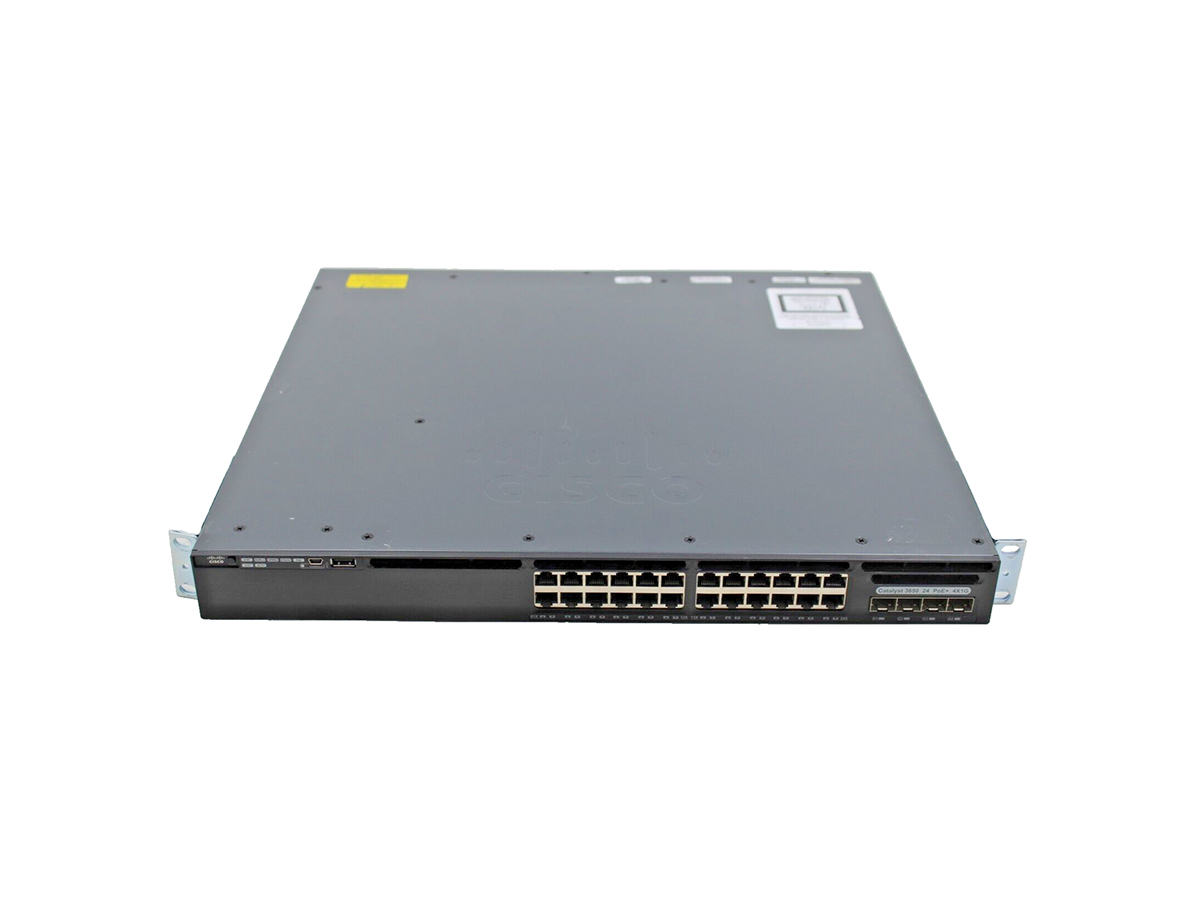

Cisco ONE Catalyst 3650 Series Platform C1-WS3650-24PS/K9 Overview
Cisco ONE Catalyst 3650 Series Platform C1-WS3650-24PS/K9 is a genuine campus and data-center switching product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ONE Catalyst 3650 Series family, the C1-WS3650-24PS/K9 unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is suited to access-layer and edge deployments, where reliable wiring-closet operation and straightforward management are the priorities.
From a specification standpoint, it offers 24 ports for client, server or uplink connectivity; 30 W PoE budget. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco One Catalyst 3650 24 Port PoE 4x1G Uplink”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C1-WS3650-24PS/K9. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned C1-WS3650-24PS/K9
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C1-WS3650-24PS/K9 Specification | |
| Capacity | |
| Type | Virtual interfaces (VLANs) |
| Value | 4000 |
| Dimensions & Weight | |
| Width | 17.5 in |
| Depth | 17.6 in |
| Height | 1.7 in |
| Weight | 16.01 lbs |
| Flash Memory | |
| Installed Size | 2 GB |
| Header | |
| Compatibility | PC |
| Manufacturer | Cisco Systems |
| Packaged Quantity | 1 |
| Product Line | Cisco ONE Catalyst |
| Model | 3650-24PS |
| Brand | Cisco |
| Interface Provided | |
| Qty | 4 |
| Type | Management (mini-USB) |
| Connector Type | Type B |
| Comments | Management |
| PoE Power | 30 W |
| Miscellaneous | |
| Rack Mounting Kit | Included |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, KN22 Class A, KN24, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Authentication Method | RADIUS, Secure Shell (SSH), TACACS+ |
| MTBF | 528,280 hours |
| Height (Rack Units) | 1 |
| Color Category | Black |
| Networking | |
| Type | Switch |
| Remote Management Protocol | CLI, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Compliant Standards | IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators | Active, PoE, Port duplex mode, Port transmission speed, Status, System |
| Ports Qty | 24 |
| Features | Access Control List (ACL) support, ARP support, DHCP snooping, Dynamic ARP Inspection (DAI), Energy Efficient Ethernet, Flexible NetFlow (FNF), IGMP snooping, Layer 2 switching, Link Aggregation Control Protocol (LACP), MLD snooping, Multiple Spanning Tree Protocol (MSTP) support, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Trunking, Uni-Directional Link Detection (UDLD), VLAN support |
| Routing Protocol | Static IP routing |
| MAC Address Table Size | 32000 entries |
| Stackable | Stackable |
| Subcategory | Network hubs and switches |
| Power Over Ethernet (PoE) | PoE+ |
| Manageable | Yes |
| Form Factor | Desktop, Rack-mountable |
| Jumbo Frame Support | 9198 bytes |
| Subtype | Gigabit Ethernet |
| PoE Budget | 390 W |
| Performance | |
| Type | Switching capacity |
| Value | 88 Gbps |
| Ports | |
| Qty | 24 |
| Type | 10/100/1000 (PoE+) |
| Ports (2nd) | |
| Qty | 4 |
| Type | SFP (mini-GBIC) |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Power Provided | 640 Watt |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Type | Internal power supply |
| Hot-Plug | Hot-plug |
| RAM | |
| Installed Size | 4 GB |
| Slot Provided | |
| Type | Stacking Module slot |
| Total Qty | 1 |
| Free Qty | 1 |
| Software | |
| Type | Cisco IOS Universal |
