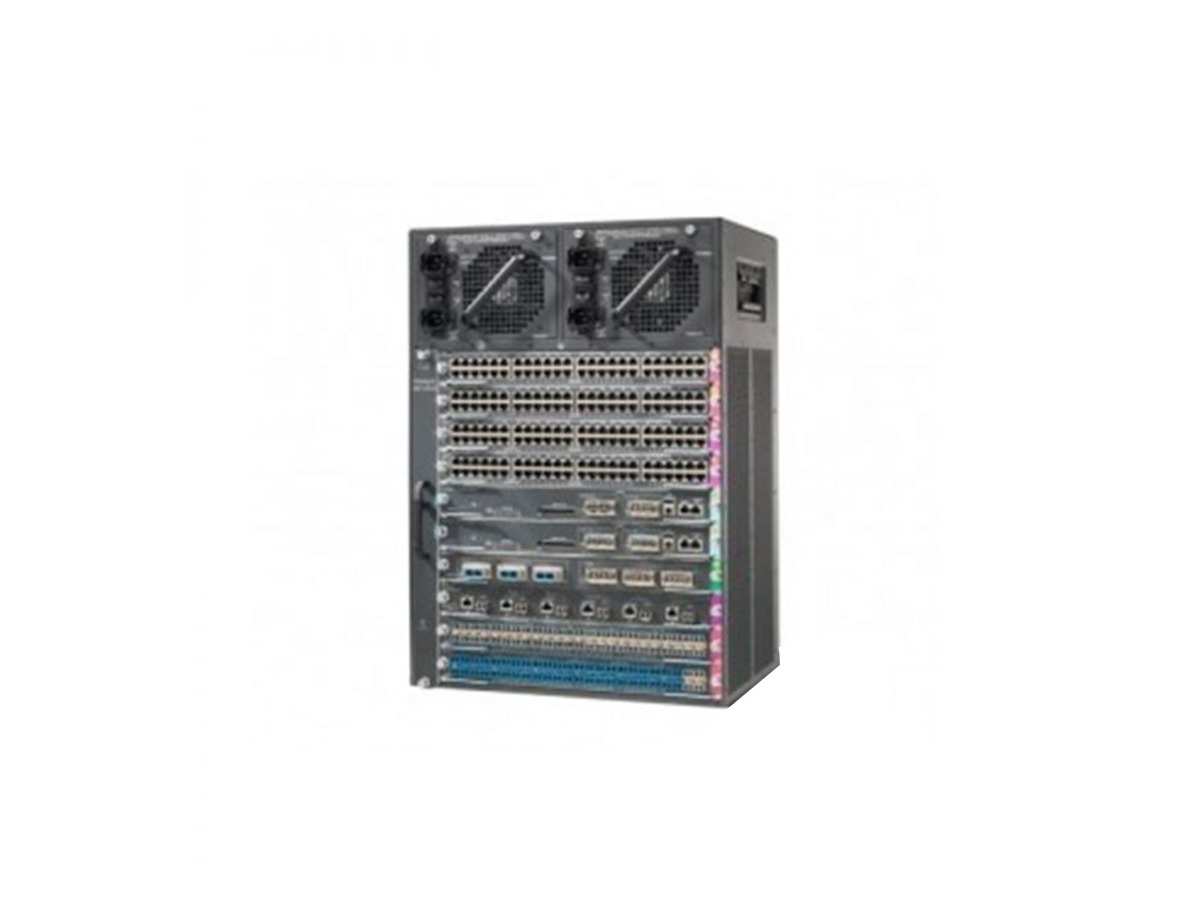

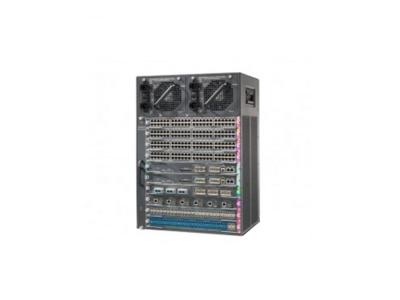

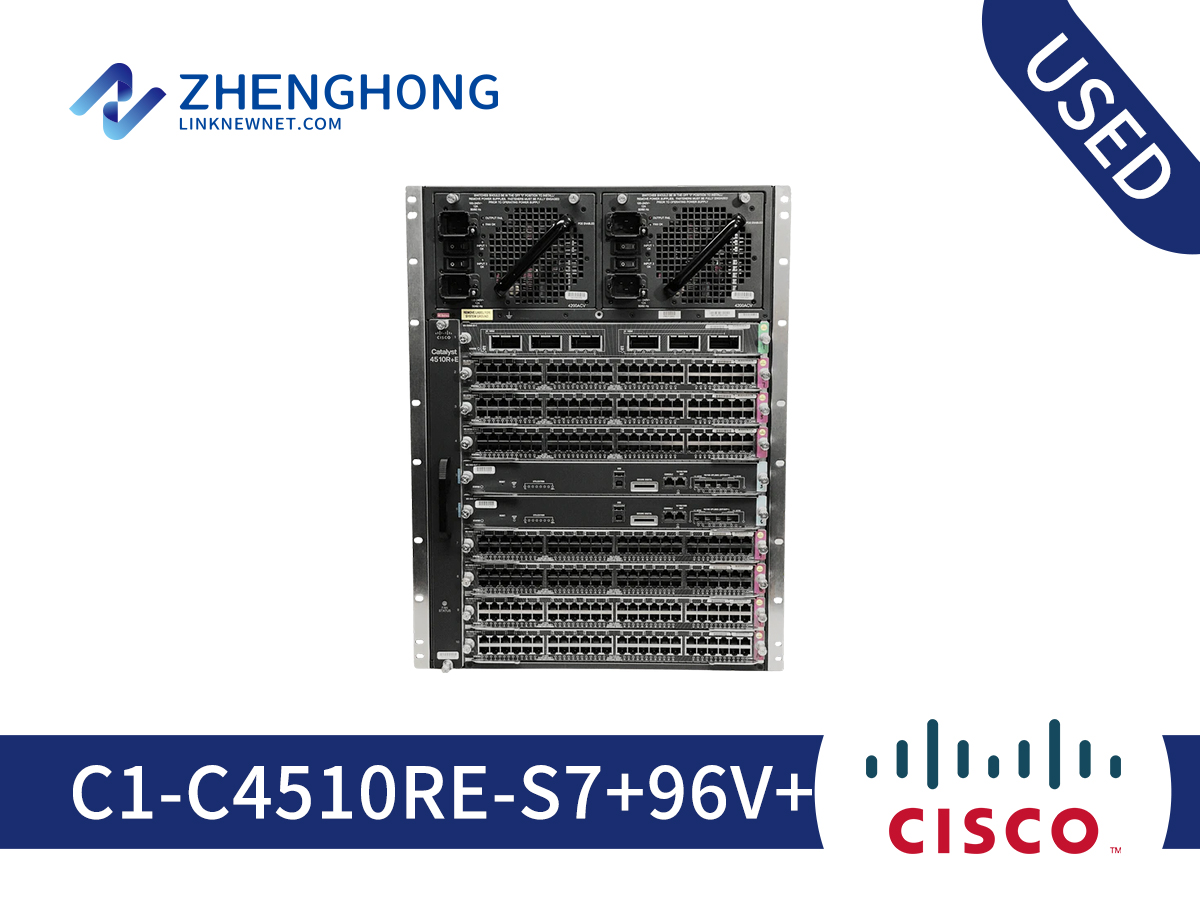

Cisco Catalyst 4500 Series Platform C1-C4510RE-S7+96V+

Model: C1-C4510RE-S7+96V+

Detail: Cisco ONE 4510R+E Chassis, Two WS-X4748-RJ45V+E, Sup7-E

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C1-C4510RE-S7+96V+ Specification
General
Device Type	Switch - 96 ports - managed - with Cisco Catalyst 4500E Supervisor Engine 7-E, 2x Cisco Line Cards (WS-X4748-RJ45V+E)
Enclosure Type	Rack-mountable 14U
Subtype	Gigabit Ethernet
Ports	96 x 10/100/1000 + 4 x SFP+
Power Over Ethernet (PoE)	PoE+
Performance	IPv4 switching: 250 Mpps ¦ IPv6 switching: 125 Mpps ¦ Switching capacity: 848 Gbps ¦ Per-slot switching capacity: 48 Gbps
Capacity	IPv4 routes: 256000 ¦ IPv6 routes: 128000 ¦ QoS hardware entries: 128000 ¦ Active VLANs: 4094 ¦ Spanning Tree Protocol instances: 10000 ¦ Switched virtual interfaces (SVIs): 4094
MAC Address Table Size	55K entries
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
RAM	2 GB (installed) / 4 GB (max) SDRAM
Expansion / Connectivity
Interfaces	1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 96 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB Type A ¦ 4 x SFP+
Expansion Slots	10 (total) / 7 (free) x expansion slot ¦ 1 (total) / 1 (free) x SD Memory Card
Installed Modules Qty (Max)	3 (installed) / 10 (max)
Power
Power Device	Internal power supply - hot-plug
Installed Qty	0 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Dimensions & Weight
Width	17.3 in
Depth	12.5 in
Height	24.3 in
Manufacturer Warranty
Service & Support	Limited warranty - advance parts replacement - lifetime - response time: 10 days

Q&A

Q What is Cisco Catalyst 4506 E?

A Cisco Catalyst 4506-E chassis offers 6 slots with Fan, 5 line-card slots and 1 supervisor engine slot with supporting up to 244 ports and up to 1500W POE power per slot. The solution provides centralized network architecture for enterprises-level, small and medium-size business through simplified operations.

Q What is the Cisco Catalyst 4500 E series?

A Cisco Catalyst 4500E Series Switches are the foundation for Cisco Enterprise Networks and the industry's most widely deployed modular platform for campus access and distribution deployments.

Q What is the alternative to Cisco 4500?

A The replacement for 4500 series is the 9400 series. The models are 9404, 9407 and 9410.
