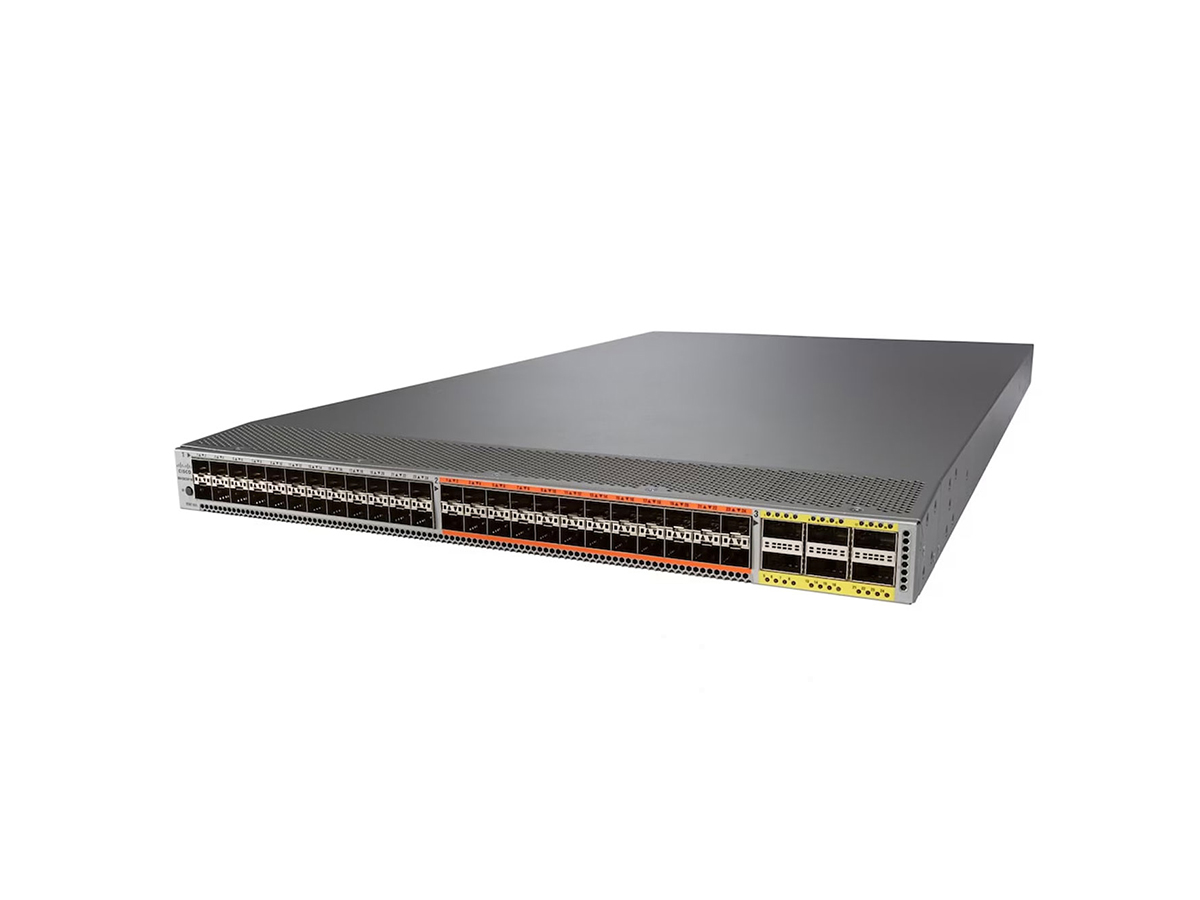

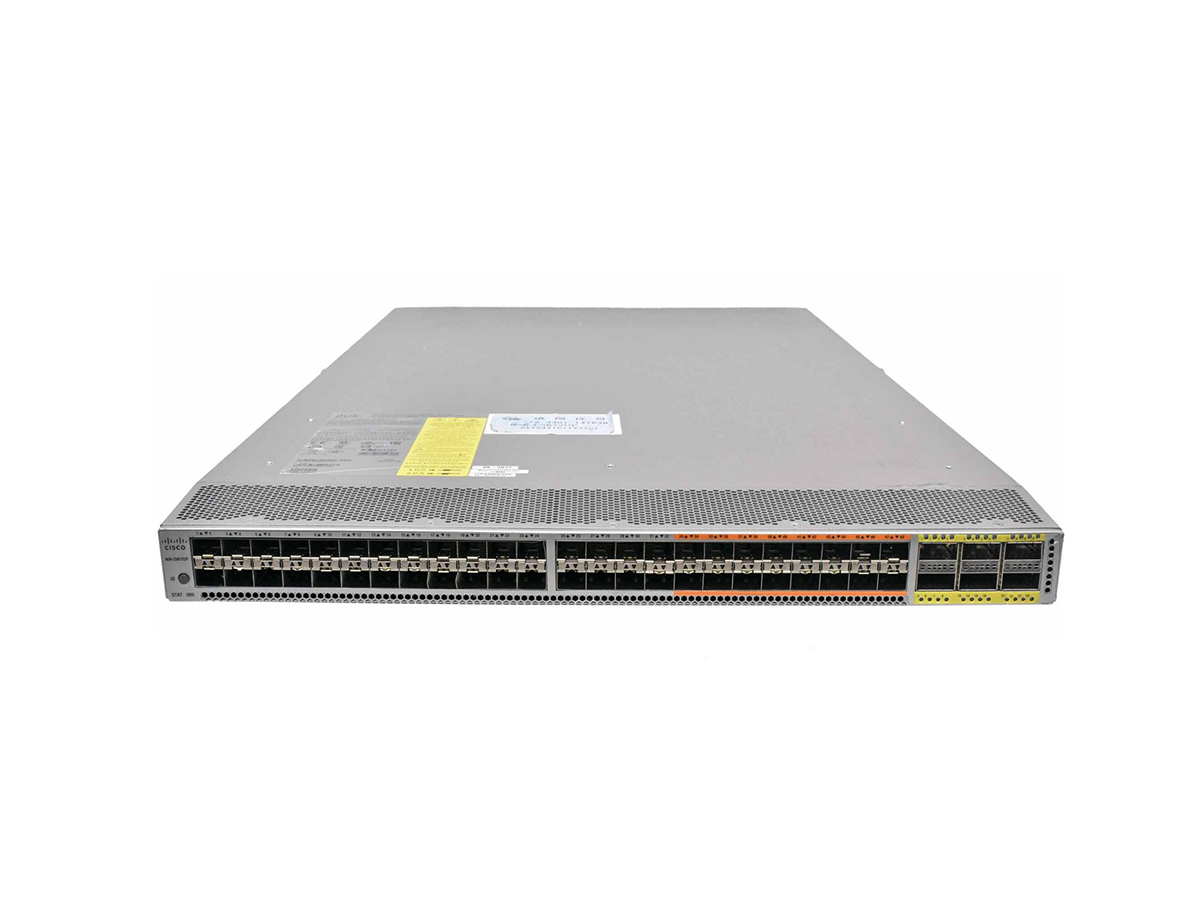

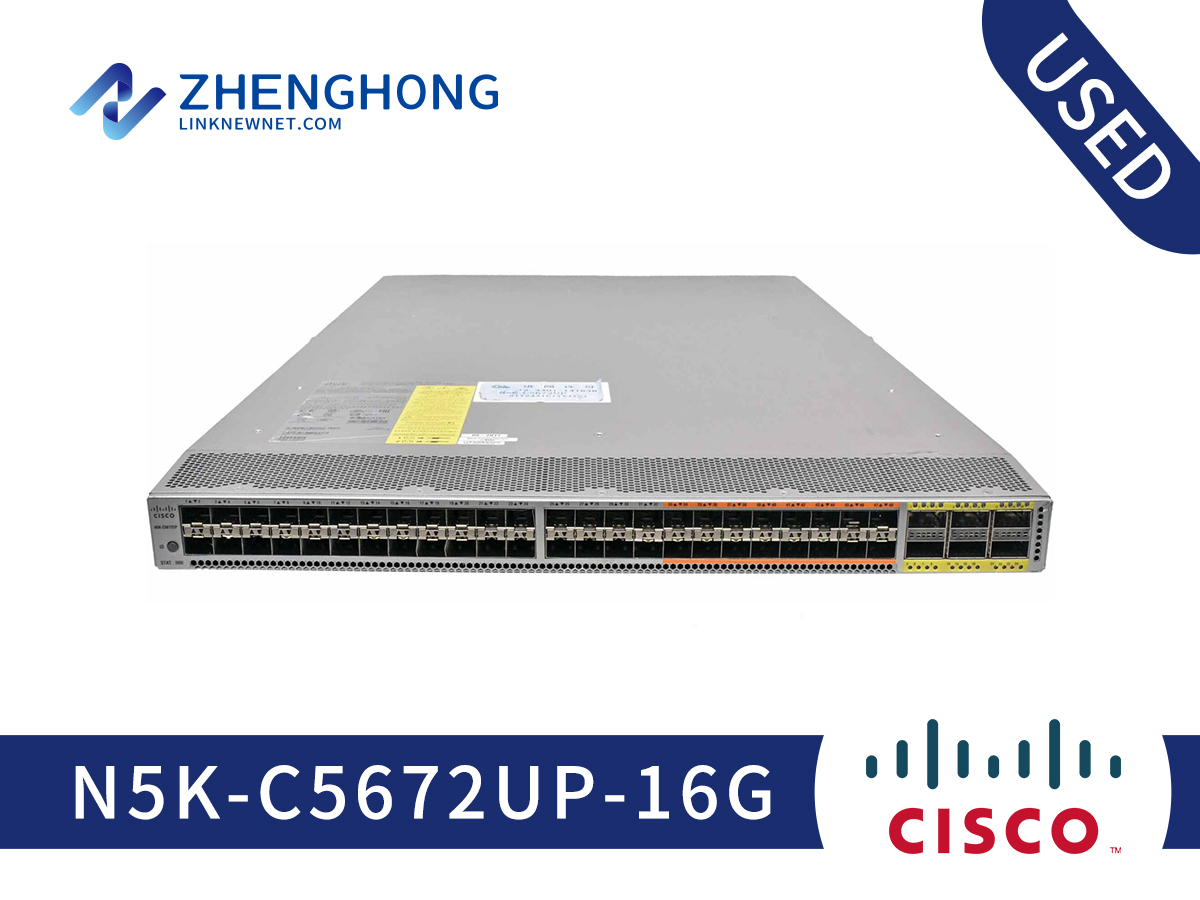

Cisco Nexus 5000 Switches N5K-C5672UP-16G Overview
Cisco Nexus 5000 Switches N5K-C5672UP-16G is a genuine data-center switching fabric product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco family, the N5K-C5672UP-16G unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is built for high-density data-center and cloud environments, where low latency, high availability and consistent forwarding matter most.
From a specification standpoint, it offers 24 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Nexus 5672UP, 24x10G SFP+, 6x40G QSFP+”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the N5K-C5672UP-16G. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned N5K-C5672UP-16G
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
N5K-C5672UP-16G Specification | |
NVGRE capable | Yes |
Number of ports | Up to 1152 with FEX |
40 GE | 6 true QSFP ports |
Unified ports | 24 ports (Ethernet; FCoE; 2/4/8-gigabit FC) |
Hardware VXLAN | Yes |
10 GE | 48 ports |
Latency | 1 microsecond |
Form factor | ●1-rack unit |
Interfaces | ● 48 fixed 1/10 Gigabit Ethernet SFP+ ports with 24 of the 48 ports being unified, and 6 fixed 40 Gigabit Ethernet QSFP+ ports with 10 and 40 Gigabit Ethernet FCoE support on all respective ports and 2/4/8-Gbps Fibre Channel on all the unified ports ● Expansion module: 24 SFP+ unified ports plus 2 x 40 Gigabit Ethernet QSFP+ ports ● Conversion of 40 Gigabit Ethernet ports to 10 Gigabit Ethernet interfaces through QSFP+ breakout cable ● Fabric extension through the Cisco Nexus 2200 and 2300 platforms |
High-Availability Features | ● Cisco In-Service Software Upgrade (ISSU) for Layer 2 ● Hot-swappable field-replaceable power supplies and fan modules ● N+1 and N+N power redundancy ● N+1 fan module redundancy |
Data Center Bridging | ● CEE- and IEEE-compliant PFC (per-priority Pause frame support: IEEE 802.1Qbb) ● PFC link distance support: 20 km ● CEE-compliant DCBX Protocol ● CEE- and IEEE-compliant enhanced transmission selection |
SNMP MIBs | |
Ethernet MIBs | ● CISCO-VLAN-MEMBERSHIP-MIB ● CISCO-Virtual-Interface-MIB ● CISCO-VTP-MIB |
Layer 3 MIBs | ● UDP-MIB ● TCP-MIB ● OSPF-MIB ● BGP4-MIB ● CISCO-HSRP-MIB |
Monitoring MIBs | ● DIFFSERV-DSCP-TC ● NOTIFICATION-LOG-MIB ● DIFFSERV-MIB ● CISCO-CALLHOME-MIB ● CISCO-SYSLOG-EXT-MIB ● CISCO-PROCESS-MIB ● RMON-MIB ● CISCO-RMON-CONFIG-MIB ● CISCO-HC-ALARM-MIB ● LLDP-MIB |
Configuration MIBs | ● ENTITY-MIB ● IF-MIB ● CISCO-ENTITY-EXT-MIB ● CISCO-ENTITY-FRU-CONTROL-MIB ● CISCO-ENTITY-SENSOR-MIB ● CISCO-FLASH-MIB ● CISCO-SYSTEM-MIB ● CISCO-SYSTEM-EXT-MIB ● CISCO-IP-IF-MIB ● CISCO-IF-EXTENSION-MIB ● CISCO-SERVER-INTERFACE-MIB ● CISCO-NTP-MIB ● CISCO-IMAGE-MIB ● CISCO-IMAGE-CHECK-MIB ● CISCO-IMAGE-UPGRADE-MIB ● CISCO-CONFIG-COPY-MIB ● CISCO-ENTITY-VENDORTYPE-OID-MIB ● CISCO-BRIDGE-MIB |
Miscellaneous MIBs | ● START-MIB ● CISCO-LICENSE-MGR-MIB ● CISCO-FEATURE-CONTROL-MIB ● CISCO-CDP-MIB ● CISCO-RF-MIB ● CISCO-ETHERNET-FABRIC-EXTENDER-MIB ● CISCO-BRIDGE-MIB ● CISCO-FCOE-MIB ● CISCO-PORTCHANNEL-MIB ● CISCO-ZS-MIB |
Standards | |
Industry Standards | ● IEEE 802.1D: Spanning Tree Protocol ● IEEE 802.1p: CoS prioritization ● IEEE 802.1Q: VLAN tagging ● IEEE 802.1Qaz: Enhanced transmission selection ● IEEE 802.1Qbb: Per-priority Pause ● IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol ● IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol ● IEEE 802.3: Ethernet ● IEEE 802.3ad: LACP with fast timers ● IEEE 802.3ae: 10 Gigabit Ethernet ● IEEE 802.3ba: 40 Gigabit Ethernet (Applies to 40G SR4, SR4-S, LR4, LR4-S, and CSR4 optics only) ● SFF 8431 SFP+ CX1 support ● RMON |
