Cisco Nexus 5000 Series Platform C1-N5K-C5672UP

Model: C1-N5K-C5672UP

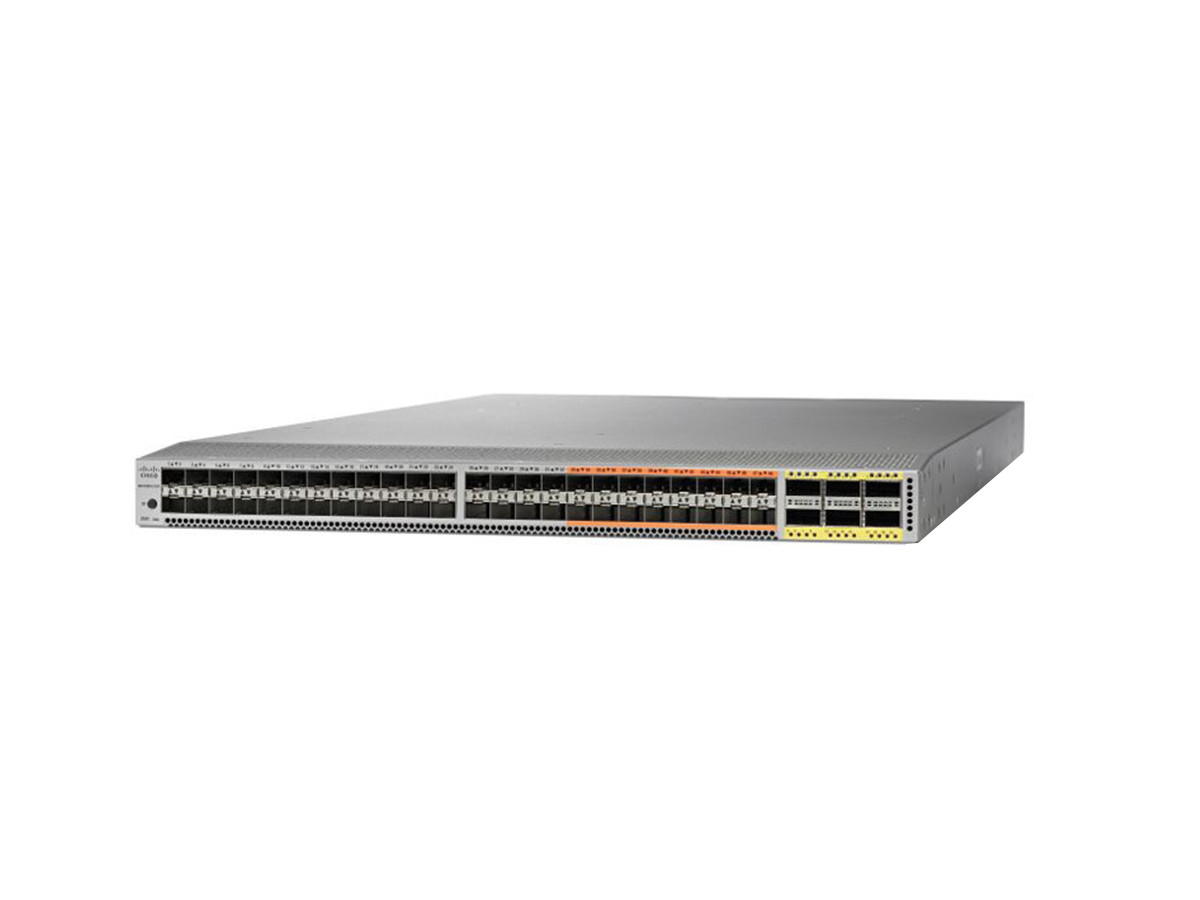

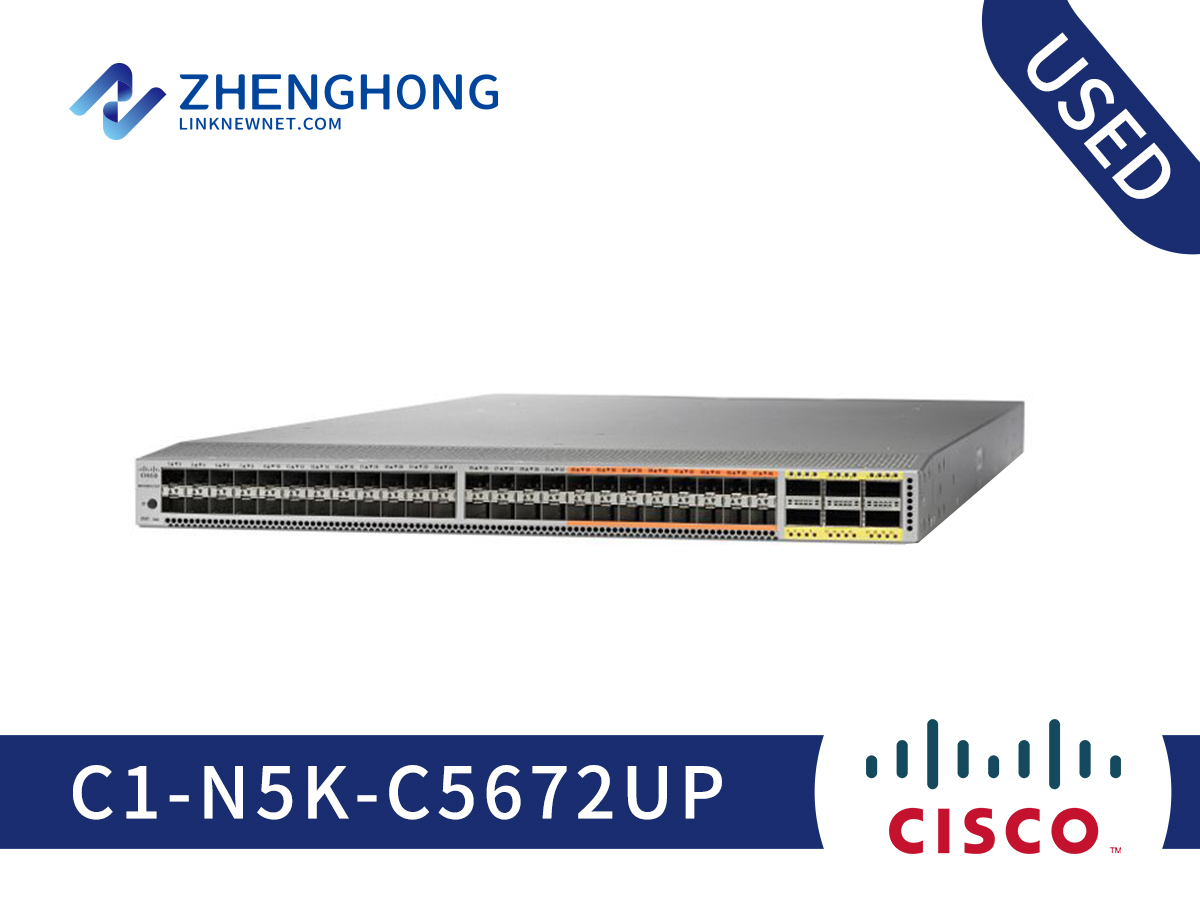

Detail: Cisco ONE Nexus 5672UP 1RU 32x10G SFP+16pxUP SFP+6x40G QSFP+,48 Ports

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C1-N5K-C5672UP
Product list
Product code	C1-N5K-C5672UP
Product Description	Nexus 5672UP 1RU, 32x10G SFP+, 16pxUP SFP+, 6x40G QSFP+
Product parameters
Port	48
Form Factor	Rack-mountable
Data Link Protocol	Gigabit Ethernet
Status Indicators	Port status
Connector Type	SFP+,QSFP+, RJ-45
Layer Supported	3
Management	Yes
MAC Address Table Size	256K entries
Jumbo Frame Support	9216 bytes
Subtype	10 Gigabit Ethernet
Subcategory	Network hubs and switches
Introduction	The Cisco Nexus 5672UP is a wire-rate Layer 2 and Layer 3 switch offering 10 Gigabit Ethernet and unified ports (UP) in a compact one-rack-unit form factor. It is optimized for 10 Gigabit Ethernet top-of-rack access, Cisco Fabric Extender (FEX) aggregation, Virtual Extensible LAN (VXLAN) segmentation, and LAN-SAN convergence. It delivers high performance, operational efficiency, and design flexibility for traditional, virtualized, and cloud environments.
Power Device
Power Provided	1100 Watt
Frequency Required	50/60 Hz
Nominal Voltage	AC 120/230 V
Type	Internal power supply
Power Redundancy	Yes
Max Supported Qty	2
Power Redundancy Scheme	1+1
Physical specifications
Width	17.3 in
Height	1.7 in
Depth	30 in
Weight	31.97 lbs
Environmental Parameters
Max Operating Temperature	104 °F
Min Operating Temperature	32 °F
Min Storage Temperature	-40 °F
Max Storage Temperature	158 °F
Humidity Range Operating	5 - 95% (non-condensing)

Q&A

Q Are Nexus switches Layer 3?

A They can be used as layer2 and layer3 switches and can aggregate traffic from the Fabric Extenders (FEX) for different blade-server systems.

Q What is difference between Cisco switch and Nexus switch?

A Cisco catalyst switches are mainly designed for distro/core layers in campus network vs the Nexus is mainly for data centers.

Q What ports are available on a Cisco 5672?

A The Cisco Nexus 5672UP offers 48 fixed 1 and 10 Gigabit Ethernet ports, of which the last 16 ports (highlighted in orange on the chassis for easy identification) are unified ports.

Q What is Cisco Nexus used for?

A The Cisco Nexus Switch product line provides a series of solutions that attempt to make it easier to connect and manage disparate data center resources with software-defined networking (SDN).
