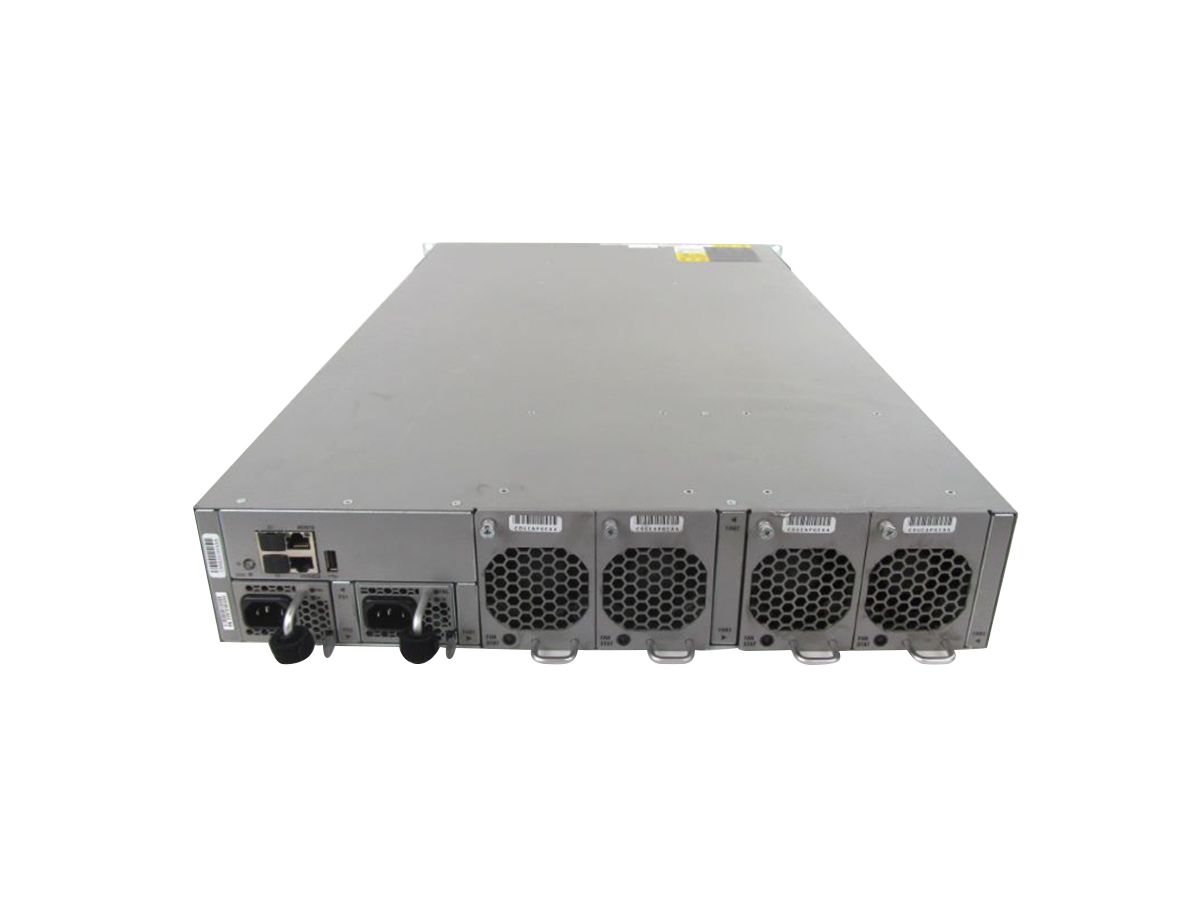

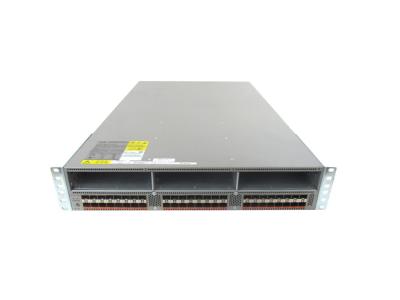

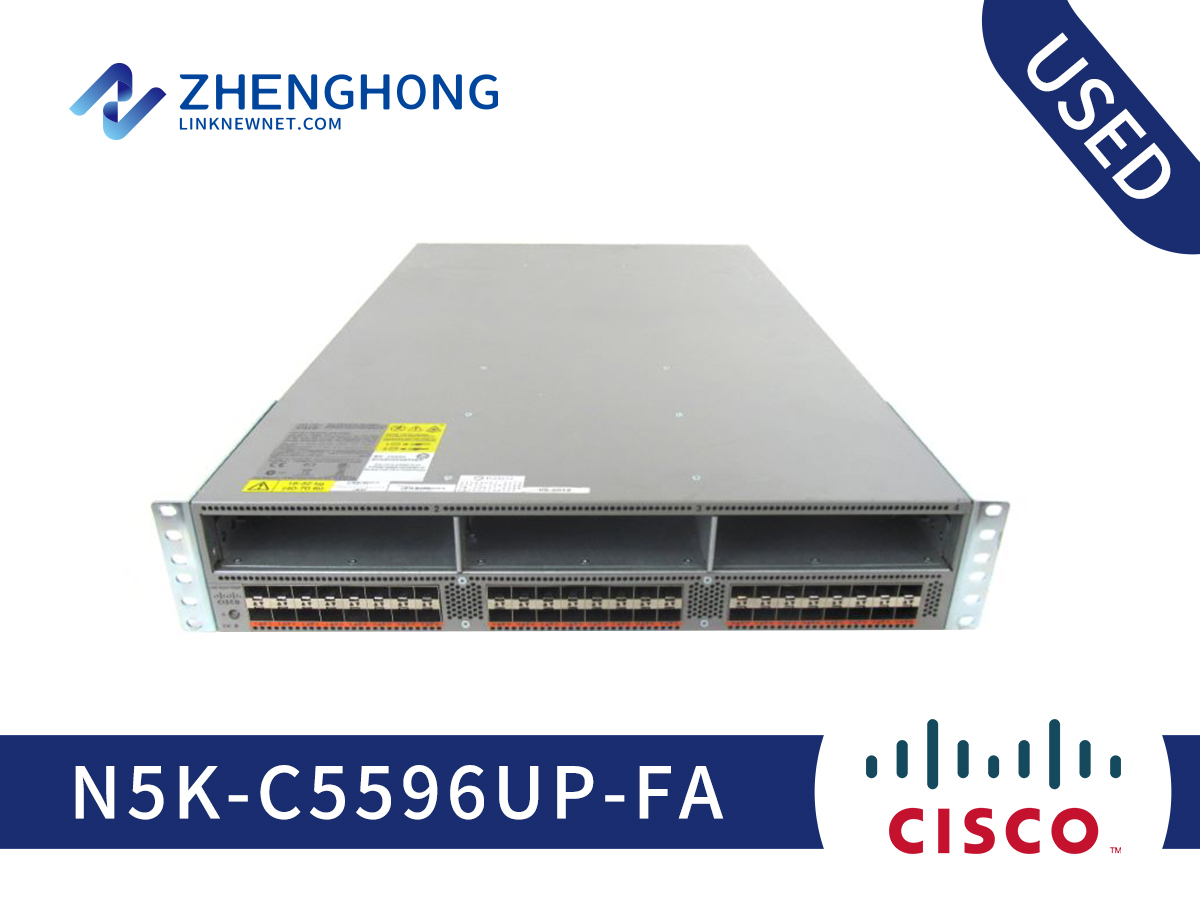

Cisco Nexus 5000 Series Switch N5K-C5596UP-FA

Performance

●  Layer 2 hardware forwarding at 1920 Gbps or 1428 mpps; Layer 3 performance of up to 160 Gbps or 240 mpps

●  MAC address table entries: 32,000

●  Low-latency cut-through design that provides predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interfaces

●  Line-rate traffic throughput on all ports

Interfaces

●  48 fixed ports configurable as 1 and 10 Gigabit Ethernet and FCoE or 8/4/2/1-Gbps native Fibre Channel; additional interfaces through up to three expansion modules

●  Expansion modules

●  16-port 1 and 10 Gigabit Ethernet and FCoE module

●  8-port 8/4/2/1-Gbps Fibre Channel plus 8-port 1 and 10 Gigabit Ethernet and FCoE module

●  Unified port module consisting of 16 ports configurable as 8/4/2/1-Gbps Fibre Channel or 1 and 10 Gigabit Ethernet and FCoE

●  4-port QSFP expansion module

●  12-port 10G BASE-T module (Cisco Nexus 5596T only)

●  Layer 3 module (Cisco Nexus 5596UP and 5596T only; one per system)

●  Layer 3 daughter card (Cisco Nexus 5548P and 5548UP only; one per system)

●  Extension through the Cisco Nexus 2000 Series

Management

●  Switch management using 10/100/1000-Mbps management or console ports

●  CLI-based console to provide detailed out-of-band management

●  In-band switch management

●  Locator and beacon LEDs on Cisco Nexus 2000 Series

●  Port-based locator and beacon LEDs

●  Configuration synchronization

●  Module preprovisioning

●  Configuration rollback

●  Secure Shell Version 2 (SSHv2)

●  Telnet

●  AAA

●  AAA with RBAC

●  RADIUS

●  TACACS+

●  Syslog (8 servers)

●  Embedded packet analyzer

●  SNMPv1, v2, and v3 (IPv4 & IPv6)

●  Enhanced SNMP MIB support

●  XML (NETCONF) support

●  Remote monitoring (RMON)

●  Advanced Encryption Standard (AES) for management traffic

●  Unified username and passwords across CLI and SNMP

●  Microsoft Challenge Handshake Authentication Protocol (MS-CHAP)

●  Digital certificates for management between switch and RADIUS server

●  Cisco Discovery Protocol Versions 1 and 2

●  RBAC

●  Switched Port Analyzer (SPAN) on physical, port channel, VLAN, and Fibre Channel interfaces

●  Encapsulated Remote SPAN (ERSPAN)

●  Ingress and egress packet counters per interface

●  Network Time Protocol (NTP)

●  Cisco GOLD

●  Comprehensive bootup diagnostic tests

●  Call Home

●  Smart Call Home

●  Cisco Fabric Manager

●  Cisco DCNM

●  CiscoWorks LAN Management Solution (LMS)

Physical Specifications

SFP+ Optics

Cisco Nexus 5500 platform supports 10 Gigabit Ethernet SFP+ copper Twinax cables for short distances and SFP+ optics (10GBASE-SR, 10GBASE-LR, 10GBASE-ER, GLC-ZX-SM and Cisco Nexus 2000 Series Fabric Extender Transceiver [FET-10G]) for longer distances. SFP+ has several advantages compared to other 10 Gigabit Ethernet connectivity options:

●  Small 10 Gigabit Ethernet form factor

●  Optical interoperability with XENPAK, X2, and XFP interface types

●  Low power consumption

●  Hot-swappable device

●  Cisco Nexus 5500 platform products support 8-Gbps Fibre Channel-compatible SFP+ for native Fibre Channel connectivity options; 8-Gbps Fibre Channel-compatible short-reach and 10-km long-reach SFP transceiver modules operate at 8/4/2 Gbps and are supported in the 8?Gbps-capable native Fibre Channel ports on expansion modules and unified ports

Physical (height x width x depth)

3.47 x 17.3 x 29.5 in. (8.8 x 43.9 x 74.9 cm)

Operating temperature

32 to 104°F (0 to 40°C)

Nonoperating (storage) temperature

-40 to 158°F (-40 to 70°C)

Humidity

5 to 95% (noncondensing)

Altitude

0 to 10,000 ft (0 to 3000m)

Weight

47.5 lb (21.55 kg)
