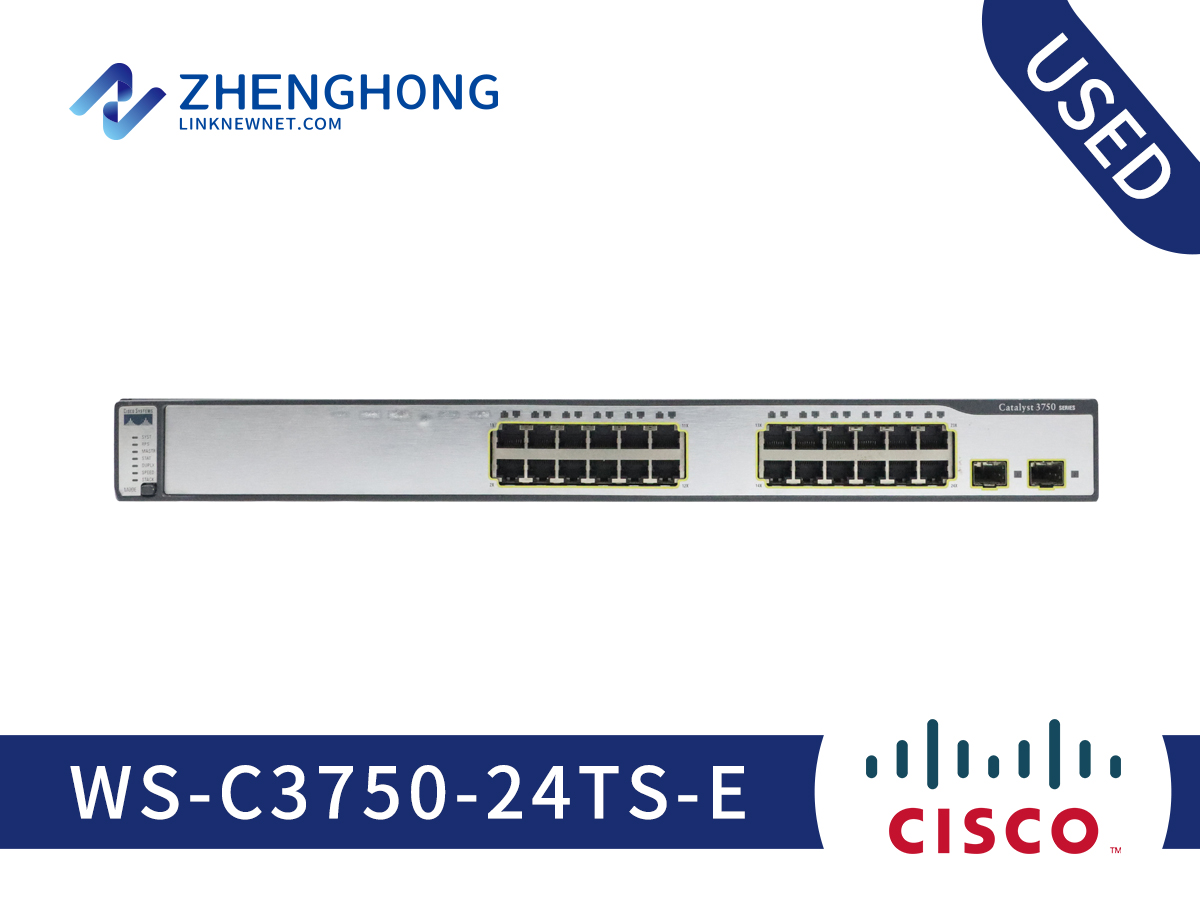

Cisco Catalyst 3750 Series Switch WS-C3750-24TS-E

Model: WS-C3750-24TS-E

Detail: Cisco Catalyst 3750 Series Switch 3750 24 10/100 + 2 SFP + IPS Image

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C3750-24TS-E
Product list
Product code	WS-C3750-24TS-E
Power cable	No
Button	No
Product parameters
Network Ports	24
Product Type	Switch - 24 ports - Managed - stackable
Form Factor	Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density - Uplinks	24 x 10/100 + 2 x SFP
MAC Address Table Size	12K entries
Max Number of Stacks	9
Routing Protocol	OSPF, IGRP, BGP-4, RIP-1, RIP-2, EIGRP, DVMRP, PIM-SM, static IP routing, PIM-DM
Power Over Ethernet (PoE)	Yes
Features	Flow control, full duplex capability, routing, auto-sensing per device, DHCP support, auto-negotiation, ARP support, trunking, load balancing, VLAN support, IGMP snooping, manageable, stackable
Introduction	Cisco Catalyst 3750 Series switch 3750-24TS is an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This new product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system - one switch at a time.For mid-sized organizations and enterprise branch offices, the Cisco Catalyst 3750 Series eases deployment of converged applications and adapts to changing business needs by providing configuration flexibility, support for converged network patterns, and automation of intelligent network-services configurations
Memory
Memory Technology	DRAM
DRAM Memory	128 MB
Flash Memory	16 MB
Power Device
Power Source	Power supply - internal
Voltage Required	AC 120/230 V ( 50/60 Hz )
Physical specifications
Width	44.5 cm
Height	30.1 cm
Depth	4.4 cm
Weight	3.6 kg
Environmental Parameters
Min Temperature	23 °F
Max Temperature	131 °F
Humidity Operating	5 - 95% (non-condensing)

Q&A

Q What is Cisco C3750?

A The Cisco Catalyst 3750 Series switches are a premier line of enterprise-class, stackable, multilayer switches that provide high availability, security, and quality of service (QoS) to enhance the operation of the network.

Q How much power does a Cisco 3750 24 port use?

A The Cisco Catalyst 3750-E 24- port PoE configurations can support 24 simultaneous full-powered PoE ports at 15.4W for full powered-device support.

Q What is the maximum number of VLANs on a Cisco switch?

A VLANs have the following configuration guidelines and limitations: The maximum number of VLANs per VDC is 4094. You can reuse VLAN ID numbers in different VDCs.

Q What is difference between layer 2 and layer 3 switch?

A Layer 2 switches offer limited to no routing capabilities within network segments such as VLANs. Layer 3 switches offer routing between different network segments. Limited scalability. Higher scalability enabled by layer 3 switches' cross network segment routing capabilities.
