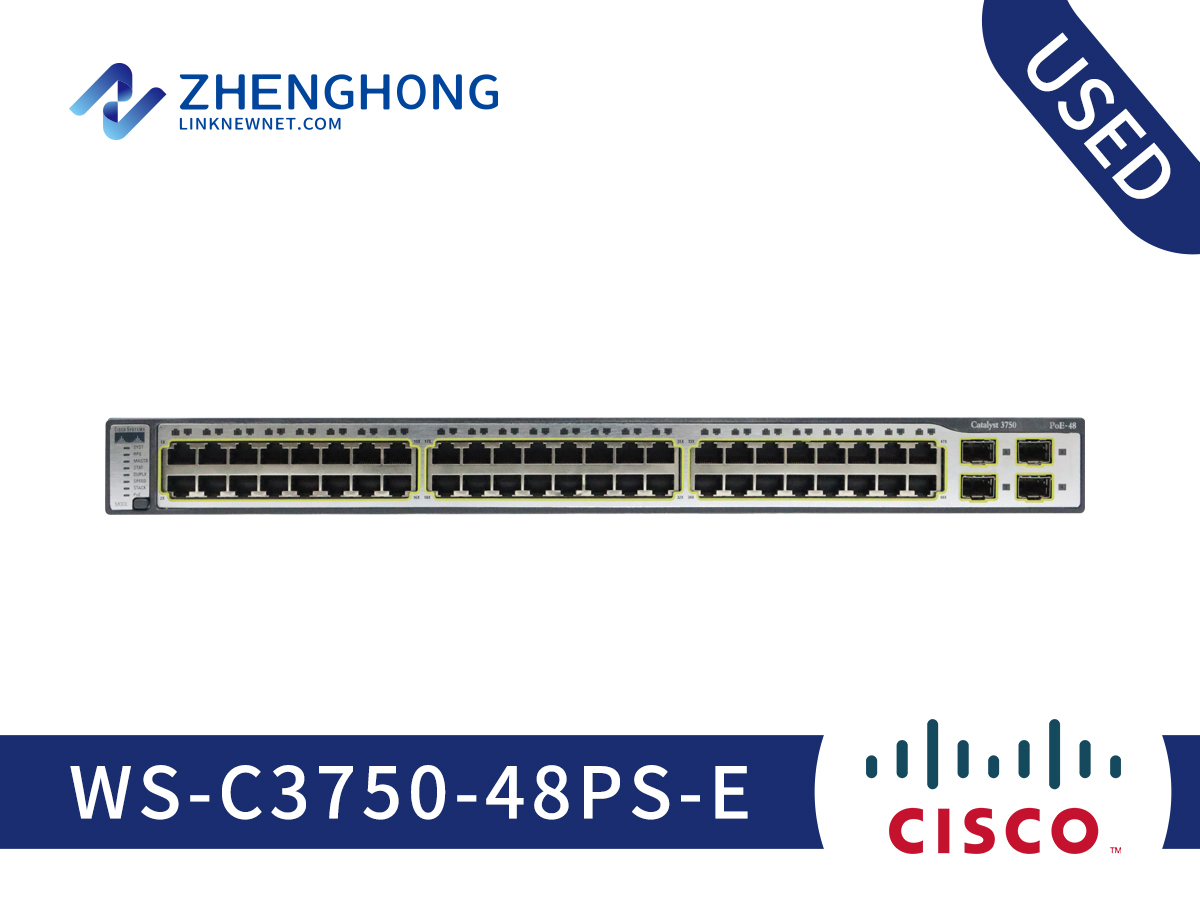

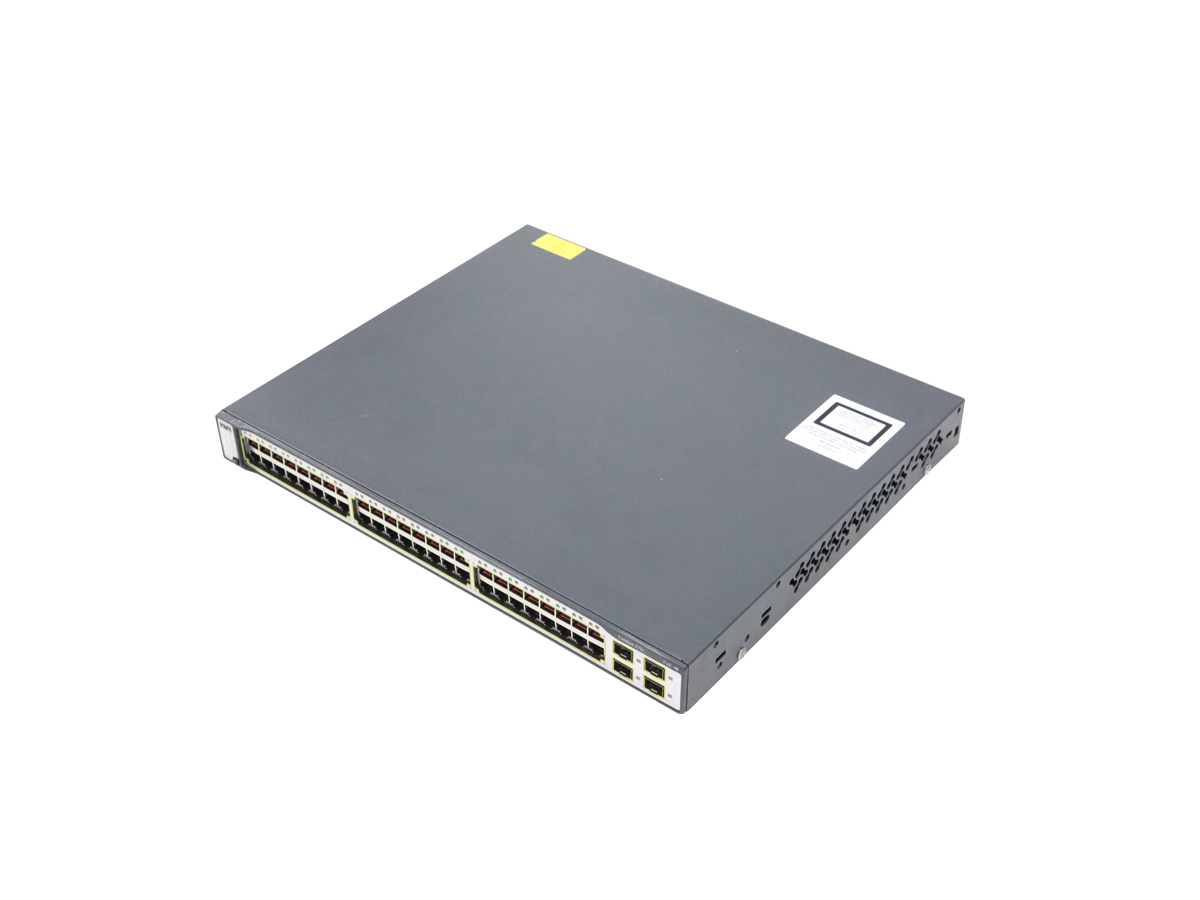

WS-C3750-48PS-E | |
Product list | |
Product code | WS-C3750-48PS-E |
Power cable | No |
Button | No |
Product parameters | |
Network Ports | 48 |
Product Type | Managed, Stackable 48 ports L3 Switch |
Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
Switch Port density - Uplinks | 48 x 10/100 + 4 x SFP |
MAC Address Table Size | 12K entries |
Max Number of Stacks | 9 |
Routing Protocol | RIP-1, RIP-2, EIGRP, static IP routing, RIPng |
Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
Features | Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, power over Ethernet (PoE), auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
Introduction | Cisco Catalyst 3750 Series switch 3750-48PS is an innovative product line that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system - one switch at a time.For mid-sized organizations and enterprise branch offices, the Cisco Catalyst 3750 Series eases deployment of converged applications and adapts to changing business needs by providing configuration flexibility, support for converged network patterns, and automation of intelligent network-services configurations. |
Memory | |
Memory Technology | DRAM |
DRAM Memory | 128 MB |
Flash Memory | 16 MB |
Power Device | |
Power Source | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Physical specifications | |
Width | 44.5 cm |
Height | 37.8 cm |
Depth | 4.4 cm |
Weight | 6 kg |
Environmental Parameters | |
Min Temperature | 23 °F |
Max Temperature | 131 °F |
Humidity Operating | 5 - 95% (non-condensing) |
