CISCO7201 | |
Product list | |

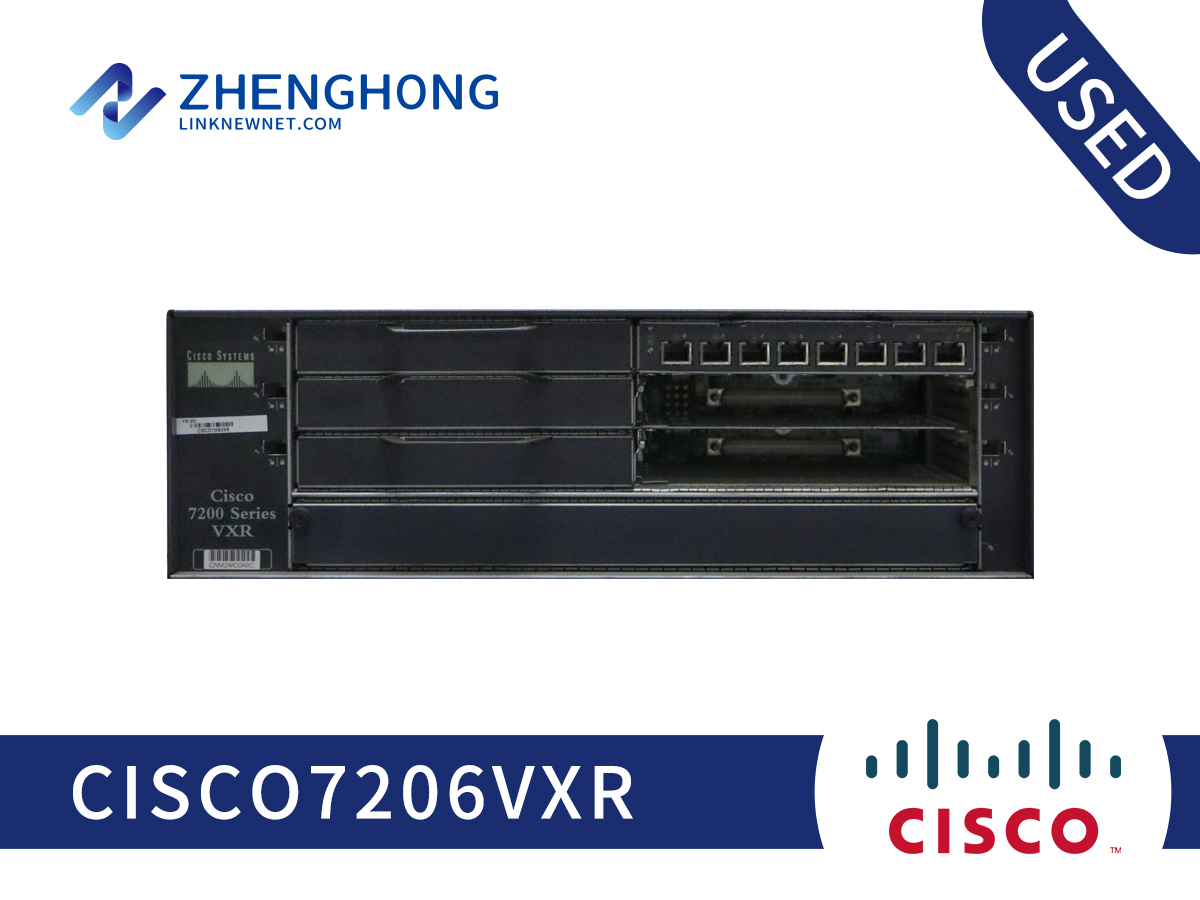

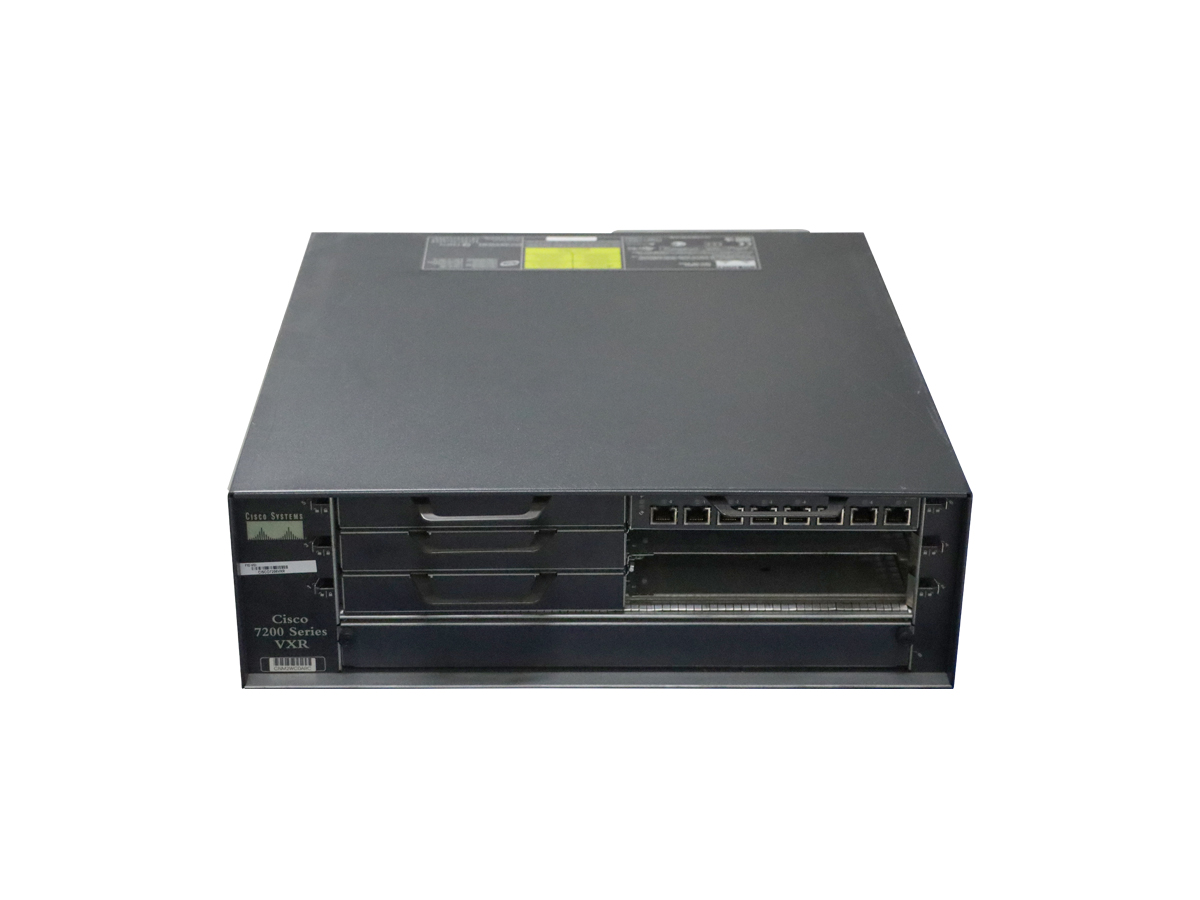

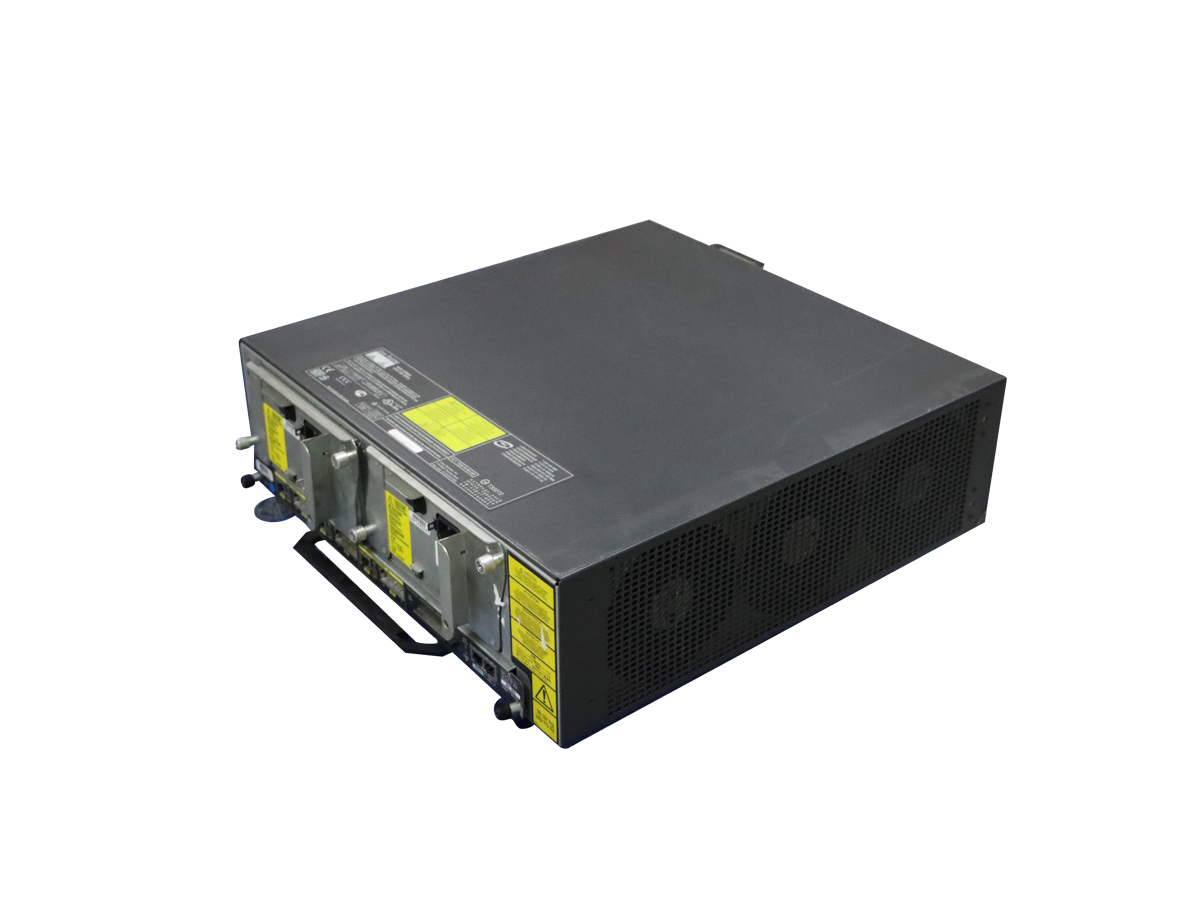

Product code | CISCO7206VXR |
Description | Cisco 7206 VXR, 6-slot chassis, 1 AC supply with IP software |
Configurable Slots without Port Adapter Jacket Card | 6 |
Configurable Slots with Port Adapter Jacket Card | 7 |
Product parameters | |
Memory | |
Ethernet (10BASE-T) Ports | 48 |
Ethernet (10BASE-FL) Ports | w/SPE 250 |
Fast Ethernet (TX) Ports | Up to 6 |
Fast Ethernet (FX) Ports | Up to 6 |
Expansion Slot(s) | 4 service module slots 3 Enhanced High-Speed WAN Interface Card slots 3 onboard digital signal processor (DSP) slots |
EtherSwitch Port Adapters | 2 |
100VG-AnyLAN Ports | Up to 6 |
Processor Memory | 256 MB (default for NPE-400 and NPE-G1) 512 MB (max for NPE-400) 1 GB (max for NPE-G1 and default for NPE-G2) 2 GB option for NPE-G2 |
PCMCIA Flash Disk Memory Card (optional, up to 2 slots available) | • 48 MB, expandable to 128 MB for I/O controllers • 64 MB, expandable to 256 MB for NPE-G1 and NPE-G2 |
Power Device | |
Physical specifications | |
Width | 16.8 in |
Height | 5.25 in |
Depth | 17 in |
Weight | 50 lb |
Environmental Parameters | |
Min Temperature | 32 °F |
Max Temperature | 104 °F |
Humidity Operating | 10- 85% (non-condensing) |
