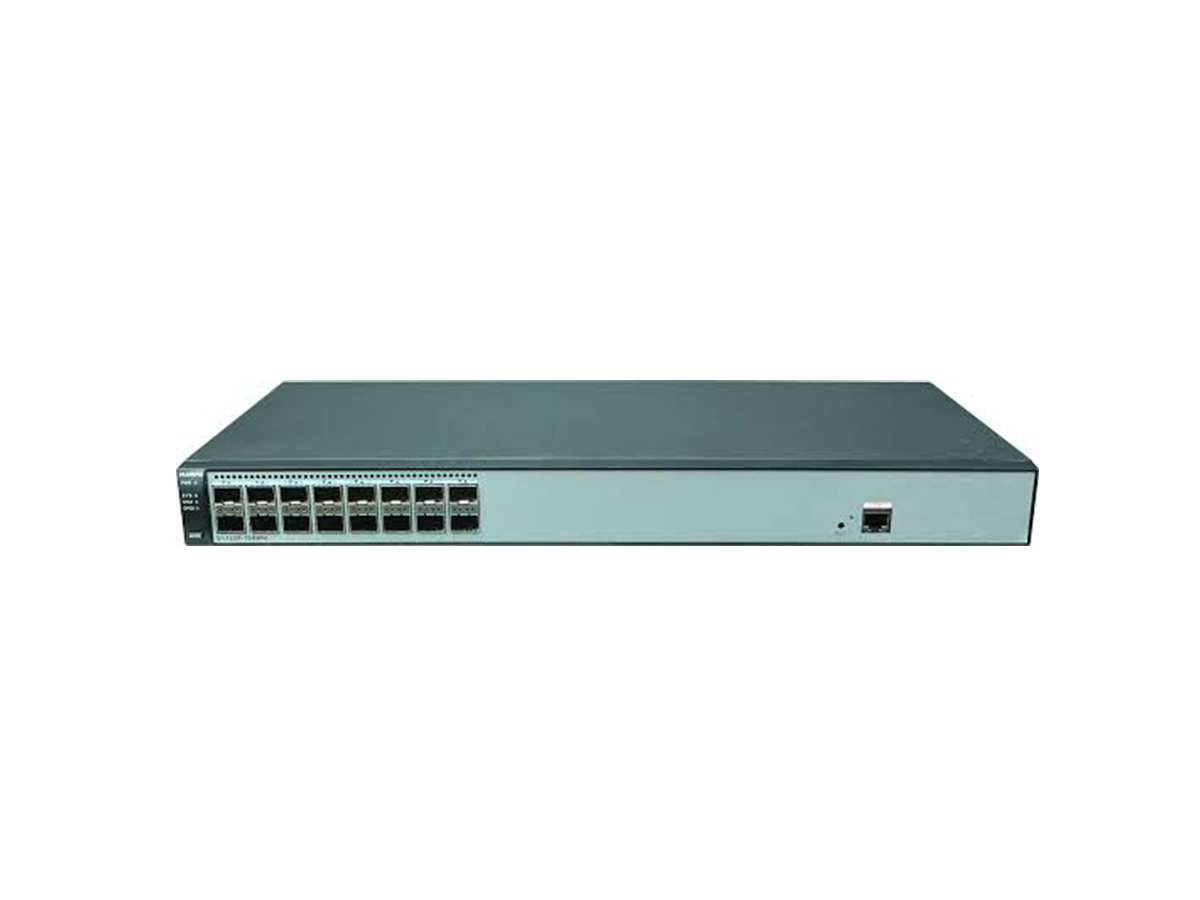

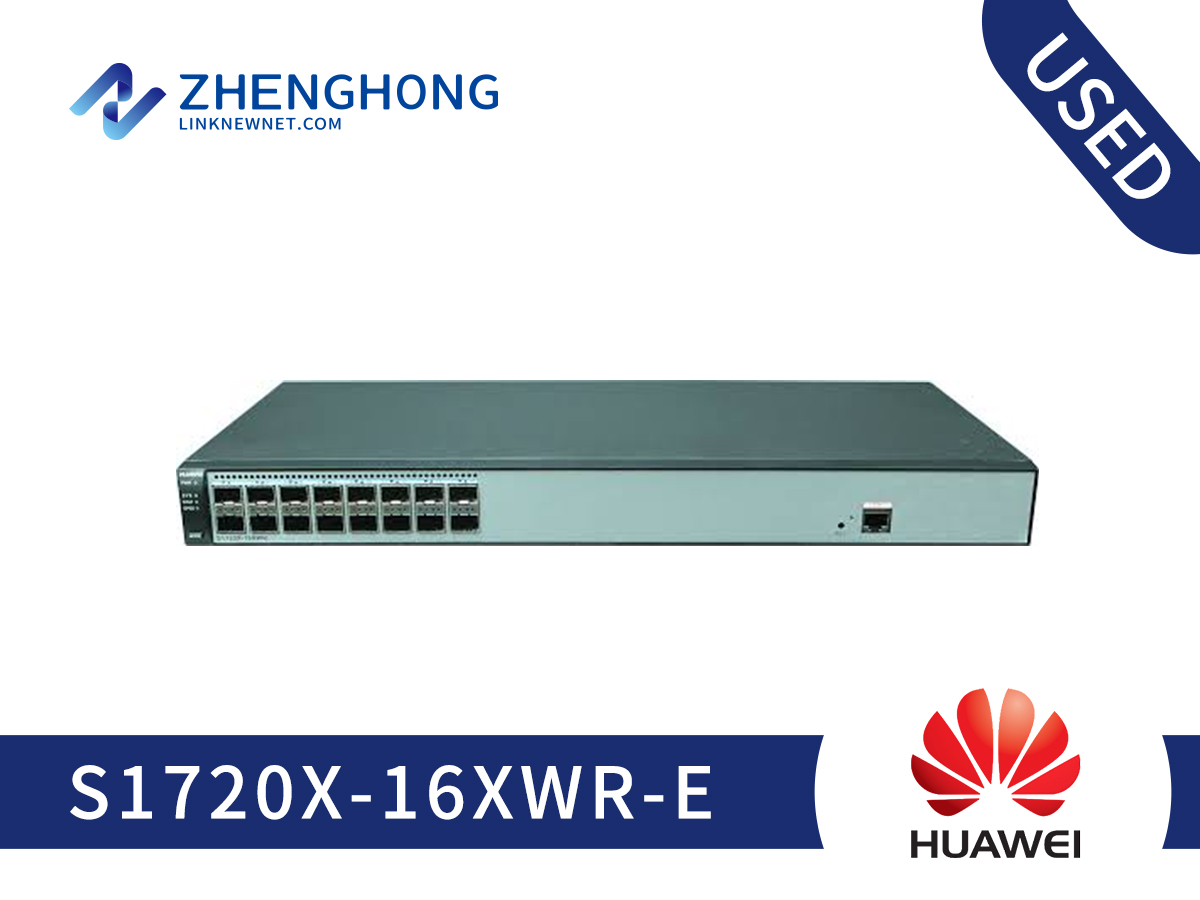

S1720X-16XWR-E Specification | |
Downlink port | 16 10 Gig SFP+ |
MAC Address Table | 32K MAC |
Routing Feature | supportIPv4、IPv6 static routing |
Dimensions mm (W*D *H) | 420*220*43.6 |
Input voltage | 100V-240V AC,50~60Hz |
EEE | support |
Switching Capacity | 680 Gbps |
Forwarding Performance | 240 Mpps |
Power Consumption | 63.1W |
Operating temperature | 0℃~45℃ |
Humidity (non-condensing) | 5%~95% |
Heat dissipation | Heat dissipation using fans supporting intelligent speed adjustment |
Device Management | Web system network management |
Fixed Ports | 16 x 10GBase-X optical ports |
VLAN Features | 256 VLANs (S1720 Series: 4K) |
IP Routing | IPv4 and IPv6 static routing |
Device Maintenance | System log |
