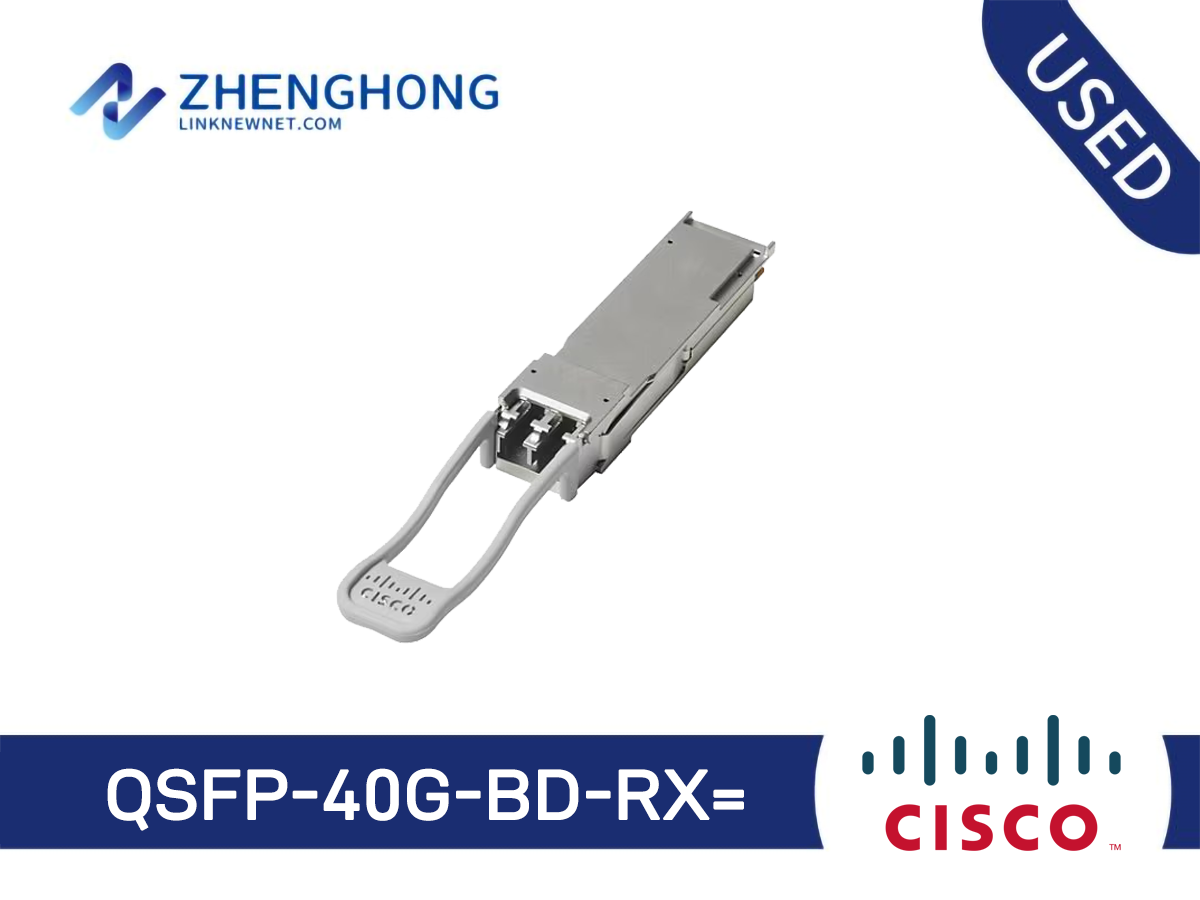

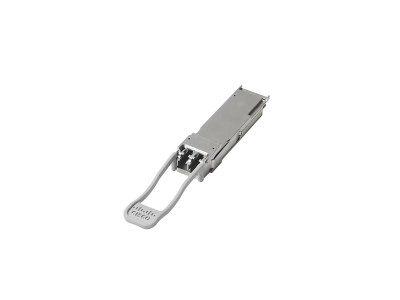

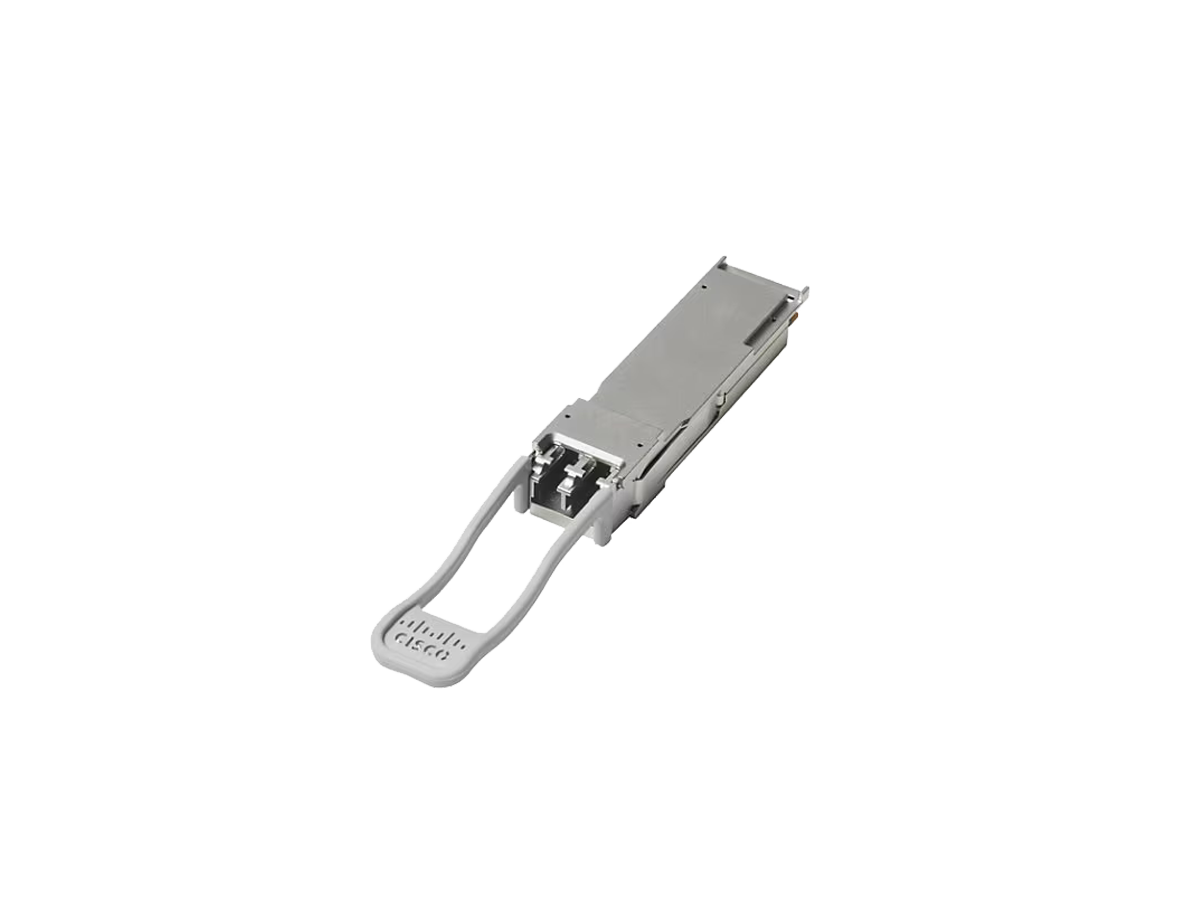

QSFP-40G-BD-RX= - Cisco QSFP+ Module

Model: QSFP-40G-BD-RX=

Detail: QSFP40G BiDi-Monitor Short-reach Transceiver For Data Broker

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

QSFP-40G-BD-RX= Specification
Description	Cisco 40GBASE-SR Bi-Directional QSFP Monitor Module for Duplex MMF
Dimensions	13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Wavelength (nm)	832 - 918
Cable Type	MMF
Core Size (microns)	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	30m 100m 150m
Commercial temperature	3.5
Storage temperature	Beige(or Gray with “Rx” mark)
Optical characteristics
Type	40GBASE-SR-BiDi, Duplex MMF, Monitor
Transmit Power (dBm)	Max:\ Min:\
Receive Power (dBm)	Max:+5.0 per lane Min:-6.0 per lane
Transmit and Receive Wavelength (nm)	832 to 918
Environmental conditions
Operating temperature	+10 to 70°C (50 to 158°F)
Storage temperature	-40 to 85°C (-40 to 185°F)
Regulatory and standards compliance
Standards	•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6
Safety	•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant

Q&A

What should I do if the QSFP-40G-BD-RX= module fails?

If the QSFP-40G-BD-RX= module fails, try rebooting your device, replacing the module, or checking for software updates. Consult Cisco support for further assistance.

What accessories are available for QSFP-40G-BD-RX=?

Accessories for QSFP-40G-BD-RX= include compatible fiber optic cables, patch panels, and network interface cards that support QSFP+ modules.

How does the QSFP-40G-BD-RX= compare to similar products?

The QSFP-40G-BD-RX= offers a BiDi design that reduces cabling and is optimized for short-reach applications, making it a competitive choice for high-density environments.

Do I need specific tools to use the QSFP-40G-BD-RX=?

No, specific tools are not required. Standard fiber cleaning tools and a proper optical meter can help ensure optimal performance of the QSFP-40G-BD-RX=.

How cost-effective is the QSFP-40G-BD-RX= module?

The QSFP-40G-BD-RX= module offers exceptional value by combining high performance and short-reach capabilities, making it a cost-effective choice for data broker applications.

What are the key features of the QSFP-40G-BD-RX=?

The QSFP-40G-BD-RX= features a BiDi design that simplifies cabling, supports up to 40Gbps, and is optimized for short-reach distances up to 150 meters on OM3 fiber.

What are the typical application scenarios for QSFP-40G-BD-RX=?

The QSFP-40G-BD-RX= is ideal for data broker and financial trading networks where high-speed, short-reach connections are required.

How do I install the QSFP-40G-BD-RX= module?

To install the QSFP-40G-BD-RX=, simply insert it into the QSFP+ port of your networking device until it clicks into place. Ensure proper fiber connections.

Does the QSFP-40G-BD-RX= module require upgrades?

No, the QSFP-40G-BD-RX= module does not typically require upgrades, but it's crucial to check compatibility with your existing hardware and software.

Are there alternative products to QSFP-40G-BD-RX=?

Yes, alternative products include other Cisco 40G Optical Modules like QSFP-40G-SR4 or QSFP-40G-LR4, depending on the required distance and application.
