QSFP-40G-SR-BD= - Cisco QSFP+ Module|LinkNewNet

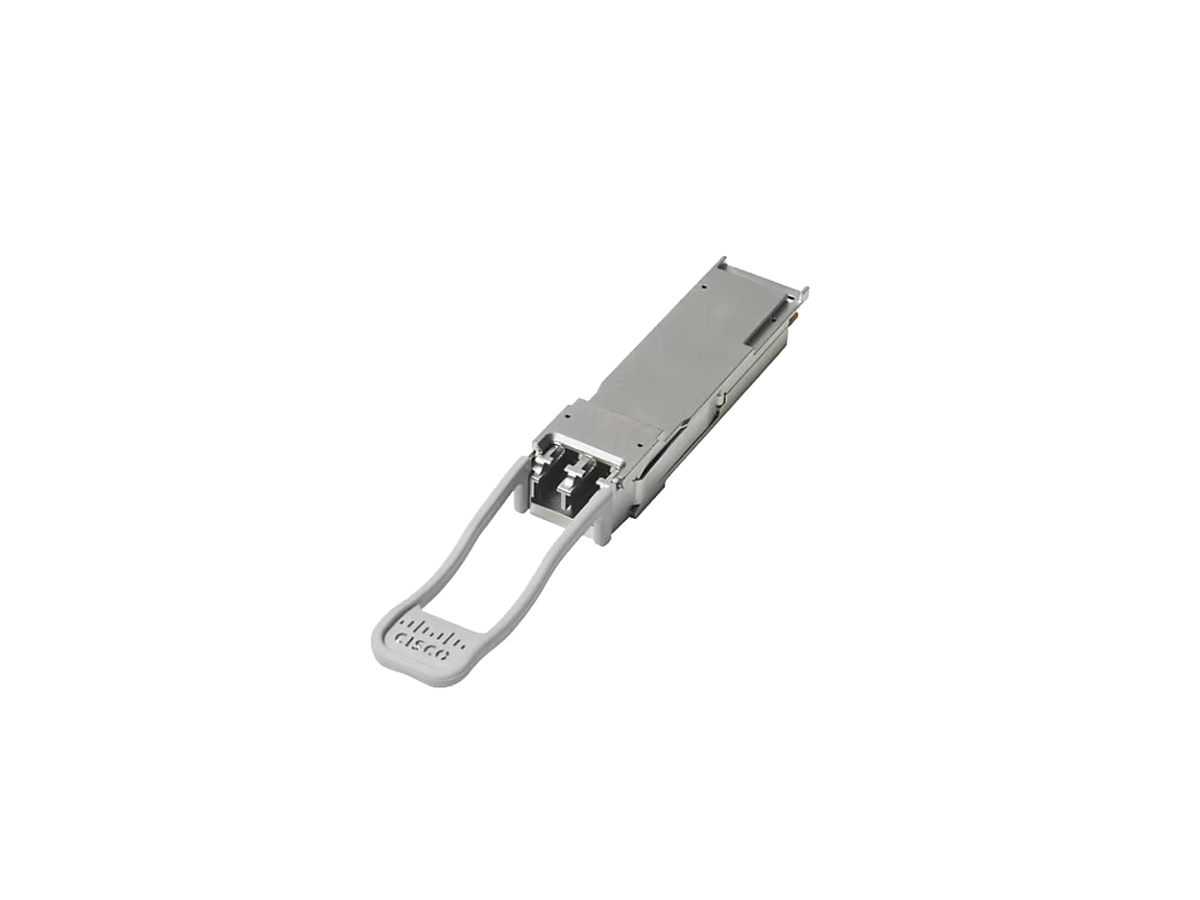

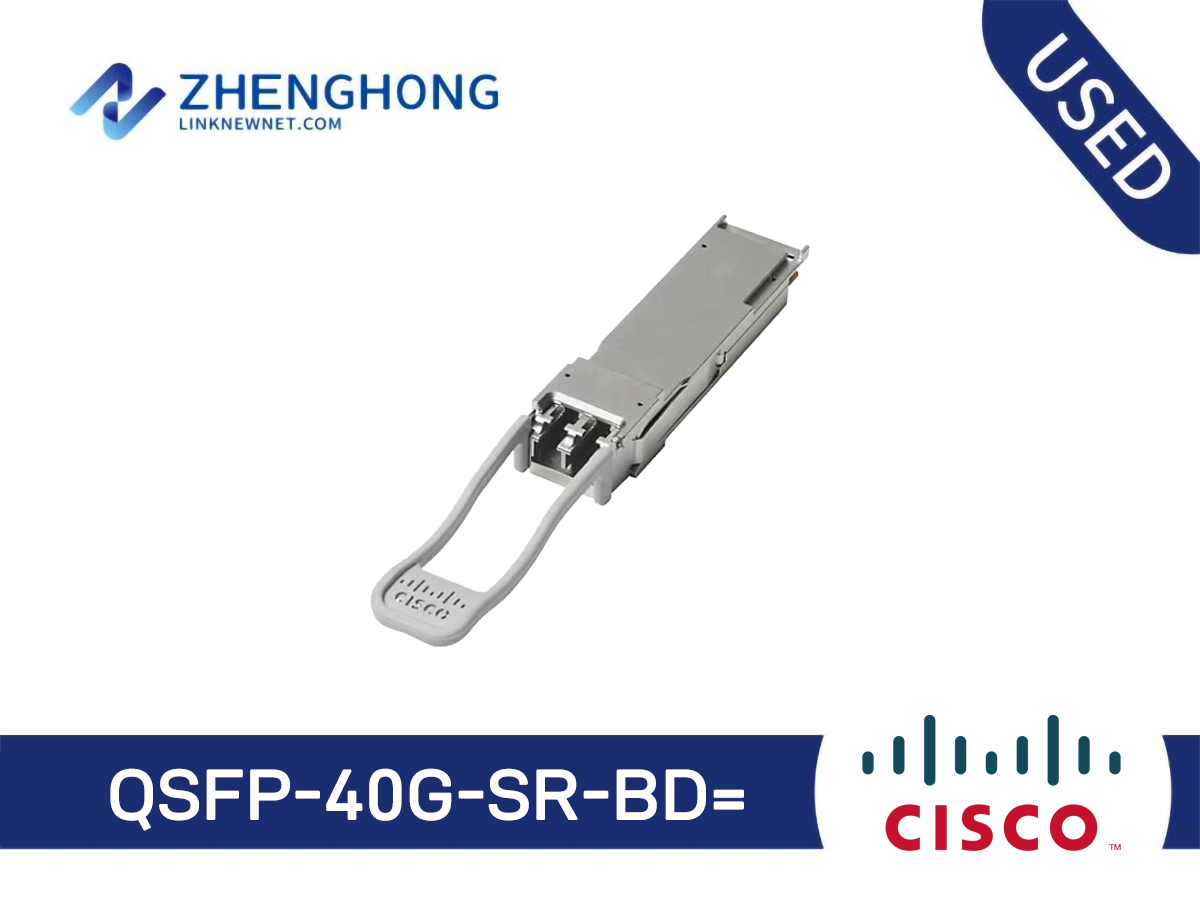

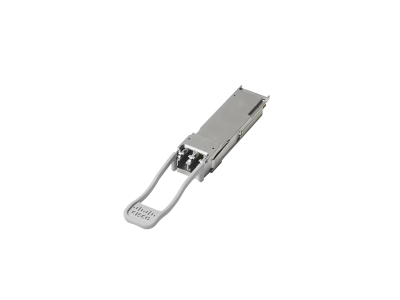

QSFP-40G-SR-BD= - Cisco QSFP+ Module

Model: QSFP-40G-SR-BD=

Detail: QSFP40G BiDi Short-reach Transceiver

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

QSFP-40G-SR-BD= Specifications
Dimensions	13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Wavelength (nm)	832 - 918
Cable Type	MMF
Core Size (microns)	50.0 50.0 50.0
Modal Bandwidth (MHz-km)	500 (OM2) 2000 (OM3) 4700 (OM4)
Cable Distance	30m 100m 150m
Power Consumption (W)	3.5
Pull Tab Color	Gray
Optical characteristics
Type	40GBASE-SR-BiDi, Duplex MMF
Transmit Power (dBm)	Max:+5 per lane Min:-4 per lane
Receive Power (dBm)	Max:+5.0 per lane Min:-6.0 per lane
Transmit and Receive Wavelength (nm)	832 to 918
Environmental conditions
Commercial temperature	+10 to 70°C (50 to 158°F)
Storage temperature	-40 to 85°C (-40 to 185°F)
Regulatory and standards compliance
Standards	•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP+ MSA SFF-8436 •SFP+ MSA SFF-8431 and -8461 •RoHS 6
Safety	•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV Compliant

Q&A

How do I install the QSFP-40G-SR-BD= transceiver?

To install the QSFP-40G-SR-BD= transceiver, simply insert it into a 40G-compatible port on your network device. Ensure it clicks into place for a secure connection.

What are the common troubleshooting steps for the QSFP-40G-SR-BD= transceiver?

Common troubleshooting includes checking fiber connections, ensuring compatibility, and verifying that the transceiver is properly seated in the port.

Do I need to upgrade firmware to use the QSFP-40G-SR-BD= transceiver?

Firmware upgrades are generally not required to use the QSFP-40G-SR-BD=, but always check the compatibility matrix for your specific device.

How cost-effective is the QSFP-40G-SR-BD= transceiver?

The QSFP-40G-SR-BD= transceiver is cost-effective due to its ability to support 40G connectivity over existing multimode fiber infrastructure, reducing the need for extensive rewiring.

What is the qsfp 40g sr bd?

The qsfp 40g sr bd is a Cisco 40 Gigabit Ethernet QSFP+ transceiver module used for high-speed network connectivity.

What type of cable does the qsfp 40g sr bd use?

The qsfp 40g sr bd uses a duplex multi-mode fiber optic cable for network connectivity.

What is the maximum transmission distance for the qsfp 40g sr bd?

The qsfp 40g sr bd can transmit data up to a maximum distance of 150 meters over duplex multi-mode fiber optic cable.

What kind of network speeds does the cisco qsfp 40g sr bd support?

The cisco qsfp 40g sr bd supports 40 Gigabit Ethernet network speeds for high-speed data transfer.

Is the cisco qsfp 40g sr bd compatible with other network devices?

Yes, the cisco qsfp 40g sr bd is compatible with a wide range of network devices that support QSFP+ transceiver modules.

What is Router-switch?

Router-switch is a company that sells networking equipment such as routers, switches, firewalls, and other related products.

What brands does Router-switch carry?

Router-switch carries a variety of networking equipment brands such as Cisco, Huawei, Juniper, HP, Dell, and more.

Does Router-switch ship internationally?

Yes, Router-switch ships their products internationally. However, customers may need to pay additional customs and taxes depending on their country's regulations.

Does Router-switch offer discounts or promotions?

Yes, Router-switch often offers discounts and promotions on their products. Customers can check their website or subscribe to their newsletter to stay updated on current offers.

Does Router-switch offer customized solutions for specific networking needs?

Yes, Router-switch offers customized solutions for specific networking needs. Customers can contact their sales team and provide their requirements to receive a personalized quote and solution.

What is the maximum reach of the QSFP-40G-SR-BD= transceiver?

The QSFP-40G-SR-BD= transceiver has a maximum reach of 100 meters over OM3 multimode fiber and 150 meters over OM4 multimode fiber.

Does the QSFP-40G-SR-BD= transceiver support bidirectional data transmission?

Yes, the QSFP-40G-SR-BD= transceiver supports bidirectional data transmission, allowing for efficient use of fiber resources.

Which Cisco switches are compatible with the QSFP-40G-SR-BD= transceiver?

The QSFP-40G-SR-BD= transceiver is compatible with a wide range of Cisco switches, including the Nexus and Catalyst series.

How much power does the QSFP-40G-SR-BD= transceiver consume?

The typical power consumption of the QSFP-40G-SR-BD= transceiver is about 3.5W.

Are there alternative transceivers to the QSFP-40G-SR-BD= for 40G connectivity?

Yes, alternative transceivers include the QSFP-40G-SR4 and QSFP-40G-LR4 modules.

What accessories are available for the QSFP-40G-SR-BD= transceiver?

Available accessories include dust caps and high-quality MPO/MTP patch cables.
