Huawei S5700 Series Switches S5720-52P-SI-AC|LinkNewNet

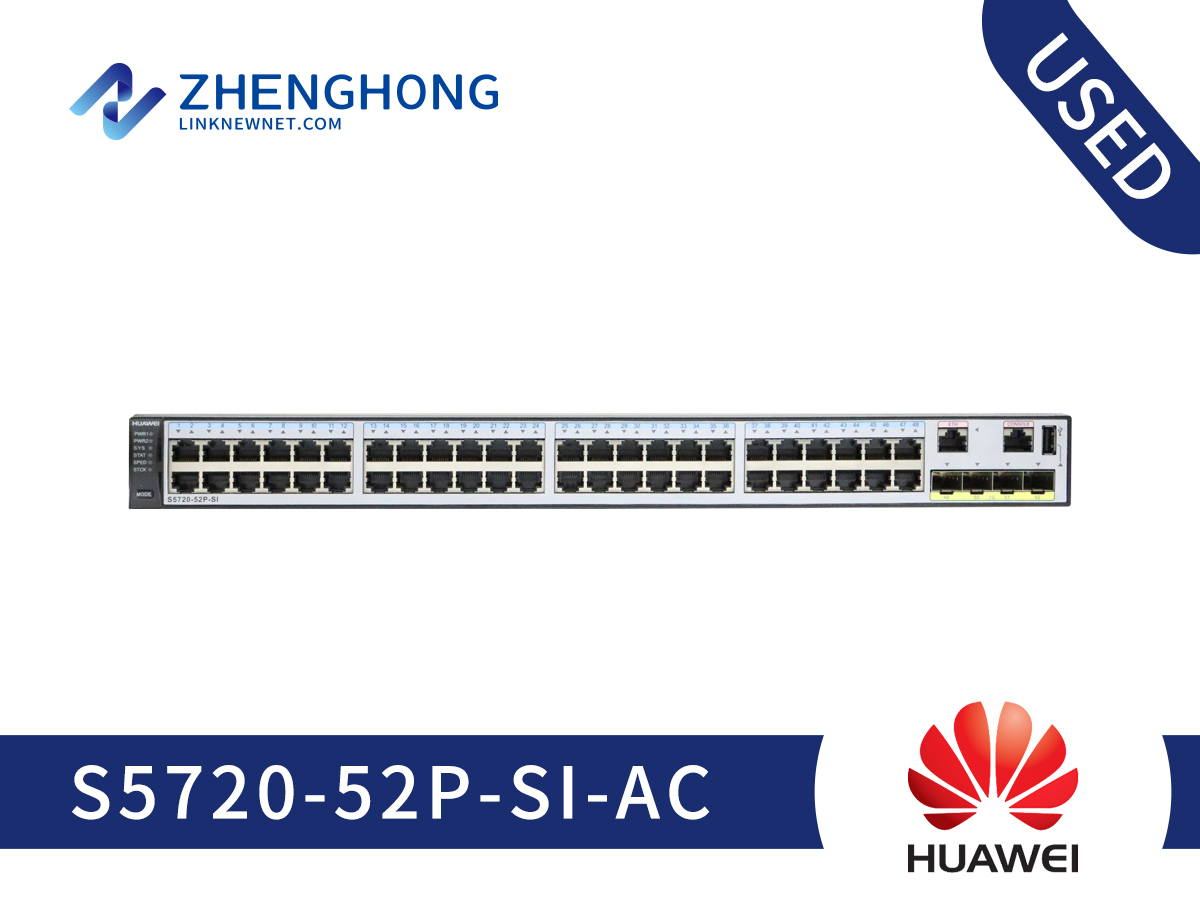

Huawei S5700 Series Switches S5720-52P-SI-AC

Model: S5720-52P-SI-AC

Detail: Huawei S5720-52P-SI Bundle(48 Ethernet 10/100/1000 ports,4 Gig SFP,with 150W AC power supply)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

S5720-52P-SI-AC
Product list
Product code	S5720-52P-SI-AC
Fixed Port	48 x Ethernet 10/100/1,000 ports 4 x Gig SFP
MAC address table	MAC address entries: S5700-SI series - 16K
Product parameters
Network Ports	52
Mean time between failures (MTBF)	41 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
Stack ports	Forty-eight 10/100/1000BASE-T ports and four 1000BASE-X ports
Expansion Slot Type	SFP
Certification	EMC certification Safety certification Manufacturing certification
Stack ports	Forty-eight 10/100/1000BASE-T ports and four 1000BASE-X ports
Memory
Memory Technology	DRAM
Standard Memory	512 MB
Flash Memory	128 MB
Power Device
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Physical specifications
Width	44.2 cm
Height	4.44 cm
Depth	42 cm
Weight	8 kg
Environmental Parameters
Min Temperature	23 °F
Max Temperature	131 °F
Humidity Operating	5 - 95% (non-condensing)

Q&A

Q What's the downlink ports of S5720-52P-SI-AC?

A It's 48 x Ethernet 10/100/1,000 ports.

Q What's the dimensions (W x D x H) of S5720-52P-SI-AC?

A 44.2 cm x 42 cm x 4.44 cm.

Q What are the common causes for SSH Login Failure on Huawei S Series Switches?

A The configuration is incorrect. For example, the STelnet service is disabled on the switch.
Solution: Check whether the configuration is correct and complete by referring to "Example for Configuring STelnet Login."

Q What is the Huawei S5700 series switch?

A Huawei S5700 series Ethernet switches are next-generation energy-saving GE switches designed to provide high-bandwidth access and Ethernet multi-service aggregation. Based on cutting-edge hardware and Huawei Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in extensive enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.
