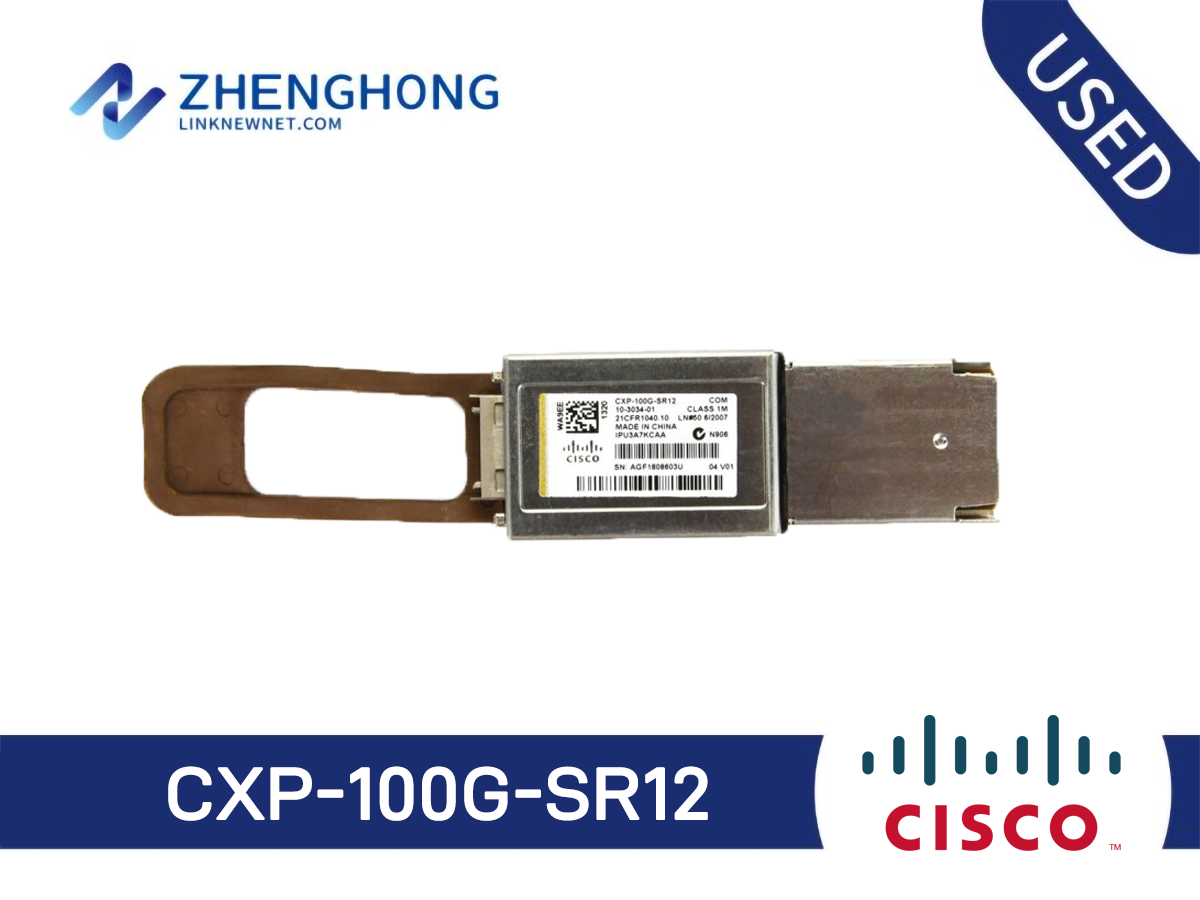

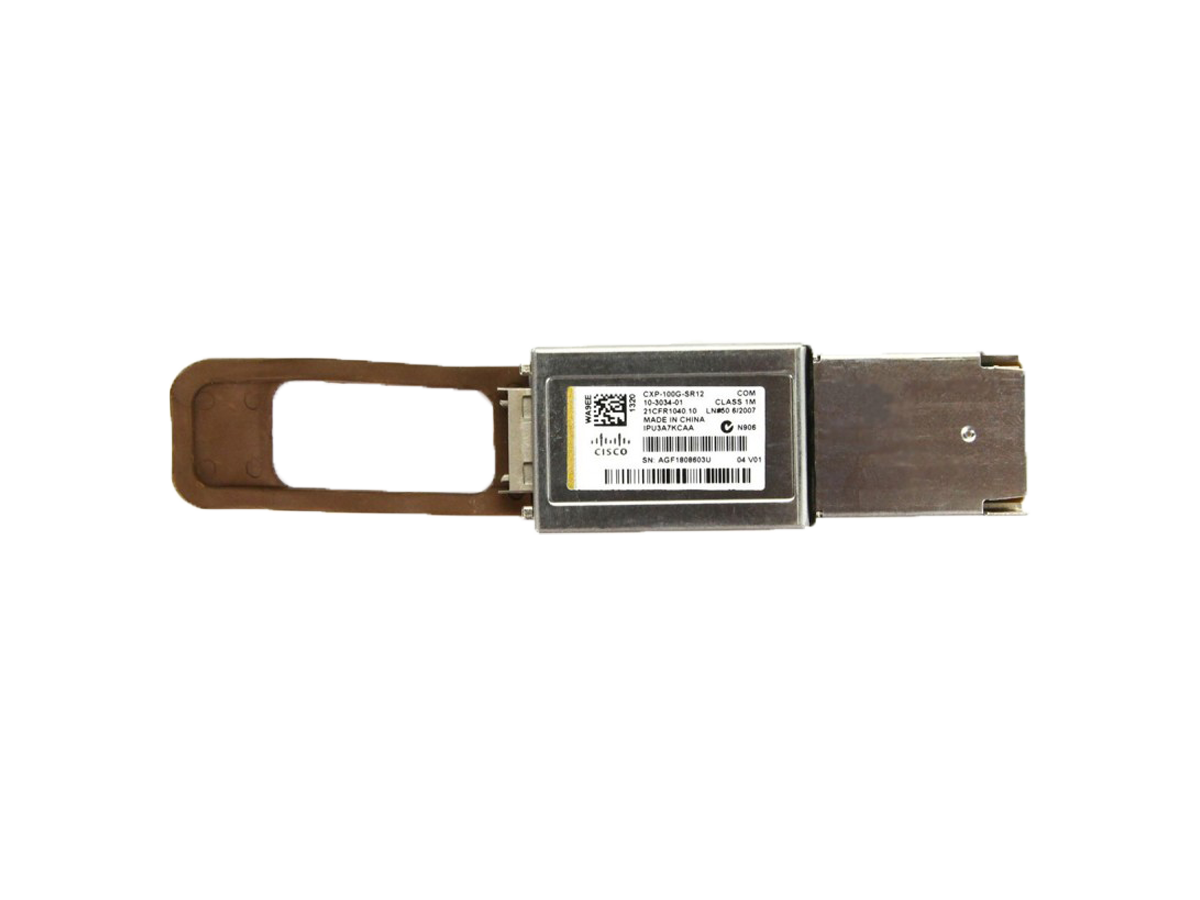

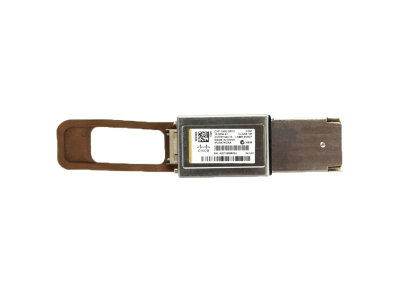

CXP-100G-SR12 - Cisco QSFP28 Module

Model: CXP-100G-SR12

Detail: CXP form factor, 100GBASE-SR10 compliant, no breakout

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CXP-100G-SR12 Specification
Description	100GBASE-SR10 CXP Module for MMF
Dimensions	13.3 x 24 x 62 mm (0.52 x 0.94 x 2.44 in)
CXP Port Cabling Specifications
Wavelength (nm)	850
Cable Type	MMF
Core Size (Microns)	50.0 50.0
Modal Bandwidth (MHzkm)**	2000 (OM3) 4700 (OM4)
Cable Distance*	100m 150m**
* Minimum cabling distance for -LR4 modules is 2m, according to the IEEE 802.3ba. Considered an engineered link with maximum 1dB allocated to connectors and splice loss. * Specified at transmission wavelength.
Optical Transmit and Receive Specifications
Type	100GBASE-SR10
Transmit Power (dBm)*	Max:2.5 per lane Min:-7.6 per lane
Receive Power (dBm)*	Max:2.4 per lane Min:-9.5 per lane
Transmit and Receive Center Wavelength Range (nm)	12 lanes: 840 to 860 nm
* Transmitter and receiver power are in averages, unless specified.
Environmental Conditions and Power Requirements
Storage temperature	-40 to 185°F (-40 to 85° C)
CXP operating temperature	0 to 70°C (32 to 158°F)
CXP power consumption	At 70°C: <3.5W maximum

Q&A

Are there alternative products available to CXP-100G-SR12?

Yes, alternatives include other Cisco 100G optical modules such as the CFP-100G-SR10, which may offer different form factors or features.

What accessories are recommended for the CXP-100G-SR12?

Recommended accessories include compatible 100G Ethernet cables, transceiver cleaning tools, and cable management solutions to ensure optimal performance.

How cost-effective is the CXP-100G-SR12?

The CXP-100G-SR12 is cost-effective for large-scale deployments requiring high-speed and reliable 100G connectivity with minimal additional features.

How does CXP-100G-SR12 compare with other Cisco 100G optical modules?

The CXP-100G-SR12 prioritizes simplicity and performance, while other modules like CFP-100G-SR10 may offer additional features such as breakout support or longer reach capabilities.

Is the CXP-100G-SR12 compliant with 100GBASE-SR10?

Yes, the CXP-100G-SR12 is fully compliant with 100GBASE-SR10 specifications for high-performance networking.

What form factor does the CXP-100G-SR12 use?

The CXP-100G-SR12 uses the CXP form factor, ensuring compatibility with various high-speed networking equipment.

Does the CXP-100G-SR12 support breakout cables?

No, the CXP-100G-SR12 does not support breakout cables. It is designed for single-channel 100G connectivity.

In which application scenarios is the CXP-100G-SR12 ideal?

The CXP-100G-SR12 is ideal for high-speed data center interconnections, large enterprise networks, and storage area networks requiring 100G transmission.

How do I install the CXP-100G-SR12 module?

To install the CXP-100G-SR12, insert the module into the appropriate CXP slot in your networking equipment until it clicks into place securely.

Is any firmware upgrade needed for CXP-100G-SR12?

Typically, no firmware upgrade is required for the CXP-100G-SR12 if your device is already compatible with 100G CXP modules.
