CPAK-100GE-LR4= - Cisco QSFP28 Module|LinkNewNet

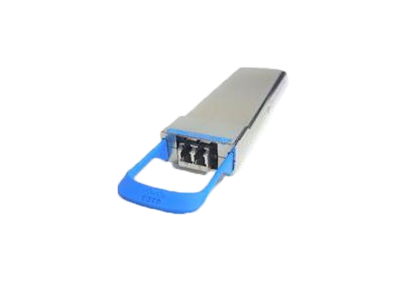

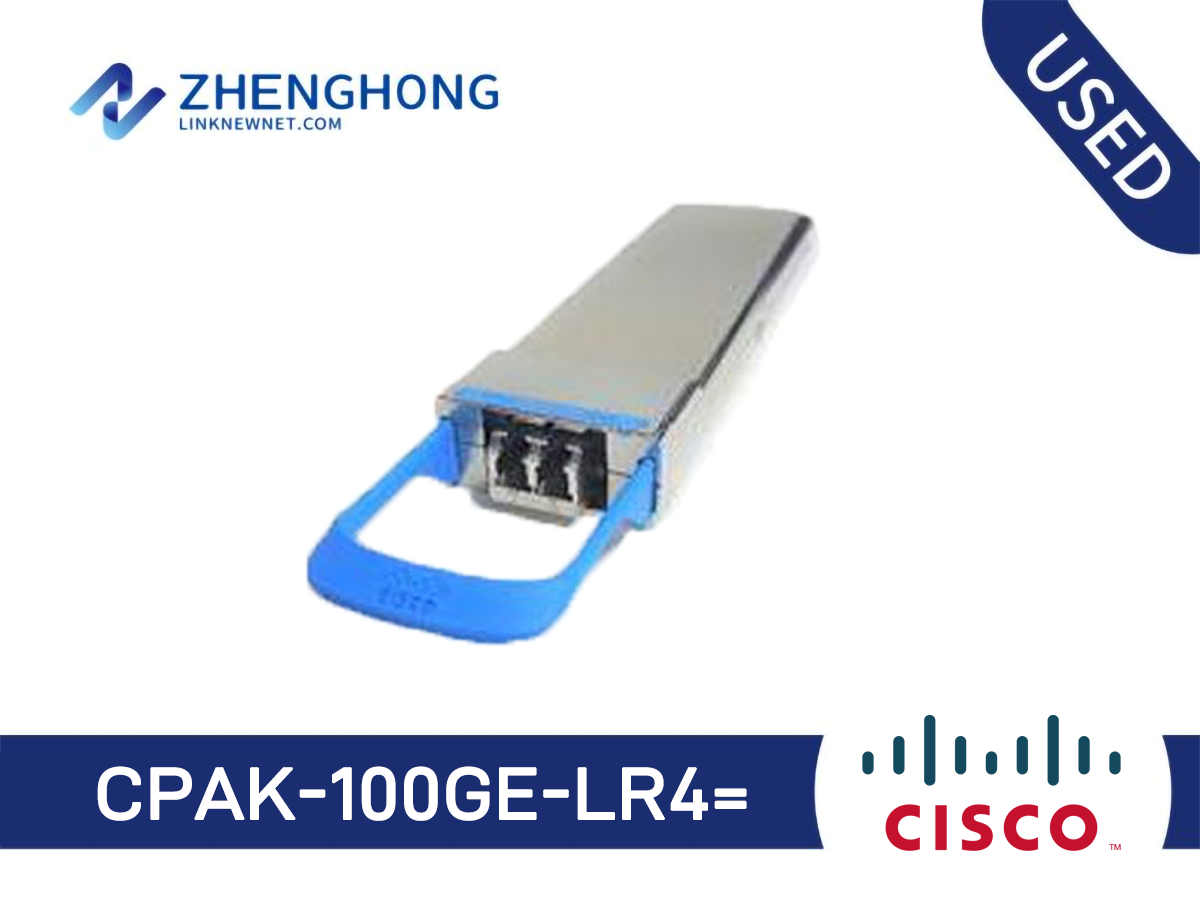

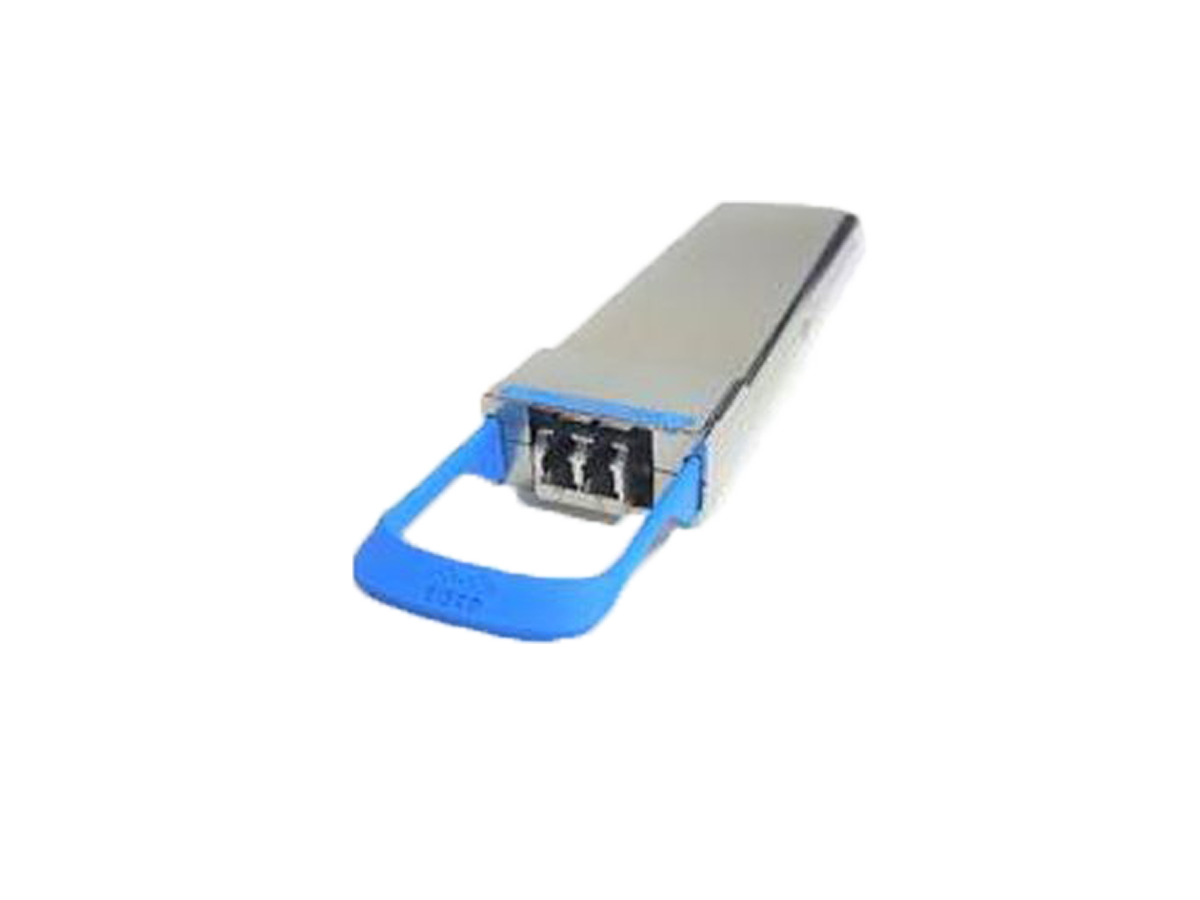

CPAK-100GE-LR4= - Cisco QSFP28 Module

Model: CPAK-100GE-LR4=

Detail: CPAK optical transceiver module, 100GBASE-LR4, 10km, no OTN

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CPAK-100GE-LR4= Specification
Description	100GBASE-LR4 Cisco CPAK Module for SMF (terminated with LC Connectors)
Dimensions	11.6 x 34.8 x 101.2 mm (0.46 x 1.37 x 3.98 in)
Cisco CPAK port cabling specifications
Wavelength (nm)	1310
Cable Type	SMF Duplex
Core Size (Microns)	9-micron core SMF per G.652
*Modal Bandwidth (MHzkm)**	\
Cable Distance	10 km
Optical transmit and receive specifications
Type	100GBASE-LR4 1310 nm SMF
Transmit Power	Max:+4.5 per lane Min:-4.3 per lane
Receive Power (dBm)	Max:+4.5 per lane Min:-10.6 per lane
Transmit and Receive Center Wavelength Range (nm)	Four lanes: 1294.53 to 1296.59 1299.02 to 1301.09 1303.54 to 1305.63 1308.09 to 1310.19
Supported Mode	1x100G
Supported Protocol	IEEE 802.3ba
Environmental conditions and power requirements
Storage temperature	-40 to 85° C (-40 to 185° F)
Operating temperature	0 to 70° C (32 to 158° F)
Power consumption	At 70° C: <8.0 W maximum

Q&A

What common troubleshooting steps are there for the CPAK-100GE-LR4=?

Common troubleshooting includes verifying secure connections, checking firmware compatibility, and ensuring the module is properly seated in the device.

What accessories are available for the CPAK-100GE-LR4=?

Accessories for the CPAK-100GE-LR4= include compatible optical cables, cleaning tools, and protective dust covers for the transceiver module.

How does the CPAK-100GE-LR4= compare with other 100G modules?

The CPAK-100GE-LR4= module offers a balance of performance and compatibility, with a 10km reach, making it a prefered choice over other modules for certain long-distance applications.

Can the CPAK-100GE-LR4= be used in any Cisco device?

The CPAK-100GE-LR4= is compatible with many Cisco devices that support CPAK interfaces, but you should verify device compatibility based on the Cisco documentation for your specific model.

How cost-effective is the CPAK-100GE-LR4= module?

The CPAK-100GE-LR4= optical transceiver offers excellent performance for 100G networking needs, providing a cost-effective solution for long-range data transmission up to 10km.

What are the main features of the CPAK-100GE-LR4= module?

The CPAK-100GE-LR4= transceiver supports 100GBASE-LR4, has a reach of 10km, and is designed for compatibility with various Cisco network devices, making it versatile and efficient.

What are the application scenarios for the CPAK-100GE-LR4=?

The CPAK-100GE-LR4= is ideal for long-distance inter-data center connections, enterprise networking, and high-performance computing environments requiring 100G bandwidth.

How do I install the CPAK-100GE-LR4= optical module?

To install the CPAK-100GE-LR4= transceiver, insert it into an appropriate Cisco switch or router slot, ensuring firm seating. No additional configuration is required for basic operation.

Does the CPAK-100GE-LR4= module need to be upgraded?

The CPAK-100GE-LR4= typically does not require upgrades. However, ensure your Cisco device firmware supports the module for optimal performance.

Are there alternative products to the CPAK-100GE-LR4=?

Yes, alternative products include other Cisco 100G optical modules like CFP-100G-LR4. However, compatibility with your specific device should be confirmed.
