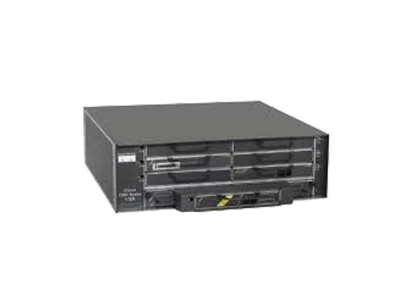

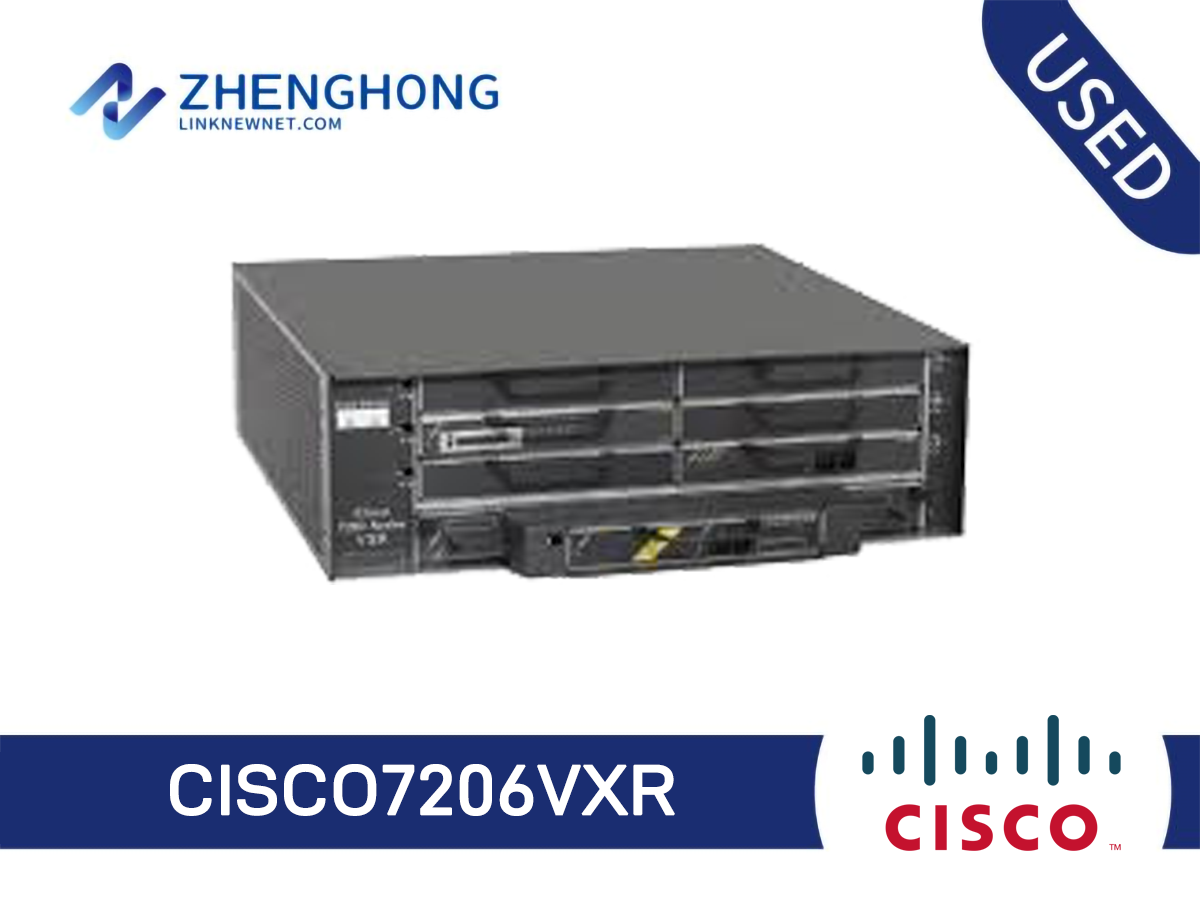

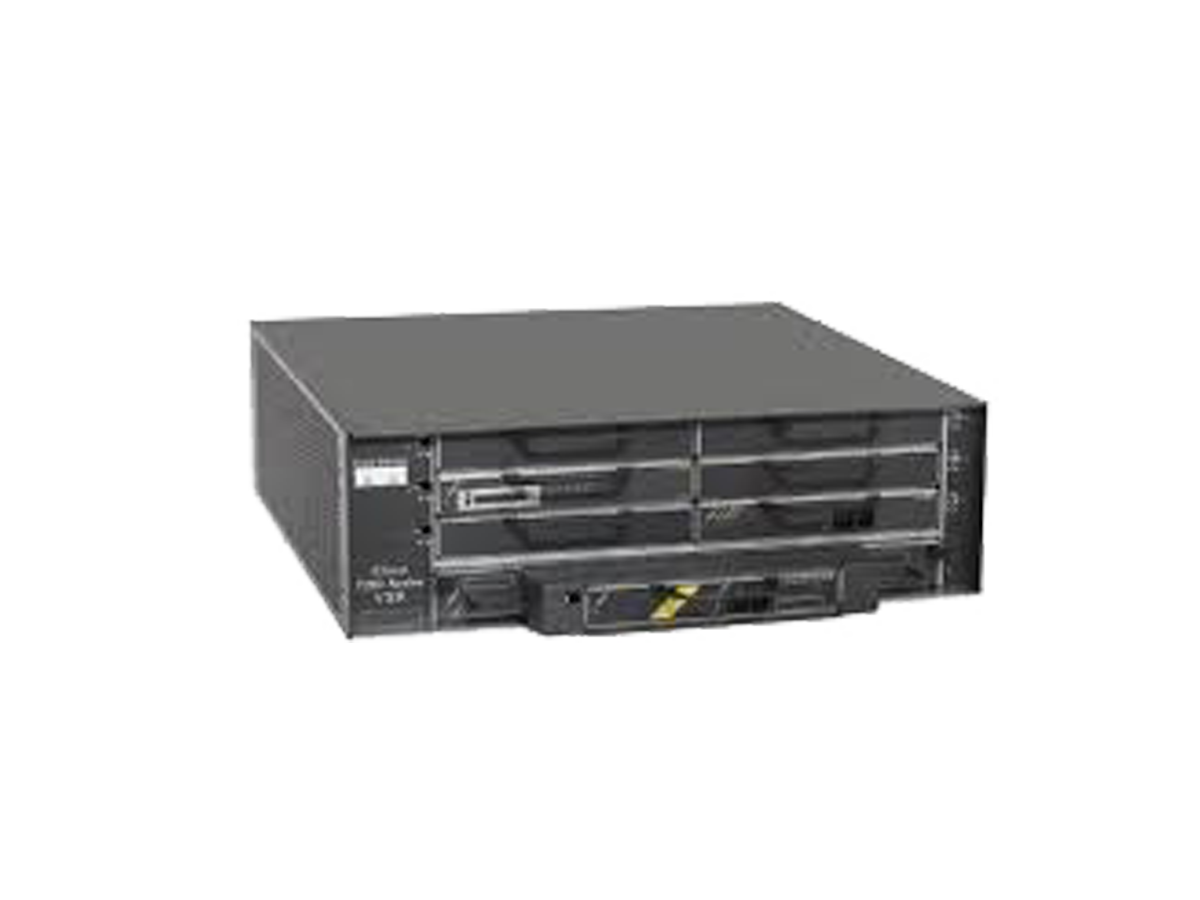

CISCO7206VXR - Cisco 7200 Series Router

Model: CISCO7206VXR

Detail: Cisco 7206VXR, 6-slot chassis, 1 AC Supply w/IP Software

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CISCO7206VXR Specification
Product Number	CISCO7206VXR
Description	Cisco 7206 VXR, 6-slot chassis, 1 AC supply with IP software
Configurable Slots without Port Adapter Jacket Card	6
Configurable Slots with Port Adapter Jacket Card	7
Ethernet (10BASE-T) Ports	48
Ethernet (10BASE-FL) Ports	30
Fast Ethernet (TX) Ports	Up to 6
Fast Ethernet (FX) Ports	Up to 6
EtherSwitch Port Adapters	2
100VG-AnyLAN Ports	Up to 6
FDDI (FDX, HDX) Ports	0
ATM Ports (T3, OC-3)	Up to 6, 4
Packet over SONET	6
Token Ring (FDX, HDX) Ports	24
Synchronous Serial Ports	48
ISDN BRI Ports (S/T)	24, 48
ISDN PRI, Multichannel T1/E1 Ports	48
Multichannel T3 Ports	Up to 6
HSSI Ports	Up to 12
Packet over T3/E3 Ports (Integrated DSU)	Up to 24
VPN Acceleration Module	1
Chassis/Rack	• 16 with side-to-side air flow • 9 with RDS mounting system for front-to-back airflow
I/O Card Slots	1
Port Adapter Slots	6
Midplane	2 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.2 Gbps when used with NPE-400. 3 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.8 Gbps when used with NPE-G1 or NPE-G2
Online Insertion and Removal (OIR)	Yes
Field-Replaceable Components	Processor, memory, power supply, I/O card, and port adapters
Additional Standard Components	AC power supply, AC power cord
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-4 to 149°F (-20 to 65°C)
Operating Humidity	10 to 90% (noncondensing)
Processor Memory	• 256 MB (default for NPE-400 and NPE-G1) • 512 MB (max for NPE-400) • 1 GB (max for NPE-G1 and default for NPE-G2) • 2 GB option for NPE-G2
PCMCIA Flash Disk Memory Card (optional, up to 2 slots available)	• 48 MB, expandable to 128 MB for I/O controllers • 64 MB, expandable to 256 MB for NPE-G1 and NPE-G2
Compact Flash Disk Memory Card (optional for NPE-G1 and NPE-G2)	• 64 MB, expandable to 256 MB for NPE-G1 • 256 MB for NPE-G2
Height	5.25 in. (13.34 cm)
Width	16.8 in. (42.67 cm)
Depth	17 in. (43.18 cm)
Weight	Chassis is fully configured with a network processing engine, I/O controller, four port adapters, two power supplies, and a fan tray: ~50 lb (22.7 kg)

Q&A

What common troubleshooting steps are there for CISCO7206VXR?

Common steps include checking LED indicators, verifying cable connections, and using diagnostic commands in the CLI.

What accessories are available for CISCO7206VXR?

Accessories include additional AC power supplies, NM and PA network modules, and rack mount kits.

How does CISCO7206VXR compare with newer models?

While not as advanced as newer models like the ASR series, CISCO7206VXR remains reliable and cost-effective for many users.

What features does the IP software in CISCO7206VXR provide?

The IP software supports advanced routing protocols, VPN, policy routing, and security features like ACLs.

Learn More

What is 7206VXR/NPE-G2’s throughput in terms of bandwidth because I want one which can handle at least 1GB of Internet capacity.

7206VXRsupports 2 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.2 Gbps when used with NPE-400; 3 independent 32-bit, 50-MHz PCI buses with an aggregate bandwidth of 1.8 Gbps when used with NPE-G1 or NPE-G2

How cost-effective is the CISCO7206VXR?

The CISCO7206VXR (USED) offers robust performance for WAN aggregation at a fraction of the cost compared to new devices.

What are the key features of CISCO7206VXR?

The CISCO7206VXR offers 6-slot chassis flexibility, a high-performance IP forwarding engine, and redundancy support.

What are the typical application scenarios for CISCO7206VXR?

It is ideal for WAN aggregation, edge routing, and internet edge applications in medium to large enterprises.

How do I install the CISCO7206VXR?

Installation involves mounting the chassis, connecting cables, inserting modules, and configuring the IP software via CLI.

Does the CISCO7206VXR need regular upgrades?

It??s advisable to check for Cisco IOS updates and patches to ensure security and performance enhancements.

Are there alternative products to CISCO7206VXR?

Alternatives include Cisco ASR series routers, which offer newer technology and higher performance.

What common troubleshooting steps are there for CISCO7206VXR?

Common steps include checking LED indicators, verifying cable connections, and using diagnostic commands in the CLI.

What accessories are available for CISCO7206VXR?

Accessories include additional AC power supplies, NM and PA network modules, and rack mount kits.

How does CISCO7206VXR compare with newer models?

While not as advanced as newer models like the ASR series, CISCO7206VXR remains reliable and cost-effective for many users.

What features does the IP software in CISCO7206VXR provide?

The IP software supports advanced routing protocols, VPN, policy routing, and security features like ACLs.
