CISCO Catalyst 2950 series 48 Port Switch WS-C2950T-48-SI|LinkNewNet

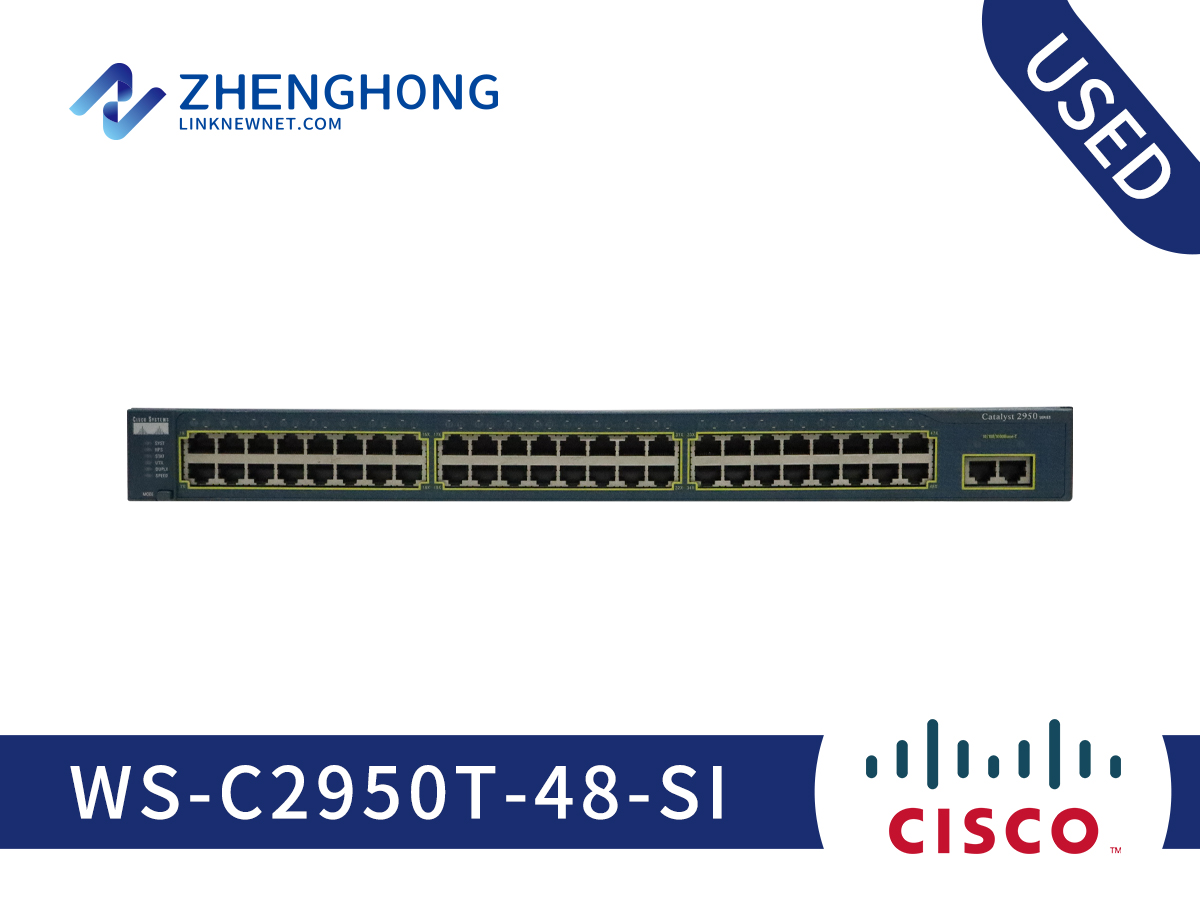

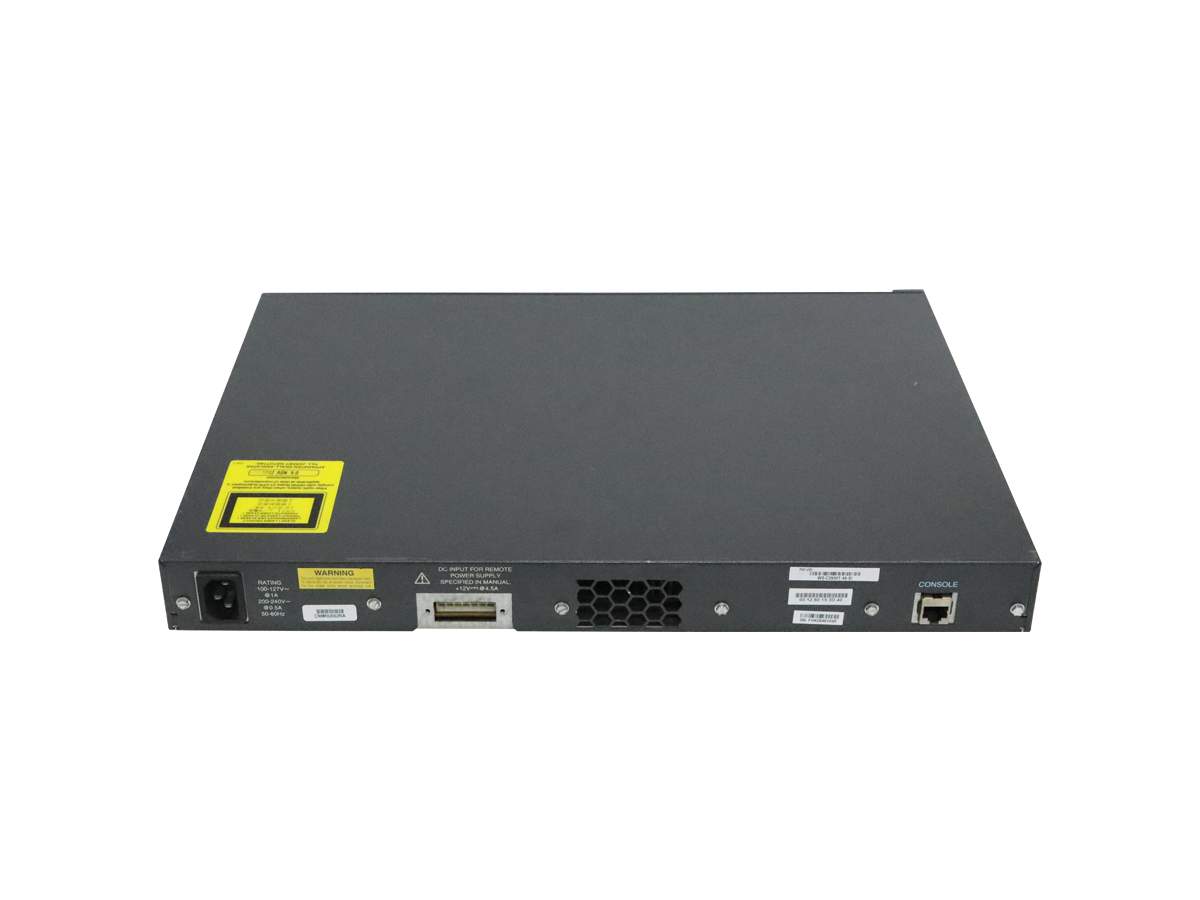

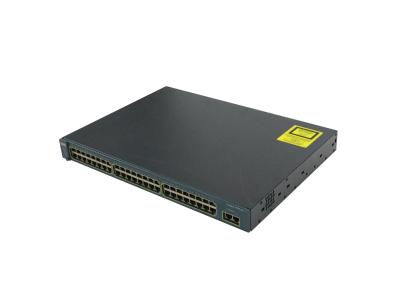

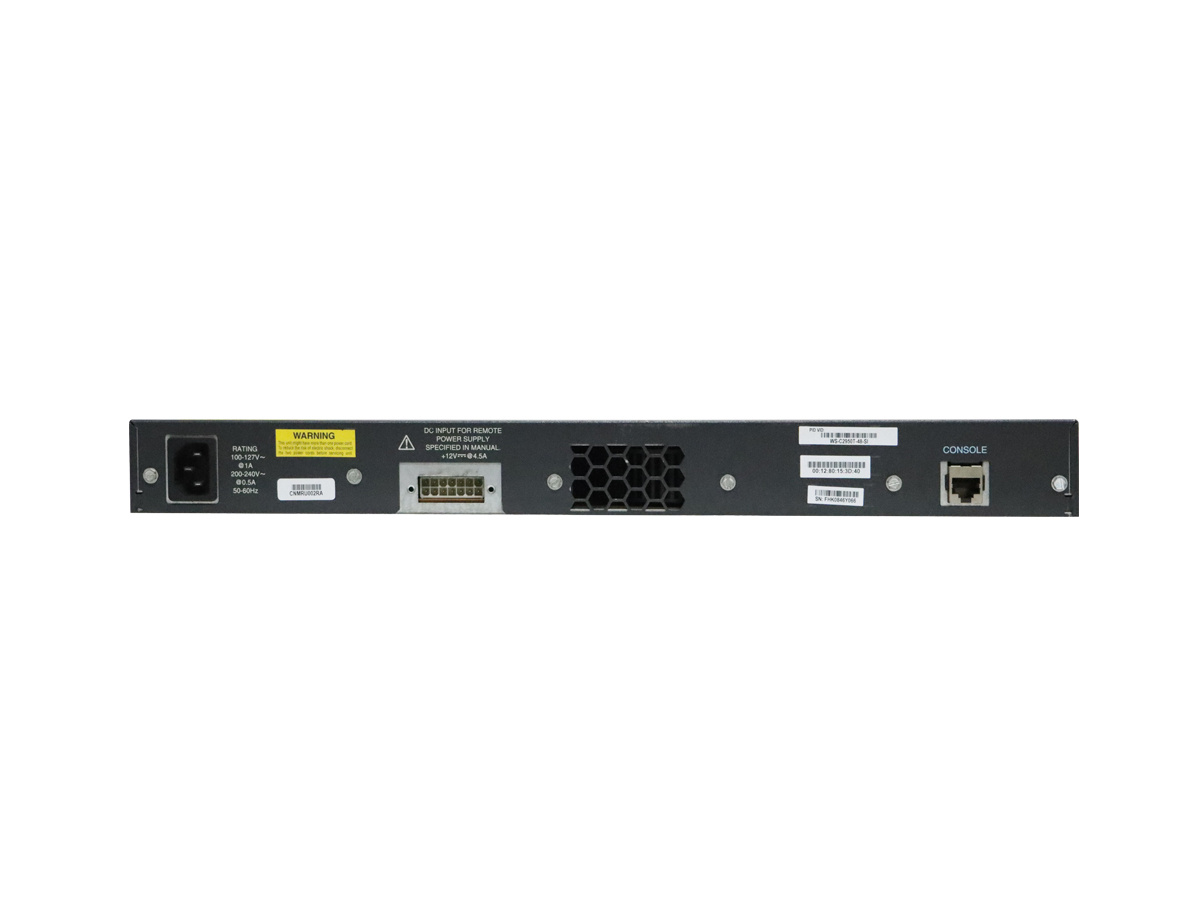

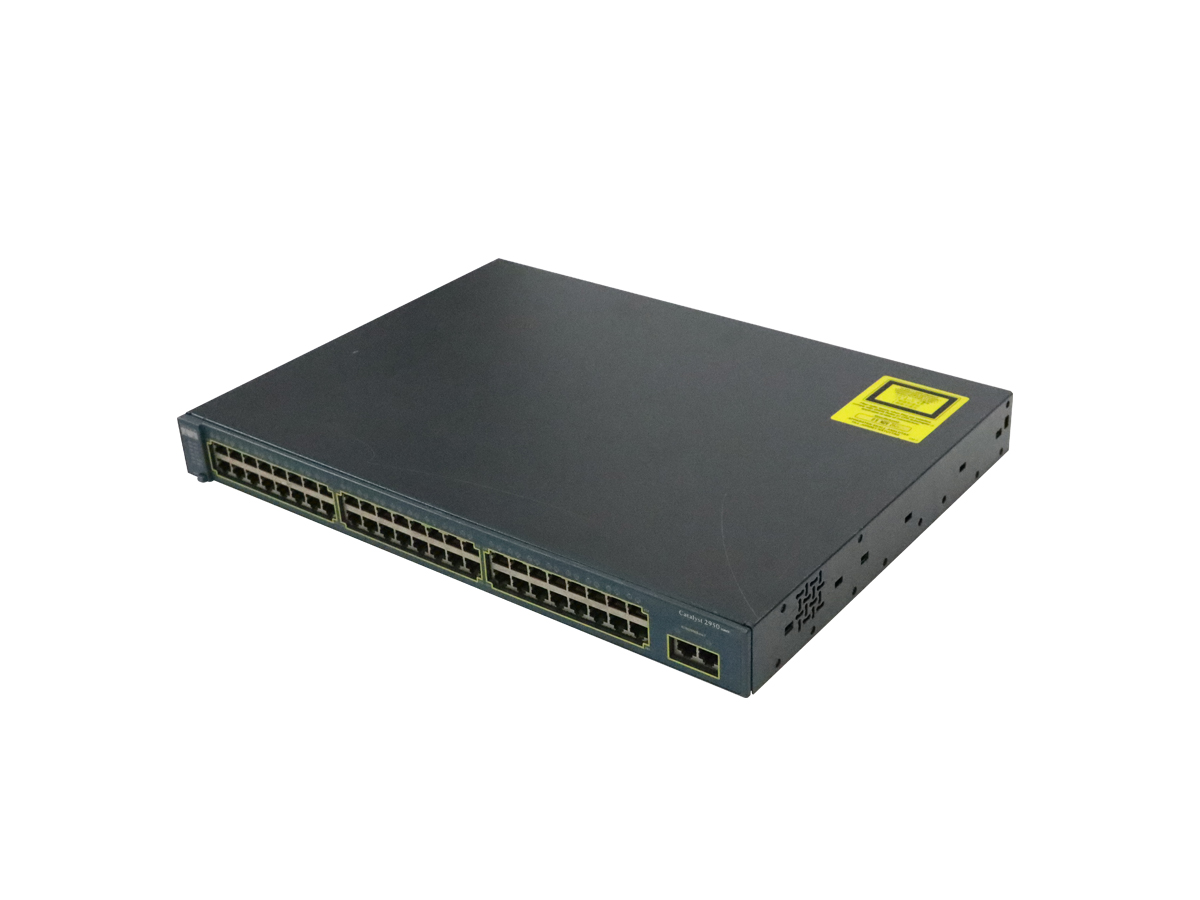

CISCO Catalyst 2950 series 48 Port Switch WS-C2950T-48-SI

Model: WS-C2950T-48-SI

Detail: 48 10/100 and 2 10/100/1000BASE-T uplinks, Standard Image

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C2950T-48-SI
Product list
Product code	WS-C2950T-48-SI
Power cable	No
Button	No
Product parameters
Port	48
Port Details	48 x Fast Ethernet Network 2 x Gigabit Ethernet Uplink
Uplink Port	Yes
Ethernet Technology	Fast Ethernet
Network Technology	10Base-T 10/100/1000Base-T
Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 5
Layer supported	2
Fiber Optic Cable Standard	62.5/125 μm 50/125 um
Fiber Mode Supported	Multi-mode
Standard Memory	16 MB
Flash Memory	8 MB
MTBF	268876 Hour
Introduction	The Cisco Catalyst 2950T-48 Switch with 48 10/100-Mbps ports and two integrated 10/100/1000 BASE-T ports is a cost-effective solution. The 10/100/1000 BASE-T ports can be used for server connectivity or for uplink connectivity to distribution or other switches.
Power Device
Power Source	Power Supply
Input Voltage	110 V AC 220 V AC
Frequency	60 Hz
Redundant Power Supply Supported	Yes
Power Consumption	45 W
Physical specifications
Form Factor:	Rack-mountable Wall Mountable Desktop
Width	17.5 in
Height	1.7 in
Depth	13 in
Weight	10.6 lbs

Q&A

Q What does the system LED is amber on a new Catalyst 2950 series switch What does this indicate?

A The switch automatically runs POST which is a series of self-tests to verify proper functioning, after the power is connected.

Q How to reset Catalyst 2950 switch?

A Step 1: turn off/on the switch while holding the button down for roughly 15 seconds.

Step 2: You will be able to view the led lights blink, and now the switch should have reset to default on system restart once you release the mode button. When you're unable to log in, you must complete a password rescue.

Q How to configure a Cisco Catalyst 2950?

A Connect the serial cable that came with the switch to the console port on the switch and to a serial port on your computer. The cable that comes with the switch is typically blue, and the serial end is a 9-pin d-shell connector.
