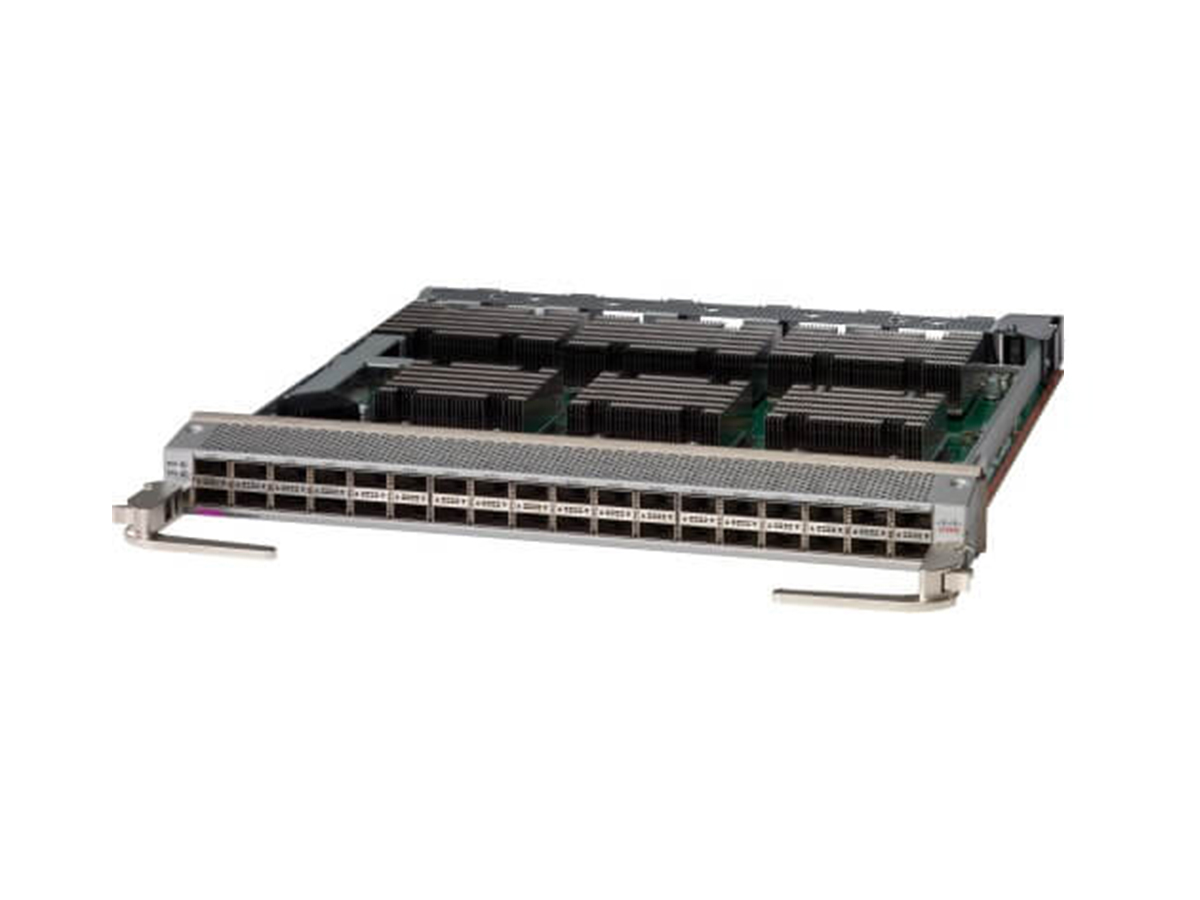

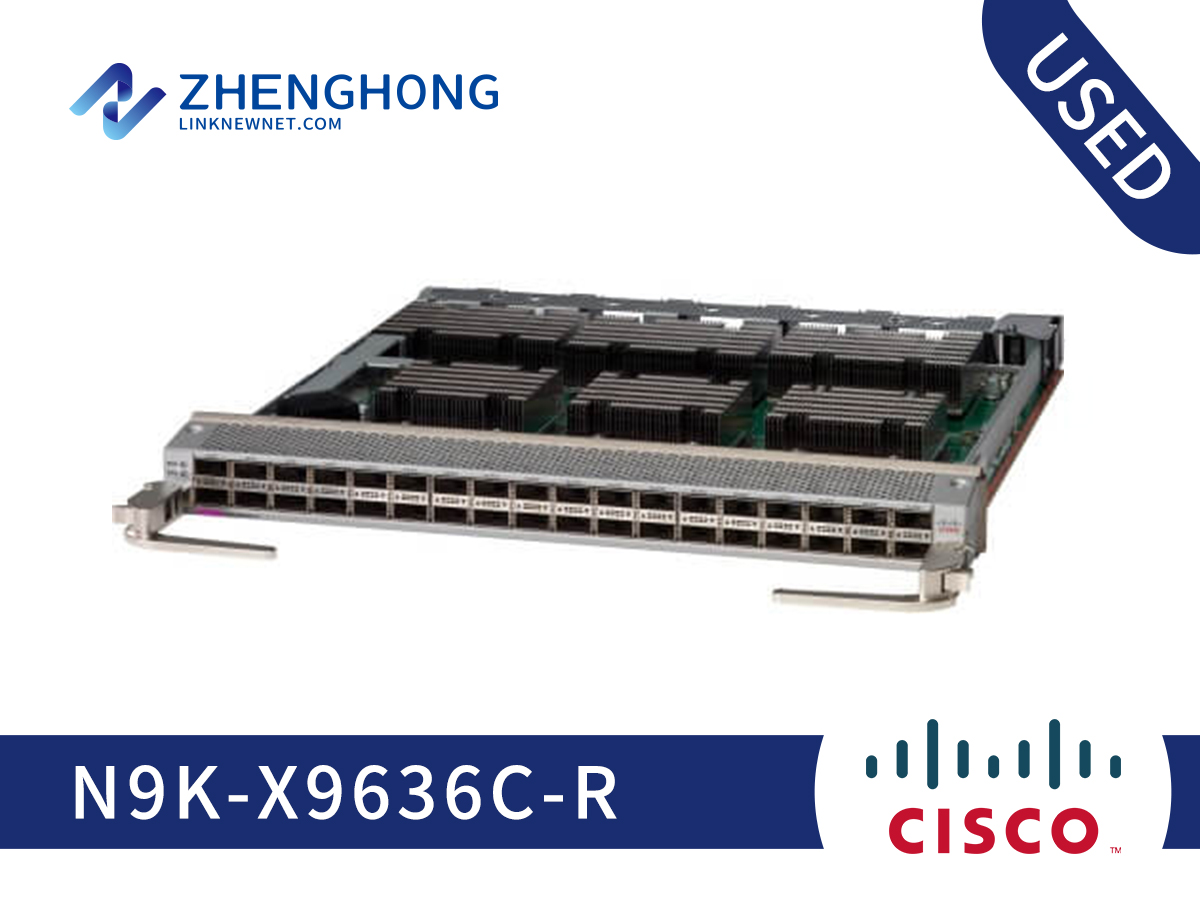

|Product Type||Expansion Module|
|Number of Total Expansion Slots|
|Expansion Slot Type||QSFP28|
100 Gigabit Ethernet
|Switching Performance||3.6Tbps, Line rate for 92+ byte packet sizes|
The Cisco Nexus 9500 platform is designed as a Clos fabric that interconnects each line card directly with each rear-mounted fabric module. All traffic between the line cards is load balanced across all fabric modules providing optimal bandwidth distribution within the chassis. This load-balancing capability provides enhanced system reliability and redundancy. The switch continues to operate even in the event of a loss of a fabric module, albeit at a lower capacity, as the remaining fabric modules continue to provide switching capacity to the line cards. Some of these line cards can connect to 1 or 2 additional fabric modules to provide N+1 or N+2 redundancy.
Nexus 9504 and 9508
