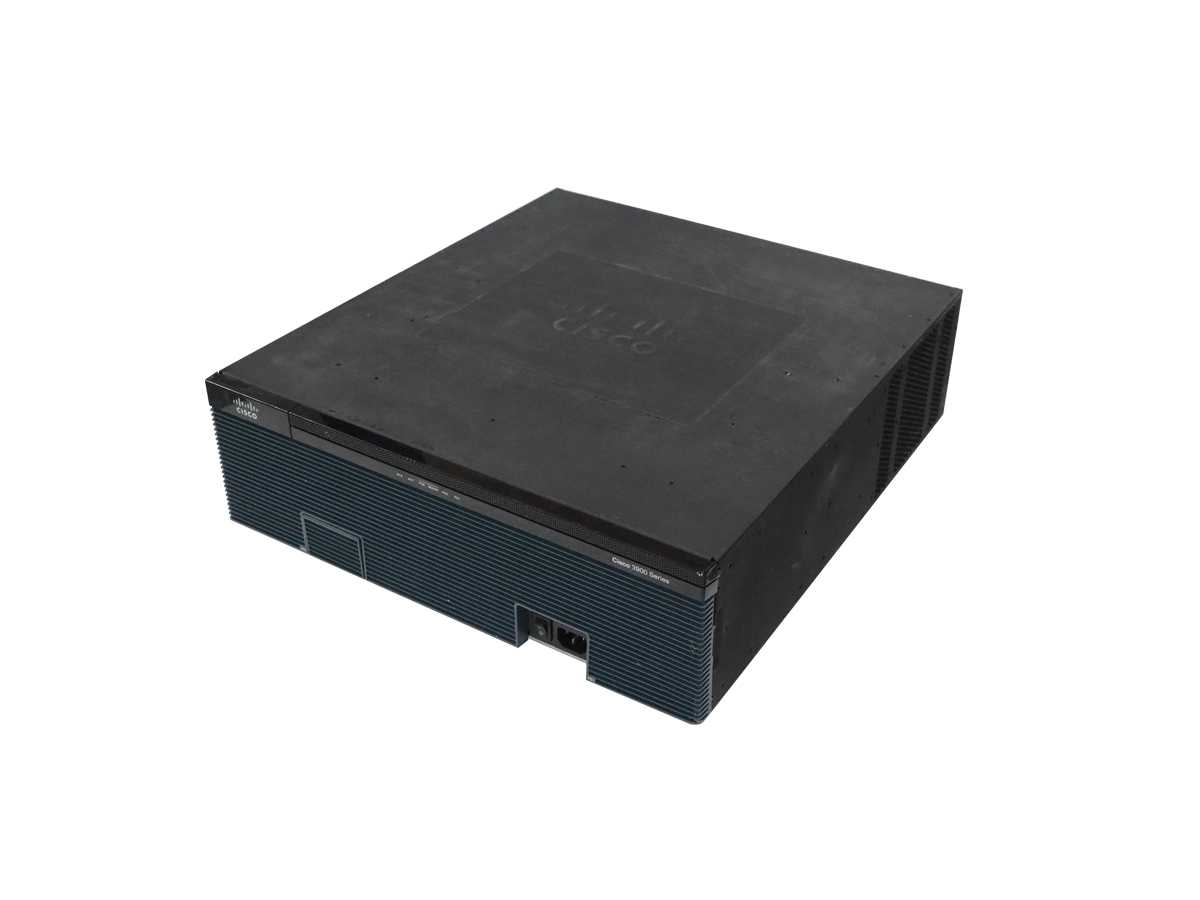

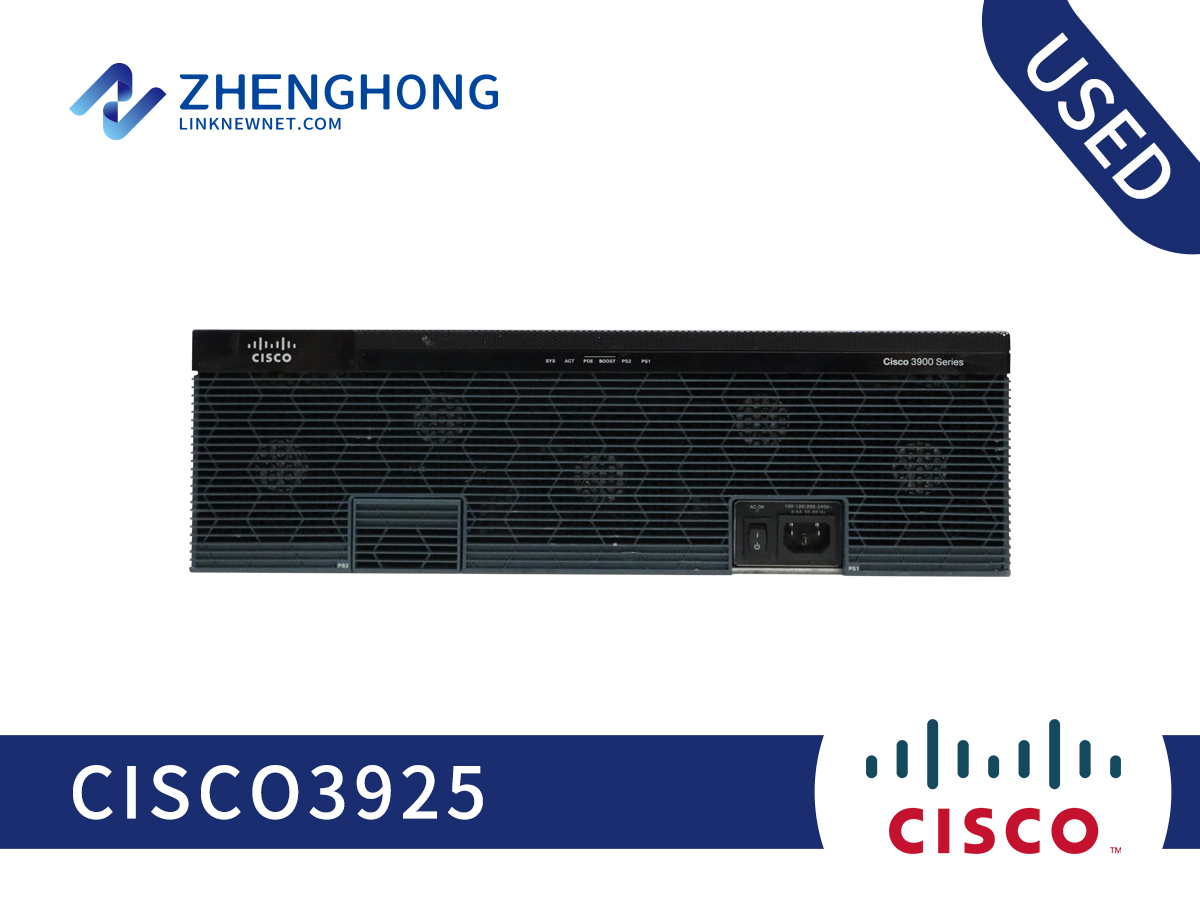

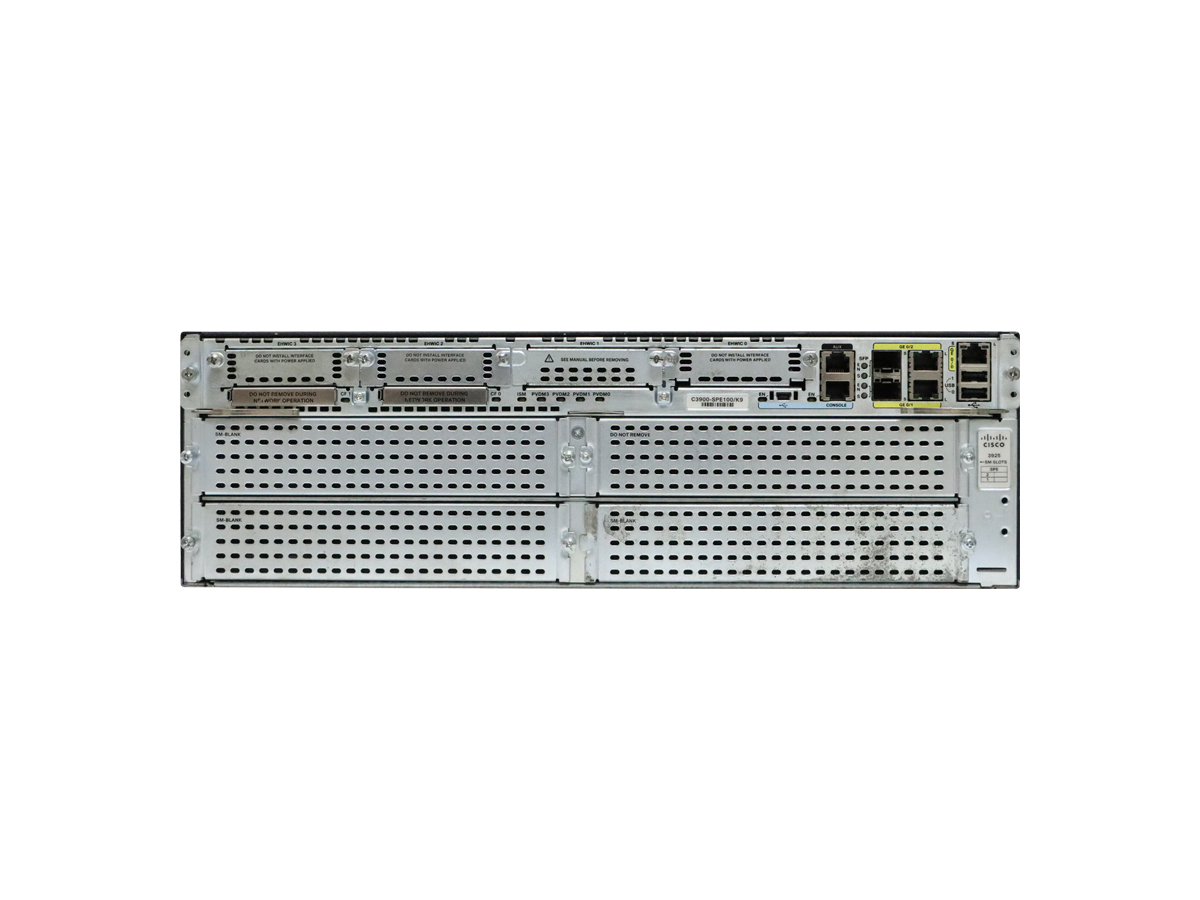

Cisco 3900 Series Router CISCO3925

Model: CISCO3925

Detail: Cisco 3925 Router w/SPE100(3GE,4EHWIC,4DSP,2SM,256MBCF,1GBDRAM,IPB)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CISCO3925
Product list
Product code	CISCO3925
Product Type	Router
Product parameters
Memory
Form Factor	Desktop - modular - 3U
Connectivity Technology	Wired
Capacity	Cisco Unified Communications Manager Express sessions : 250 Cisco Unified SRST sessions : 730
DRAM Memory	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
Power Device
Power Device	AC and DC power-supply models
Input Voltage	AC 120/230 V ( 47/63 Hz )
Physical specifications
Width	18.74 in
Height	5.24 in
Depth	17.24 in
Weight	7.5 lbs

Q&A

Q Can I reuse my existing PVDM2 DSP modules in the CISCO3925/K9?

A Yes. You can install PVDM2s on the motherboard PVDM slots using the PVDM adaptor cards (PVDM2-ADPTR). You can also insert the high-density voice network modules (NM-HDV2s) with PVDM2s into the service-module slots of the Cisco 3900 Series routers by using the network module-to-service module adapter card (SM-NM-ADAPTR).

Q What is the exact HSEC-k9 license?

A The HSEC-K9 license removes the curtailment enforced by the U.S. government export restrictions on the encrypted tunnel count and encrypted throughput. HSEC-K9 is available only on the Cisco 2921, Cisco 2951, Cisco 3925, Cisco 3945, Cisco 3925E, and Cisco 3945E. With the HSEC-K9 license, the ISRG2 router can go over the curtailment limit of 225 tunnels maximum for IP Security (IPsec) and encrypted throughput of 85-Mbps unidirectional traffic in or out of the ISR G2 router, with a bidirectional total of 170 Mbps. The Cisco 1941, 2901, and 2911 already have maximum encryption capacities within export limits.

Q On the Cisco ISR G2 routers with the SEC-K9 license, what tunnel count and performance throughput are available?

A The SEC-K9 permanent licenses apply to the Cisco 1900, 2900, and 3900 ISR G2 platforms; these licenses limit all encrypted tunnel counts to 225 tunnels maximum for IP Security (IPsec), Secure Sockets Layer VPN (SSL VPN), a secure time-division multiplexing (TDM) gateway, and secure Cisco Unified Border Element (CUBE) and 1000 tunnels for Transport Layer Security (TLS) sessions. The SEC-K9 license limits encrypted throughput to less than or equal to 85-Mbps unidirectional traffic in or out of the ISR G2 router, with a bidirectional total of 170 Mbps. This requirement applies for the Cisco 1900, 2900, and 3900 ISR G2 platforms.

Q My customer has a standard configuration for CISCO3925/k9 routers but has CISCO3945/K9 routers available from a cancelled project. Can they just copy the 3925 configuration file onto the 3945 router and it provide the functionality of the 3925?

A If the two routers have same IOS (including license) and identical hardware, answer is likely yes. Or, maybe only some minor editing will be required (for example if interface numbering differs).
