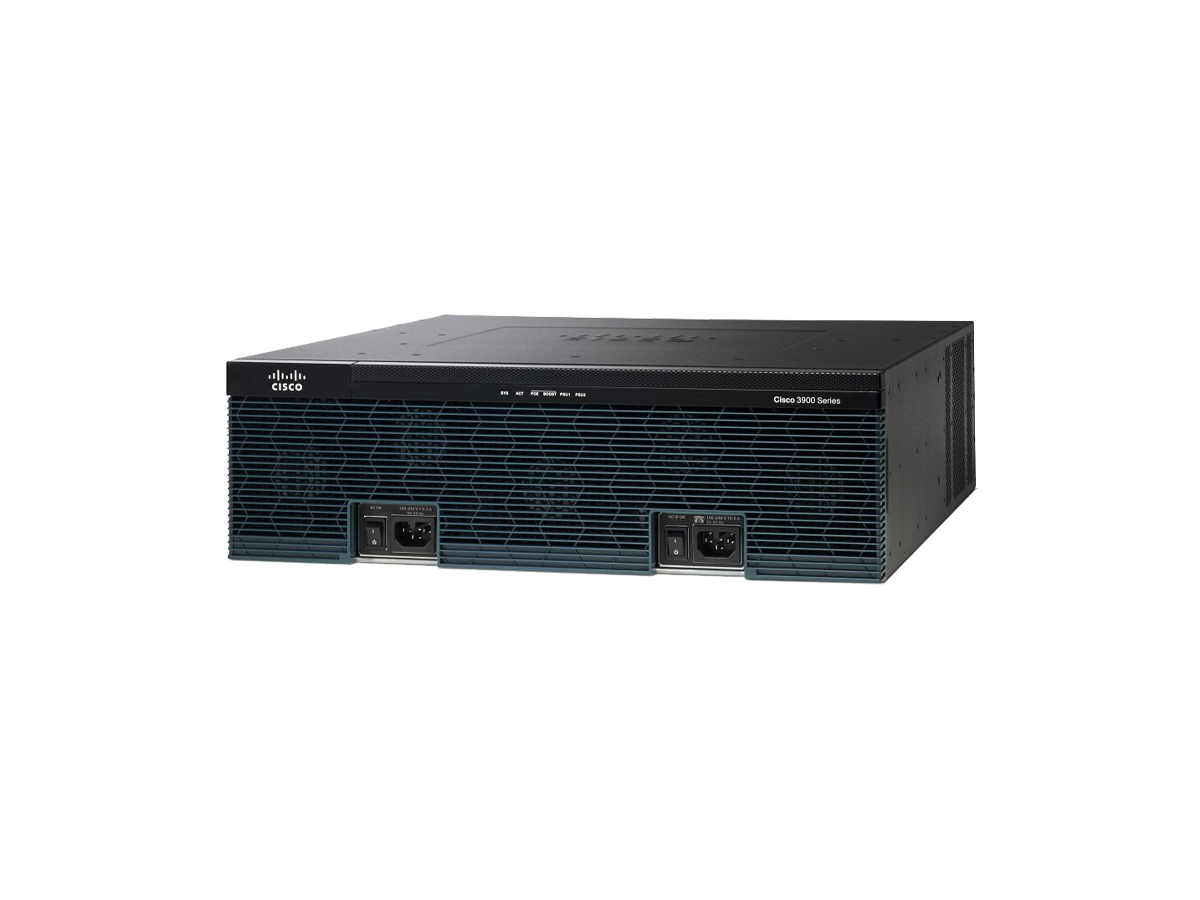

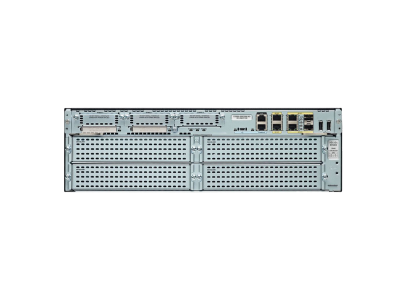

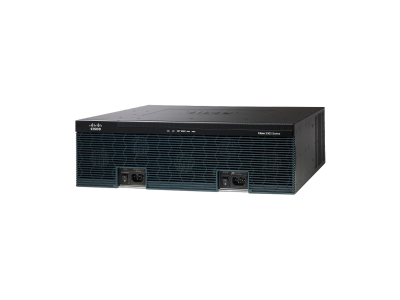

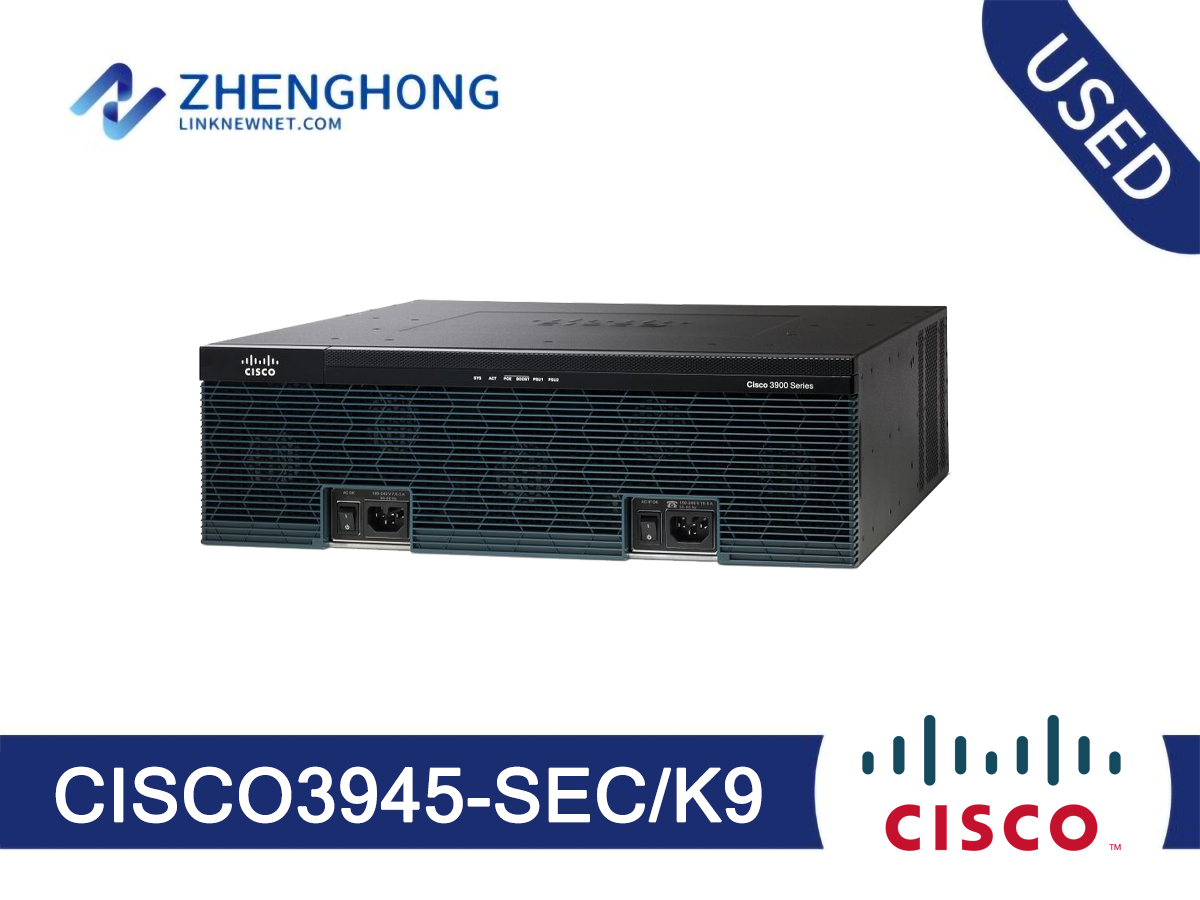

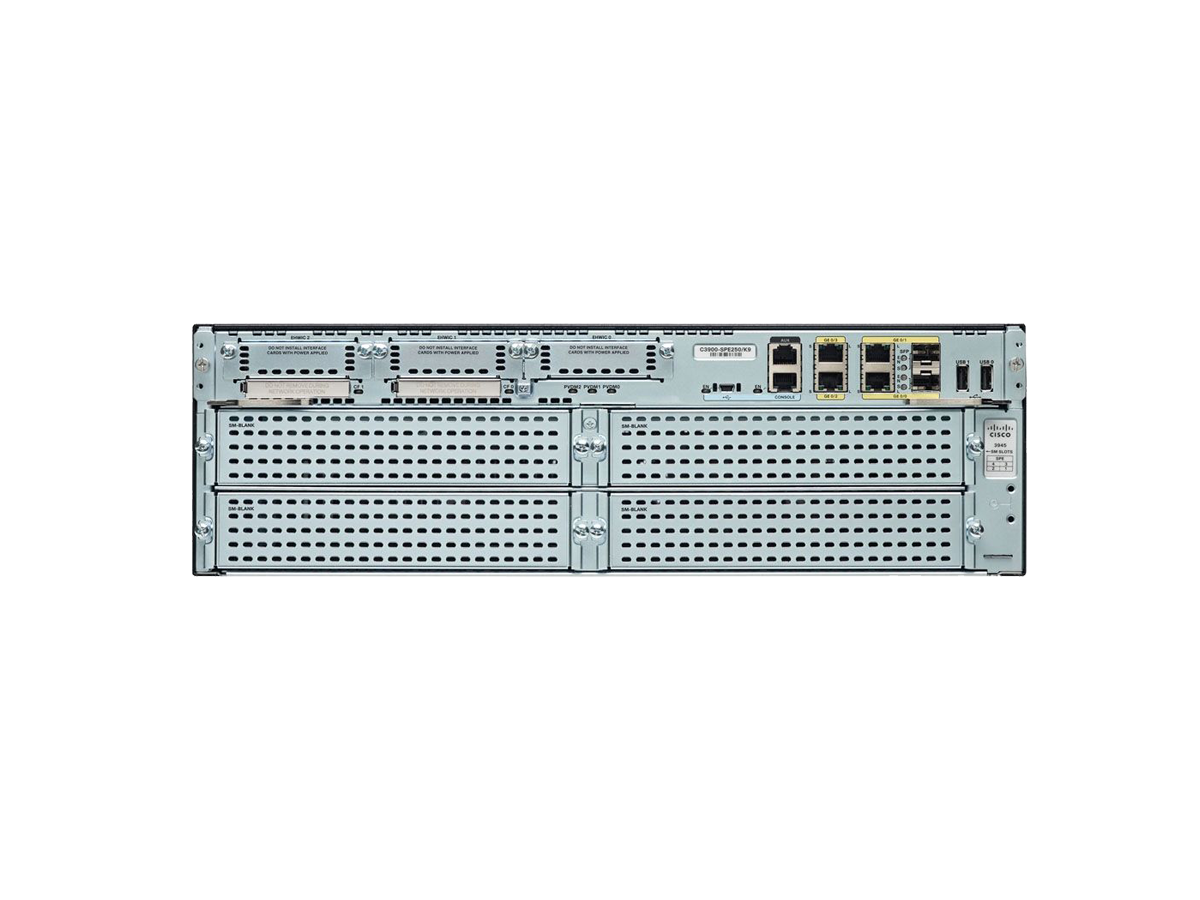

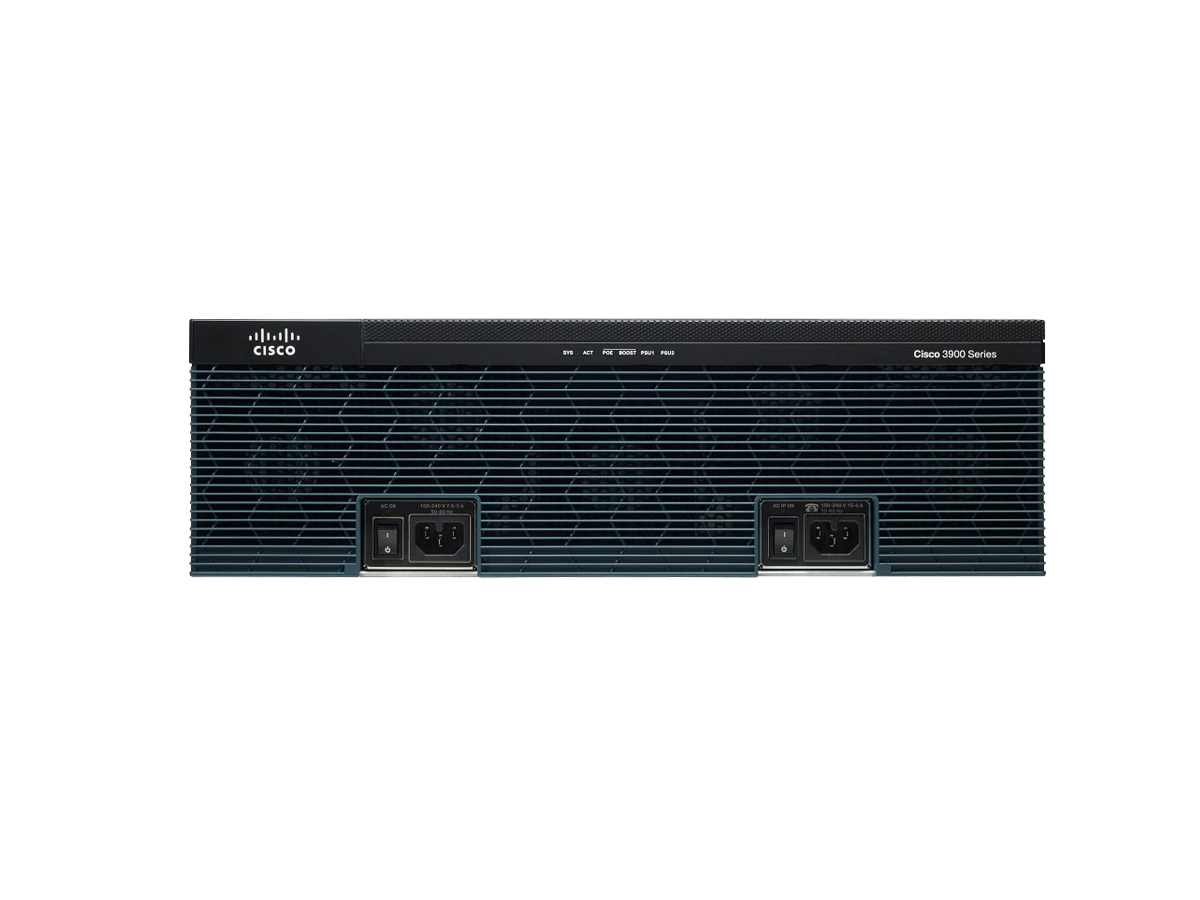

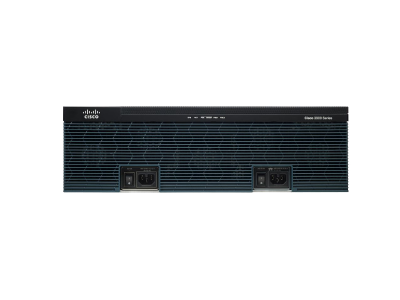

CISCO3945-SEC/K9 - Cisco 3900 Series Integrated Service Router

Model: CISCO3945-SEC/K9

Detail: Cisco 3945 Security Bundle w/SEC license PAK

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CISCO3945-SEC/K9 Specifications
Device Type	Router
Form Factor	Desktop - modular - 3U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	Cisco Unified Communications Manager Express sessions : 350 Cisco Unified SRST sessions : 1200
Network / Transport Protocol	IPSec, PPPoE, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol	SNMP, RMON
Encryption Algorithm	SSL
Features	Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
LED Status Lights Indicators	Link activity, power
Connectivity Slots
Router Interfaces	3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 Hi-Speed USB : 2 x 4 PIN USB Type A 2 x SFP (mini-GBIC)
Expansion Slots Total (Free)	4 ( 4 ) x EHWIC 4 ( 4 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x Expansion Slot 4 ( 4 ) x service module (SM)
Power Supply
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 47/63 Hz )
Dimensions / Weight / Miscellaneous
Width	47.6 cm
Depth	43.8 cm
Height	13.3 cm
Weight	17.7 kg

Q&A

Q What countries are classified license-free zones?

A Countries belonging to the EU license-free zone include Australia, Austria, Belgium, Bulgaria, Canada, Cypress, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Malta, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom, and the United States.

Q What is the exact HSEC-k9 license?

A The HSEC-K9 license removes the curtailment enforced by the U.S. government export restrictions on the encrypted tunnel count and encrypted throughput. HSEC-K9 is available only on the Cisco 2921, Cisco 2951, Cisco 3925, Cisco 3945, Cisco 3925E, and Cisco 3945E. With the HSEC-K9 license, the ISRG2 router can go over the curtailment limit of 225 tunnels maximum for IP Security (IPsec) and encrypted throughput of 85-Mbps unidirectional traffic in or out of the ISR G2 router, with a bidirectional total of 170 Mbps. The Cisco 1941, 2901, and 2911 already have maximum encryption capacities within export limits.

Q I bought an EVM-HD-8FXS/DID, how can I setup it with my 3900 router?

A You would use a SM-NM-ADPTR Network Module Adapter (for SM Slot on Cisco 2900, 3900 ISR) with your EVM-HD-8FXS/DID to setup them in the Service Module Slot.
