CISCO3945/K9 - Cisco 3900 Series Integrated Service Router|LinkNewNet

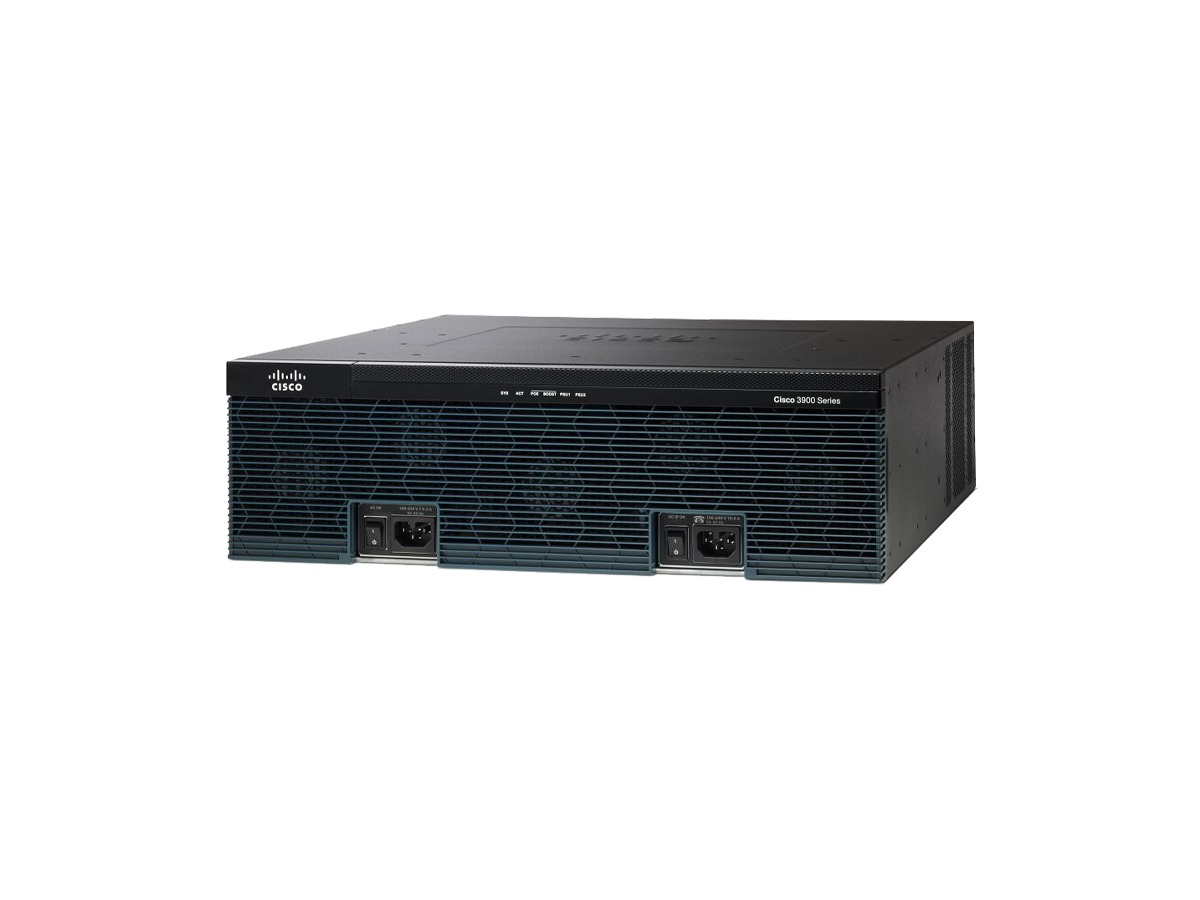

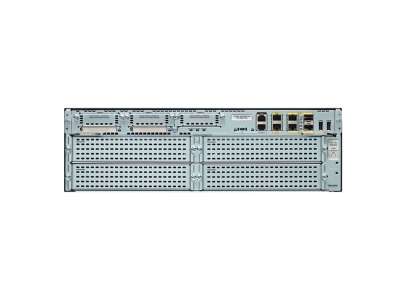

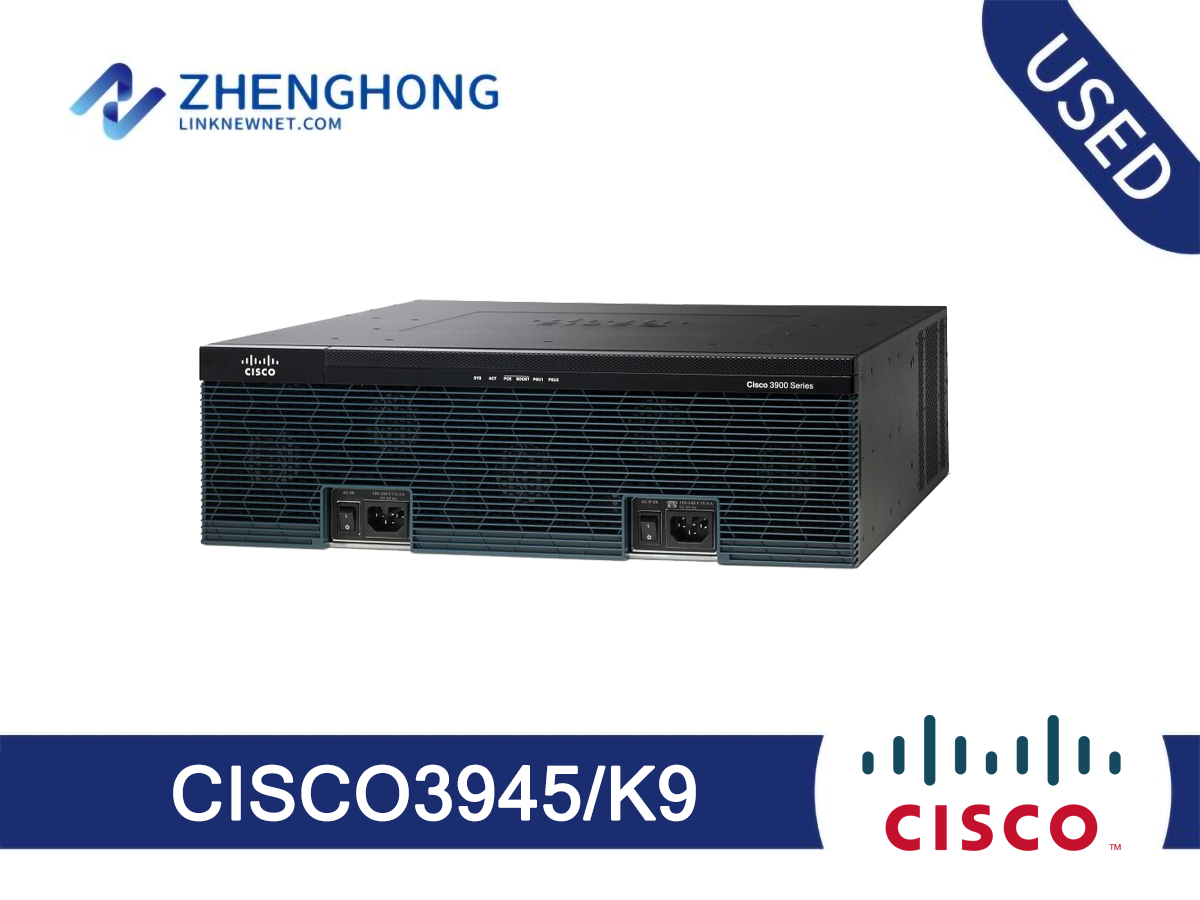

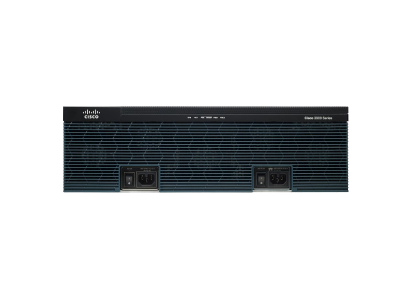

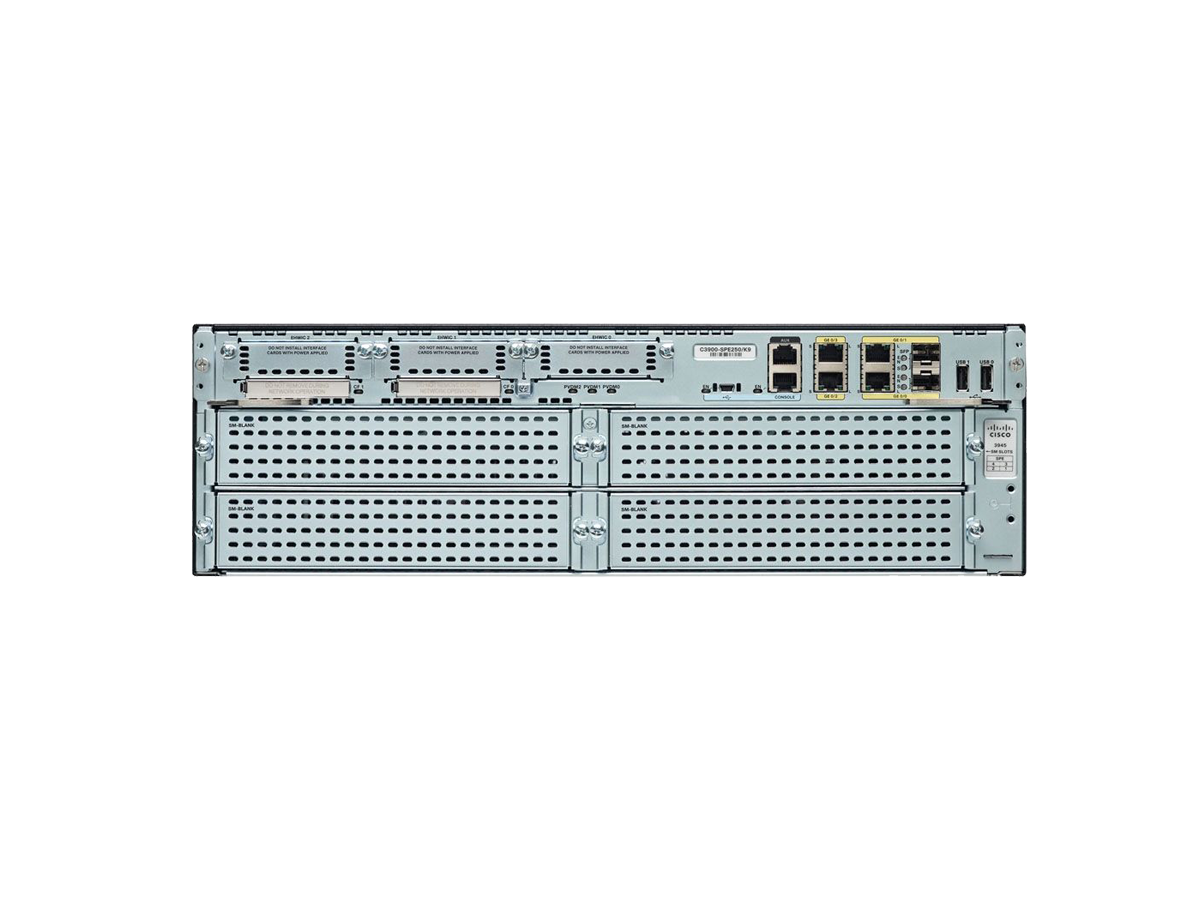

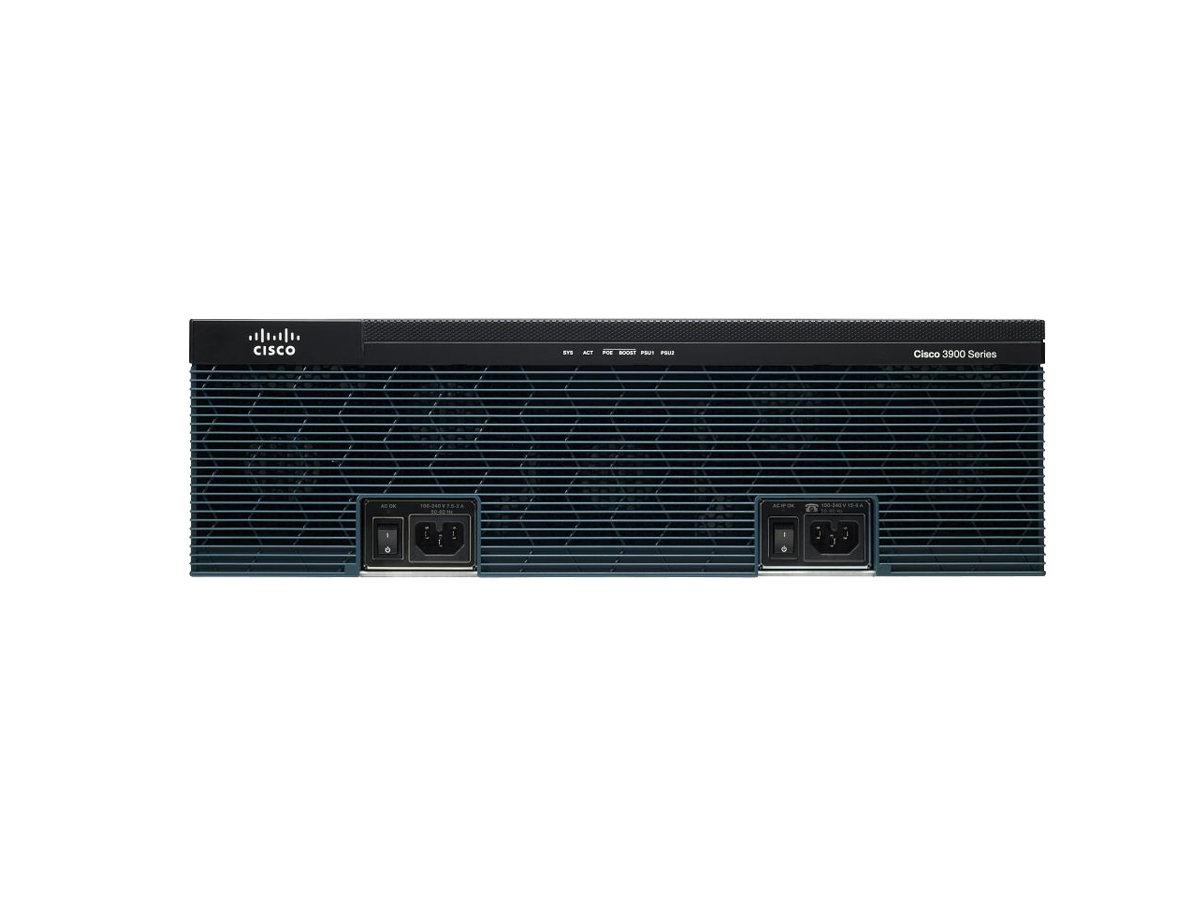

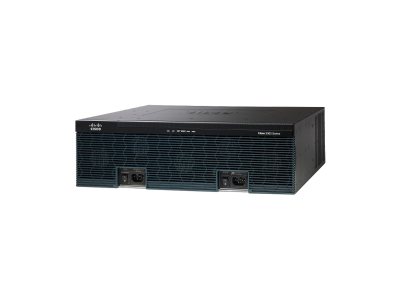

CISCO3945/K9 - Cisco 3900 Series Integrated Service Router

Model: CISCO3945/K9

Detail: Cisco 3945 Router w/SPE150(3GE,4EHWIC,4DSP,4SM,256MBCF,1GBDRAM,IPB)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

Connectivity Slots
CISCO3945/K9 Specification
General
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	CISCO3945/K9
Product Type	Router
Form Factor	Desktop - modular - 3U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	Cisco Unified Communications Manager Express sessions : 350 Cisco Unified SRST sessions : 1200
Network / Transport Protocol	IPSec, PPPoE, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol	SNMP, RMON
Encryption Algorithm	SSL
Features	Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
LED Status Lights Indicators	Link activity, power
Router Interfaces	3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 Management : 1 x console - RJ-45 Management : 1 x console - mini-USB Type B Serial : 1 x auxiliary - RJ-45 Hi-Speed USB : 2 x 4 PIN USB Type A 2 x SFP (mini-GBIC)
Expansion Slots Total (Free)	4 ( 4 ) x EHWIC 4 ( 4 ) x PVDM 2 ( 1 ) x CompactFlash Card 1 ( 1 ) x Expansion Slot 4 ( 4 ) x service module (SM)
Power Supply
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 47/63 Hz )
Dimensions / Weight / Miscellaneous
Width	47.6 cm ( 18.74 in)
Depth	43.8 cm ( 17.24 in)
Height	13.3 cm (5.24 in)
Package Weight	21.84 kg ( 48.15 lbs)
Weight	17.7 kg ( 39.02 lbs)

Q&A

Q What capacity increases can I expect for collaboration applications on the CISCO3945/K9 platforms?

A Capacity increases vary across the different collaboration applications. Please refer to the applicable data sheet for specific information.

Q Can I reuse my existing PVDM2 DSP modules in the CISCO3945/K9?

A Yes. You can install PVDM2s on the motherboard PVDM slots using the PVDM adaptor cards (PVDM2-ADPTR). You can also insert the high-density voice network modules (NM-HDV2s) with PVDM2s into the service-module slots of the Cisco 3900 Series routers by using the network module-to-service module adapter card (SM-NM-ADAPTR).

Q What power-supply options are available on the CISCO3945/K9 router?

A The table lists the part numbers of the available power supplies for CISCO3945/K9.
