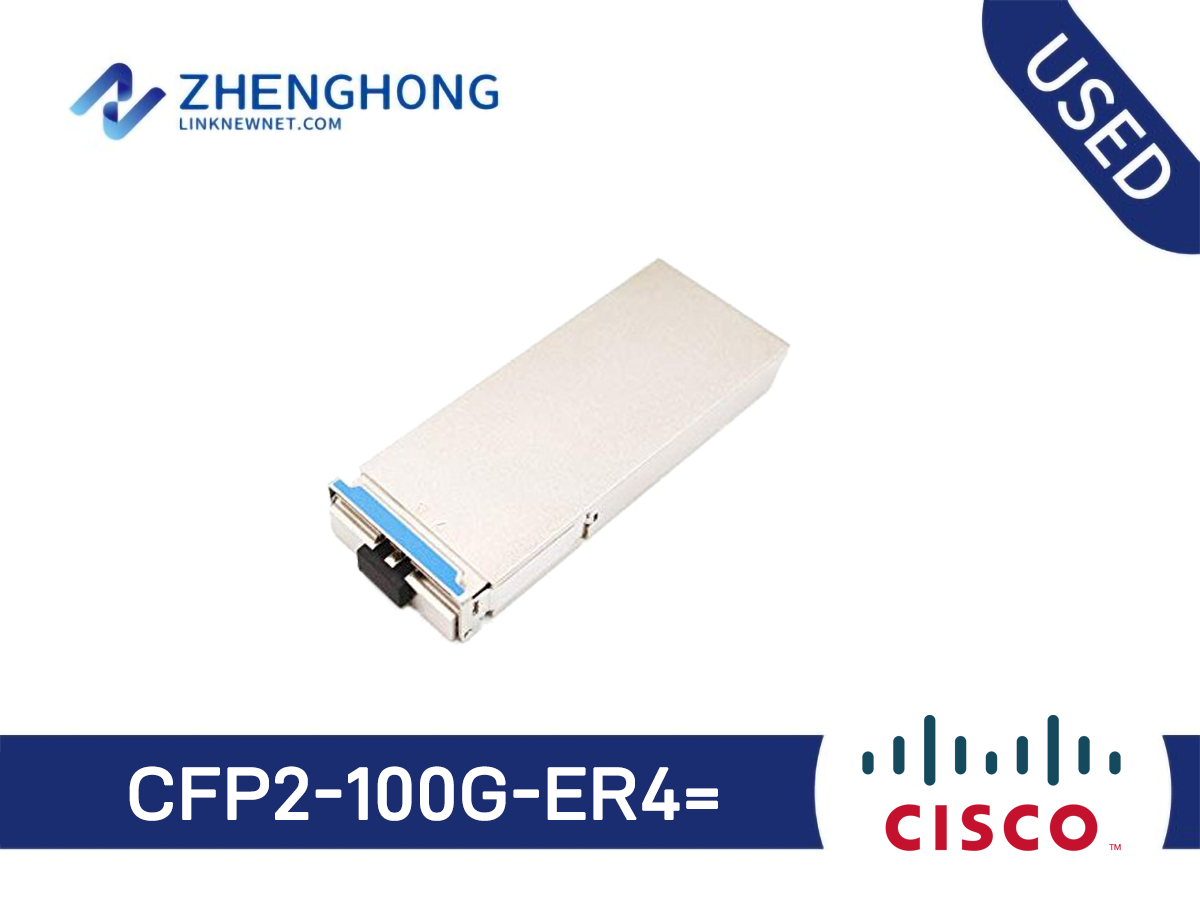

CFP2-100G-ER4= Specification | |
Description | Cisco 100GBASE-ER4 CFP2 Module for SMF (<40 km) |
Dimensions | 144.8 x 82 x 13.6 mm |
Wavelength (nm) | 1310 band(LAN-WDM) |
Max Distance | 40 km |
Core Size (microns) | G.652 |
Fiber Type | SMF |
Modal Bandwidth (MHz-km) | \ |
Digital Optical Monitoring (DOM) | Yes |
Average Transmit Power (dBm) | Max:2.9 per lane Min:-2.9 per lane |
Average Receive Power (dBm) | Max:4.5 per lane Min:-20.9 per lane |
Transmit and Receive Wavelength | Four lanes: 1295.6 nm, 1300.1 nm, 1304.6 nm, and 1309.1 nm |
Environmental Conditions and Power Requirements | |
Operating temperature | 32 to 158°F (0 to 70°C) |
Storage temperature | -40 to 185°F (-40 to 85°C) |
Maximum power consumption | 8 W |
