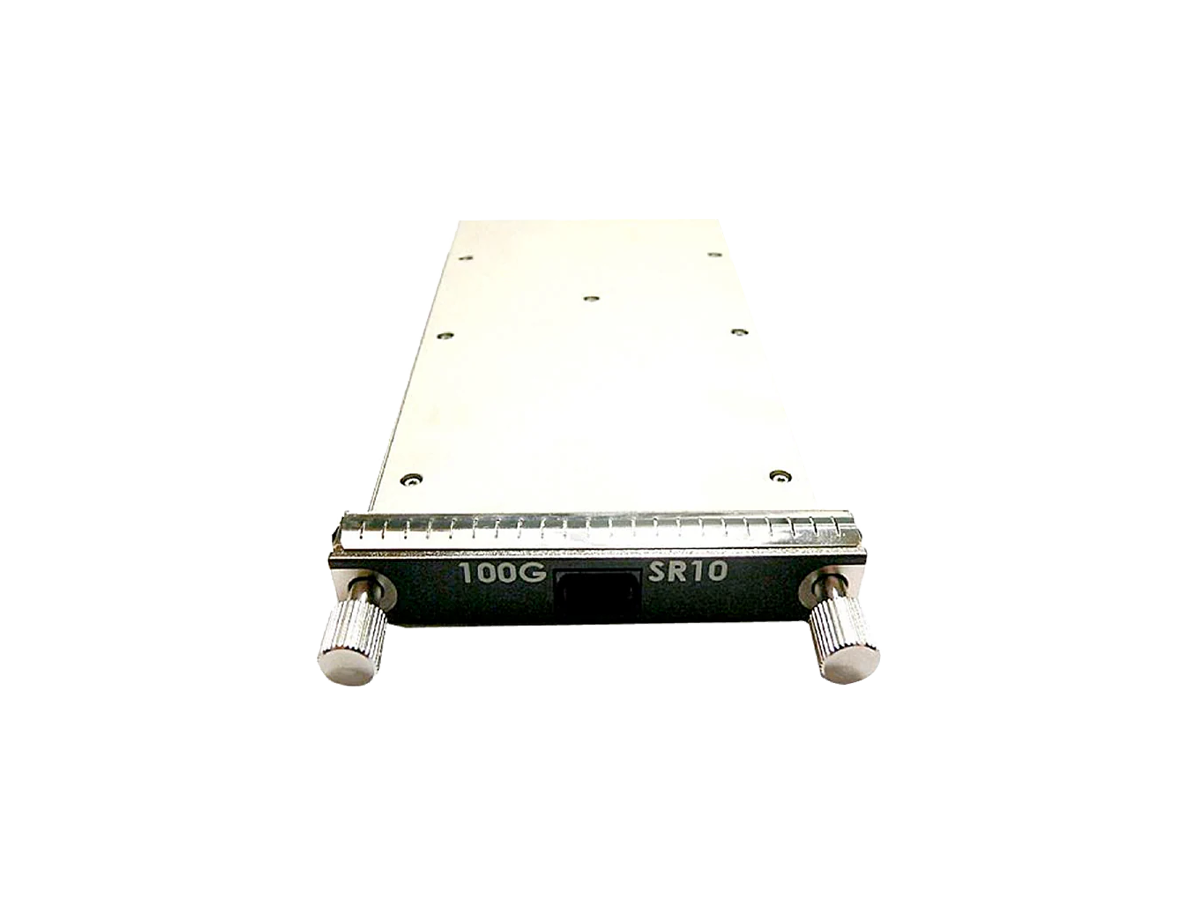

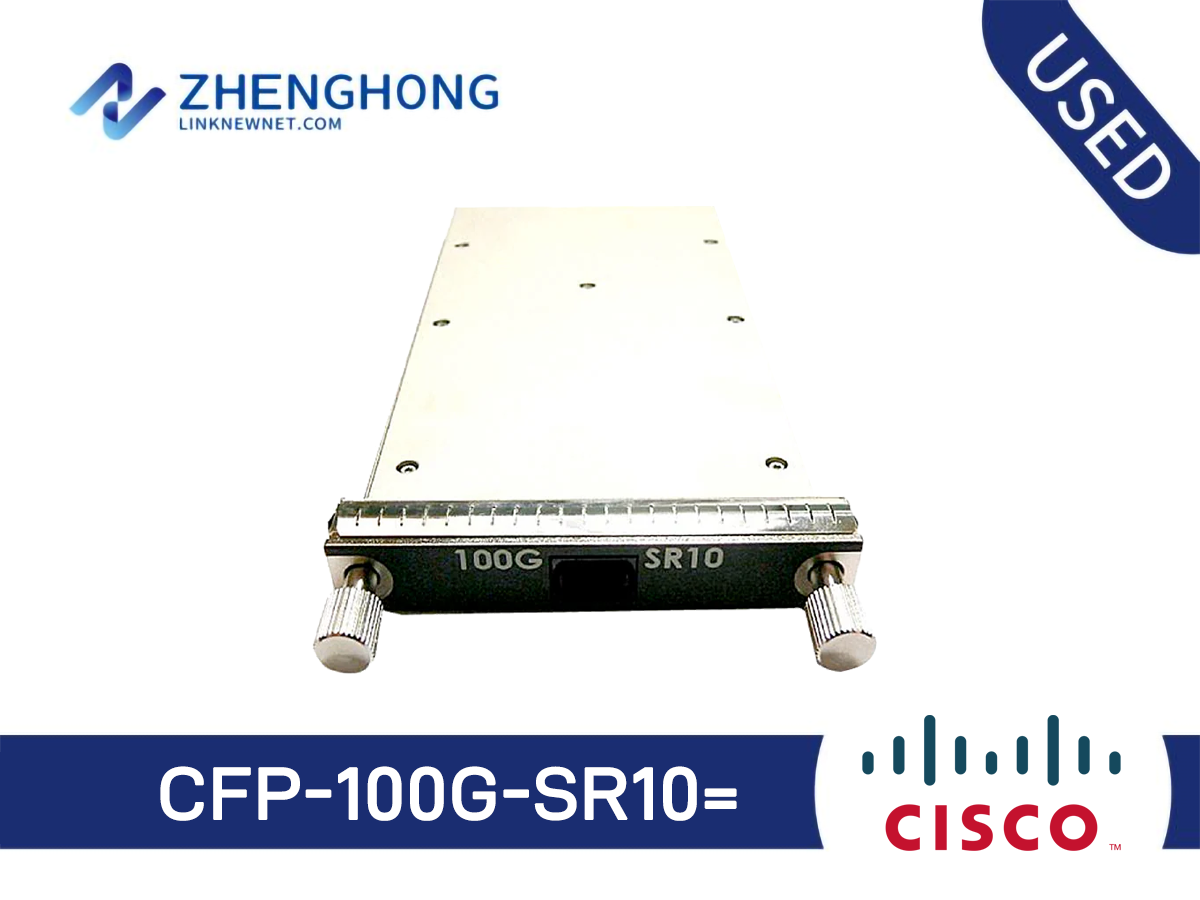

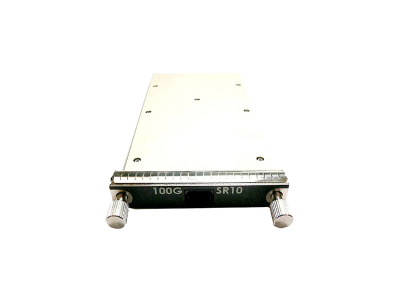

CFP-100G-SR10= - Cisco QSFP28 Module

Model: CFP-100G-SR10=

Detail: 100GBASE-SR10 CFP transceiver, 100m OM3 MMF

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CFP-100G-SR10= Specification
Description	Cisco 100GBASE-SR10 CFP Module for MMF (<100m OM3/< 150m OM4)
Dimensions	144.8 x 82 x 13.6 mm
Wavelength (nm)	850
Fiber Type	MMF
Core Size (microns)	50 50
Modal Bandwidth (MHz-km)	2000 (OM3) 4700 (OM4)
Max Distance	100 m 150 m
Digital Optical Monitoring (DOM)	NO
Average Transmit Power (dBm)	Max:-1.0 per lane Min:-7.6 per lane
Average Receive Power (dBm)	Max:2.4 per lane Min:-9.5 per lane
Transmit and Receive Wavelength	Ten lanes, 840 to 850 nm
Environmental Conditions and Power Requirements
Operating temperature	32 and 158°F (0 to 70°C)
Storage temperature	-40 to 185° F (-40 to 85° C)
Maximum power consumption	12 W

Q&A

What accessories are available for the CFP-100G-SR10=?

Accessories such as dust caps, fiber optic cables, and module pull tabs are available for the CFP-100G-SR10=.

How does the CFP-100G-SR10= compare to other similar products?

The CFP-100G-SR10= is optimized for short-range, high-speed connections, whereas other models may focus on long-range or different bandwidth requirements.

What common troubleshooting steps should I take for the CFP-100G-SR10=?

Check the connection, ensure the module is securely seated, and verify compatibility with other networking hardware.

What is the warranty period for the CFP-100G-SR10=?

The CFP-100G-SR10= typically comes with a one-year warranty from Cisco, covering manufacturer defects and issues.

How cost-effective is the CFP-100G-SR10=?

The CFP-100G-SR10= offers high-speed 100G data transfer at a reasonable cost, making it a budget-friendly option for upgrading network infrastructure.

What are the main features of the CFP-100G-SR10=?

The CFP-100G-SR10= features 100GBASE-SR10, a reach of 100m over OM3 MMF, and compatibility with Cisco networking equipment.

What are the typical applications for the CFP-100G-SR10=?

The CFP-100G-SR10= is ideal for data centers and campus networks requiring high-bandwidth, short-range connectivity over multimode fiber.

How do I install the CFP-100G-SR10=?

To install the CFP-100G-SR10=, remove the protective cap, insert the module into the CFP port, and secure it until it clicks into place.

Does the CFP-100G-SR10= need frequent upgrades?

The CFP-100G-SR10= is designed for longevity and does not require frequent upgrades, ensuring long-term use with existing infrastructure.

Are there alternative products to the CFP-100G-SR10=?

Yes, alternatives include the Cisco CFP-100G-LR4= and CFP-100G-ER4=, though they offer different reach and specs.
