CFP-100G-LR4= - Cisco QSFP28 Module|LinkNewNet

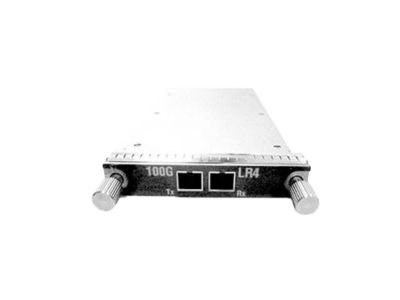

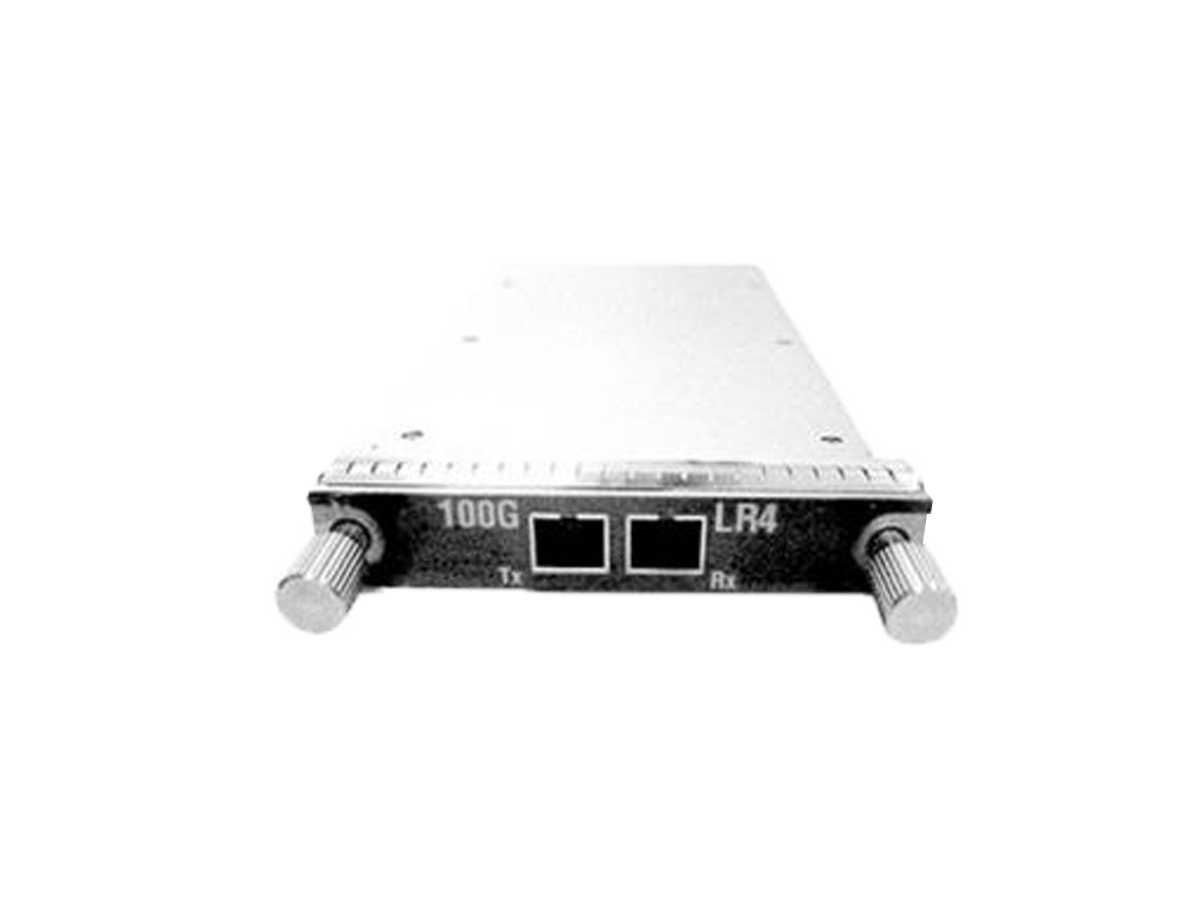

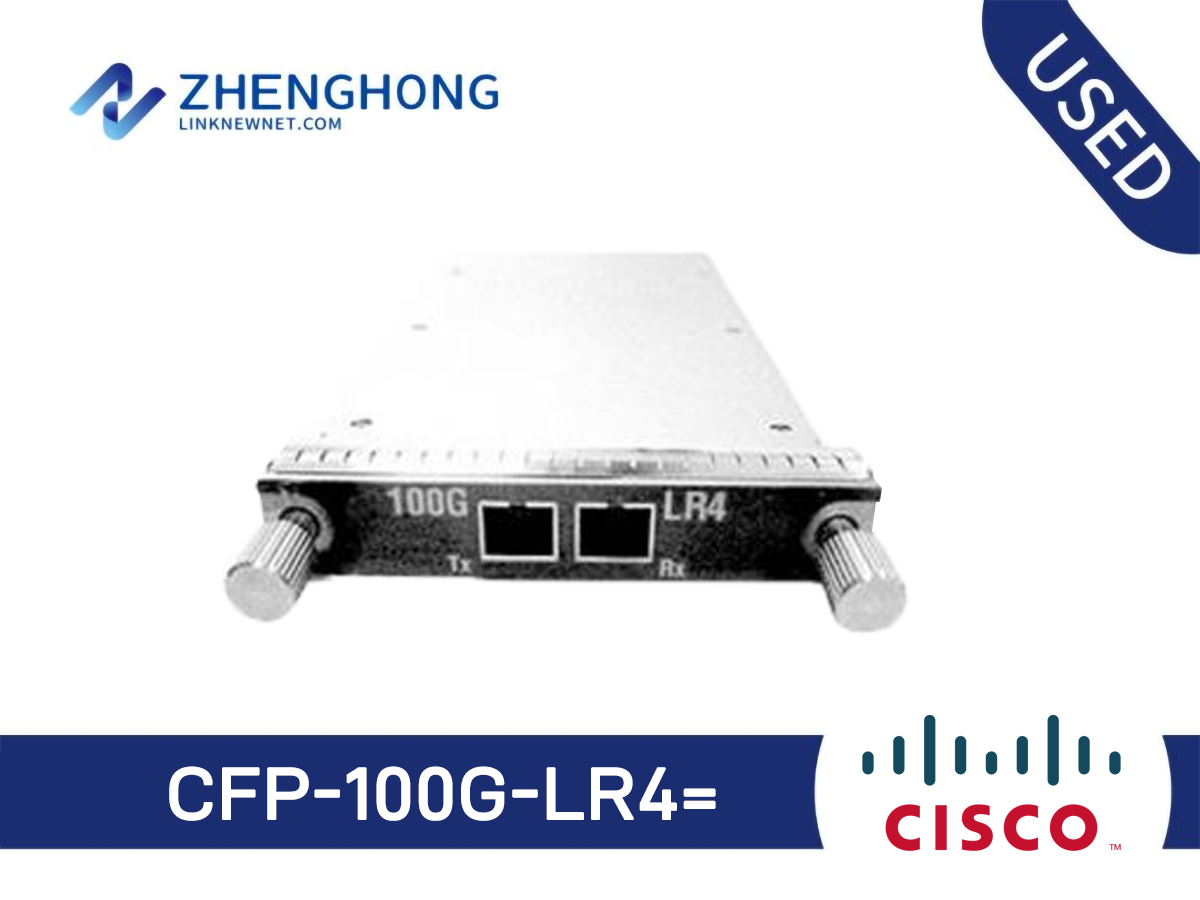

CFP-100G-LR4= - Cisco QSFP28 Module

Model: CFP-100G-LR4=

Detail: 100GBASE-LR4 CFP Module

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

CFP-100G-LR4= Specification
Description	Cisco 100GBASE-LR4 CFP Module for SMF (<10 km)
Dimensions	144.8 x 82 x 13.6 mm
Wavelength (nm)	1310 band (LAN-WDM)
Fiber Type	SMF
Core Size (microns)	G.652
Modal Bandwidth (MHz-km)	\
Max Distance	10 km
Digital Optical Monitoring (DOM)	Yes
Average Transmit Power (dBm)	Max:4.5 per lane Min:-4.3 per lane
Average Receive Power (dBm)	Max:4.5 per lane Min:-10.6 per lane
Transmit and Receive Wavelength	Four lanes, 1295.6 nm, 1300.1 nm, 1304.6 nm, and 1309.1 nm
Environmental Conditions and Power Requirements
Operating temperature	32 and 158°F (0 to 70°C)
Storage temperature	-40 to 185° F (-40 to 85° C)
Maximum power consumption	24 W

Q&A

What common issues may arise with the CFP-100G-LR4=?

Common issues include improper insertion and connectivity problems. Ensure correct port compatibility and proper insertion.

What accessories are needed for the CFP-100G-LR4=?

Accessories include compatible single-mode fiber cables and proper transceiver cleaning tools to maintain performance.

How does the CFP-100G-LR4= compare with other similar products?

The CFP-100G-LR4= offers a longer range (10km) compared to QSFP-100G-SR4 which is suited for shorter distances.

How do I use the CFP-100G-LR4=?

The CFP-100G-LR4= is used by inserting it into a compatible network device and connecting it via appropriate fiber cables to establish high-speed links.

How cost-effective is the CFP-100G-LR4=?

The CFP-100G-LR4= offers a high data rate of 100Gbps and long-range connectivity, making it a cost-effective solution for high-demand networking environments.

What are the key features of the CFP-100G-LR4=?

Key features include 100Gbps data rate, support for 10km reach over single-mode fiber, and compliance with the IEEE 802.3ba standard.

What are the typical applications for the CFP-100G-LR4=?

The CFP-100G-LR4= is ideal for data center interconnects, enterprise core networks, and service provider transport networks.

How do I install the CFP-100G-LR4=?

Installation is simple: insert the module into a compatible CFP port and secure it. Ensure your equipment is powered down during installation to prevent damage.

Does the CFP-100G-LR4= require upgrades?

No, the CFP-100G-LR4= does not require firmware or software upgrades once installed. It is designed for seamless integration.

Are there alternative products to the CFP-100G-LR4=?

Alternative products include other Cisco 100G optical modules like the QSFP-100G-LR4-S, with different form factors and specifications.
