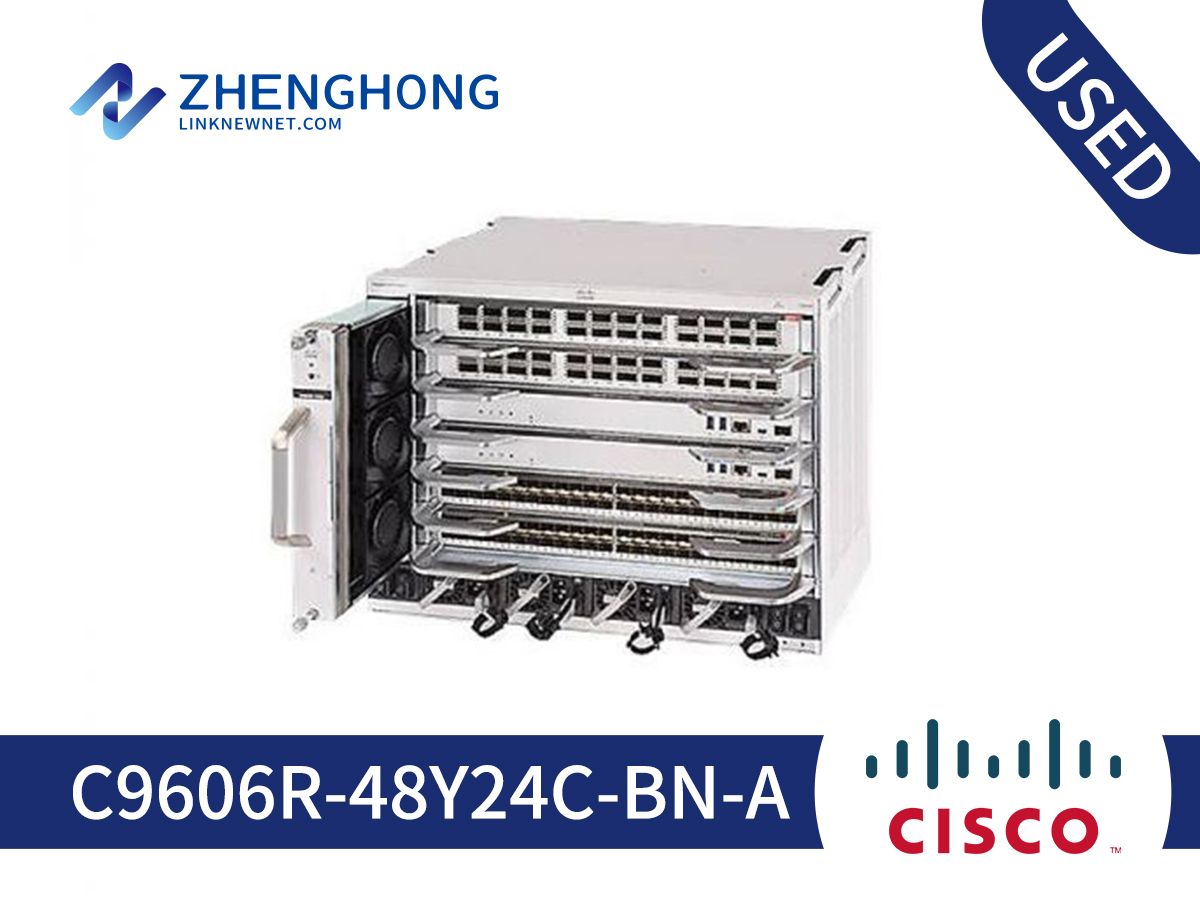

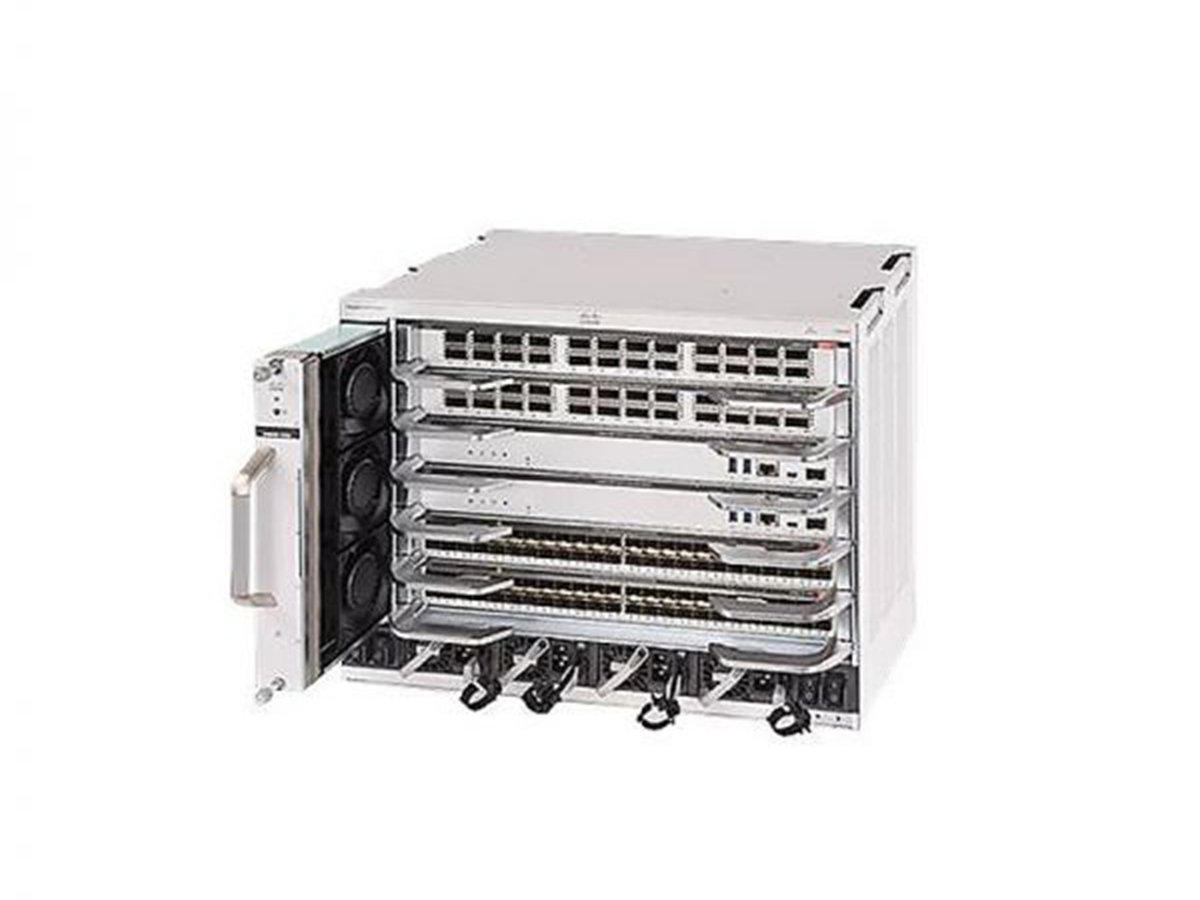

Cisco Switch Catalyst 9600 Series Switch C9606R-48Y24C-BN-A Overview
Cisco Switch Catalyst 9600 Series Switch C9606R-48Y24C-BN-A is a genuine core and distribution switching product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco Switch Catalyst 9600 Series family, the C9606R-48Y24C-BN-A unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is positioned for campus core and distribution roles, aggregating traffic for large user populations with resilient failover behavior.
This unit follows the original factory specification for the Cisco Switch Catalyst 9600 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include access-layer deployments for user, phone and AP connectivity, distribution and core aggregation in campus networks, and top-of-rack and end-of-row switching in data centers. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Catalyst 9600 Series 6 slot bundle,with 1xSup,2xLC,DNA-A LIC”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C9606R-48Y24C-BN-A. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise Campus
High-density ports power users, phones and APs at the access layer.
Branch Office
Stackable units simplify branch deployment and management.
Wireless & IoT
PoE budget supports dense wireless and IoT endpoints.
Buying a Pre-Owned C9606R-48Y24C-BN-A
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C9606R-48Y24C-BN-A Specification | |
Product Code | C9606R-48Y24C-BN-A |
| Dimensions (H x W x D) | 35.43 x 44.2 x 40.9 cm 13.95 x 17.4 x 16.1 in. |
Product Description | Catalyst 9600 Series 6 slot, 1xSup, 2xLC , DNA-A LIC |
Line-card slots | 4 |
Total number of slots | 6 |
Rack Units (RU) | 8 |
Supervisor engine slots | 2 |
Dedicated supervisor engine slot numbers | 3 and 4 |
Supervisor engine redundancy | Yes |
| Maximum bandwidth scalability per line-card slot | 6.4 Tbps** 2.4 Tbps*** |
Supervisor engines supported | C9600-SUP-1 |
Number of power supply bays | 4 |
Minimum number of power supplies | 2* |
| Weight of fan tray | 3.56 kg(7.85 lb) |
| Weight of individual PSUs | AC PSU: 1.2 kg (2.65 lb) DC PSU: 1.28 kg (2.82 lb) |
Power supplies supported | 2000W AC, 2000W DC |
Number of fan-tray bays | 1 |
| Input voltage | AC: 90V to 264V, 47 to 63 Hz AC DC: -40V to -72V |
Operating temperature | -5° to 45° C (23° to 113° F) up to 6000 feet -5° to 40° C (23° to 104° F) up to 10,000 feet |
| Altitude | -60 to 3000 m (-197 to 9843 feet) |
Mean Time Between Failures (MTBF) (hours) | C9606R chassis: 4,113,900 C9606 fan tray: 452,570 |
Safety certifications | C9606R •IEC 60950-1 plus Am1, Am2, Am9, Am10, Am11, Am12 and all deviations and differences •AS/NZS 60950.1.2011 •CAN/CSA-C22.2 No. 60950-1-07 •GB 4943-95 •EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences •NOM-019-SCFI-1998 •UL 60950-1, Second Edition |
EMI and EMC compliance | 47 CFR Part 15 Class A CNS13438: 2006 Class A EN 300 386 V1.6.1 EN61000-3-2: 2014 EN61000-3-3: 2013 ICES-003 Issue 6: 2016 Class A KN 32: 2015 Class A TCVN 7189: 2009 Class A EN 55032:2012/ AC:2013 Class A EN 55032:2015 Class A CISPR 32 Edition 2 Class A V-2/2015.04 Class A V-3/2015.04 Class A CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
C9606R-48Y24C-BN-A - Deployment Notes
This C9606R-48Y24C-BN-A switch is suited to wiring-closet, distribution, or core roles depending on the port density and uplink options of the specific model. The port configuration is a key consideration when planning power budgets for attached devices such as IP phones and access points.
For a refresh or expansion, confirm the IOS/NX-OS software release supported by this specific SKU, the fan and power requirements, and the uplink modules that match your existing infrastructure. Our team can verify revision levels and software compatibility before you order.
Every unit at LinkNewNet is inspected and tested before dispatch, and this C9606R-48Y24C-BN-A variant is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Volume requirements can be staged with configuration checks.
C9606R-48Y24C-BN-A - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco Catalyst or Nexus switch is typically deployed in campus access, distribution, or data-center roles. It provides reliable Layer 2/3 switching for user, server and uplink connectivity, and integrates with Cisco DNA Center or traditional CLI-based management.
Deployment guidance: When planning this C9606R-48Y24C-BN-A unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: C9600-SUP-1, C9K-F2-SSD-480GB, C9606R, C9600-LC-48YL, C9600-LC-24C. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: A = AC power supply / Americas regulatory domain - this suffix indicates the feature set, power, or regulatory variant of the C9606R-48Y24C-BN-A, which affects software licensing and regional compliance.
