C9400-SUP-1/2 - Cisco Catalyst 9400 Serise Supervisor Module|LinkNewNet

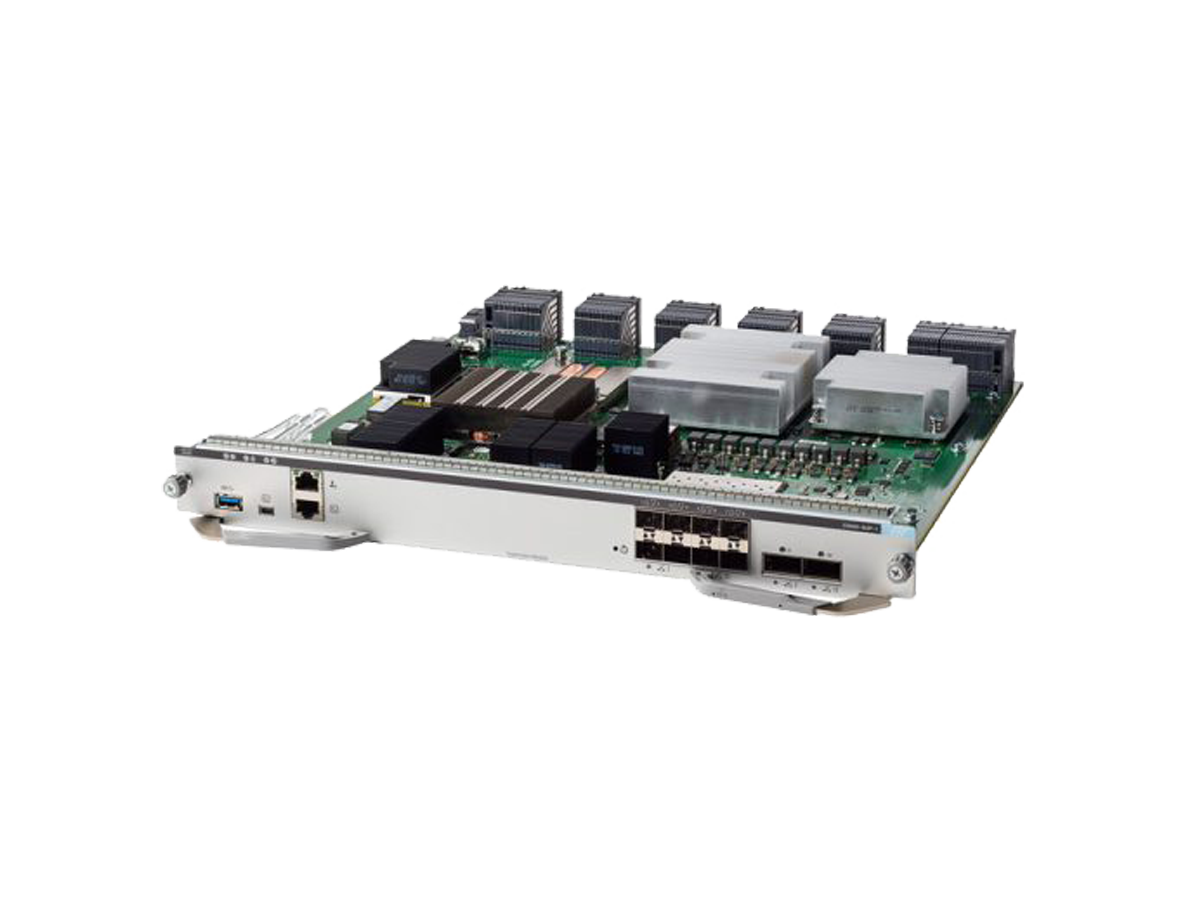

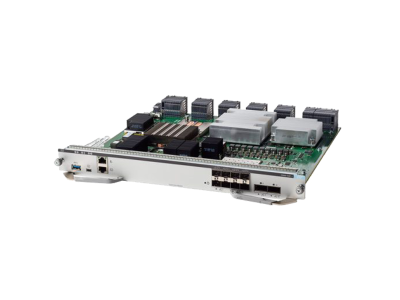

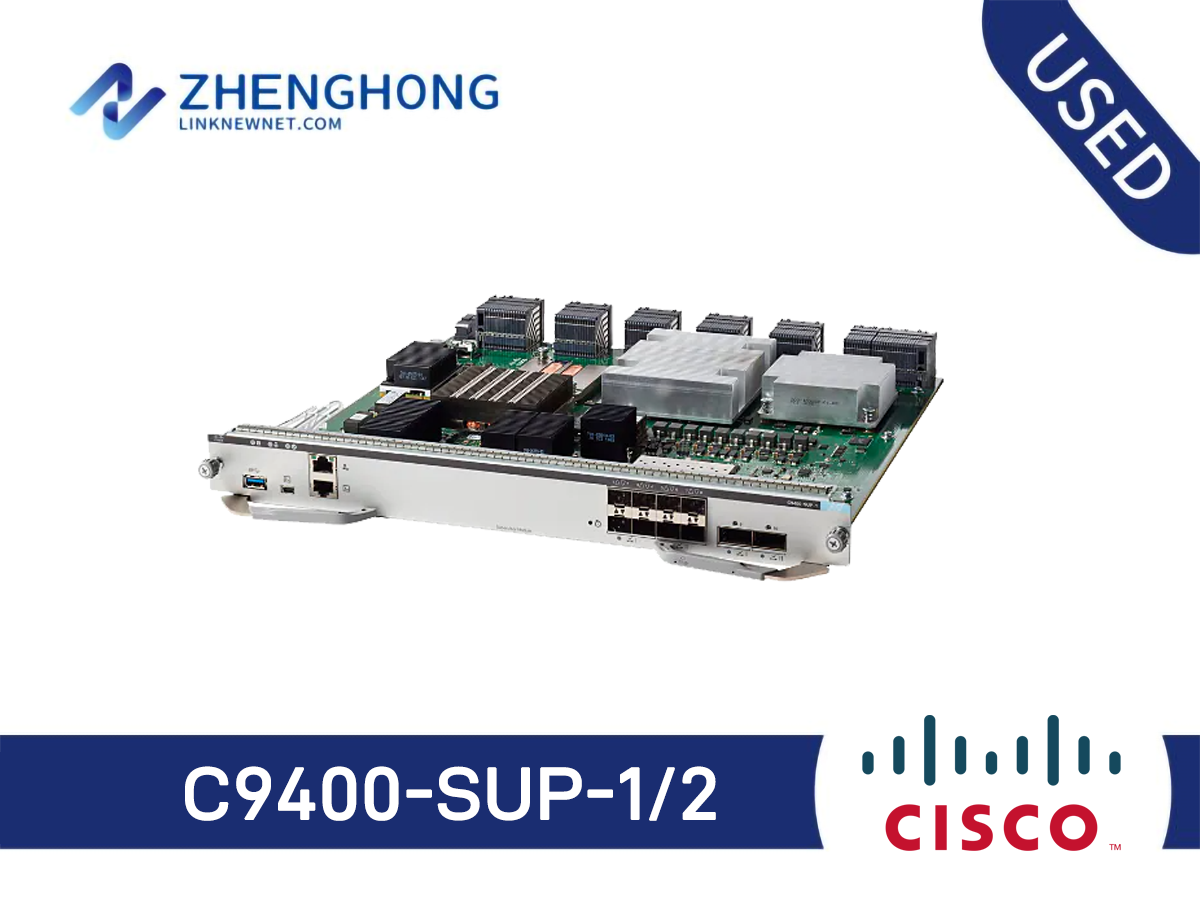

C9400-SUP-1/2 - Cisco Catalyst 9400 Serise Supervisor Module

Model: C9400-SUP-1/2

Detail: Cisco Catalyst 9400 Series Redundant Supervisor 1 Module

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Shipping: DHL, FedEx, UPS, etc

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C9400-SUP-1/2 Specification
Centralized wired capacity	Up to 1.44 Tbps
Per-slot switching Capacity	80 Gbps
Total number of MAC addresses	Up to 64K
Total number of IPv4 routes (ARP plus learned routes)	Up to 112K
FNF entries (v4/v6)	Up to 384K/192K
DRAM	16 GB
Flash	10 GB
VLAN IDs	4096
SSD Capacity	960 GB
Total Switched Virtual Interfaces (SVIs)	4,000
Jumbo frame	9216 bytes
Forwarding Rate	● 900 Mpps for IPv4 ● 450 Mpps for IPv6
IPv4 Routing Entries	Up to 112K
IPv6 Routing Entries	Up to 56K
Multicast Routes	Up to 16K
QoS Hardware Entries	Up to 18K
Security ACL Hardware Entries	Up to 18K
Packet Buffer	96 MB
Physical specifications	(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg)
Operating temperature	Normal Operating Temperature and Altitudes: ● 27° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m) ● 27° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m) ● Minimum ambient temperature for cold startup is 0ºC Short-Term Exceptional Conditions: ● 27° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m) ● 27° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m) ● *Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature	40° to 158°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing	10 to 95 percent, noncondensing
Altitude	-60 to 3000m
MTBF	302,000 hours

Q&A

What common troubleshooting steps are available for the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module?

Common steps include checking module seating, verifying power supply, and reviewing console logs for error messages.

What accessories are available for the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module?

Accessories include redundant power supplies, fan trays, and various network interface modules compatible with the Cisco Catalyst 9400 Series.

How does the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module compare with similar products?

It offers superior redundancy, higher availability, and better centralized management compared to supervisor modules from other series or brands.

How do I use the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module effectively?

For effective use, ensure it is properly installed, regularly upgraded, and configured correctly for your specific network environment needs.

How cost-effective is the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module?

The Cisco Catalyst 9400 Series Redundant Supervisor 1 Module offers high availability and redundancy, making it a cost-effective solution for large-scale network deployments.

What are the main features of the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module?

It features centralized management, high performance, and support for advanced security features, enhancing network redundancy and operational efficiency.

In which scenarios is the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module best used?

This module is ideal for large enterprise networks that require high availability and robust performance, such as data centers and campuses.

How do I install the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module?

Installation involves inserting the module into the appropriate slot on a compatible Cisco Catalyst 9400 Series switch and configuring it via the switch's command-line interface.

Does the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module require upgrades?

Regular software updates are recommended to ensure the module runs with the latest features and security patches.

Are there alternative products to the Cisco Catalyst 9400 Series Redundant Supervisor 1 Module?

Alternative products include other Cisco Catalyst 9000 Series supervisor modules, such as the Cisco Catalyst 9400 Supervisor 2 Module.
