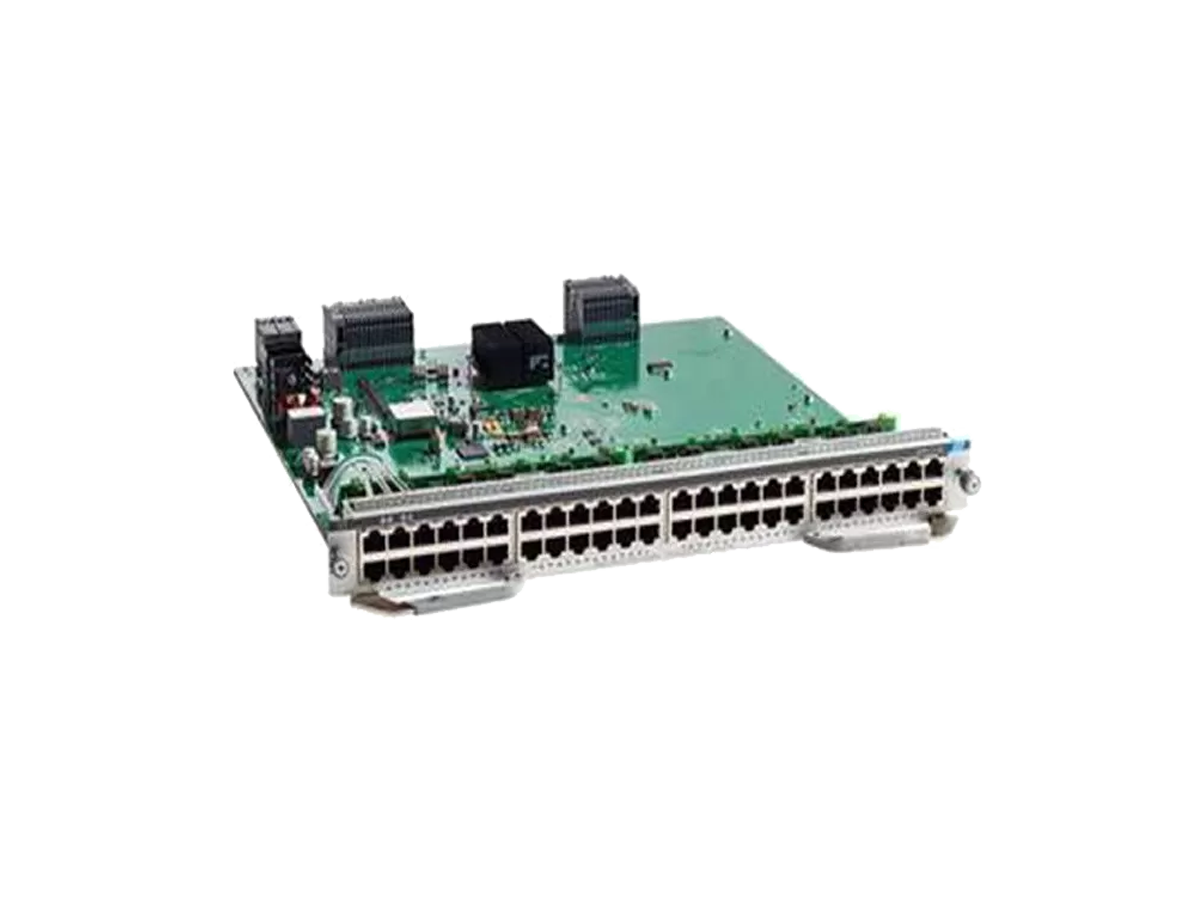

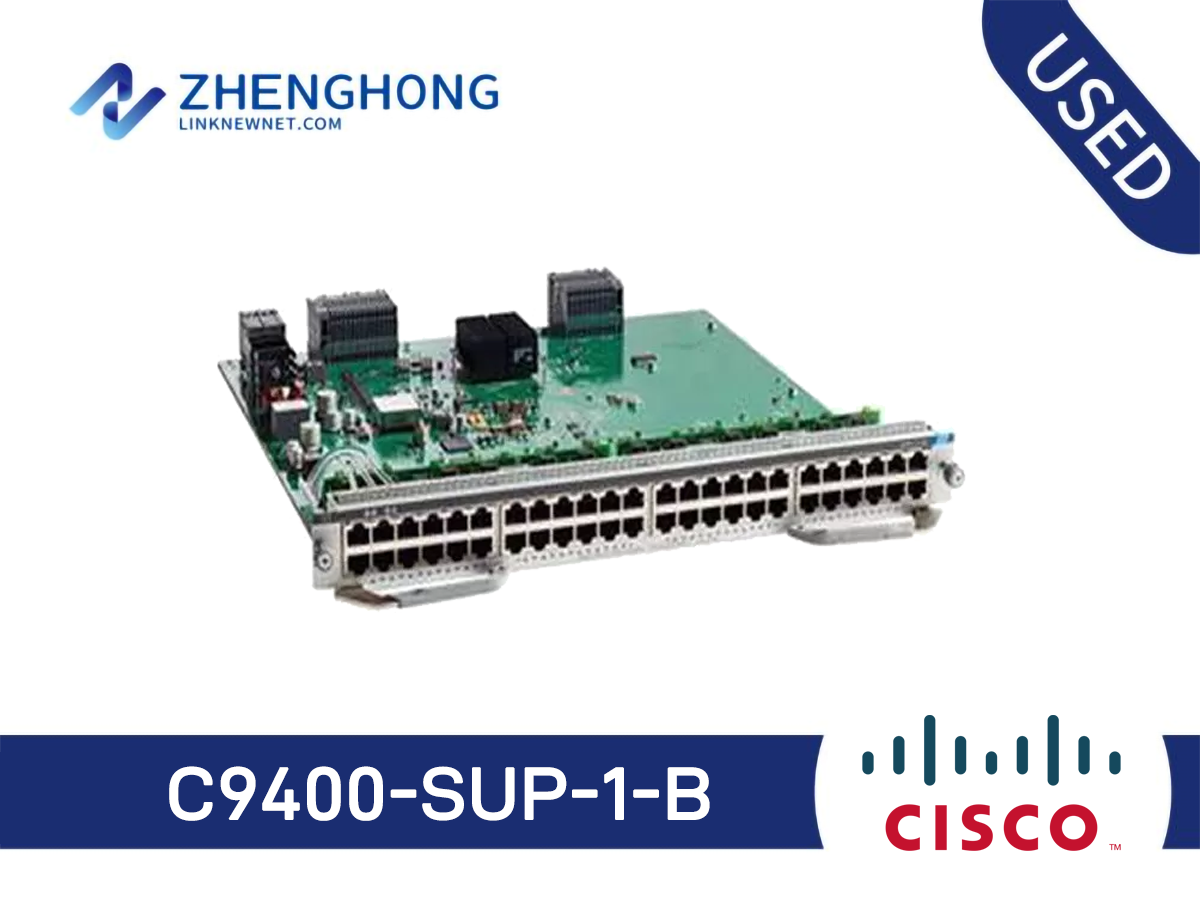

C9400-SUP-1-B - Cisco Catalyst 9400 Serise Supervisor Module

Model: C9400-SUP-1-B

Detail: Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Shipping: DHL, FedEx, UPS, etc

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

C9400-SUP-1-B Specification
Centralized wired capacity	Up to 1.44 Tbps
Per-slot switching Capacity	80 Gbps
Total number of MAC addresses	Up to 64K
Total number of IPv4 routes (ARP plus learned routes)	Up to 112K
FNF entries (v4/v6)	Up to 384K/192K
DRAM	16 GB
Flash	10 GB
VLAN IDs	4096
SSD Capacity	960 GB
Total Switched Virtual Interfaces (SVIs)	4,000
Jumbo frame	9216 bytes
Forwarding Rate	● 900 Mpps for IPv4 ● 450 Mpps for IPv6
IPv4 Routing Entries	Up to 112K
IPv6 Routing Entries	Up to 56K
Multicast Routes	Up to 16K
QoS Hardware Entries	Up to 18K
Security ACL Hardware Entries	Up to 18K
Packet Buffer	96 MB
Physical specifications	(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm) Weight: 10 lbs (4.5 kg)
Operating temperature	Normal Operating Temperature and Altitudes: ● 27° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m) ● 27° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m) ● Minimum ambient temperature for cold startup is 0ºC Short-Term Exceptional Conditions: ● 27° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m) ● 27° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m) ● *Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences
Storage temperature	40° to 158°F (-40° to 70°C)
Relative humidity operating and nonoperating noncondensing	10 to 95 percent, noncondensing
Altitude	-60 to 3000m
MTBF	302,000 hours

Q&A

What accessories are available for the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

Accessories include power supplies, fan modules, and additional network interface cards compatible with the Cisco Catalyst 9400 series.

How does the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option compare to similar products?

The C9400-SUP-1-B offers superior scalability, security features, and performance compared to many competitors, making it a leading choice in enterprise networking.

What common troubleshooting steps are recommended for the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

Common troubleshooting steps include checking power connections, verifying configuration settings, ensuring the latest firmware is installed, and consulting the Cisco support documentation.

What are the characteristics of the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

The C9400-SUP-1-B is characterized by its modular design, high redundancy, security, and advanced traffic management capabilities, tailored for large-scale, high-demand network environments.

How cost-effective is the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

The Cisco C9400-SUP-1-B offers scalability, high performance, and extensive features, making it cost-effective for large enterprises requiring robust networking solutions.

What are the key features of the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

The C9400-SUP-1-B features modular design, high availability, secure segmentation, and advanced QoS capabilities, catering to enterprise-level networking needs.

What application scenarios is the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option suited for?

The C9400-SUP-1-B is ideal for large enterprises, data centers, and service providers looking for high-performance, secure, and scalable network solutions.

How do I install the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

Install the C9400-SUP-1-B by following the Cisco installation guide, which includes steps for secure mounting and configuration within a Cisco Catalyst 9400 chassis.

Does the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option need to be upgraded frequently?

The C9400-SUP-1-B requires periodic software and firmware updates to ensure optimal performance, security, and access to new features.

Are there alternative products to the Cisco Catalyst 9400 Series Supervisor-1 Bundle Select Option?

Yes, alternatives include other modules in the Cisco Catalyst 9000 series and similar high-performance modules from competitors like Juniper and Aruba.
