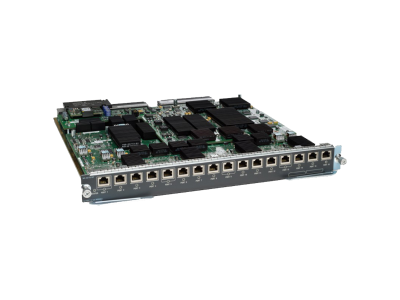

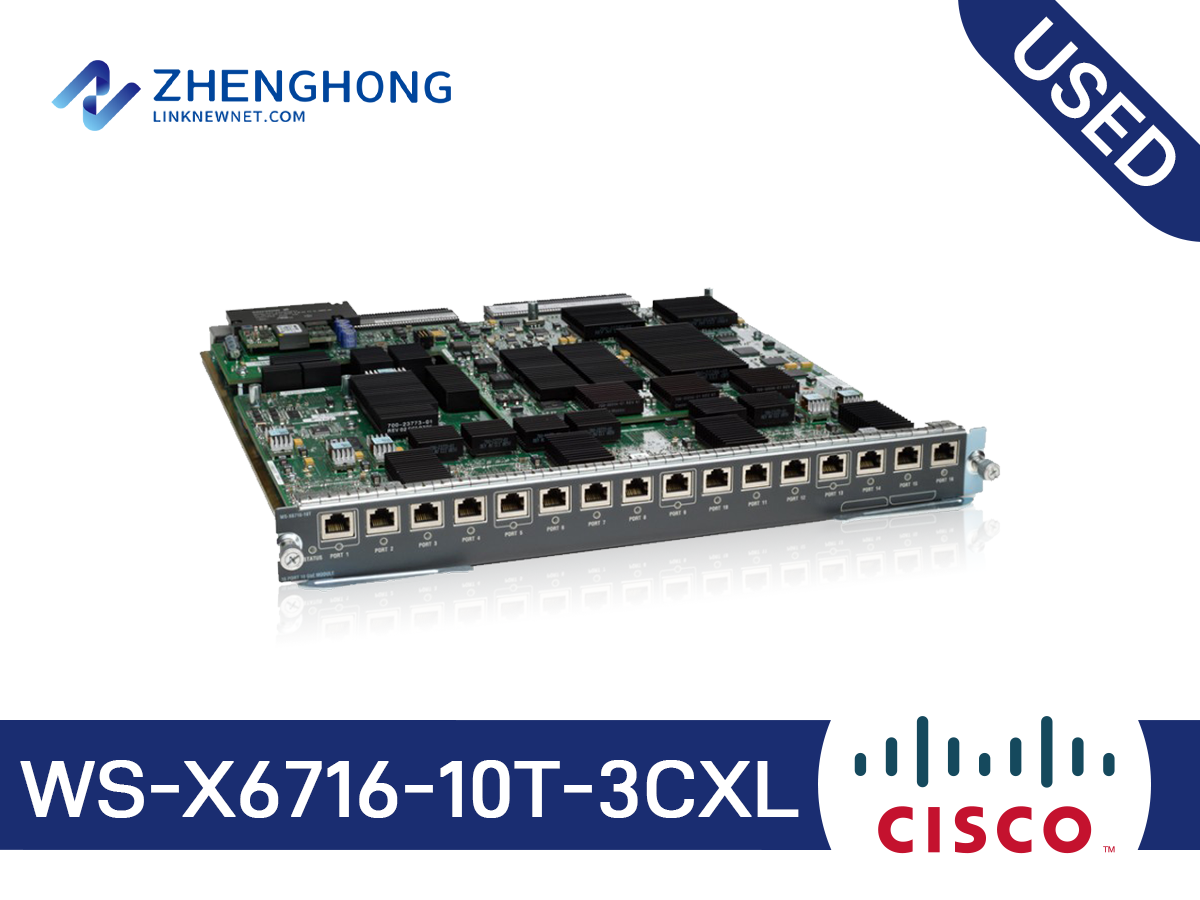

WS-X6716-10T-3CXL - Cisco Catalyst 6500 Ethernet Copper Module

Model: WS-X6716-10T-3CXL

Detail: WS-X6708-10G-3C Catalyst 6500 10 Gigabit Ethernet Module

Condition: USED

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules Specifications
Standard protocols	IEEE 802.1d, IEEE 802.1p, IEEE 802.1q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ak, IEEE 802.3aq, and IEEE 802.3an
Physical specifications	● Occupies one slot in the Cisco Catalyst 6500 Series chassis or Cisco 7600 Series chassis ● Dimensions (H x W x D): 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm) ● Weight: ◦ Cisco Catalyst 6708 and 6716: 13 pounds excluding X2 components; ¼ pound for each X2 ◦ Cisco Catalyst 6704: 10 pounds excluding XENPAK and DFC components; 2/3 pound for each XENPAK
Environmental conditions	Operating temperature: ● Agency-certified for operation: 32 to 104°F (0 to 40°C) ● Design and tested for operation 32 to 130°F (0 to 55°C) ● Storage temperature: –40 to 167°F (–40 to 75°C) ● Relative humidity: 10 to 90 percent, noncondensing Operating altitude: ● Agency-certified for operation: –500 to 6500 ft (–150 to 2000m) ● Designed and tested for operation –500 to 10000 ft (–150 to 3000m)
Regulatory compliance	Cisco Catalyst 6500 Series 10 Gigabit Ethernet modules, when installed in a system, comply with the following EMC and safety standards: EMC Standards: ● FCC Part 15 (CFR 47) Class A ● ICES-003 Class A ● VCCI Class A ● EN55022 Class A ● EN55024 ● CISPR24 ● CISPR 22 Class A ● AS/NZS CISPR 22 Class A ● ETS 300 386 ● KN 22 Class A ● EN 50082-1 ● EN61000-3-2 ● EN61000-3-3 ● EN61000-6-1 ● CNS13438 Class A ● KN6100 -4 Series Safety Standards: ● UL 60950-1 ● CAN/CSA C22.2 No. 60950 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950-1 ● IEC 60825 Class 1 ● EN 60825 Class 1 ● 21CFR 1040
NEBS criteria levels	SR-3580 Issue 3, June 2007 (GR-63-CORE, issue 3, and GR-1089-CORE, issue 4)
ETSI	● ETS 300 019-2-1, Class 1.1 Storage ● ETS 300 019-2-2, Class 2.1 and 2.2 Transportation ● ETS 300 019-2-3, Class 3.1E Stationary Use
Network management	● ETHERLIKE-MIB (RFC 1643) ● IF-MIB (RFC 1573) ● Bridge MIB (RFC 1493) ● CISCO-STACK-MIB ● CISCO-VTP-MIB ● CISCO-CDP-MIB ● RMON MIB (RFC 1757) ● CISCO-PAGP-MIB ● CISCO-STP-EXTENSIONS-MIB ● CISCO-VLAN-BRIDGE-MIB ● CISCO-VLAN-MEMBERSHIP-MIB ● ENTITY-MIB (RFC 2037) ● HC-RMON ● RFC1213-MIB (MIB-II) ● SMON-MIB
Power requirements	● WS-X6716-10T-3C: 509.3W (12.1A @ 42V) ● WS-X6716-10T-3CXL: 538.7W (12.8A @ 42V) ● WS-X6716-10G-3C: 457.8W (10.9A @ 42V) ● WS-X6716-10G-3CXL: 487.2W (11.6A @ 42V) ● WS-X6708-10G-3C: 444.36W (10.58A @ 42v) ● WS-X6708-10G-3CXL: 473.76w (11.28A @ 42V) ● WS-X6704-10GE with DFC3CXL: 362.46W (8.63A @ 42V) ● WS-X6704-10GE with DFC3C: 333.06W (7.93A @ 42V) ● WS-X6704-10GE with DFC3BXL: 402.36W (9.58A @ 42V) ● WS-X6704-10GE with DFC3B: 377.16W (8.98A @ 42V) ● WS-X6704-10GE with DFC3A: 389.76W (9.28A @ 42V) ● WS-X6704-10GE with CFC: 295.26W (7.03A @ 42V)
Indicators	● Status: green (operational), red (faulty), and orange (module booting) ● Link: green (port enabled and connected), orange (port disabled), and off (port enabled and not connected)

Q&A

Are there alternative products to the WS-X6716-10T-3CXL?

Alternative products include the WS-X6708-10G-3C and other 10 Gigabit Ethernet modules from the Catalyst 6500 series, depending on specific network requirements.

What accessories are available for the WS-X6716-10T-3CXL?

Accessories for the WS-X6716-10T-3CXL include various SFP+ transceivers, power supplies, and additional Cat 6A cables for optimal connectivity.

How does the WS-X6716-10T-3CXL compare to the WS-X6708-10G-3C?

The WS-X6716-10T-3CXL offers more ports and potentially higher throughput, making it more suitable for more demanding networking environments compared to the WS-X6708-10G-3C.

What common troubleshooting steps exist for the WS-X6716-10T-3CXL?

For troubleshooting the WS-X6716-10T-3CXL, ensure the module is properly seated, verify port configurations, reboot the switch if necessary, and check for firmware updates.

What are the main features of the WS-X6716-10T-3CXL module?

The WS-X6716-10T-3CXL module offers 10 Gigabit Ethernet connectivity, high port density, and optimized traffic management for Catalyst 6500 series switches.

Is the WS-X6716-10T-3CXL cost-effective for system integrators?

Yes, with its high port density and reliable performance, the WS-X6716-10T-3CXL provides excellent value for large-scale deployments.

What are the typical application scenarios for the WS-X6716-10T-3CXL module?

This module is ideal for data centers, high-performance computing networks, and enterprise core networks requiring 10 Gigabit Ethernet connectivity.

How can I install the WS-X6716-10T-3CXL module?

The module should be inserted into a compatible slot in a Catalyst 6500 series switch, and then secured according to the switch's installation guidelines.

Does the WS-X6716-10T-3CXL require any software upgrades?

Ensure your Catalyst 6500 series switch is running a compatible Cisco IOS version to support the WS-X6716-10T-3CXL module for optimal performance.

Are there any alternative products to the WS-X6716-10T-3CXL?

Alternatives include WS-X6708-10G-3C and other similar 10 Gigabit Ethernet modules within the Catalyst 6500 series.

What are common troubleshooting steps for the WS-X6716-10T-3CXL?

Common troubleshooting includes checking for proper module seating, verifying power and connection statuses, and ensuring the correct IOS version is in use.

What accessories are available for the WS-X6716-10T-3CXL module?

Accessories include compatible transceivers, cabling options, and rack-mount kits designed for the Catalyst 6500 series.

How does the WS-X6716-10T-3CXL compare to similar products in its category?

The WS-X6716-10T-3CXL stands out due to its high port density and advanced traffic management features compared to other 10 Gigabit Ethernet modules in the Catalyst 6500 series.

Can I use the WS-X6716-10T-3CXL in any Cisco switch?

The WS-X6716-10T-3CXL is designed specifically for use in Cisco Catalyst 6500 series switches and may not be compatible with other Cisco switch series.

What are the main features of the WS-X6716-10T-3CXL module?

The WS-X6716-10T-3CXL offers 10 Gigabit Ethernet ports, high-density connectivity and is designed for high-performance data forwarding in Catalyst 6500 series switches.

Does the WS-X6716-10T-3CXL support hot-swapping?

Yes, the WS-X6716-10T-3CXL module supports hot-swapping, allowing you to replace or add modules without shutting down the switch.

What are the typical application scenarios for the WS-X6716-10T-3CXL?

The WS-X6716-10T-3CXL is typically used in data centers, high-traffic enterprise networks, and environments requiring high-speed data processing and transfer.

How cost-effective is the WS-X6716-10T-3CXL module?

The WS-X6716-10T-3CXL is considered cost-effective due to its high performance, long-term reliability, and ability to handle intensive network tasks.

What are the installation steps for the WS-X6716-10T-3CXL module?

To install the WS-X6716-10T-3CXL, power off your switch, insert the module into an available slot, secure it with screws, and power the switch back on to recognize the module.

Does the WS-X6716-10T-3CXL require firmware upgrades?

It is advisable to check for firmware upgrades periodically to ensure optimal performance and compatibility with the latest Catalyst 6500 series switch updates.
