Cisco Catalyst 6500 Series Switch WS-C6509-E-WISM|LinkNewNet

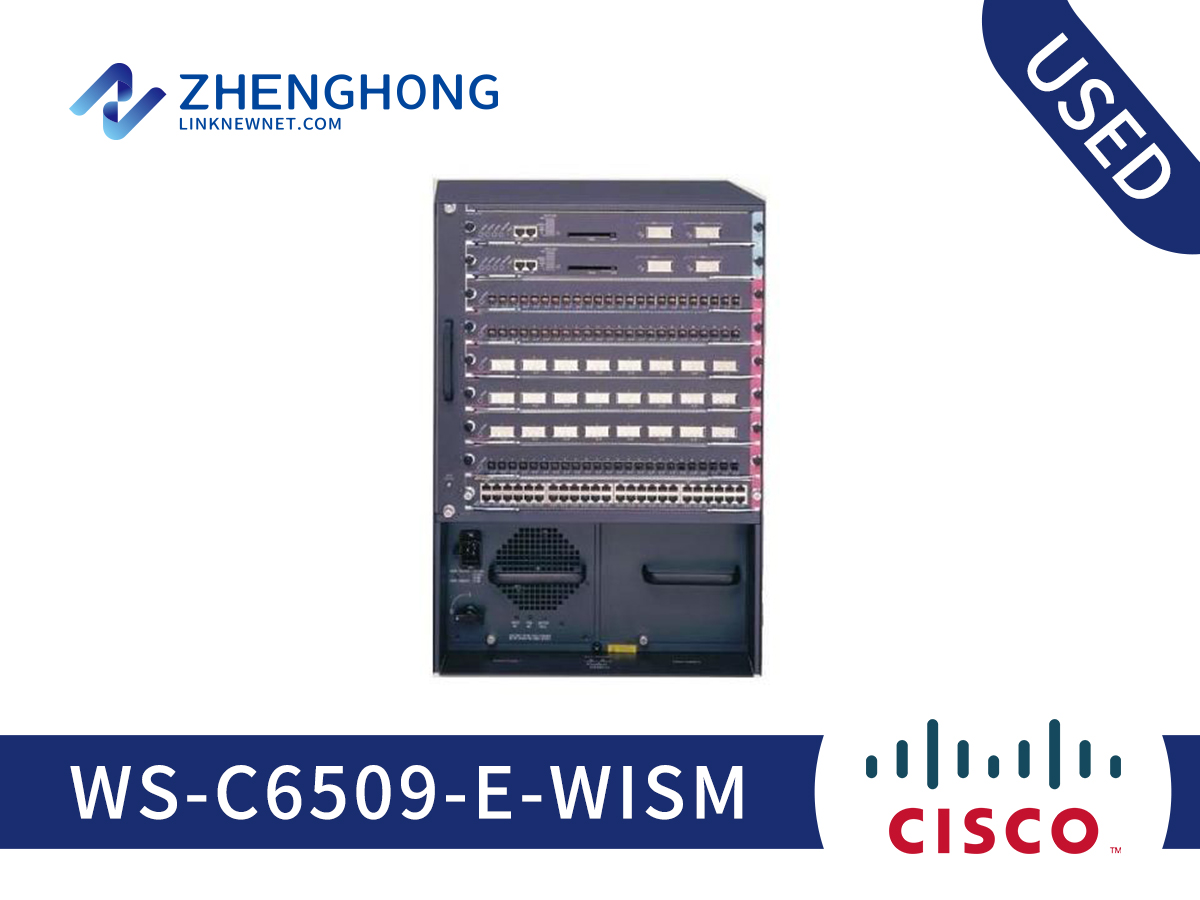

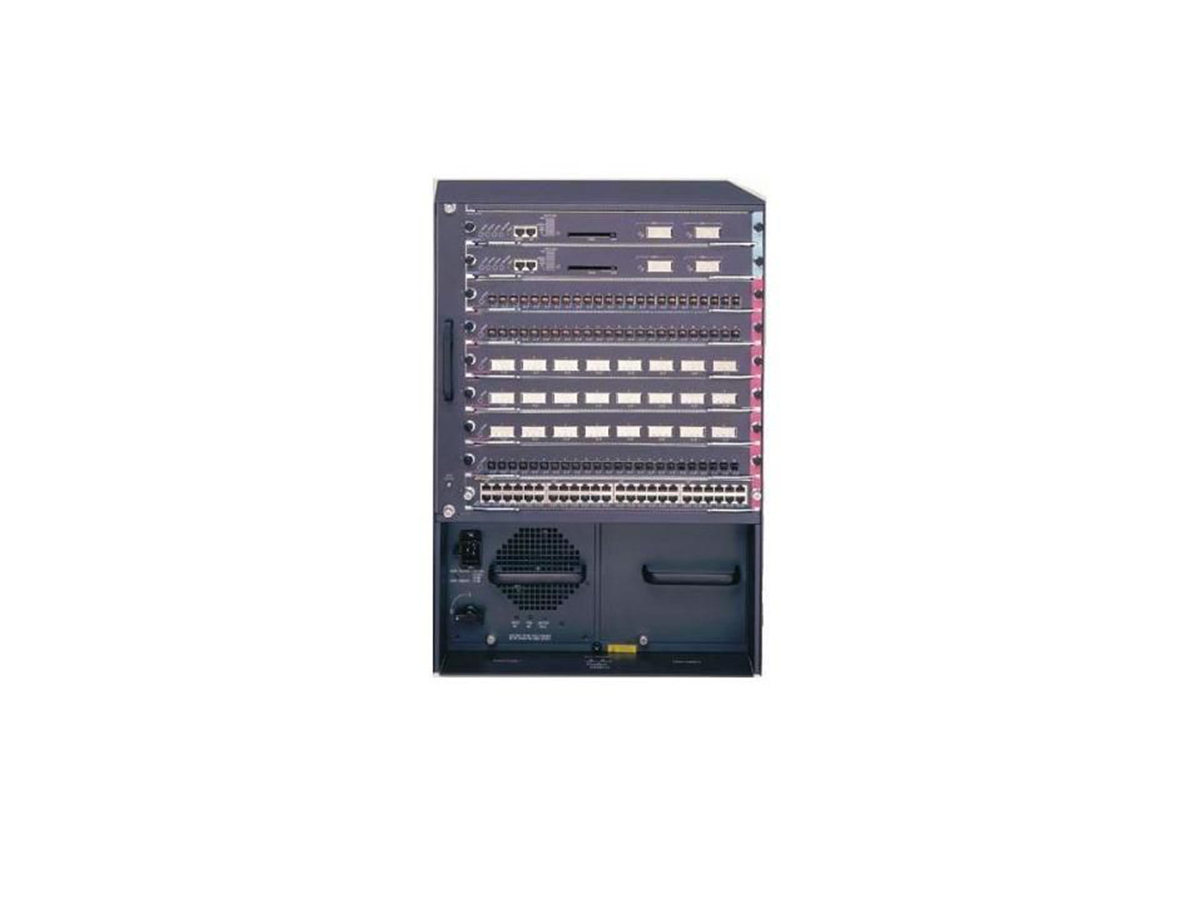

Cisco Catalyst 6500 Series Switch WS-C6509-E-WISM

Model: WS-C6509-E-WISM

Detail: Cat 6509-E WiSM bundle(SUP720-3B,WiSM, Fan Tray, no P/S)

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WS-C6509-E-WISM Specification
Product Description	Cisco Catalyst 6509-E with WiSM Bundle - switch
Device Type	Switch
Form Factor	External - 15U
Dimensions (WxDxH)	17.5 in x 18.1 in x 24.5 in
RAM	1 GB
Auxiliary Network Ports	1x10/100/1000Base-T/SFP (mini-GBIC)
Empty Slots	1 x SFP (mini-GBIC)
Remote Management Protocol	Telnet, HTTP, HTTPS
Features	MPLS support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11h
Power	AC 120/230 V ( 50/60 Hz )
General
Device Type	Switch
Enclosure Type	External - 15U
Installed Modules Qty (Max)	2 (installed) / 9 (max)
Width	17.5 in
Depth	18.1 in
Height	24.5 in
Memory
RAM	1 GB
Networking
Auxiliary Network Ports	1x10/100/1000Base-T/SFP (mini-GBIC)
Routing Protocol	OSPF, RIP, BGP-4, IS-IS, PIM-SM, PIM-DM
Remote Management Protocol	Telnet, HTTP, HTTPS
Connectivity Technology	Wired
Switching Protocol	Ethernet
MAC Address Table Size	32K entries
Features	MPLS support, VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, X.509, IEEE 802.11i, IEEE 802.11h
Expansion / Connectivity
Expansion Slots Total (Free)	2 ( 2 ) x SFP (mini-GBIC) 9 ( 7 ) x expansion slot
Interfaces	1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 2 x management - RS-232
Miscellaneous
Compliant Standards	NEBS level 3, CE, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548
Power
Power Device	Power supply - hot-plug / redundant - plug-in module
Installed Qty	2
Voltage Required	AC 120/230 V ( 50/60 Hz )
Environmental Parameters
Humidity Range Operating	10 - 90%
