WIC-2A/S - Cisco Router WAN Interface Cards|LinkNewNet

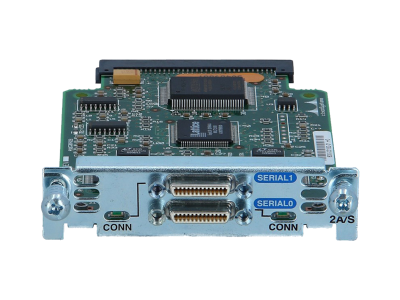

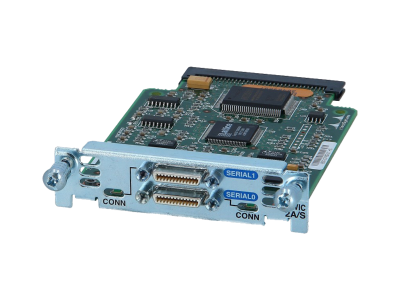

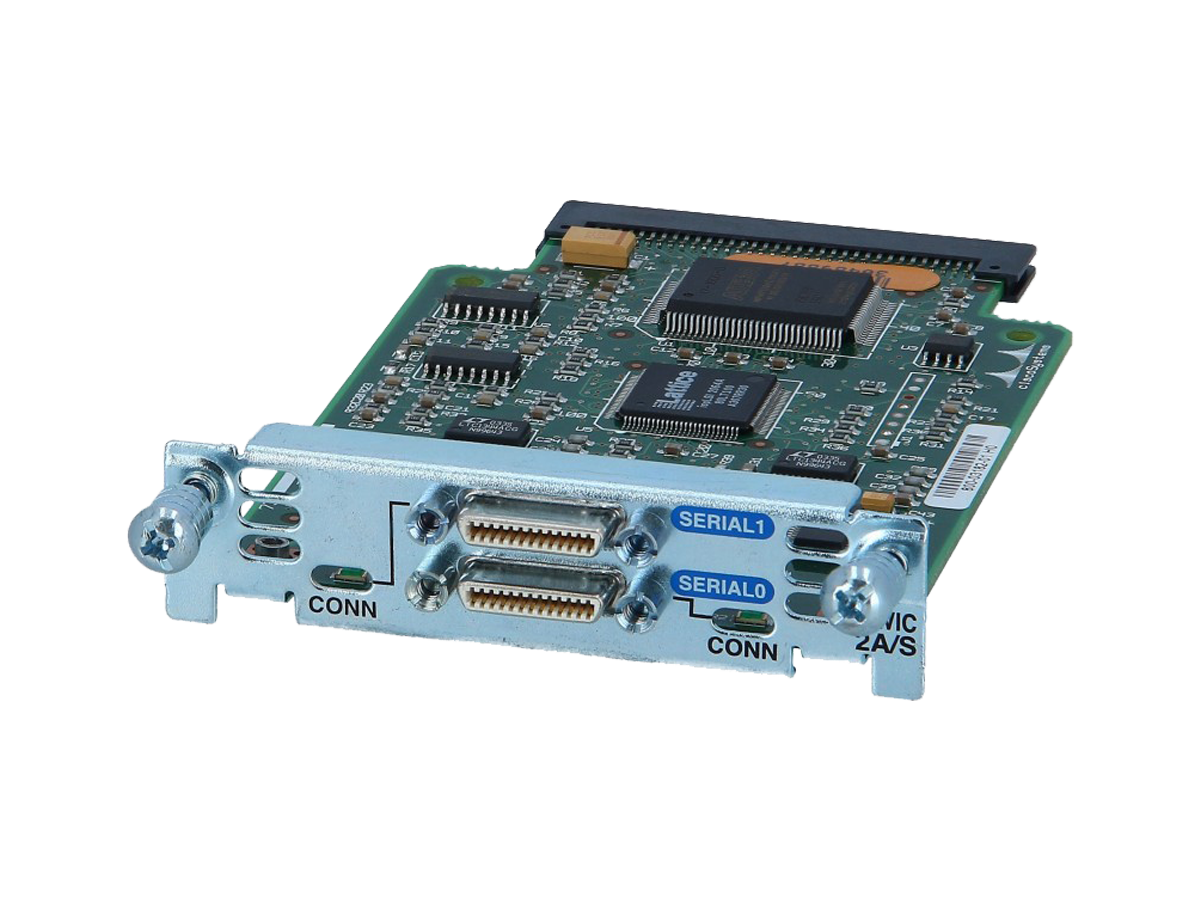

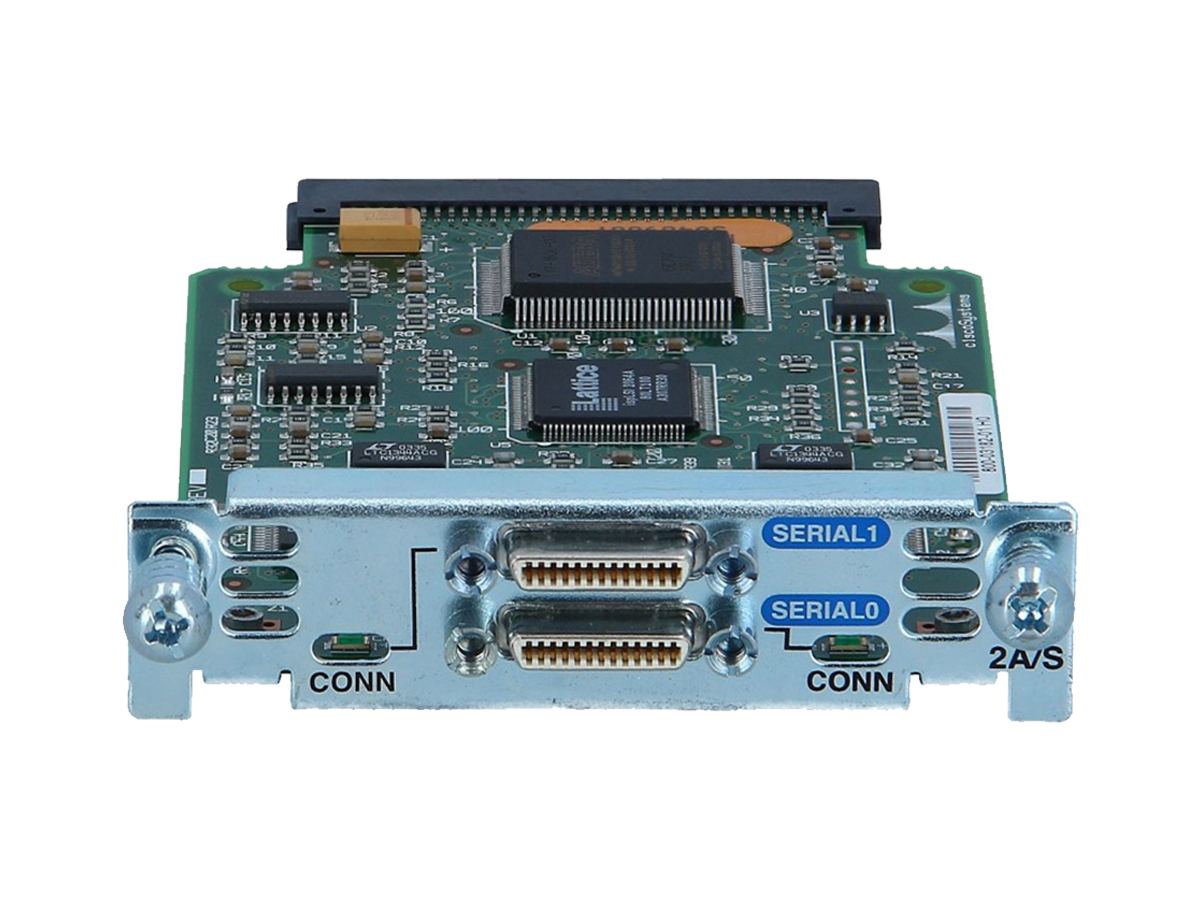

WIC-2A/S - Cisco Router WAN Interface Cards

Model: WIC-2A/S

Detail: 2-Port Async/Sync Serial WAN Interface Card

Condition: USED

Shipping: DHL, FedEx, UPS, etc

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

WIC-2A/S Specifications
Brand	Cisco
Model	WIC-2A/S
Ports	2
Interface	Serial
Port Type	Async/Sync
WAN Interface	Yes
Connector	Smart Serial
Supported Protocols	PPP, HDLC, Frame Relay, X.25, and SLIP
Async Data Rates	up to 115.2 kbps per port
Sync Data Rates	up to 128 kbps per port
Form Factor	Plug-In Module
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 65°C (-4°F to 149°F)
Humidity	5% to 95% (non-condensing)
Compatibility	Cisco 1600, 1700, 2600, 3600, and 3700 series
Data Link Protocol	Serial
MTBF	500,000 hours
Power Consumption	7.7 watts
Safety Approvals	UL, CE, FCC
Dimensions	4.75 x 3.63 x 0.75 inches

Q&A

What common troubleshooting steps apply to the WIC-2A/S?

Ensure proper physical connections, correct configuration settings, and verify router compatibility if the WIC-2A/S is not functioning.

What accessories are available for the WIC-2A/S?

Common accessories include various serial cables (DB60, DB25) compatible with the WIC-2A/S ports.

How does the WIC-2A/S compare to other serial WAN cards?

The WIC-2A/S offers dual port functionality, which is cost-effective compared to single port options like the WIC-1T.

Is the WIC-2A/S compatible with all Cisco routers?

The WIC-2A/S is compatible with a range of Cisco routers, but always check specific model compatibility before purchasing.

How cost-effective is the WIC-2A/S for system integrators?

The WIC-2A/S provides dual port functionality, enhancing network connectivity without significant additional cost.

What are the main characteristics of the WIC-2A/S?

The WIC-2A/S features two asynchronous/synchronous serial ports, making it versatile for various WAN applications.

In what scenarios can the WIC-2A/S be applied?

The WIC-2A/S is ideal for branch office connections, remote network management, and general WAN connectivity.

How should the WIC-2A/S be installed in a router?

Simply slot the WIC-2A/S into the appropriate WAN interface card slot in the supported Cisco router and configure as required.

Does the WIC-2A/S require any upgrades for optimal performance?

The WIC-2A/S itself doesn't require upgrades, but ensure your router's firmware is up-to-date to support all features.

Are there any alternative products to the WIC-2A/S?

Alternatives include other WAN interface cards like WIC-1T or WIC-2T, depending on specific network requirements.

What common troubleshooting steps apply to the WIC-2A/S?

Ensure proper physical connections, correct configuration settings, and verify router compatibility if the WIC-2A/S is not functioning.

What accessories are available for the WIC-2A/S?

Common accessories include various serial cables (DB60, DB25) compatible with the WIC-2A/S ports.

How does the WIC-2A/S compare to other serial WAN cards?

The WIC-2A/S offers dual port functionality, which is cost-effective compared to single port options like the WIC-1T.

Is the WIC-2A/S compatible with all Cisco routers?

The WIC-2A/S is compatible with a range of Cisco routers, but always check specific model compatibility before purchasing.
