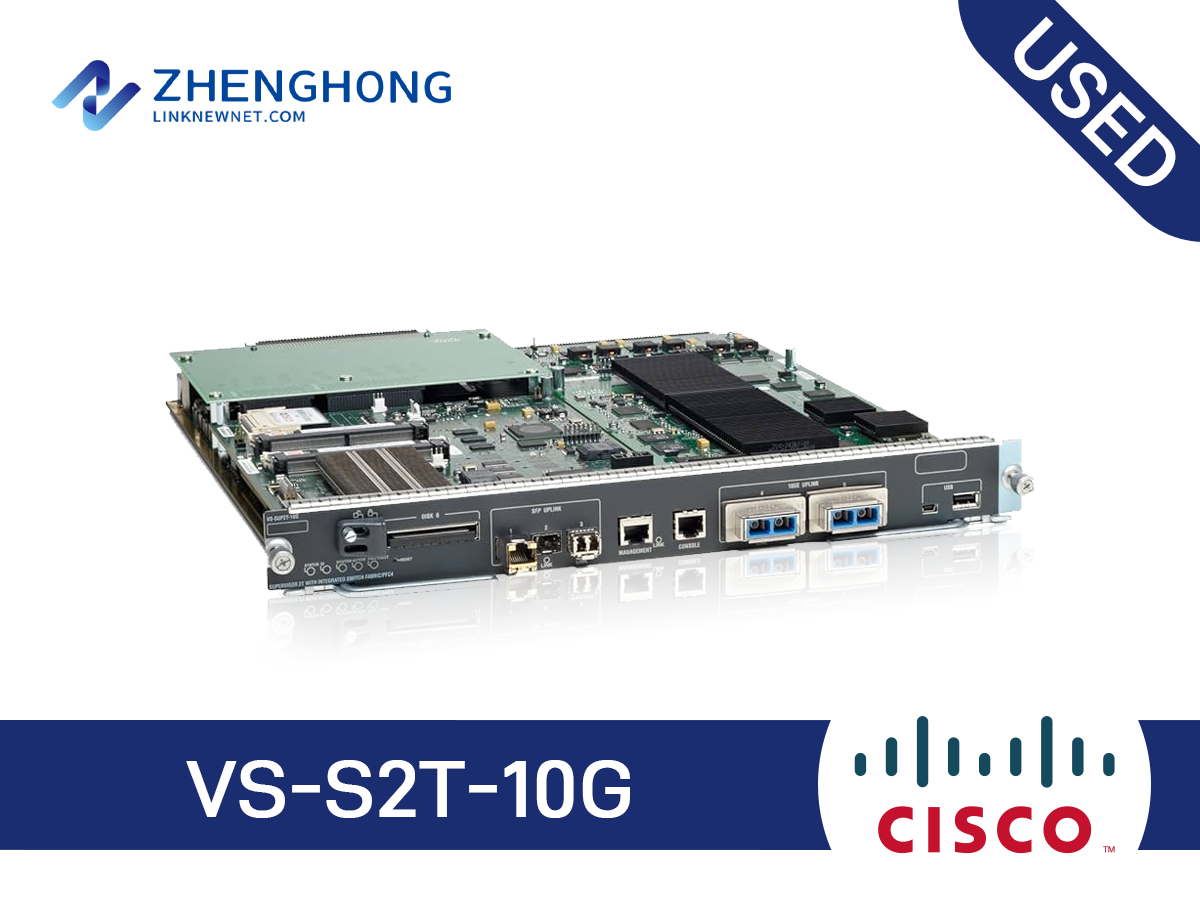

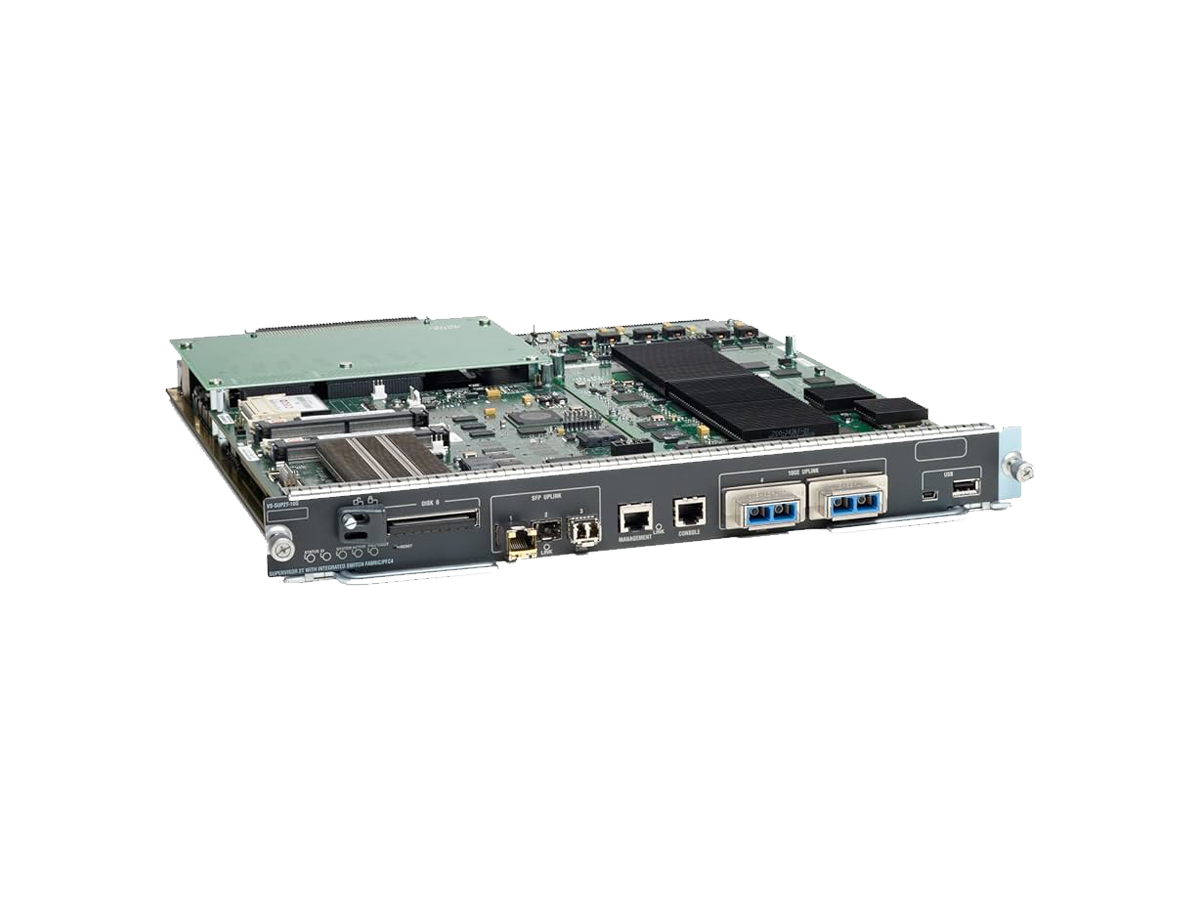

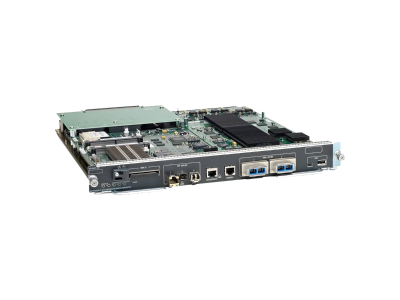

VS-S2T-10G Specifications | |
Chassis compatibility | ● E-Series only: Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, 6513E ● C6807-XL |
Switch fabric | ● 2.08 Tbps Crossbar Switch Fabric with 26 Fabric Channels |
Fan tray and power supply supported | ● 1400W for 6503-E ● 2700W for 6504-E ● 3000W AC or DC all other chassis ● 4000W AC or DC all other chassis ● 6000W AC or DC all other chassis ● 8700W AC all other chassis |
Slot requirements | Occupies the Supervisor slots as follows: ● 3-slot E-chassis: slots 1 and 2 ● 4-slot E-chassis: slots 1 and 2 ● 6-slot E-chassis: slots 5 and 6 ● 9-slot V-E chassis: slots 5 and 6 ● 9-slot E-chassis: slots 5 and 6 ● 13-slot E-chassis: slots 7 and 8 ● C6807-XL; slots 3 and 4 |
Software compatibility | ● 12.2(50)SY and future releases |
Optics and SFP options | ● X2-10GB-LR ● X2-10GB-SR ● X2-10GB-CX4 ● X2-10GB-ER ● X2-10GB-LX4 ● X2-10GB-LRM ● X2-10GB-ZR ● X2-10GB-DWDM ● CVR-X2-SFP10G - OneX Adapter ● SFP-H10GB-CU1M1 - 1 Meter Passive Cable ● SFP-H10GB-CU3M1 -3 Meter Passive Cable ● SFP-H10GB-CU5M1 - 5 Meter Passive Cable ● SFP-10G-SR |
Service Modules | ● ACE 20, ACE 30, NAM-1, NAM-2, NAM-3, FWSM, ASA-SM, WiSM-1, WiSM-2 |
SW packages | ● IP BASE ● IP Services ● Advanced IP Services ● Advanced Enterprise Services |
Connectivity management processor (CMP) | ● Integrated Connectivity Management Processor for improved Out-of-Band Management |
DRAM | ● 2GB for Lite and XL (4GB upgrade with 2GB memory upgrade (2+2) |
NVRAM | ● 4 MB |
Compact Flash | ● 1GB |
Uplink ports | ● 3 x GE SFP Ports ● 2 x 10G X2 Ports ● 1 x 10/100/1000 Management Port |
Console ports | ● One console port (RJ-45) |
Reliability and availability | ● FSU (Fast software upgrade) ● SSO+NSF (Stateful Switchover + Nonstop Forwarding) ● OIR (Online insertion and removal) Hot Swap of power supplies, modules, fan trays and Supervisors |
MIBs | ● MPLS LDP MIB, MPLS Label Switch Router (LSR) MIB, MPLS-TE MIB, MPLS VPN MIB; see software release notes for additional information |
Network management | ● Cisco Works |
Power consumption | ● Lite: 435W MAX ● XL: 450W MAX |
ECC | ● ECC Protection Support |
** Check software release for availability.
