SPA-4XOC3-POS-V2 - Cisco ASR 9000 Series Shared Port Adapter|LinkNewNet

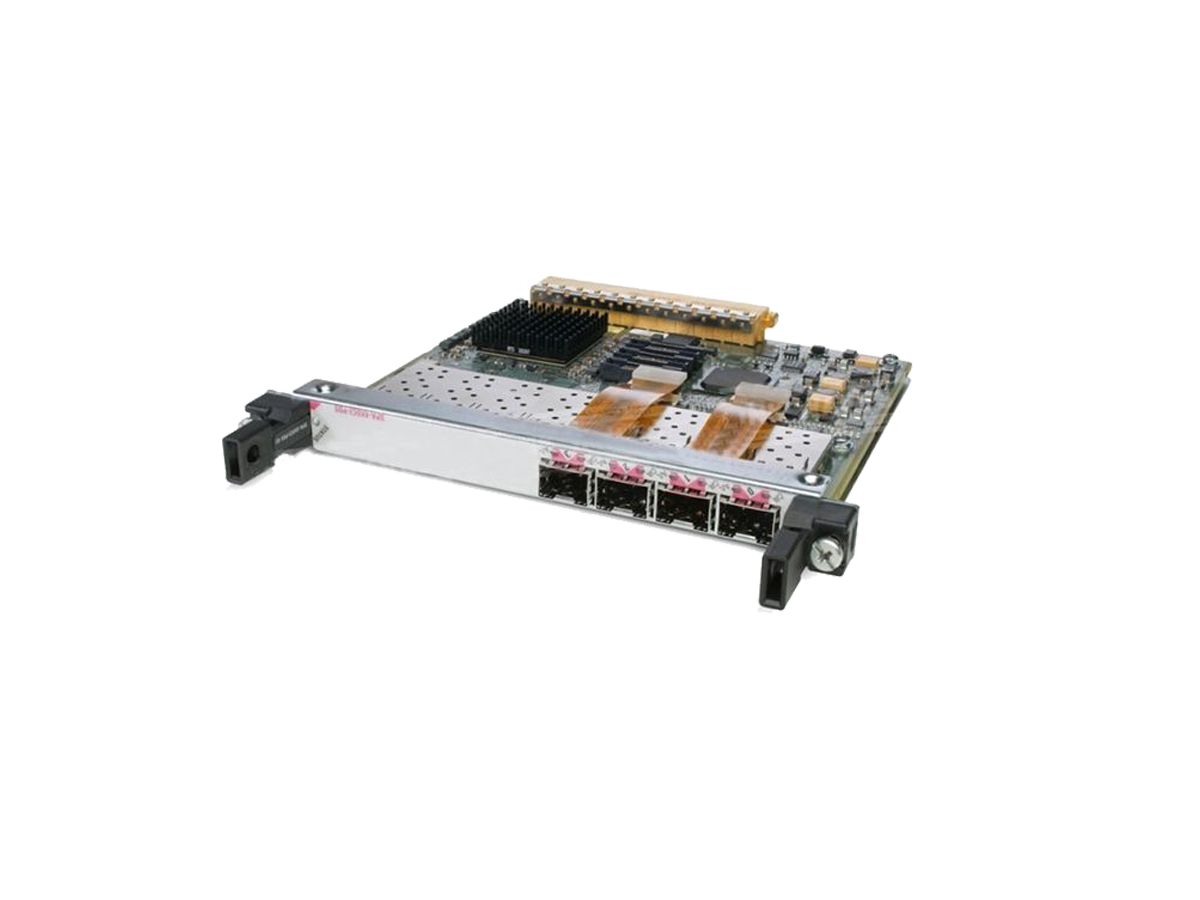

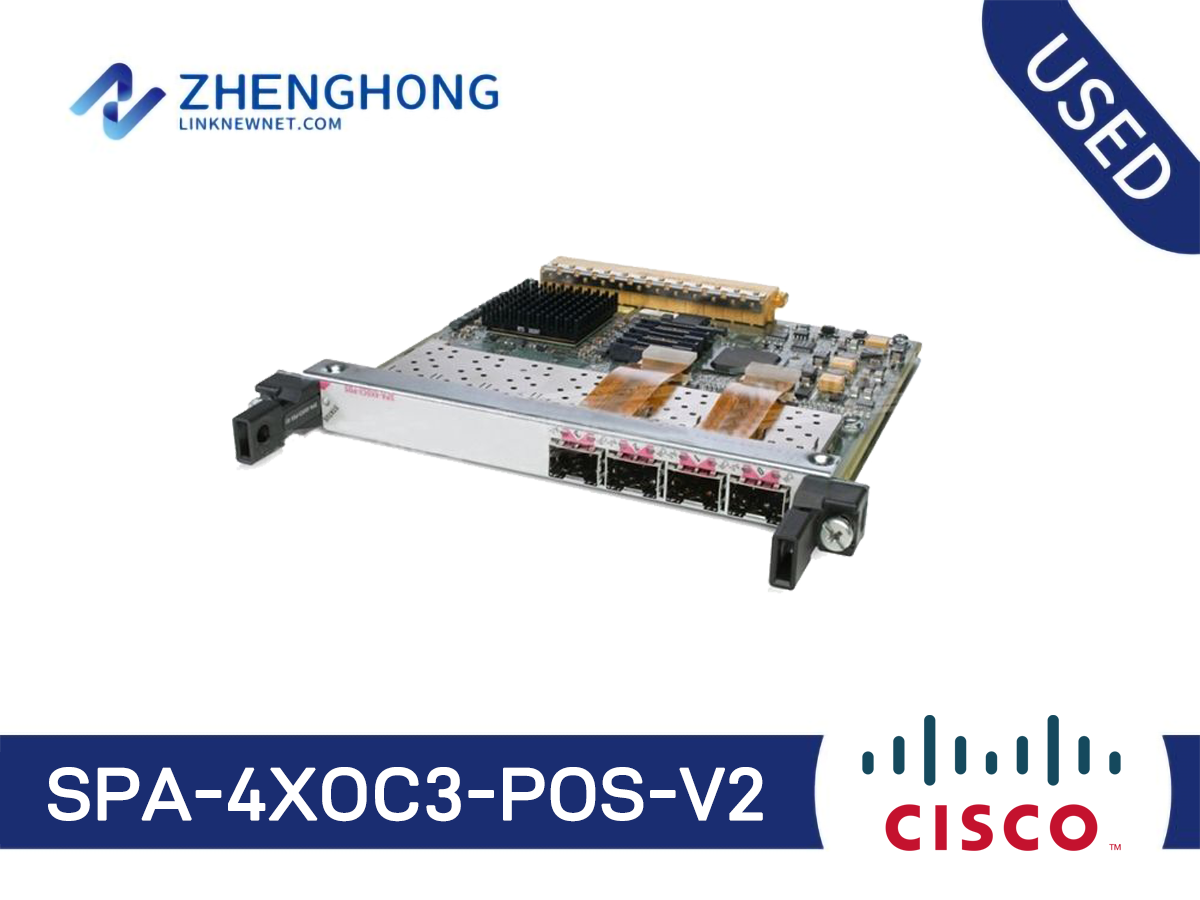

SPA-4XOC3-POS-V2 - Cisco ASR 9000 Series Shared Port Adapter

Model: SPA-4XOC3-POS-V2

Detail: Cisco ASR 9000 Adapter SPA-4XOC3-POS-V2 4-port OC-3/STM-1 POS Shared Port Adapters

Condition: Used

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

SPA-4XOC3-POS-V2 Specifications
Product compatibility	• Cisco 12000 Series Routers • Cisco XR 12000 Series Routers • Cisco ASR 1000 Series Router • Cisco ASR 9000 Series Router
Port density per SPA	4 ports
Physical interface	• OC-3c/STM-1 SFP optics module (refer to optical parameters in Table 2) • Visual status indicators (LEDs): • SPA status LED • Per-port LEDs • Carrier and alarm • Active and loopback
Protocols	• RFC 1662 PPP in High-Level Data Link Control (HDLC)-like framing • RFC 2615 Point-to-Point Protocol (PPP) over SONET/SDH • RFC 2427, Multiprotocol Interconnect over Frame Relay • IPv4/IPv6
Features and functions	Synchronization • Local (internal) or loop timed (recovered from network) • Pointer activity monitoring Local (diagnostic) and line (network) loopback Payload mapping • POS with 1 + X^43 self-synchronous scrambler SONET/SDH compliance • Telcordia (Bellcore) GR-253-CORE (as applicable) • ANSI T1.105, T1.231 • ITU-T G.707, G.957, G.825 (as applicable) Supported SONET/SDH alarm and signal events • Signal failure bit error rate (SF-ber) • Signal degrade bit error rate (SD-ber) • Signal label payload construction (C2) • Path trace byte (J1) • Section • Loss of signal (LoS) • Loss of frame (LoF) • Error counts for B1 • Threshold crossing alarms (TCA) for B1 • Line • Line alarm indication signal (LAIS) • Line remote defect indication (LRDI) • Line remote error indication (LREI) • Error counts for B2 • TCA for B2 • Path • Path alarm indication signal (PAIS) • Path remote defect indication (PRDI) • Path remote error indication (PREI) • Error counts for B3 • TCA for B3 • Loss of pointer (LoP) • Positive stuffing event (PSE) • Negative stuffing event (NSE) • Path unequipped indication signal (PUNEQ) • Path payload mismatch indication signal (PPLM)
Network management	• RFC 2558 MIB (SONET/SDH) • Simple Network Management Protocol (SNMP)
Reliability and availability	• Online insertion and removal (OIR) • Field-replaceable SFP optical modules • 1+1 SONET Automatic Protection Switching (APS) and SDH Linear Multiplexer Section Protection (MSP) protocols • Single SPA software reset
Physical specifications	• Weight: 0.75 lb (0.34 kg) • Height: 0.8 in. (2.03 cm) (single height) • Width: 6.75 in. (17.15 cm) • Depth: 7.28 in. (18.49 cm)
Power	• 4-Port OC-3c/STM-1 = 6.0W (no optics)
Environmental specifications	• Operating temperature: 41 to 104°F (5 to 40°C) • Storage temperature: -38 to 150°F (-40 to 70°C) • Operating humidity: 5 to 85% relative humidity • Storage humidity: 5 to 95% relative humidity
Compliance and agency approvals	Safety • UL 60950 • CSA 22.2-No.60950 • EN60950 • IEC 60950 CB Scheme • ACA TS001 • AS/NZS 3260 • EN60825\IEC60825 laser safety (SR, IR-Class 1) (VSR-Class 1M)1 • 21CFR1040 -FDA Code of Federal Regulations (USA) laser safety (SR, IR-Class 1) (VSR-Class 1M)1 EMC • FCC Part 15 (CFR 47) • ICES 003 • EN55022 • CISPR 22 • AS/NZS CISPR22 • VCCI • EN55024 • EN50082-1 • EN61000-6-1 • EN61000-3-2 • EN61000-3-3 Network Equipment Building System (NEBS) This product is designed to meet the following requirements (official qualification may be in progress): • SR-3580-NEBS: Criteria levels (Level 3 compliant) • GR-63-Core-NEBS: Physical protection • GR-1089-Core-NEBS: EMC and safety ETSI • EN300 386/EN300 386-2 Class B • ETS 300 019 Storage Class 1.1 • ETS 300 019 Transportation Class 2.3 • ETS 300 019 Stationary Use Class 3.1

Q&A

What accessories are available for the SPA-4XOC3-POS-V2?

Common accessories include compatible optical transceivers and cables specifically designed for use with the SPA-4XOC3-POS-V2.

How does the SPA-4XOC3-POS-V2 compare with similar adapters?

The SPA-4XOC3-POS-V2 is known for its high reliability and performance in the Cisco ASR 9000 series, making it a preferred choice for many.

What common troubleshooting steps should be taken if the SPA-4XOC3-POS-V2 is not recognized?

Check for proper seating, verify the router??s compatibility, and ensure firmware is up to date. If issues persist, consult Cisco support.

What maintenance procedures are recommended for the SPA-4XOC3-POS-V2?

Regularly clean the physical interfaces, ensure proper connections, and update firmware as needed to maintain optimal performance.

Learn More

What is the primary use of the Cisco ASR 9000 Adapter SPA-4XOC3-POS-V2?

The primary use of the Cisco ASR 9000 Adapter SPA-4XOC3-POS-V2 is to provide 4-port OC-3/STM-1 POS connectivity, enhancing high-speed data transfer in network infrastructures.

How cost-effective is the Cisco SPA-4XOC3-POS-V2 for network expansion?

The Cisco SPA-4XOC3-POS-V2 is highly cost-effective for network expansion due to its ability to support multiple OC-3/STM-1 interfaces, reducing the need for additional adapters.

What are the main features of the SPA-4XOC3-POS-V2?

The main features of the SPA-4XOC3-POS-V2 include four OC-3/STM-1 ports, high-capacity data transfer, and seamless integration with the Cisco ASR 9000 series routers.

In which scenarios is the Cisco SPA-4XOC3-POS-V2 most effectively used?

The Cisco SPA-4XOC3-POS-V2 is most effectively used in scenarios requiring reliable and high-speed POS connectivity, such as service provider networks and large enterprise environments.

Is the installation of the Cisco SPA-4XOC3-POS-V2 straightforward?

Yes, the installation of the Cisco SPA-4XOC3-POS-V2 is straightforward and involves inserting the adapter into a compatible slot on the Cisco ASR 9000 router and configuring it via the router's software interface.

Does the SPA-4XOC3-POS-V2 require any firmware upgrades for optimal performance?

Periodic firmware upgrades for the SPA-4XOC3-POS-V2 may be required to ensure optimal performance and access to the latest features and security enhancements.

Are there alternative products to the Cisco SPA-4XOC3-POS-V2?

Alternative products to the Cisco SPA-4XOC3-POS-V2 include other shared port adapters in the Cisco ASR series that offer similar or varying numbers of OC-3/STM-1 ports or higher bandwidth capabilities.

What are common troubleshooting steps for the SPA-4XOC3-POS-V2?

Common troubleshooting steps include checking physical connections, verifying network configurations, ensuring the adapter is correctly installed, and consulting the Cisco support documentation for advanced issues.

What accessories are available for the SPA-4XOC3-POS-V2?

Accessories for the SPA-4XOC3-POS-V2 may include compatible SFP modules, additional network cables, and mounting brackets for secure installation.

How does the SPA-4XOC3-POS-V2 compare to similar products?

The SPA-4XOC3-POS-V2 offers competitive performance with its 4-port OC-3/STM-1 capabilities, providing a robust and economical solution compared to single-port or lower-capacity adapters from other brands.

What are the key features of the SPA-4XOC3-POS-V2?

The SPA-4XOC3-POS-V2 features 4-port OC-3/STM-1 POS Shared Port Adapters, designed for the Cisco ASR 9000 series routers.

How cost-effective is the SPA-4XOC3-POS-V2 for system integrators?

The SPA-4XOC3-POS-V2 offers a balance of performance and cost, optimizing network performance without significant budget overhead.

What are the common application scenarios for SPA-4XOC3-POS-V2?

The SPA-4XOC3-POS-V2 is commonly used in service provider networks for high-speed data and voice transmission.

How to install the SPA-4XOC3-POS-V2 on a Cisco ASR 9000 router?

To install the SPA-4XOC3-POS-V2, simply insert it into an available slot on the ASR 9000 router and secure it with the provided screws.

Is there a need to upgrade the SPA-4XOC3-POS-V2 firmware regularly?

It is recommended to regularly check for firmware updates to ensure optimal performance and compatibility with new features.

Are there alternative products to the SPA-4XOC3-POS-V2 for the ASR 9000?

Yes, you can consider other Shared Port Adapters in the Cisco ASR 9000 series lineup depending on network requirements.

What accessories are available for the SPA-4XOC3-POS-V2?

Common accessories include compatible optical transceivers and cables specifically designed for use with the SPA-4XOC3-POS-V2.

How does the SPA-4XOC3-POS-V2 compare with similar adapters?

The SPA-4XOC3-POS-V2 is known for its high reliability and performance in the Cisco ASR 9000 series, making it a preferred choice for many.

What common troubleshooting steps should be taken if the SPA-4XOC3-POS-V2 is not recognized?

Check for proper seating, verify the router??s compatibility, and ensure firmware is up to date. If issues persist, consult Cisco support.

What maintenance procedures are recommended for the SPA-4XOC3-POS-V2?

Regularly clean the physical interfaces, ensure proper connections, and update firmware as needed to maintain optimal performance.
