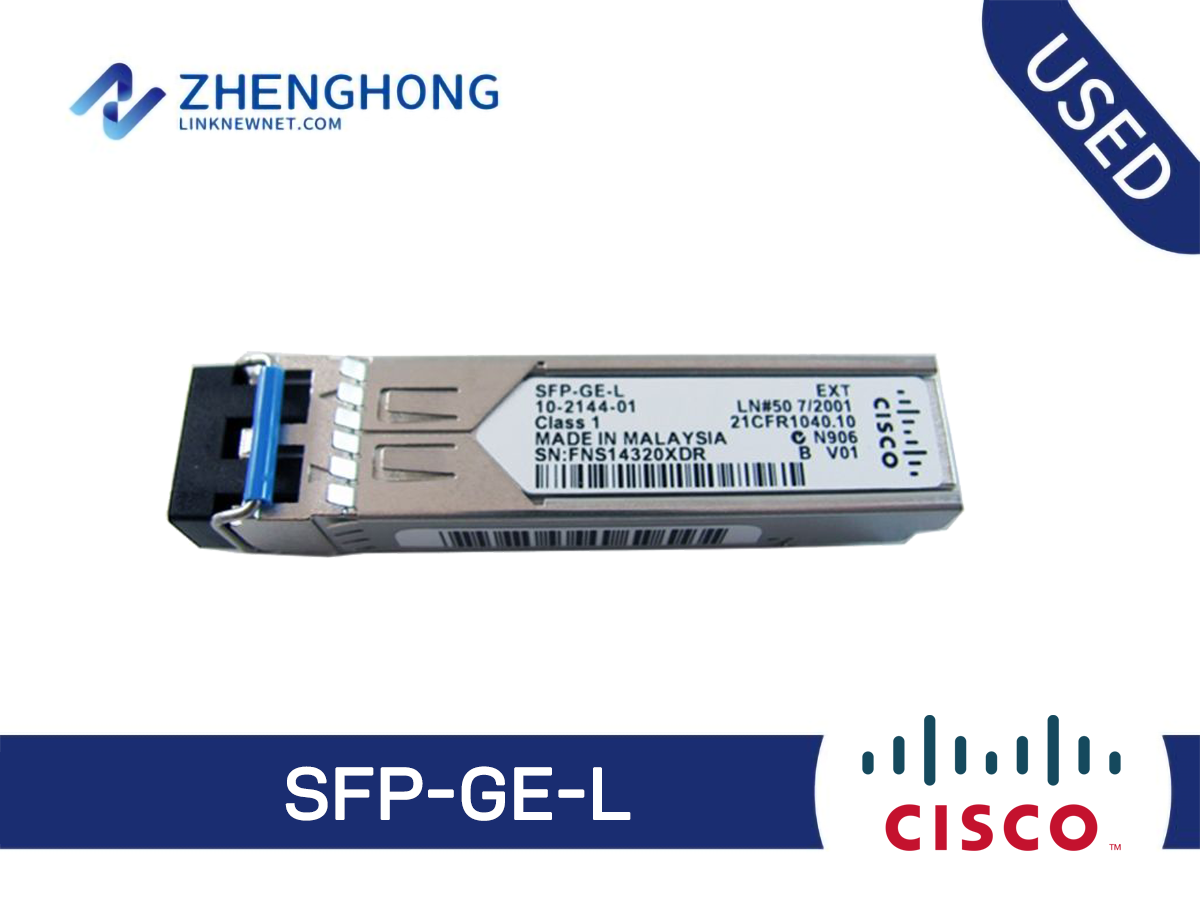

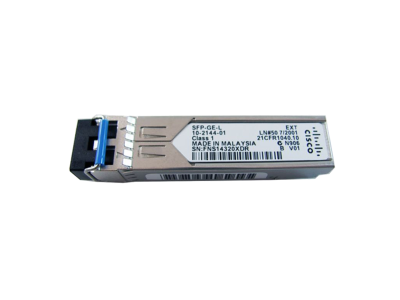

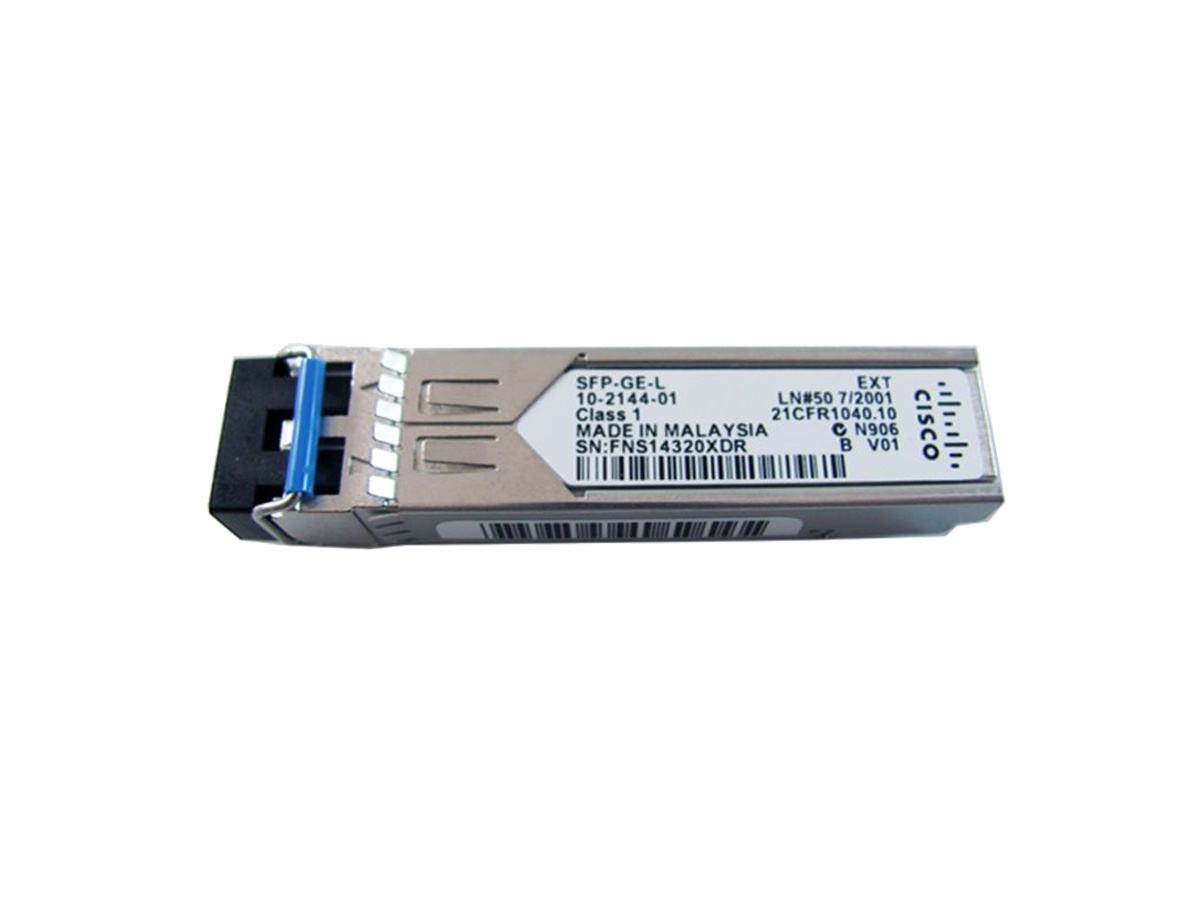

SFP-GE-L Specifications | |
Product Type | SFP |
Interface Type | 100BASE-LX |
Number of Ports/Channels | 1 |
Application/Usage | Data Networking |
Interfaces/Ports | 1 x 100Base-EX |
Interfaces/Ports Details | 1 x LC Duplex 100Base-EX |
Connectivity Media | 1310 nm Multi-mode Optical Fiber 100Base-EX |
Form Factor | Hot-swappable |
Data Transfer Rate | 100 Mbps Fast Ethernet |
Wavelength (nm) | 1310 |
Fiber Type | MMF |
Core Size (μm) | 62.5 50 50 |
Modal Bandwidth (MHz* Km) | 500 400 500 |
Cable Distance | 550 (1,804 ft) |
Transmit (dBm) | Maximum: -3 |
Receive (dBm) | Maximum: -3 |
Maximum Channel insertion loss in dB (by fiber type) | 6 (G.652 SMF) |
Transmit and Receive Wavelength Range (nm) | 1260 to 1360 |
Dimensions (H x W x D) | 8.5 x 13.4 x 56.5 mm |
Operating temperature range | Commercial temperature range (COM): 0 to 70°C (32 to 158°F), applicable to GLC-GE-100FX, GLC-FE-100BX-D, GLC-FE-100BX-U, and GLC FE 100ZX |
Storage temperature range | -40 to 85°C (-40 to 185°F) |
Temperature Range | EXT |
DOM | n/a |
